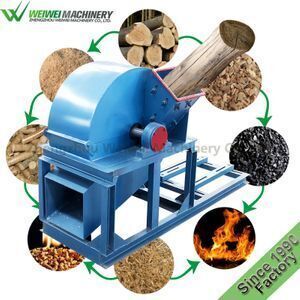

Weiwei 500 model pine oak wood tree chips shredder sawdust waste machine for plant food Rice Mill Combined With Grain Grinder

Supplier: Zhengzhou Weiwei Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Mingwei Tang
Price: $550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	1-2t/h;	Voltage:	customized;
Usage:	Chip.shaving.sawdust;	Power(W):	18.5-22KW;
Warranty:	1 Year;	Model:	500;
Dimension(LWH):	1500640820MM;	Place of Origin:	Henan China (Mainland);
Product name:	Weiwei wood crusher;	Packaging Detail:	Packing size:1500640820mm Weight :260KG Maximum of 35 sets in 20GP HS CODE :8465990000;
Port:	Qigndao Shanghai;	Supply Ability:	500 Set/Sets per Week Grinder and rice mill machine;
Brand Name:	weiwei;	After-sales Service Provided:	Online support;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal;	Condition:	New;
Weight:	260KG;	Application:	Wood Processing;

Effiect picture

for wood chipping machine

Model	Qty of cutter (blade)	Feed hole size (mm)	Cutter size (mm)	Capacity (t/h)	Main shaft speed (r/min)	Motor (kw)	Overall dimension (mm)
420	4	170*150	420	1	2600	11	1200550750
500	4	200*170	500	1.5	2400	22	1500640820
600	4	220*190	600	2	2200	30	1500700900
700	4-6	230*190	610	3	2000	37	18508301050
900	8	270*250	750	6	1500	75	200018701500
1000	8	280*290	750	6	1500	75-6	11701170950
1200	8	420*400	1000	8	1200	90-6	145016201200
1500	8	460*490	1160	10	1000	110-6	160017501400
1800	12	530*560	1300	12	950	950	205018501620

Product Description

This wood grinder can be converted into double feed ports, widely range of applications. One feed inlet can be fed into logs, plates, bamboo and other raw materials, and another wide feed inlet can enter twigs and stalks. Palm leaves, etc.

According to the different size of screen mesh,the machine can cutting and grinding different effect.

Advantages and uses

Advantages

Rational design, compact structure, safety, durability, high production efficiency
The promotion and use, the effect is good, the whole set of equipment with only a motor drive, noise, simple structure, compact layout, cheap, stable,
Energy Less, high yield, good quality sawdust products, low processing costs.

Rang of using

pine wood
Yang wood
Hard wood
Bamboo
Cocoanut shell
Corn stalk
Sorghum stalk
Thatch
and other fiber stalk

Power and effects

The raw material is fed into the inlet when the wood comes into contact with the cutting blade,it was cut with the high speed rotation of the cutter head. The cut wood chip is sent out of the high speed steam generated by the blade on the cutter blade in the cutting chamber .

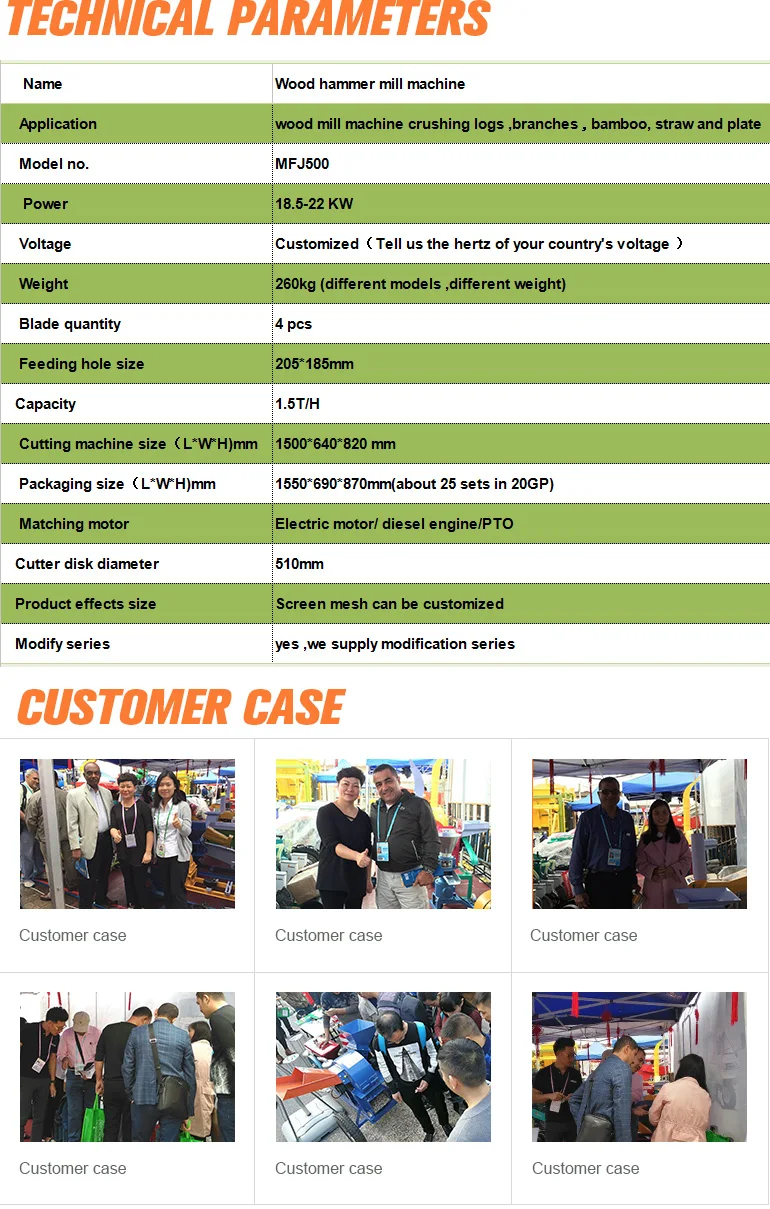

Parameter and client

Service &packaging

Company &Certificate

FAQ &Contact details

Q Are you a trading company or a manufacturer?

A We are the manufacturer , which has about 30 years experience and own research and
development team.

Q How To Order ?

A Step 1:please tell us what model and quantity you need;
Step 2: Then we will make a PI for you to confirm the order details;
Step 3: When we confirmed everything, can arrange the payment;
Step 4: Finally we deliver the goods within the stipulated time.

Q When will make delivery ?

A Delivery Time,7-15 days after getting payment. (Specific time according to order quantity)

Q payment method ?

A L/C, T/T, Western Union, Paypal

Q Mode of transport ?

A Transported by sea, by air or by express.

Q After-sales Service ?

A 12 months warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
