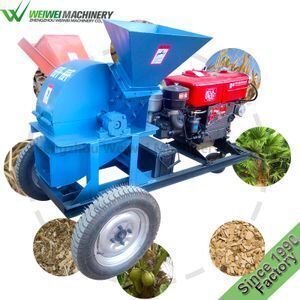

WEIWEI model 420 capacity 1t wood chipper hammer mill poplar tree cutting camphor tree chipper

Supplier: Zhengzhou Weiwei Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Mingwei Tang
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	High Productivity;	Supply Ability:	500 Set/Sets per Week Wheat flour mill machine;
Condition:	New;	Core Components:	Engine;
Aperture Size:	3-16mm;	Showroom Location:	none;
Packaging Detail:	"Wooden case packing size:1200550750mm Weight :150-400KG Maximum of 42 sets in 20GP HS CODE :8465990000";	Name:	Weiwei Shredder Chipper;
Dimension(LWH):	1200550750mm;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Construction works ,Food & Beverage Shops;
Length of Cutter:	90608MM;	Brand Name:	WEIWEI;
Cutter Diameter:	424mm;	Number of Cutter:	4;
Product name:	Disc Wood Chipper Shredder Machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	158KG;	Engine:	18hp;
Mill Granularity:	0.5-20mm;	After Warranty Service:	Video technical support,Online support;
Machinery Test Report:	Provided;	Payment Terms:	L/C,T/T,Western Union,PayPal;
Local Service Location:	none;	Video outgoing-inspection:	Provided;
Capacity:	1-2ton/h;	Marketing Type:	Ordinary Product;
Port:	Qingdao Shanghai;	Usage:	Wood Chipper Shredder Cutting Wood Branch;
Inlet Diameter:	160*155mm;	Application:	Wood Logs;
Place of Origin:	Henan China;	Warranty of core components:	1 Year;
Warranty:	12 Months;

The main technical parameters

Model	Qty of Cutter	Feeding hole size(mm)	Cutter disk diameter (mm)	Cutter size (mm)	Capacity (t/h)	Motor (kw)	Main shaft speed (r/min)	Overall dimension (mm)
420	4	170*150	420	90608	1	11	2600	1200550750
500	4	200*170	500	120708	1.5	22	2400	1500640820
600	4	220*190	600	150708	2	30	2200	1500700900
700	4-6	230*190	610	150708	3	37	2000	18508301050
900	8	270*250	750	15010010	6	75	1500	200018701500
1000	8	280*290	750	15014010	6	75-6	1500	11701170950
1200	8	420*400	1000	19014012	8	90-6	1200	145016201200
1500	8	460*490	1600	23014014	10	110-6	1000	165017001400
1800	12	530*560	1300	19014014	12	132-6	950	205018501620

Product Description

Effect picture

Advantages and uses

Power and effects

Range of use

pine wood
Yang wood
bamboo
cocoanut shell
sorghum straw
logs
cough grass
corn straw
corn cob
other fiber stalk-like material chips

The raw material is fed into the inlet when the wood comes into contact with the cutting blade,it was cut with the high speed rotation of the cutter head. The cut wood chip is sent out of the high speed steam generated by the blade on the cutter blade in the cutting chamber .

Parameter and client

Service &packaging

Company &Certificate

FAQ &Contact details

Q Are you a trading company or a manufacturer?

A We are the manufacturer , which has about 30 years experience and own research and
development team.

Q How To Order ?

A Step 1:please tell us what model and quantity you need;
Step 2: Then we will make a PI for you to confirm the order details;
Step 3: When we confirmed everything, can arrange the payment;
Step 4: Finally we deliver the goods within the stipulated time.

Q When will make delivery ?

A Delivery Time,7-15 days after getting payment. (Specific time according to order quantity)

Q payment method ?

A L/C, T/T, Western Union, Paypal

Q Mode of transport ?

A Transported by sea, by air or by express.

Q After-sales Service ?

A 12 months warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
