Weiwei Animal sinking pellet feeding pellet making machine pigs rabbits chickens ducks fodder feed processing machines

Supplier: Zhengzhou Weiwei Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Mingwei Tang
Price: $399.00 / 1 - 9 sets
$389.00 / 10 - 49 sets
$165.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Food & Beverage Shops;	Video outgoing-inspection:	Provided;
Max. Capacity:	60-100kg/h;	Dimension(LWH):	680320750mm;
Application:	Grain Feed;	Marketing Type:	New Product 2020;
Weight:	50;	Machinery Test Report:	Provided;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;	Key Selling Points:	Multifunctional;
Showroom Location:	None;	Condition:	New;
Place of Origin:	Henan China;	Raw material:	Wheat Bran;
Local Service Location:	None;	Voltage:	220V;
Usage:	Animal Poultry Livestock Pellet Making Machine;	Core Components:	Gear,Gearbox,Motor,Bearing,Engine;
Name:	Cat feeding machine;	Warranty:	12 Months;
Product name:	Flat Die Animal Feed Pellet Machine;	Motor:	Chinese Brand;
Port:	Any port as customer's request;	Color:	Customer's Request;
Material:	Alloy Steel;	Certification:	ISO9001;
Brand Name:	WEIWEI;	Packaging Detail:	International standard wooden case;
After Warranty Service:	Online support,Field maintenance and repair service;	Warranty of core components:	1 Year;
Capacity:	60-80kg/h;	Type:	Feed Pellet Machine;
Function:	Aniaml Feed Puffed Pellet Machine;	Supply Ability:	500 Set/Sets per Week Cat feeding machine;

Product Description

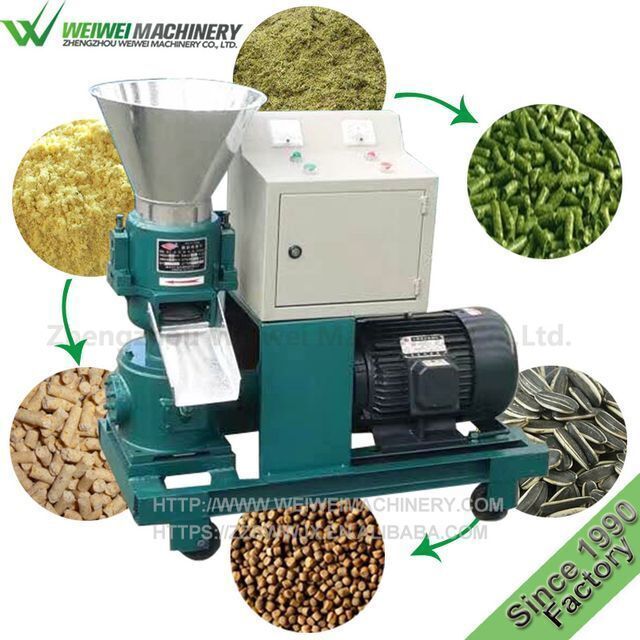

Capacity 60-80 kg per hour fish animal cat food feeding pellet making machine cat feed processing machines

Cat feeding machine made the feed pellet by corn, bean pulp, straw, grass and rice husk.

Used for aquiculture, poultry feed making plant, stock farm, poultry farm etc.

Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life.

It is recommended replace roller and die at the same time.

We have several diameter for your choice, and the size can be customized according to your requirements.

You can choose 3mm, 4mm, 5mm, 6mm and so on according to your demands.

Model	Die Diameter (mm)	Production Efficiency (kg/h)	Motive Power (kw)	Weight (kg)
9KLP-120 with gearbox	105	40-50	2.2	40
9KLP-120A with gearbox	120	60-80	3	45
9KLP-120 with direct motor	120	60-80	3	50

Detailed Images

Advantages of cat feeding machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.

Copper core motor

1.Real power
2.Maintenance-free

Input hopper

It is convenient to put the mixture into the hopper, and the mixture won't lie around all over the place.

The roller

1.The roller is machined with alloy steel.
2.The material is gelatinized between the roll and the template with high temperature and discharged from the die hole under the roll.

Contact roller

Hard rollers make the machine easy to use and can be placed optionally.

Output hopper

1.Stainless steel
2.There are breast boards on the both side, and the pellets won't splash.

Matters need attention

1. The new machine for the first time must be run or otherwise can't be used normally.
2. When the pellet machine is working, don't reach into the input hopper by hand. If necessary, you can use a stick to help.
3. Before the machine is turned on, you need to add a little mixture before starting. When the machine is shut down, please leave a little mixture in the machine to prevent the roller and the template idling.
4. When the machine is working, and the phenomenon of stuck happens, should immediately stop and make the roller pressed to the bolt loose, and then restart the machine.
5. Each time the work is completed, the bolt of adjusting roller must be released.
6. If the machine is used for a certain period of time or squeeze out a certain amount of pellets and the pellets are made into pieces or the pellets are broken, the template should be turned to the bottom, and 2%-4% water should be added to the mixture.
7. Please often check the belt tightness to prevent the emergence of low yield, belt slippery and so on.
8. Before starting, firstly add gear oil to the gearbox reaching to 2/3 of the horizontal axis. Pellet machine in the first use should work in low load for 40 hours or so, and then replace the gearbox gear oil, 100 hours after the regular replacement. All bearings should be regularly filled with grease.
9. Particle machine works continuously and then the motor fever reaches to 70 degrees Celsius, it is a normal phenomenon.

Packing & Delivery

Certifications

Our Company

Zhengzhou WeiWei Machinery Co., Ltd. built the factory in 1980, covering an area of over ten thousand square meters and annual output reaching to forty to fifty thousand sets.

As a foreign trade company, we integrate scientific research, design, manufacture and sales, and engage in machinery equipment technology research, development and promotion.

FAQ

1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 18 years experience and own research and development team.
2. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
