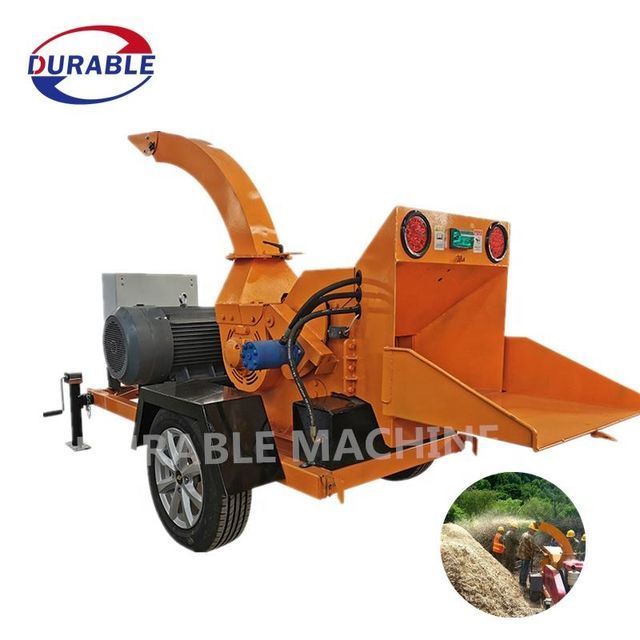

Factory price yard machine 10 HP chipper pallet crusher log crusher tree chipper

Supplier: Henan Durable Machine Co., Ltd.
Region: Henan, China
Contact: Ms Simmia Shi
Price: $2500.00 / 3 - 49 sets
$2000.00 / >=50 sets
Min. Order: 3 sets

Click here to contact

Product details

Advantage:	high efficiency	Showroom location:	not any
capacity:	1-2 tons/hour	usage:	Wood chipper cutting wood branches
color:	Customer requirements	Feeding system:	Hydraulic feed
Place of origin:	Henan, China	application:	crush branches
Entrance dimensions:	30*20cm	Core component warranty:	1 year
Voltage:	220V/380V	Main selling points:	Easy to operate
Core components:	Engine, motor	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Key words:	wood shredder crusher	strength:	50kW
port:	Qingdao, Shanghai	Dimensions (lengthwidthheight):	custom made
brand:	durable	Marketing type:	2020 new products
Warranty:	1 year	Mechanical test report:	if
Applicable industries:	Machine repair shops, farms, home use, construction projects	Weight (kg):	800
Video outbound inspection:	if	Packaging details:	Standard export wooden box or single container
Health status:	new	Package preview:
Supply capacity:	200 sets per month	product name:	tree branch grinder
engine:	Gasoline 32 HP

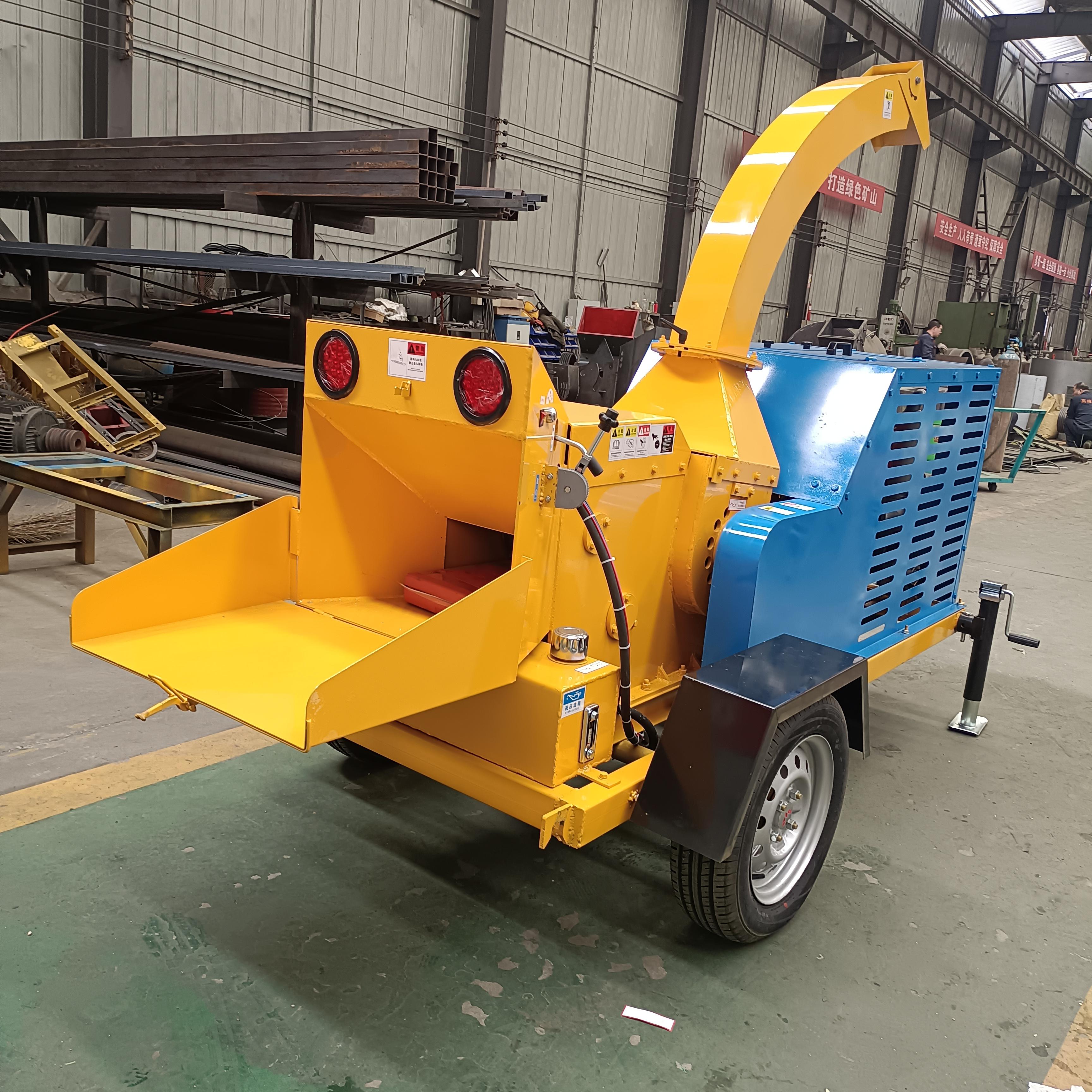

product description

The garden branch crusher is an ideal new woodworking machinery for wood powder production. The wood shredder can process wood, branches and other raw materials into wood chips at one time. It has the advantages of low investment, low energy consumption, high productivity, good economic benefits, and easy use and maintenance.

compact size
Simple controls
Easy maintenance
Hydraulic self-feeding
High speed chip removal
wide throat
360° rotating discharge
Adjustable chip conveyor
High speed cutting disc

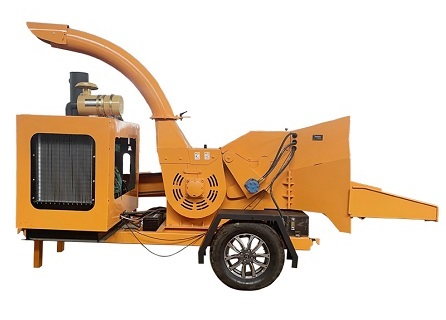

product specifications

Model	HY-6130	HY-6145
engine	Diesel/electric optional	Diesel/electric optional
strength	32 hp/22 kW	102 hp/60 kW
speed	2200 rpm	1800 rpm
oil consumption	6.5 liters/hour	15 liters/hour
Start method	electric start	electric start

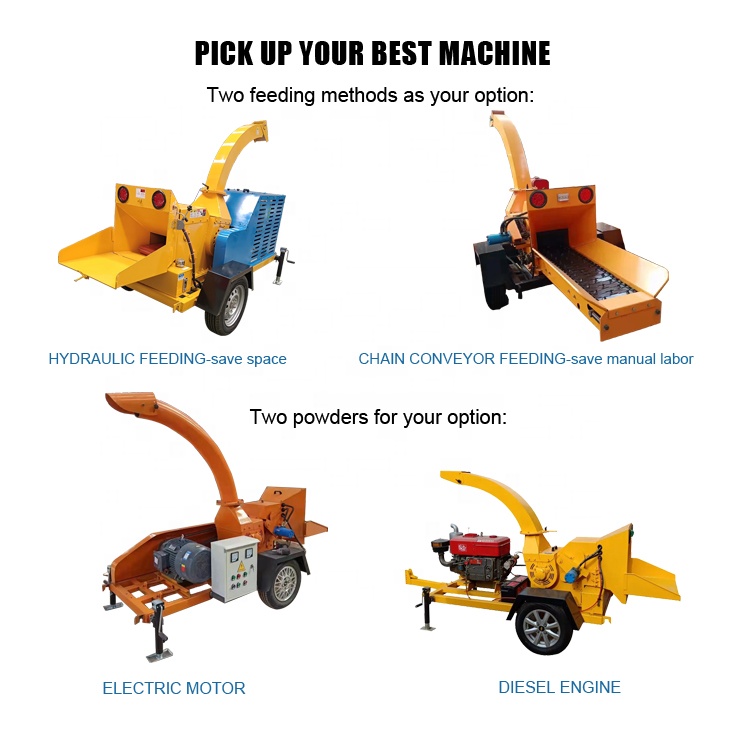

Feeding method:	Horizontal hydraulic feed/chain conveyor (optional)	Horizontal hydraulic feed/chain conveyor (optional)
Inlet size	300*200mm	450*380mm
Feeding roller diameter	280mm	600mm
Discharging height	2.5m	4m
Rotor diameter	300mm	500mm
blade	4	7
wood maximum diameter	150mm	200mm
Crushing size	5-20mm	5-20mm
capacity	1-2 tons/hour	3-5 tons/hour

Application scope

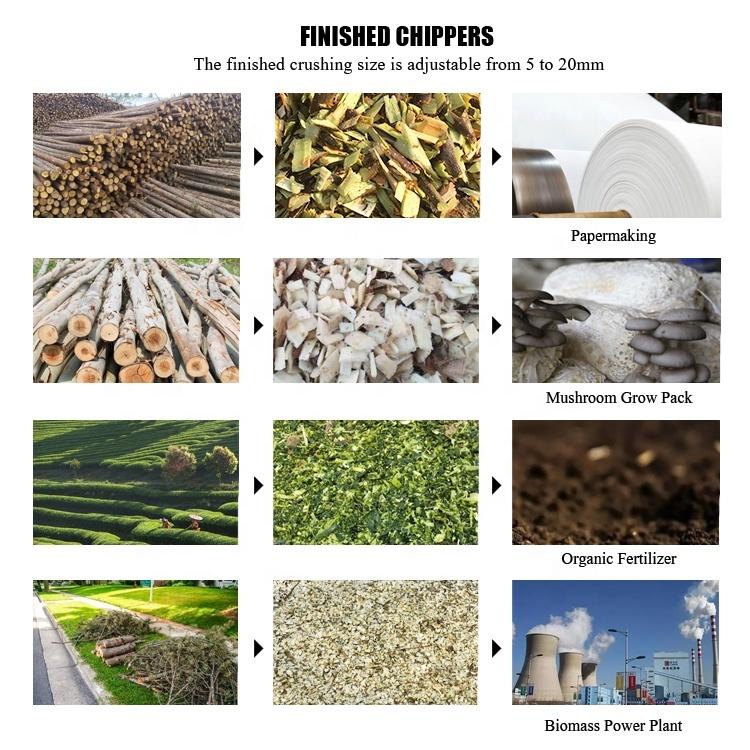

Mobile wood chippers are mainly used to cut branches, logs, sawdust and shrubs to prepare raw materials for paper mills, MDF mills, biomass power plants, organic fertilizer plants, and landscaping and tree care work.

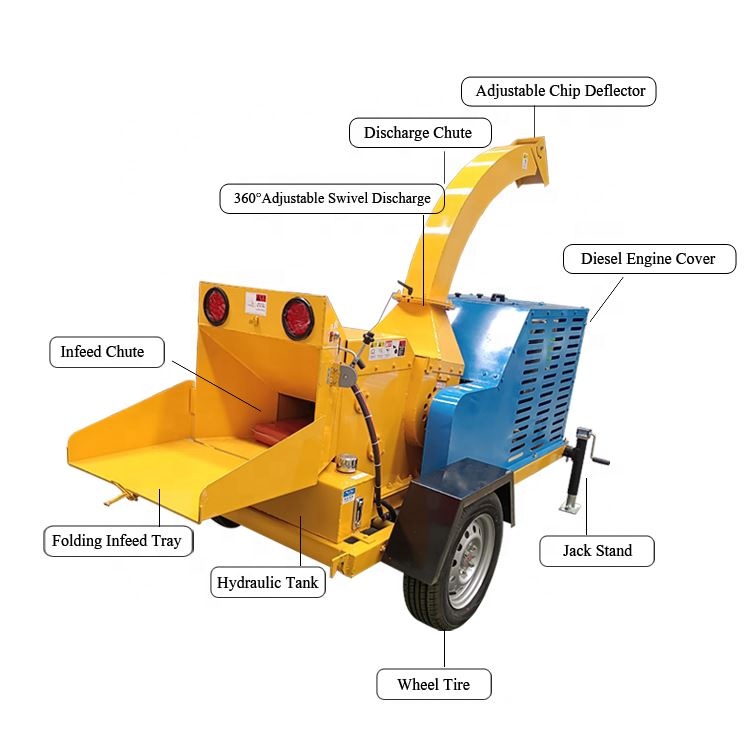

Product configuration

The battery, fuel tank and hydraulic tank are located inside the frame for a protected, clean design.

thisdigital surveillance systemIt can monitor oil volume, water temperature, oil pressure, and working hours, detect abnormal conditions in time, and reduce maintenance.

Folding feeding table- Keep a safe distance from the operator and the feed roller.

tired tiresMinimizing road damage and allowing highway travel.

perfect roundcutting discProvides extremely smooth cutting action, extending bearing and machine life.

double edge knife- Easily flips over to provide a second cutting edge when needed

360° rotating dischargeMaking chip redirection fast and easy

Adjustable chip detectorPlace the chip where you want it.

There is another modeBelt conveyorfor you to choose

feature:

1. Automatic feeding: Easy to operate and high production efficiency.

2. Stable job: Continuous roller crushing, dynamic balancing treatment.3.Durable: Steel parts are made of high-quality materials, long-life high-power self-aligning bearings.4. Low cost: Low power consumption high-end tool, double-sided blade.

5. Easy to move: Can be designed as a mobile crusher for on-site production.

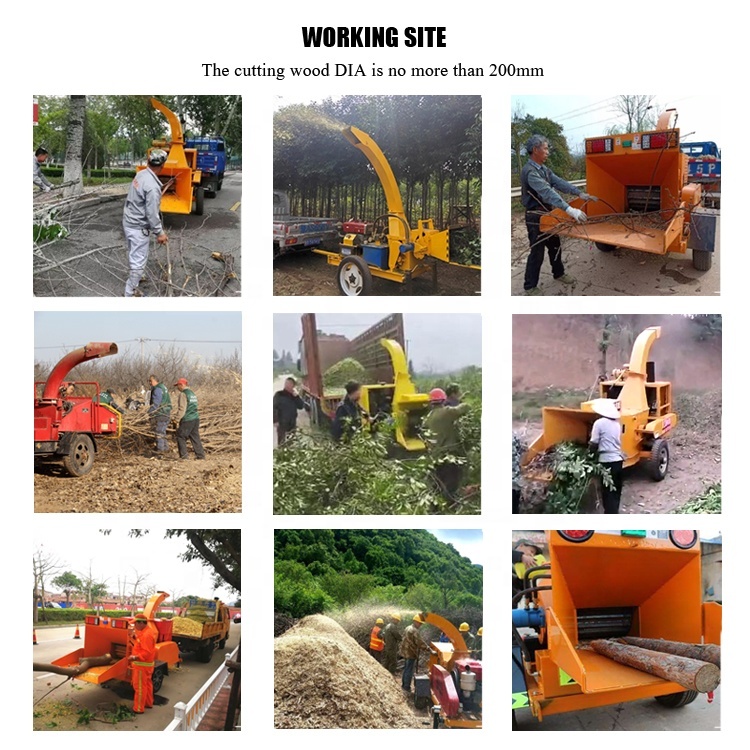

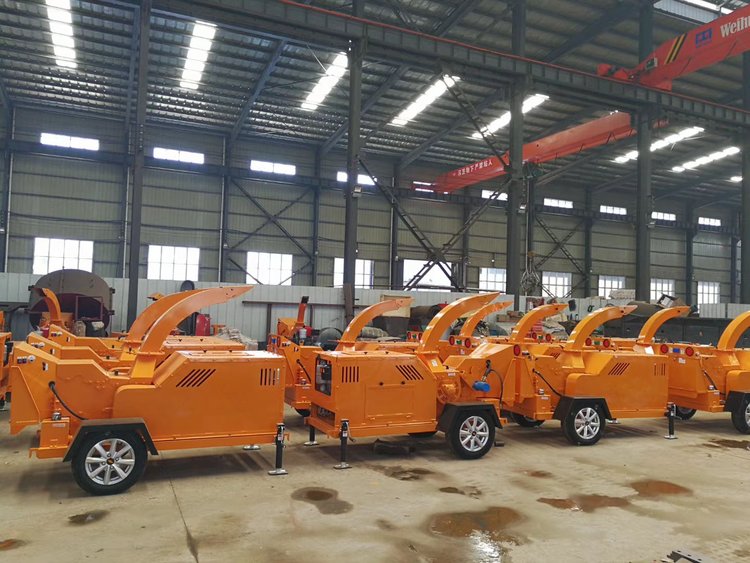

successful projects

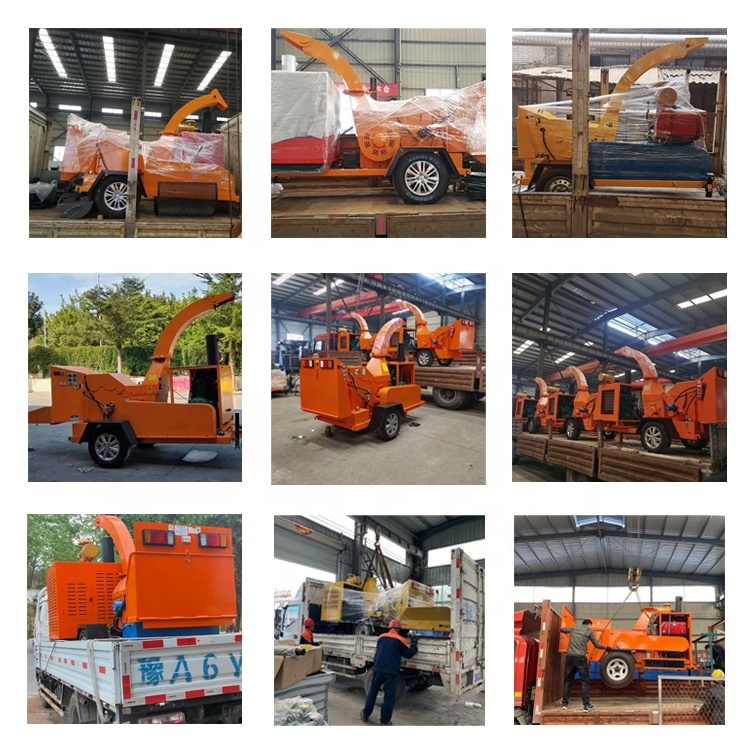

Product packaging

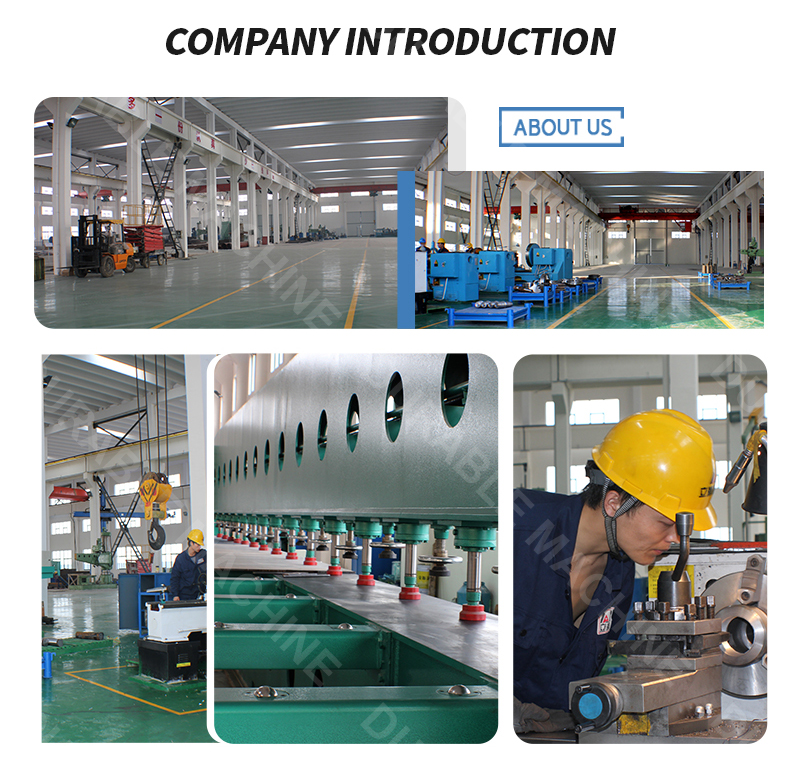

Manufacturing Technology

Durable Machinery was established in Zhengzhou, Henan Province, with more than 15 years of manufacturing experience. Now, our company's goal is to explore the international market with competitive prices, best quality and good pre-sales/after-sales services.

Our professional and strict manufacturing process will be the greatest guarantee for your business.
