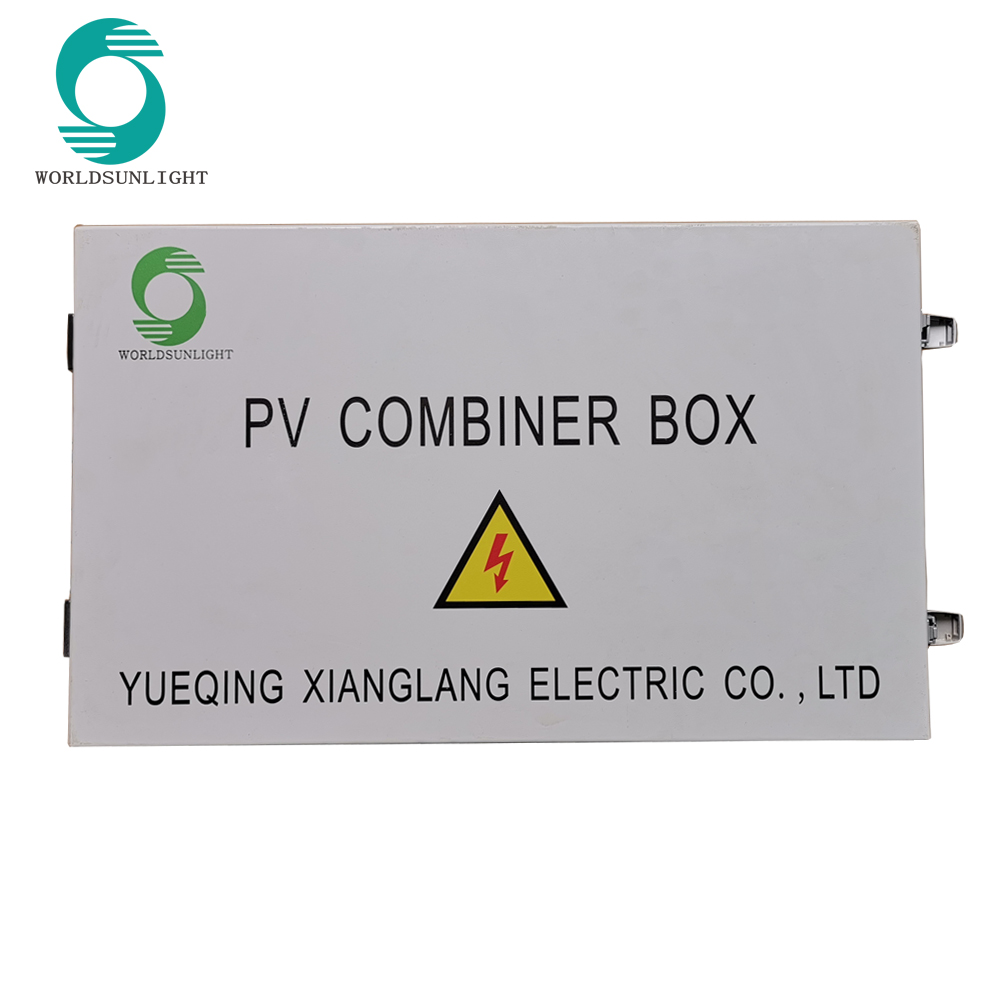

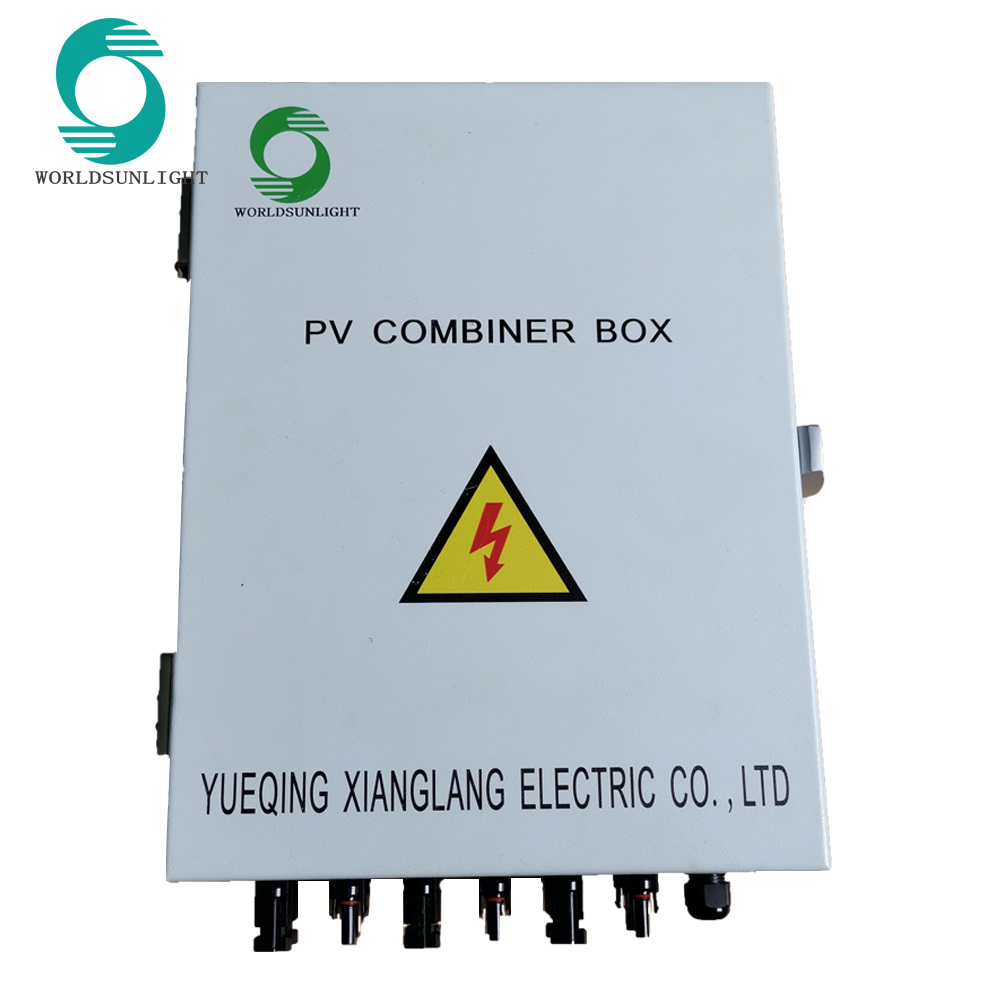

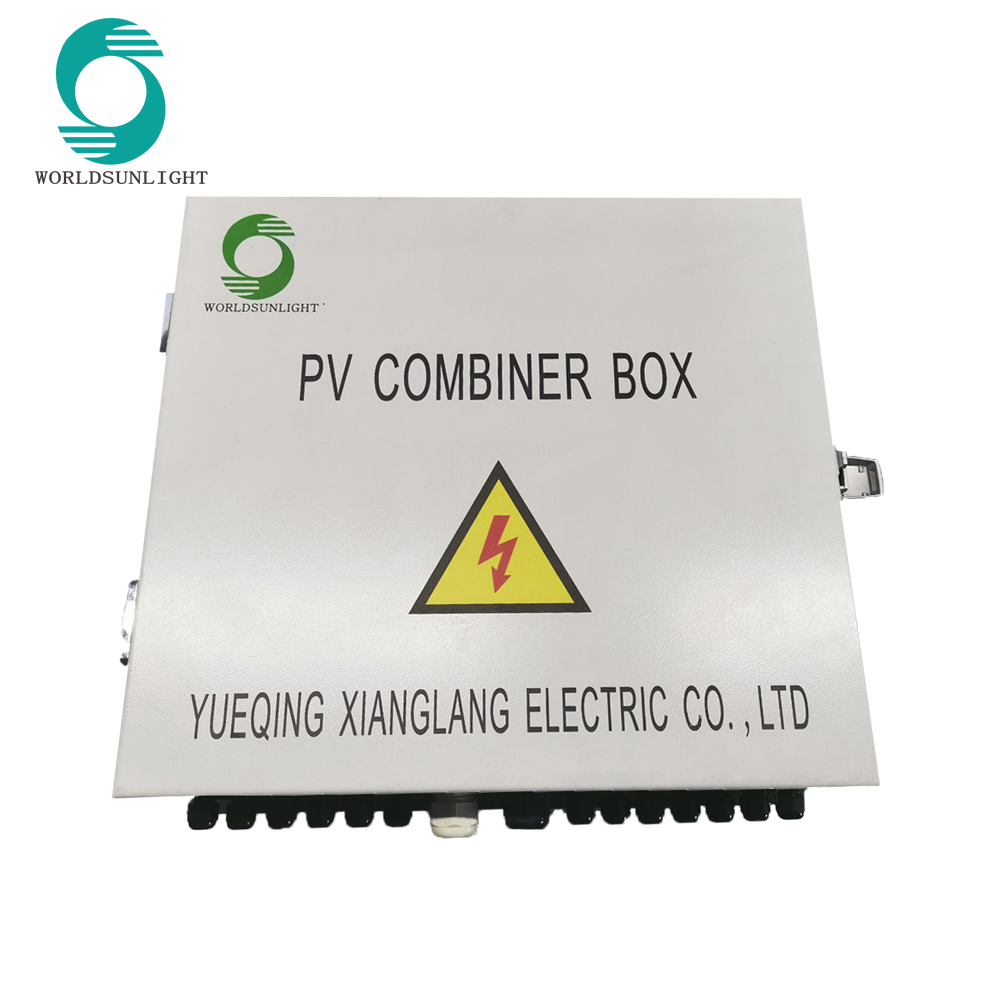

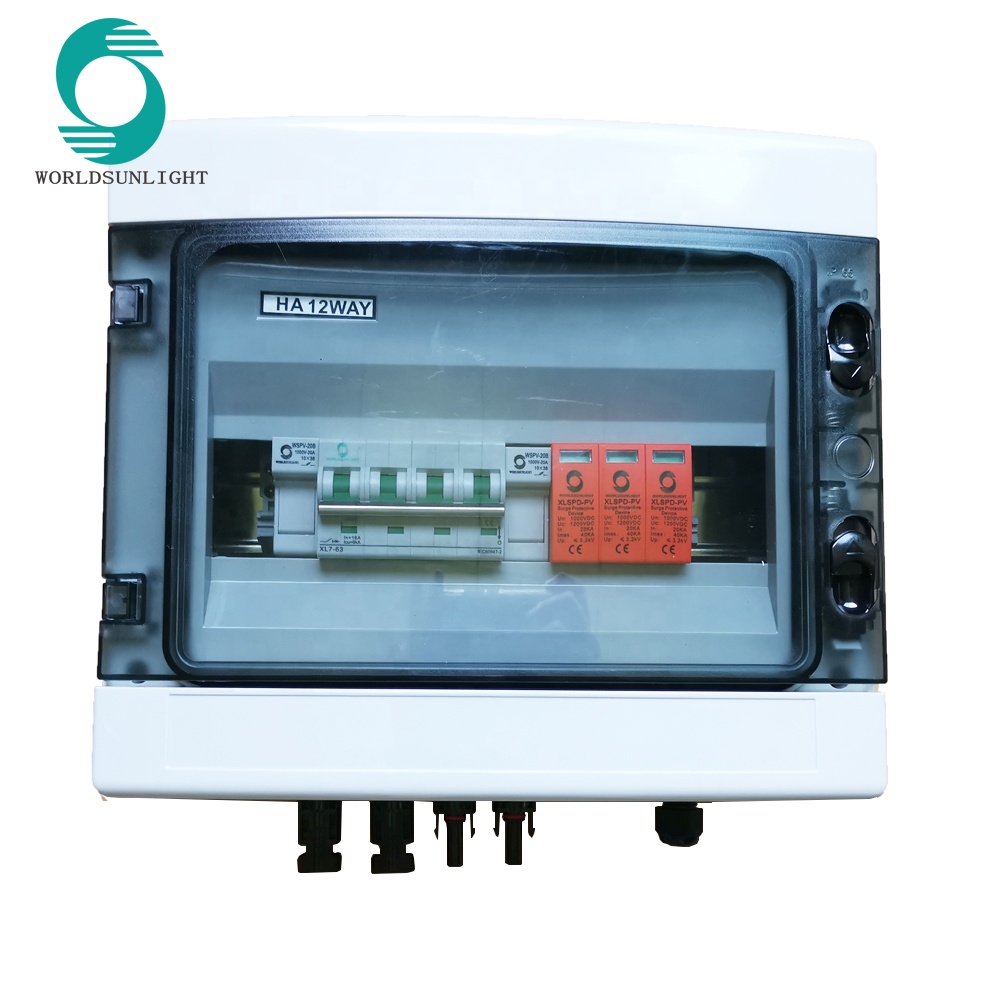

Wholesale Factory Price IP65 6 IN 6 OUT 25A 1000V DC Iron Solar Photovoltaic Array Metal Combiner Box with Solar Connector
- 100.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Standard export carton | waterproof level: | IP65 |
| String: | 6 | payment terms: | L/C, Western Union, T/T, Paypal |
| Box material: | iron | Origin: | Zhejiang, China |
| model: | WSDB-PV 6/6 | Maximum DC voltage input: | DC 1000V |
| port: | Ningbo/Shanghai | Box size: | 650*390*190mm |
| brand: | World Sunshine/OEM | Supply capacity: | 10000 pieces per month |
| Maximum output current: | 25A |
Related Products
Product Description
Photovoltaic combiner boxapplication:
Worldsunlight photovoltaic string DC combiner box is a key component in photovoltaic solar power generation system, placed between solar modules and inverters.
Simplifies physical wiring between solar panels and inverters Fault current protection for each PV string Fault alarms Ease of installation and maintenance
Photovoltaic combiner boxAdvantage:
Easy to process with common tools IP66 wide operating temperature range fire resistance non-conductive good chemical resistance light weight excellent insulation properties cost-effective material for harsh environments
Powder-coated chrome-nickel steel housing:
Thickness ≥1.2mm can be easily processed with common tools Powder coated cold rolled surface treatment: pickled and phosphated 80-120 μm IP65 waterproof, dustproof, corrosion and UV resistant Durable: HRPV series combiner boxes can withstand harsh environments Environmental exposure is suitable for long-distance transportation
Technical Parameters | ||
Name | WSDB-PV6/6 | |
System maximum DC voltage | 1000V | |
Maximum input current per string | 25A | |
Maximum input string | 6 | |
Maximum Output Switching Current | 25A | |
Inverter MPPT Quantity | nitrogen | |
number of output strings | 6 | |
lightning protection | ||
test category | Level II protection | |
Nominal discharge current | 20kA | |
Maximum discharge current | 40kA | |
Voltage protection level | 3.8kV | |
Maximum continuous working voltage Uc | 1000V | |
polish | 3P | |
Structural features | plug-in module | |
system | ||
degree of protection | IP65 | |

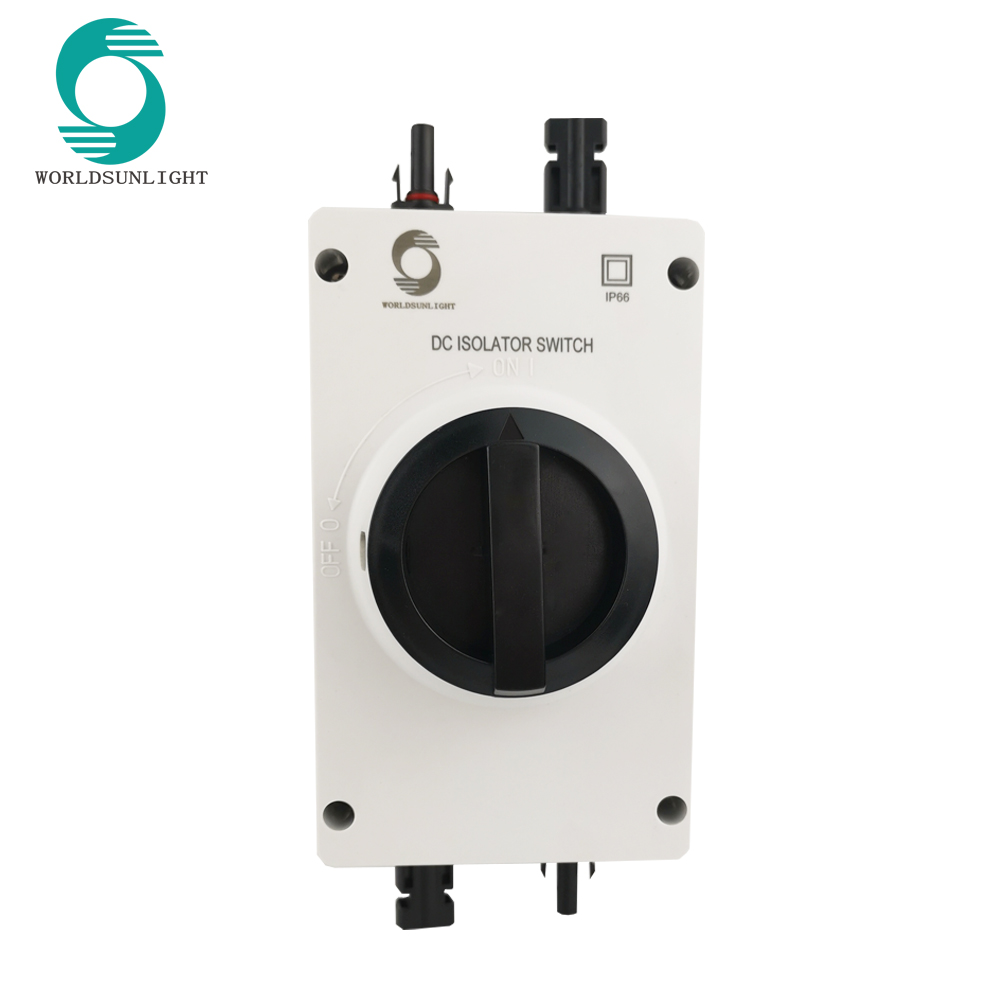

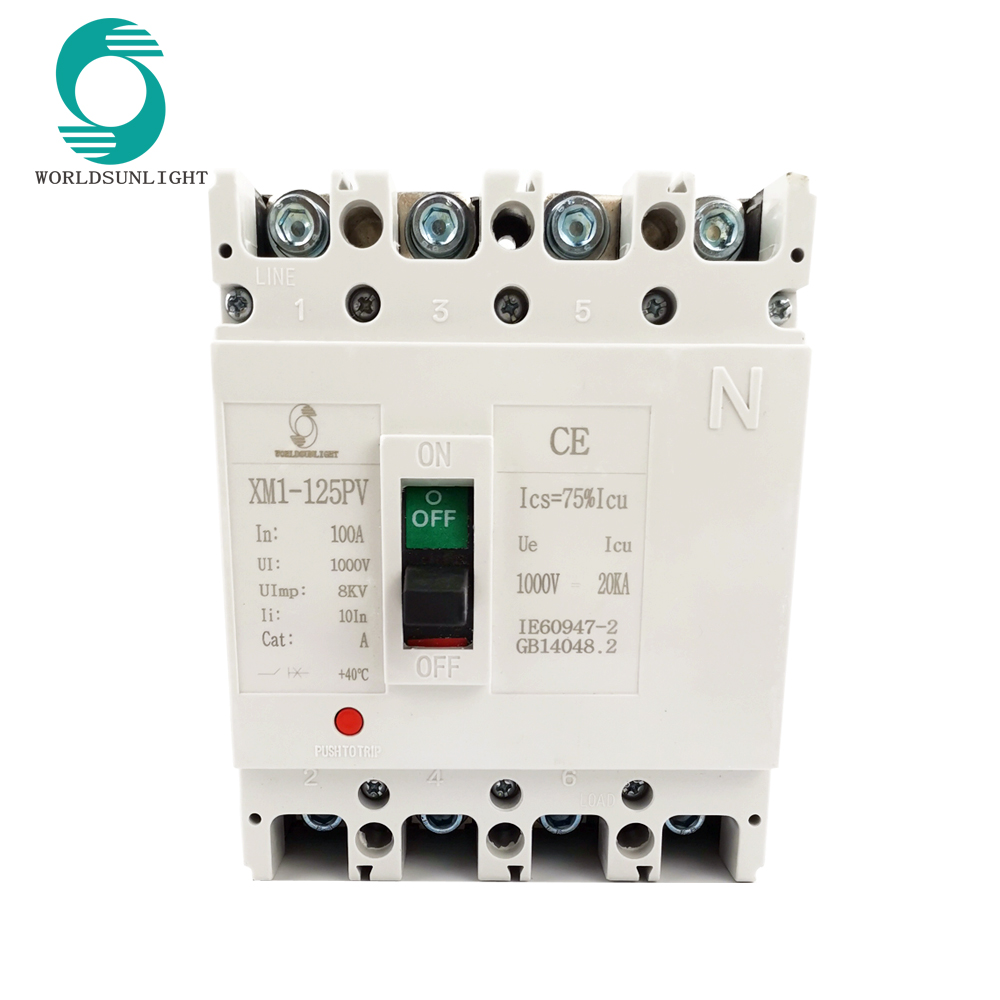

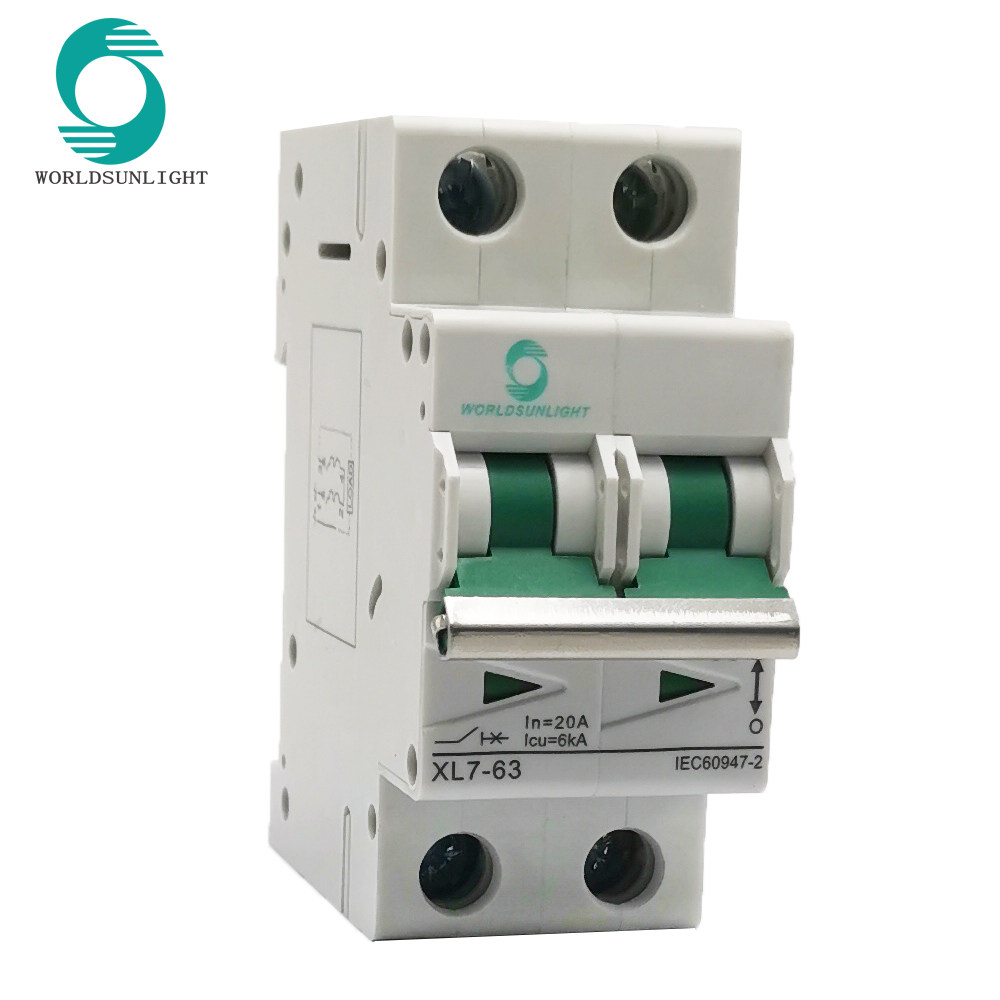

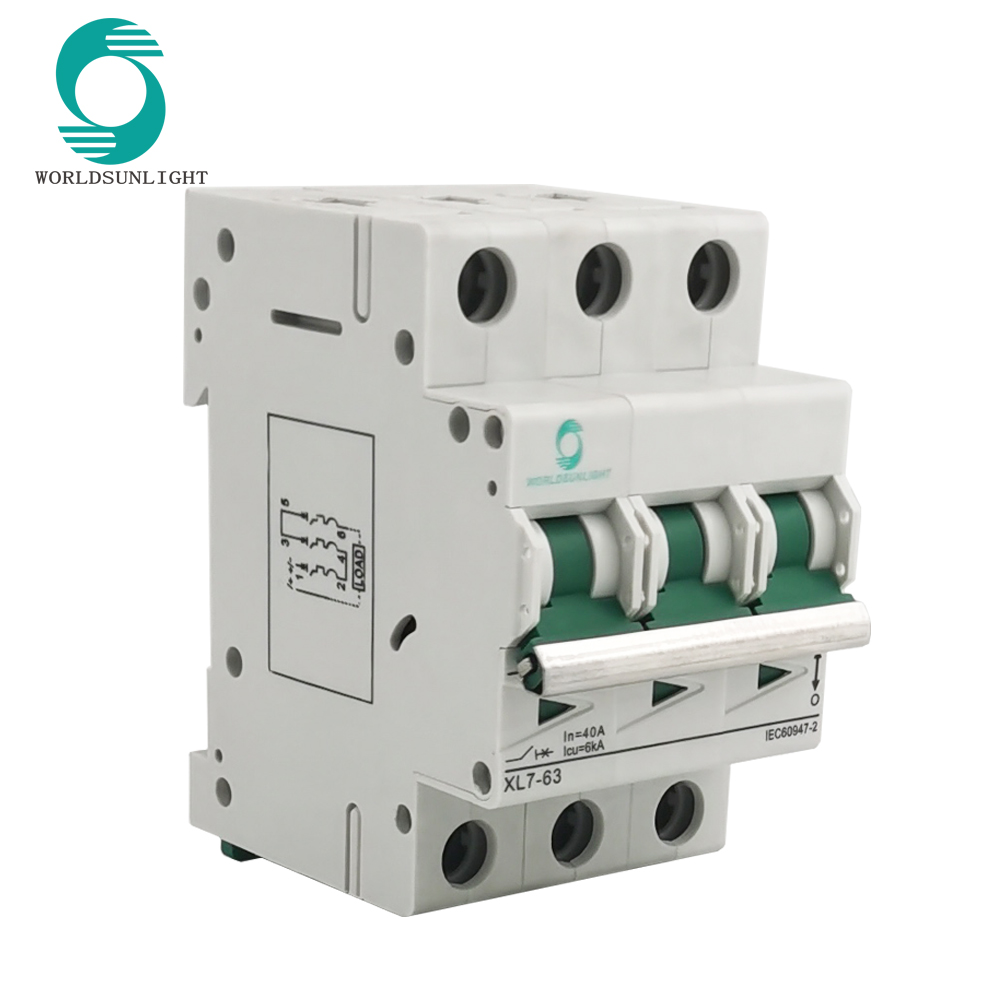

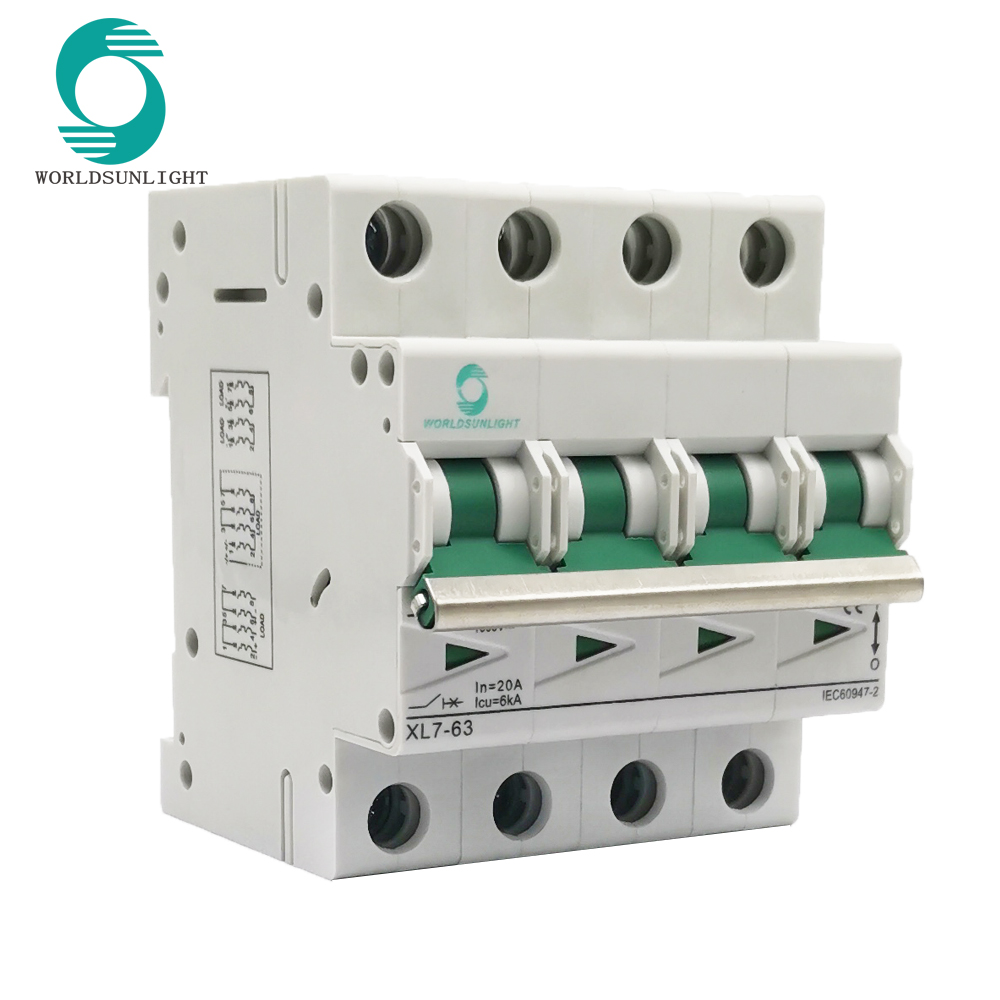

output switch | DC isolation switch (standard)/DC circuit breaker (optional) | |

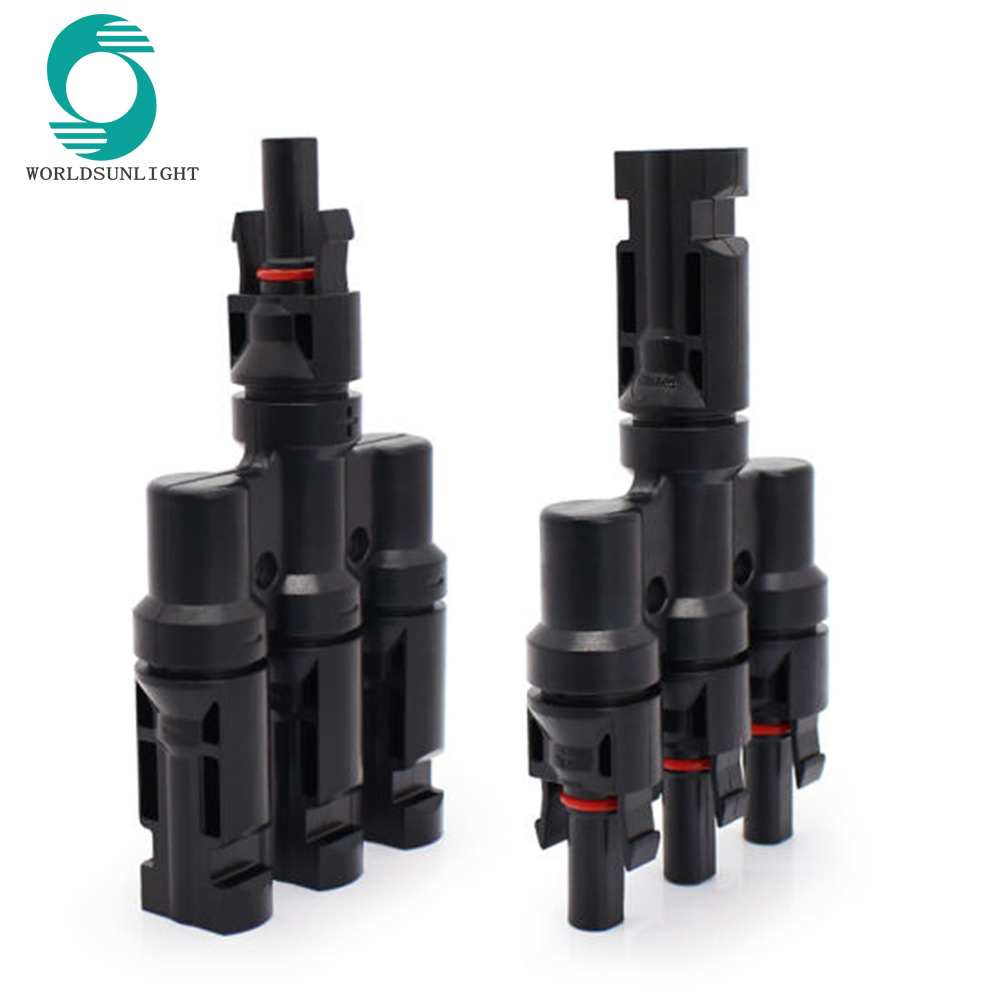

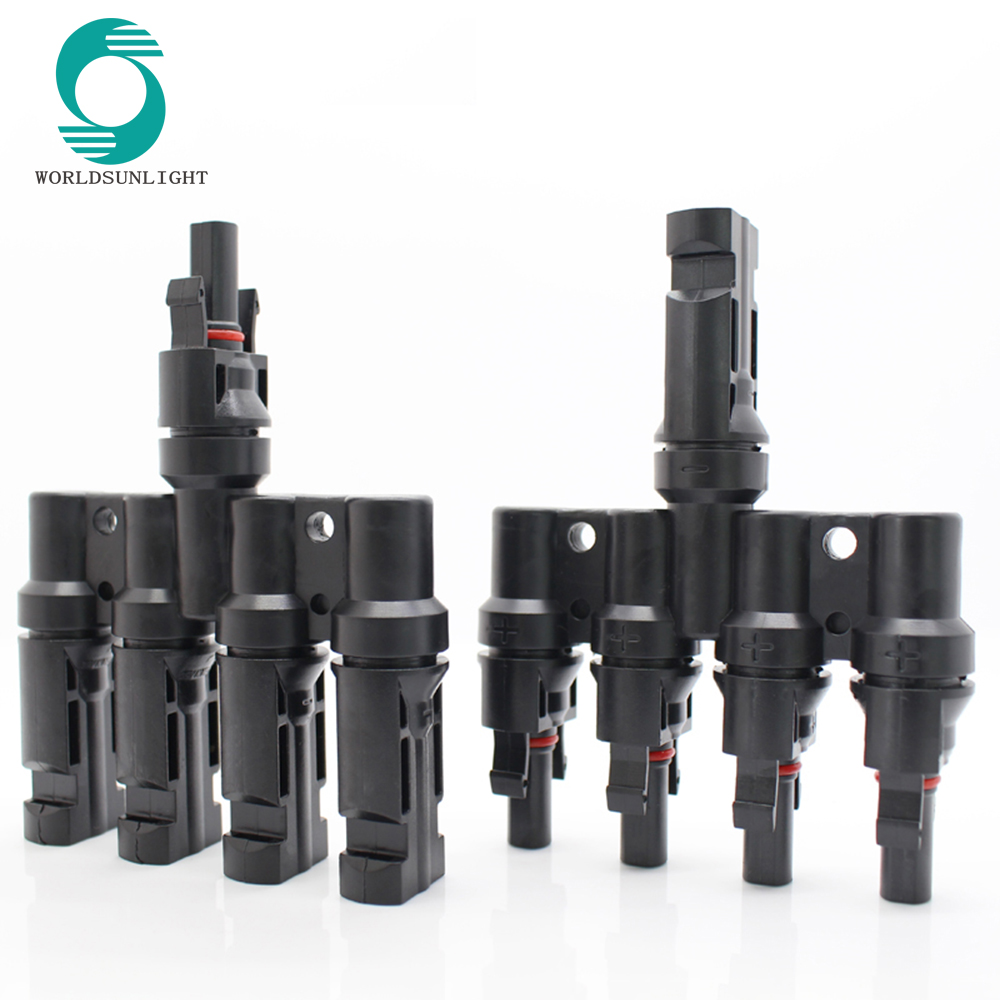

SMC4 waterproof connector | standard | |

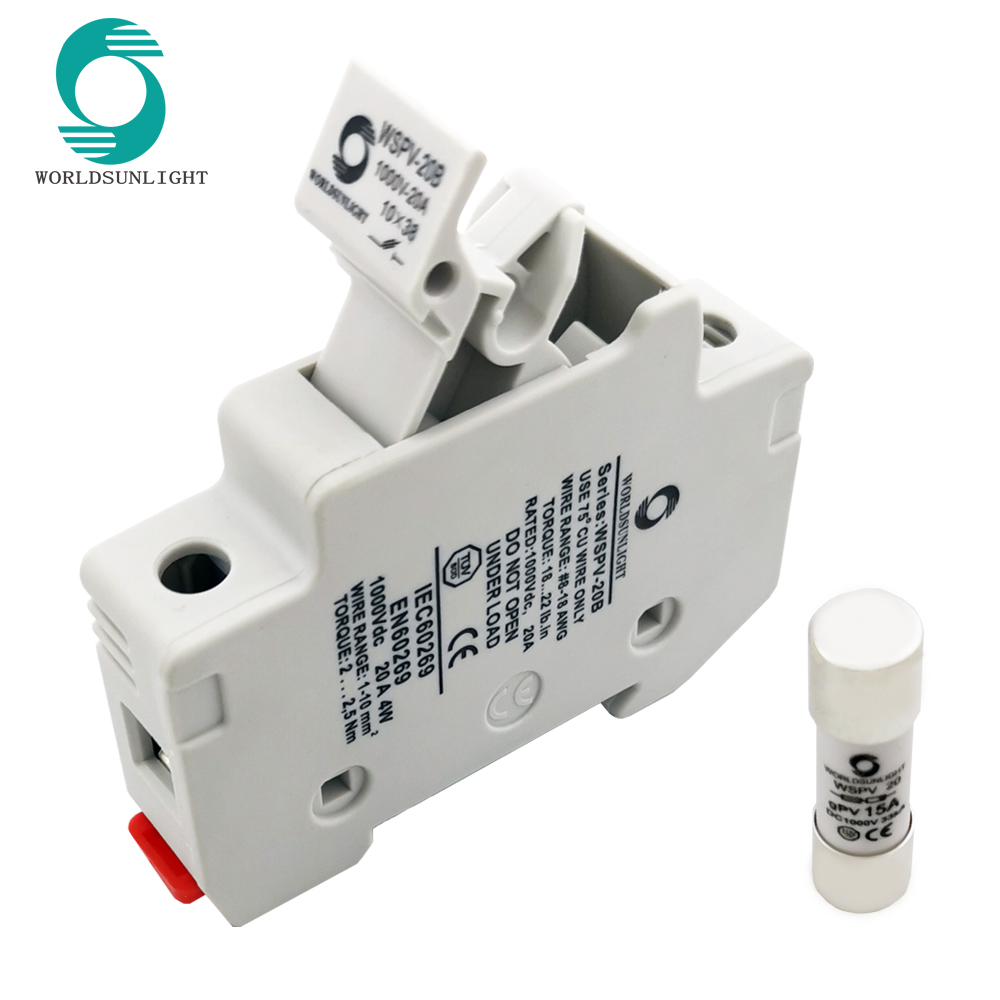

Photovoltaic DC fuse | standard | |

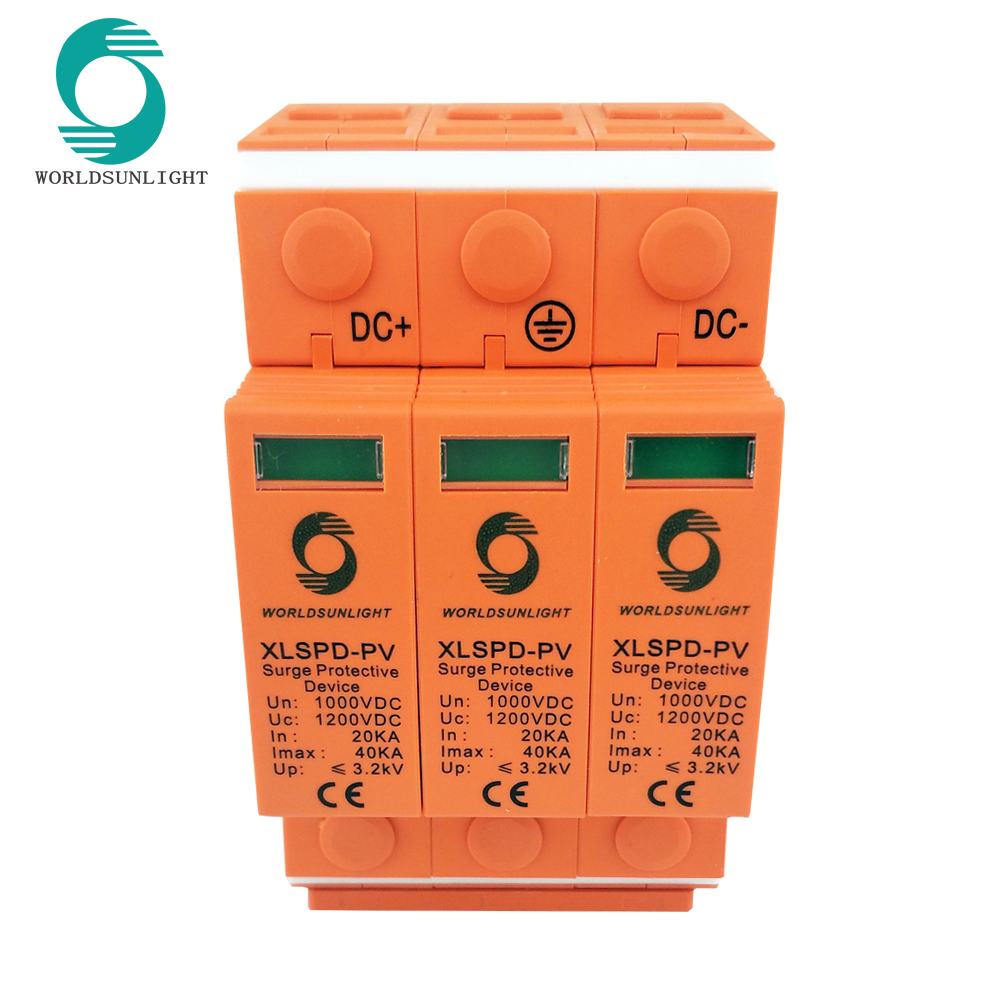

Photovoltaic surge protector | standard | |
monitoring module | Elective | |
prevent diode | Elective | |
Cabinet material | Metal | |
installation method | Wall-mounted | |
Operating temperature | -25"C~+55'C | |
temperature rise | 2 kilometers | |
allowable relative humidity | 0~95%, no condensation | |

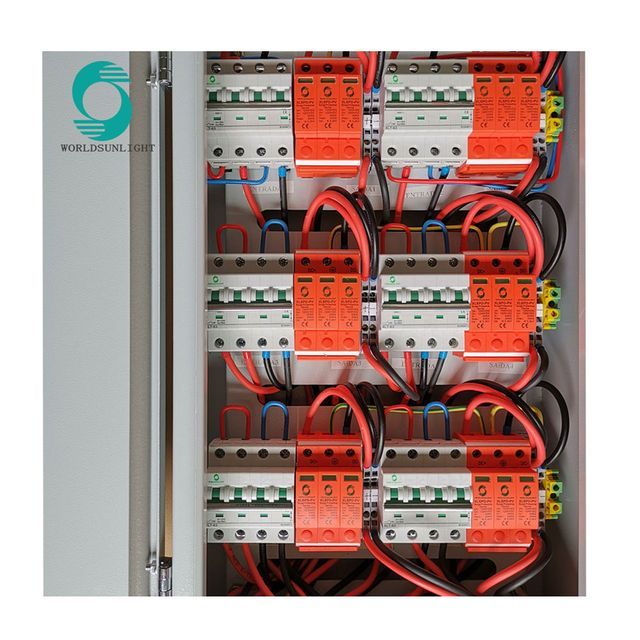

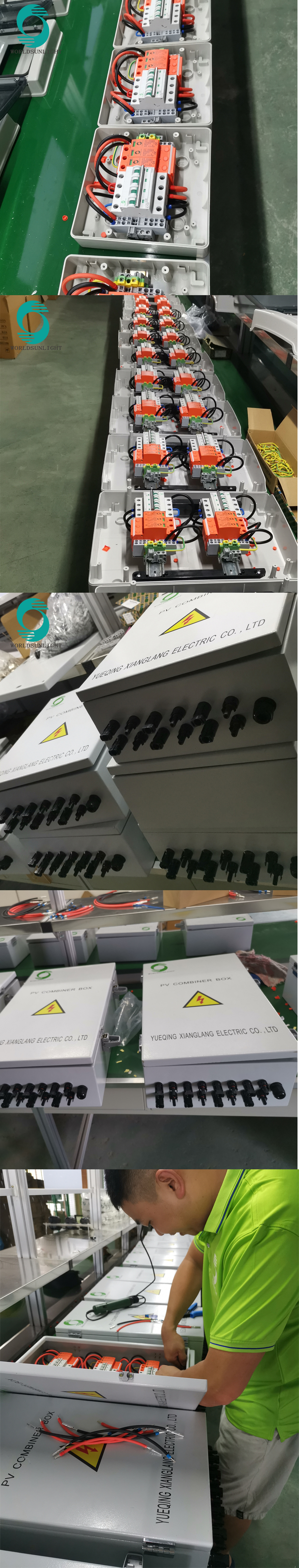

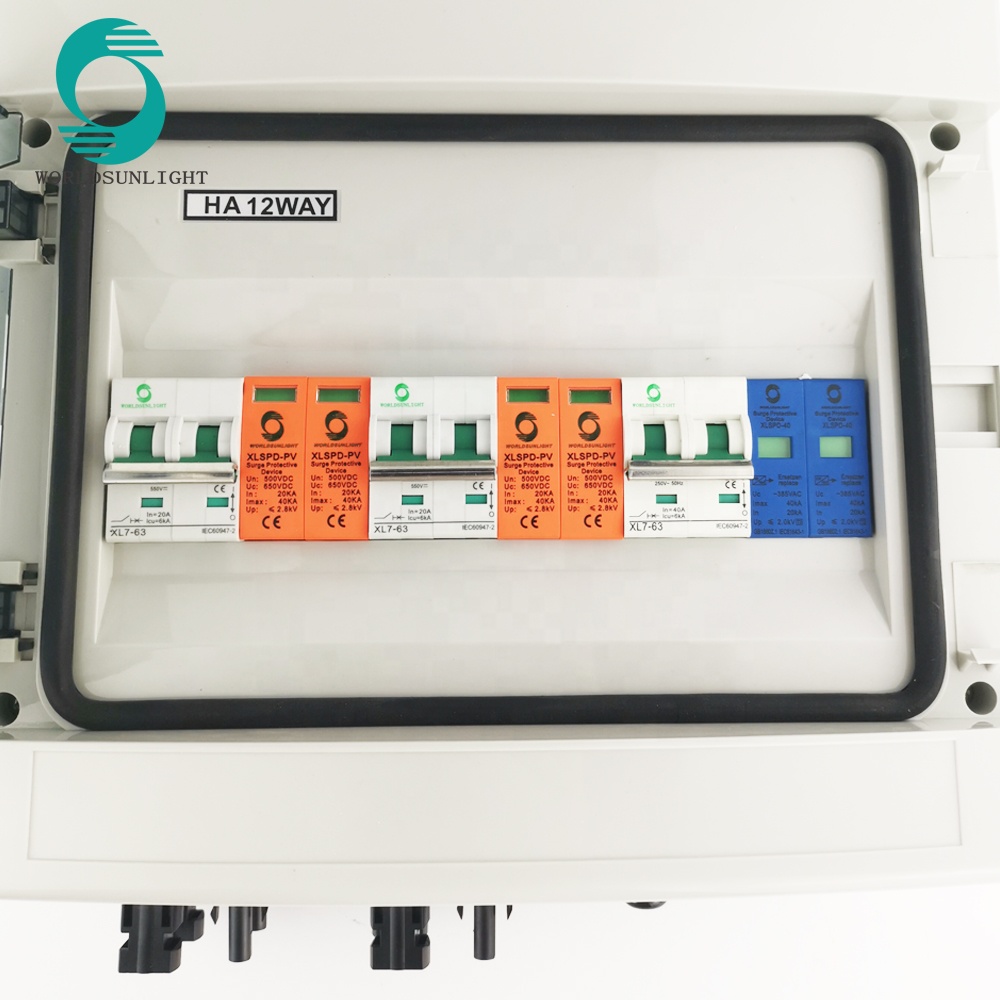

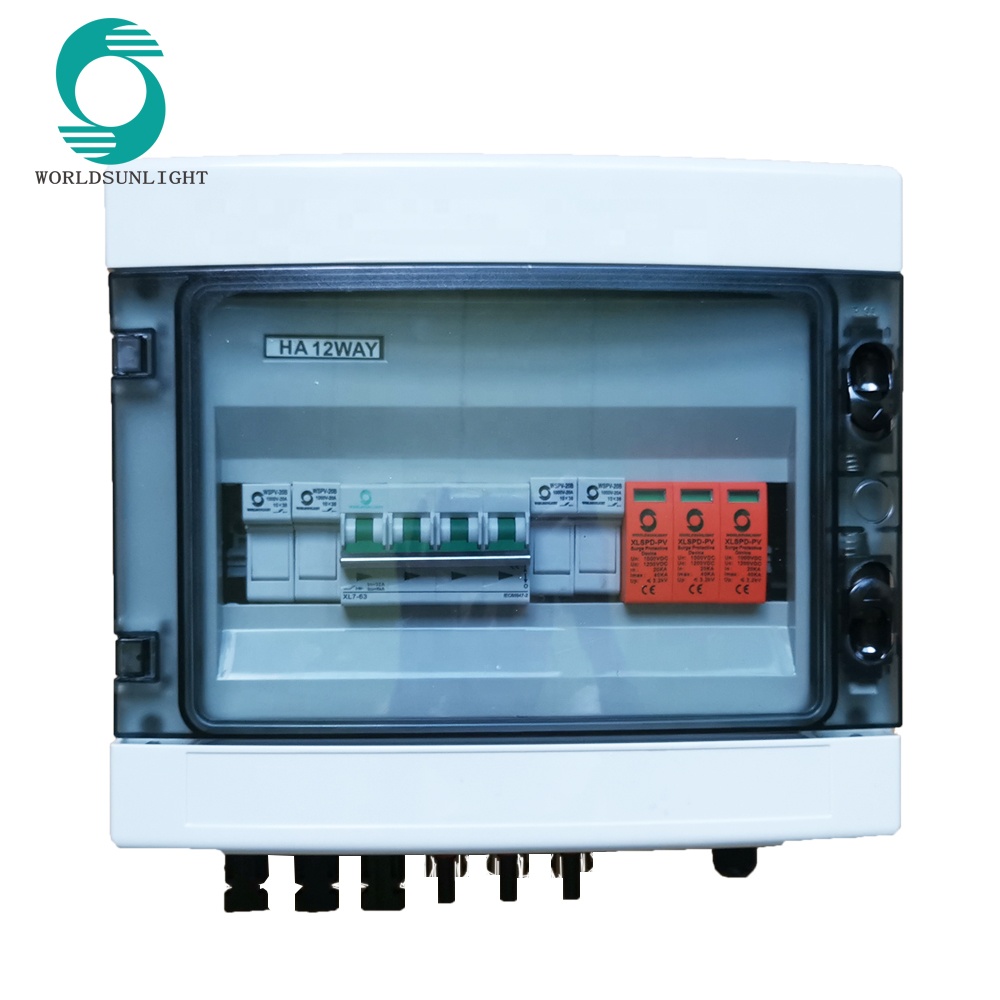

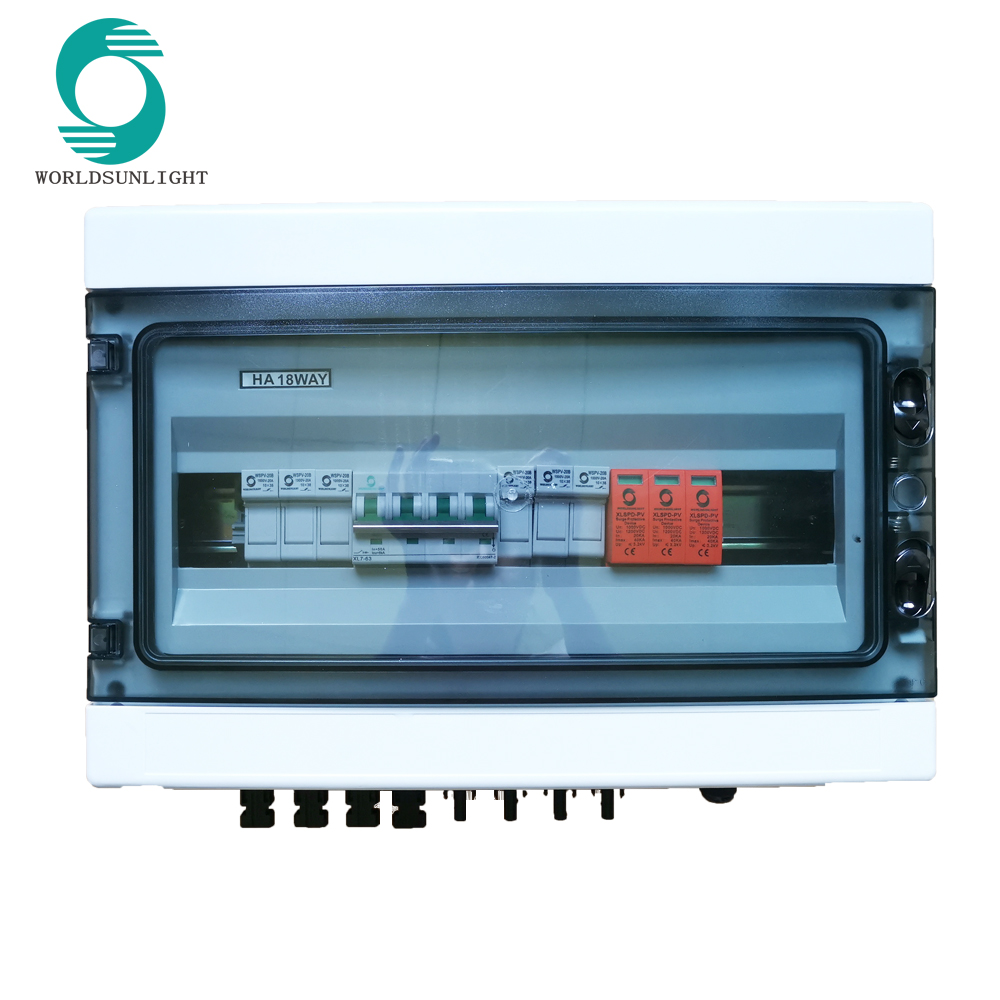

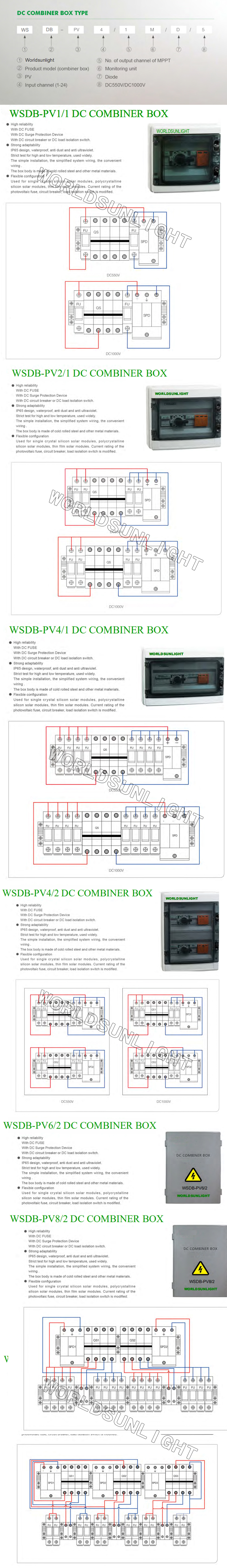

detailed image
transportation
Photovoltaic combiner boxPackaging Details:
Metal combiner box 1 per box
Photovoltaic combiner boxdelivery time:
1-15 days after confirming the order, the specific delivery date should be decided according to the production season and order quantity.
Photovoltaic combiner boxShipping:
1. Port of shipment: Shanghai/Ningbo
2. Bulk goods are shipped by air or sea, and the goods are received at the airport/port;
3. The customer specifies the freight forwarder or can negotiate the transportation method!

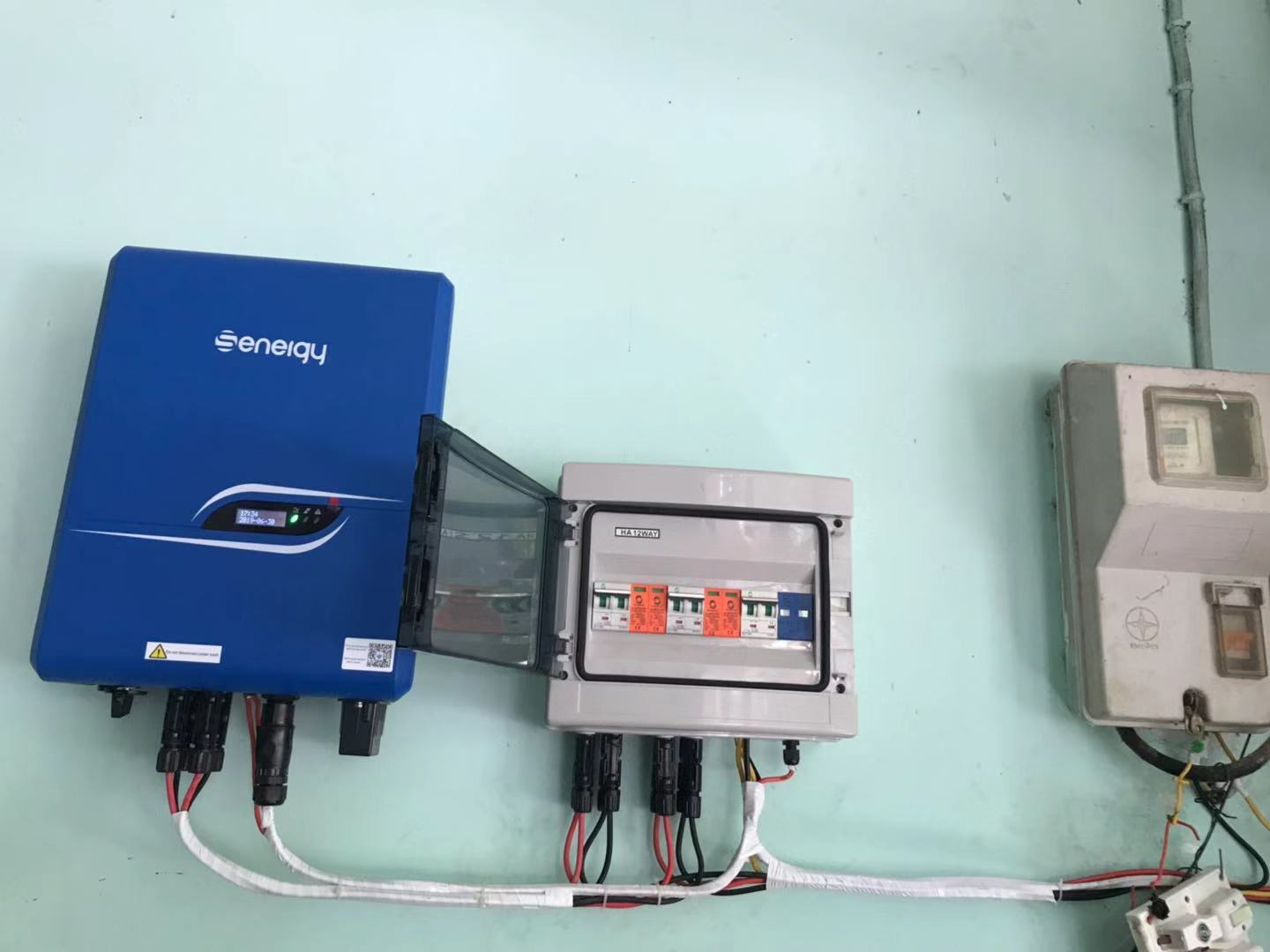

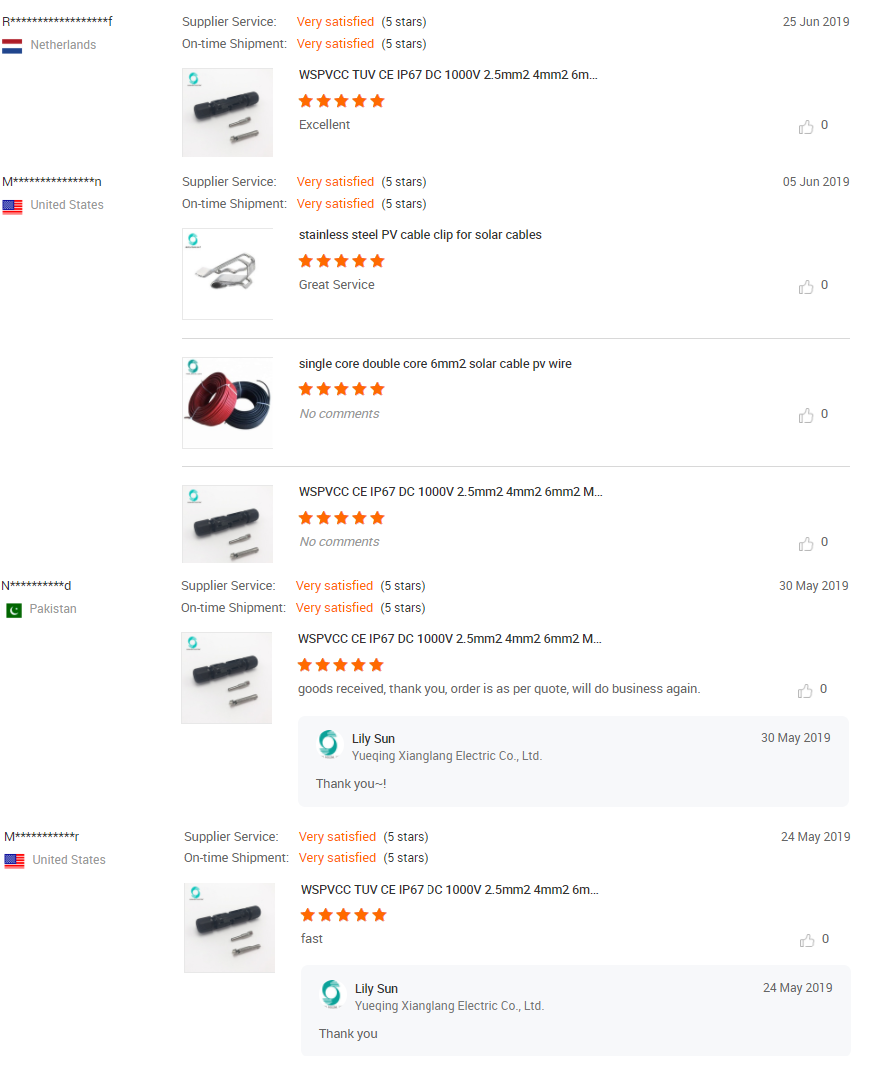

client feedback
