Hot sale 15 diodes 10A10 solar junction box

  • 8.00 >=1000 pieces
Min. Order: 1000 pieces FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Supply capacity:30000 pieces per monthPackaging Details:Safe packaging green environmental protection bag packaging
product name:solar boxOrigin:Other countries
brand:Xiangrunmodel:pv-sy-0701
Material:ABScolor:Black
payment terms:L/C, D/P, T/T, Western Unionport:Guangzhou/Shenzhen/

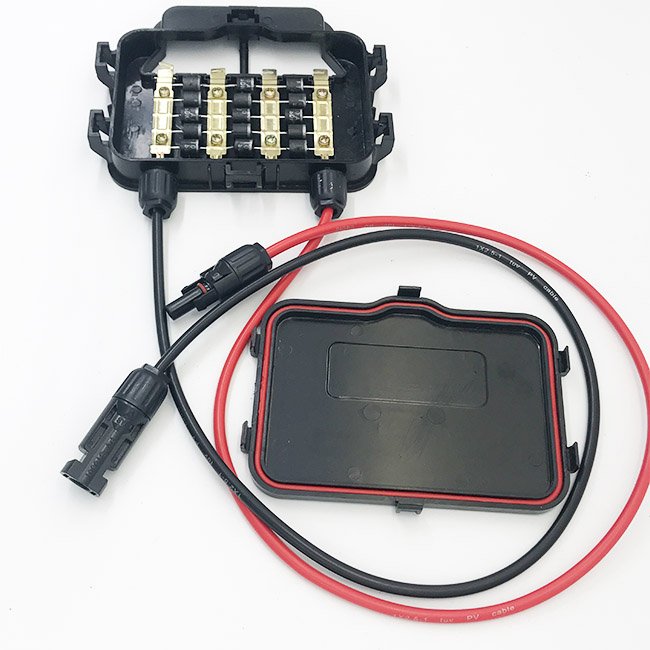

IP67 solar junction box


* The solar junction box is adhered to the back of the solar panel with silicone
* Connect (usually) 4 connectors together, is the output interface of the solar panel
* With the junction box, it is easy to connect the solar panel to the array

certified
TUV/UL
Rated voltage
1000VDC
Ambient temperature range
-40℃~+85℃
Security Level
Ⅱ/Ⅱ class
protection level
IP67
Wire diameter range
4 square millimeters
flame retardant
5VA
waterproof structure
Pre-filling glue + sealing ring
Ribbon width
up to 8 mm
Terminal pitch
16mm
connection method
spring clamp
Insulation Materials
PPOs
contact material
copper, tinned
total measurement
95mm×98mm×20mm
optional connector
PV-GZX0601-1, MC4, H4
