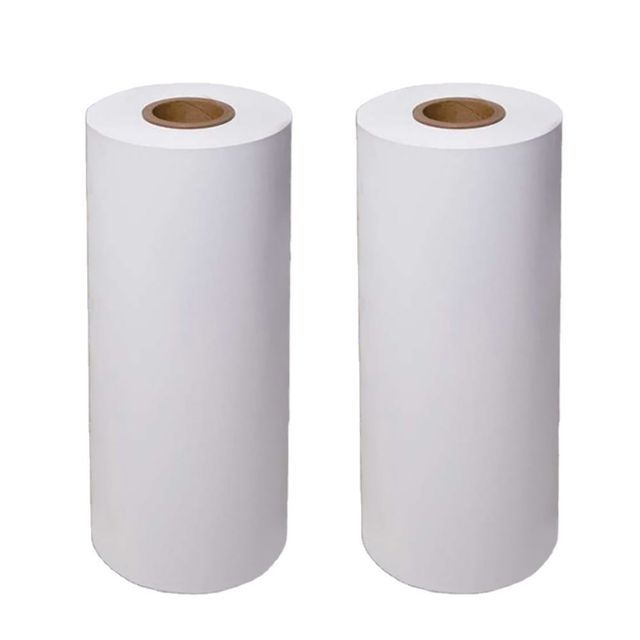

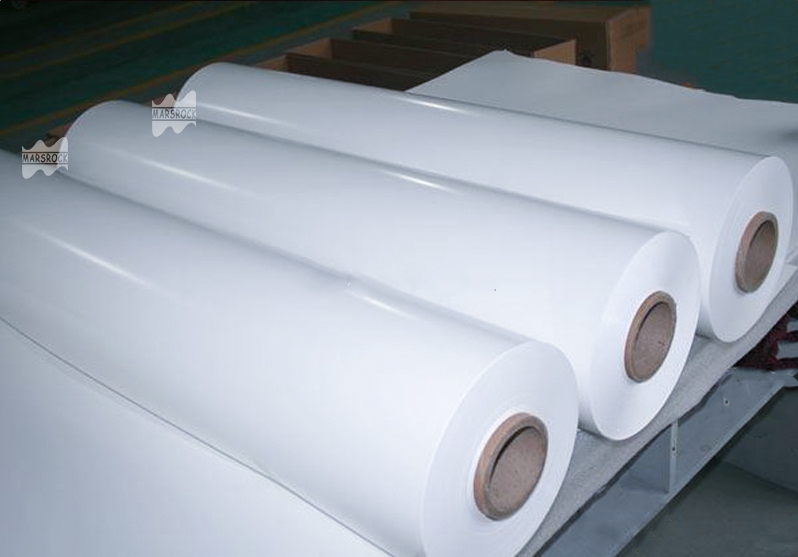

0.3mm thick 810mm wide white photovoltaic solar panel backsheet, laminated solar panel TPT backsheet

Supplier: Xiamen Mars Rock Science Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Winnie Chan
Price: $4.93 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

tensile strength:	≥110N/cm	width:	810mm
Elongation:	130%	model:	MR-Backplane-810
Equivalent strength (TPT/EVA):	≥20N/cm	brand:	Mars rocks
Tear strength:	140N/mm	commodity:	Solar panel back panel
color:	white	payment terms:	Western Union, T/T, MoneyGram, Credit Card, PayPal
Packaging details:	Packaging details: Sturdy carton with enough foam Delivery details: Samples can be shipped within 15 days after payment	Interlayer strength:	≥25N/5cm
Place of origin:	Fujian Province, China	Package preview:
port:	Xiamen	thickness:	0.3mm
type:	Sealants	Supply capacity:	1,000,000 meters per month

attention:

If you have special requirements for the size of the TPT backsheet or need TPT backsheets in other colors, please contact us directly. If your quantity is right, we can provide you with any size TPT backsheet up to 1100mm width.

Product Description

Specification

thing	value
birthplace	China
	Fujian
brand	Mars rocks
model	MR-Backplane-810
width	810mm
thickness	0.3mm
tensile strength	≥110N/cm
Elongation	130%
Tear strength	140N/mm
interlaminar strength	≥25N/5cm
color	white
commodity	Solar panel back panel
Equivalent strength (TPT/EVA)	≥20N/cm
type	Sealants

Applications

Application advantages

1. High weather resistance
It has passed the double 85 1000-hour accelerated aging test and the 3000-hour artificial ultraviolet irradiation (QUVB) test without delamination, cracking, blistering, yellowing or embrittlement after aging.
2. High safety
The safety level has passed the flame retardant UL94-V2 flame retardant level. The UL flame spread index is less than 100, effectively ensuring the safety characteristics of the component.
3. High insulation
TUV Rheinland PD>=1000VDC (based on HFF-300), which can avoid arc modules.
4. High water vapor resistance
Using an infrared moisture permeability tester, the moisture permeability is ≤1.0g/m2.d.
5. High adhesion
After nanoplasma treatment, the surface energy with high fluorine content can last more than 45mN/m for six months.
6. High-end events
Suitable for crystalline silicon cell module packaging in large photovoltaic power stations.
7. High compatibility
Good compatibility comes from bonding with other packaging materials of the module.
8. High efficiency
Due to its double-sided bonding, there is no need to distinguish the front and back sides of the backplane when packaging components, which brings convenience to technicians.
9. High flexibility
The bonding data of module bone package and EVA can be adjusted according to customer requirements
