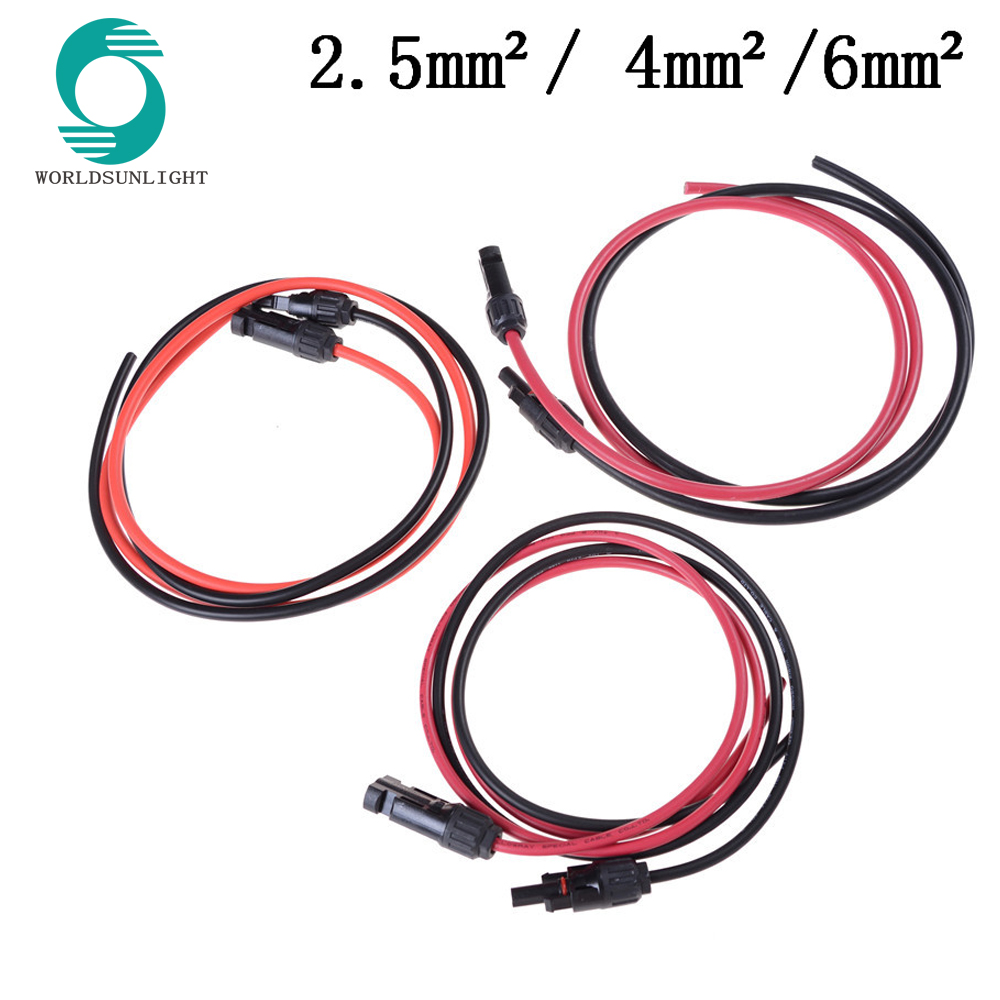

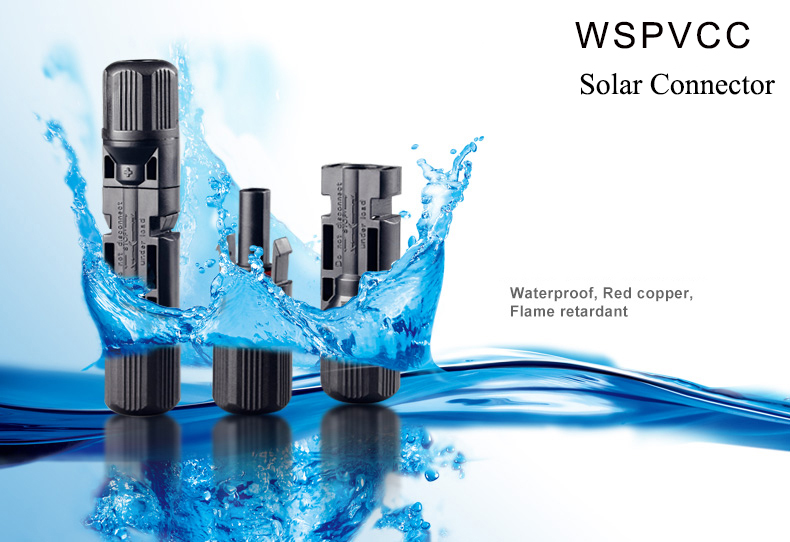

WSPVCC CE IP67 Waterproof 30A DC 1000V 2.5mm2 4mm2 6mm2 Solar PV System Solar Cable Connector

Supplier: Yueqing Xianglang Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Frank R
Price: $0.20 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Contact material:	copper, tinned	Packaging Preview:
Rated current:	30A	Single package size:	4X3X2 cm
Package:	500 pairs per box	place of origin; place of origin:	Zhejiang, China
Warranty:	20 years	Certificate:	CE/ISO9001/IEC
Rated voltage:	1000V	application:	solar power system, power
Gross weight per piece:	0.025kg	sample:	usable
gender:	both	delivery time:	1-3 days after payment received
type:	adapter	Packaging Details:	500 pairs per box
model:	WSPVCC	Body material:	PPO
Sales unit:	single product	brand:	world sunshine

solar connectorfeature:

Simple field handling. Adapt to photovoltaic cables with different insulation diameters. Mating security provided by keyed housing. Multiple insertion and removal cycles. High current carrying capacity. TUV and UL listed.

solar connectorSpecification:

thing	solar connector
model	WSPVCC
Test voltage	1000V DC
Type of overvoltage/pollution degree	6000V(50Hz, 1min)
Contact resistance of plug connectors	Class III/2
Contact resistance of plug connectors	impedance
Contact material	copper, tinned
Insulation Materials	PPO
Protection class	IP2X/IP67
flame	UL94-VO
Security Level	two
suitable cable	Outer diameter 4.5-8.5 (2.5-6.0mm2)
Insertion Force/Extraction Force	≤ 50N/ ≥ 50N

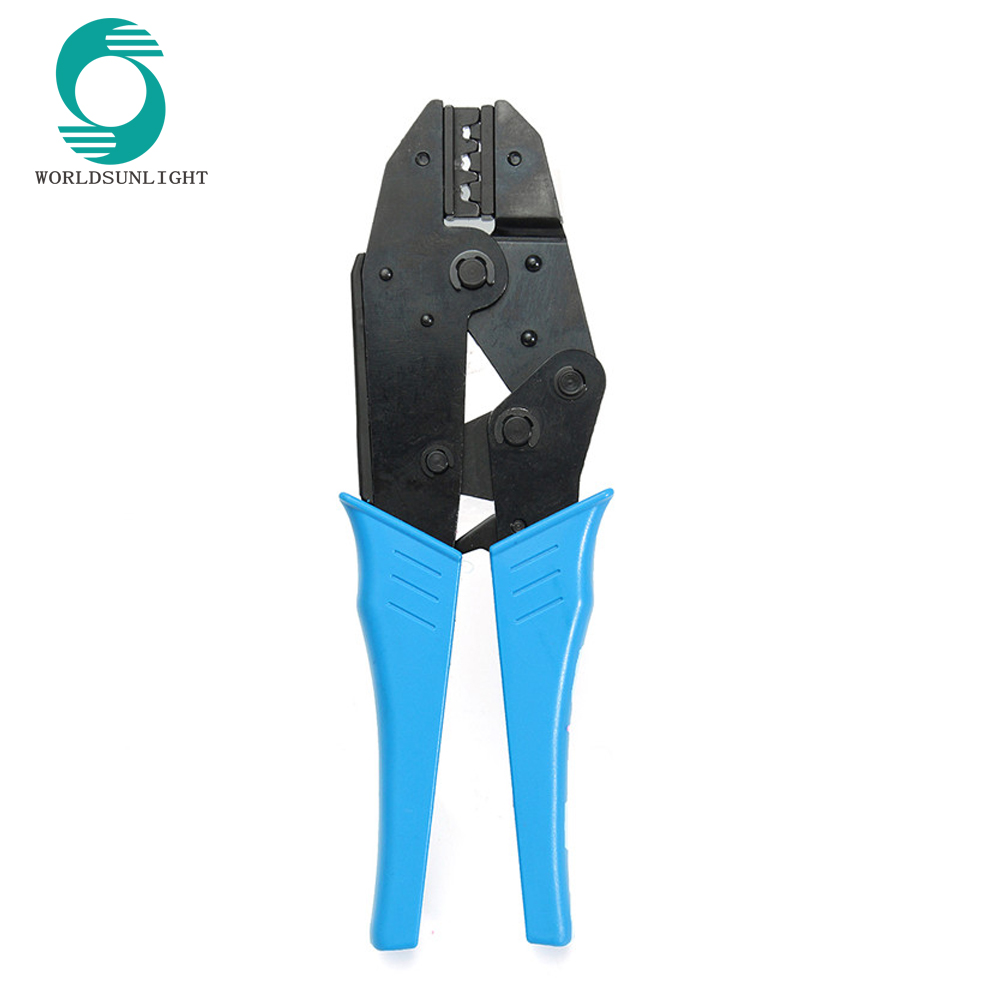

connection system	crimp connection
temperature range	-40℃ ~ +125℃

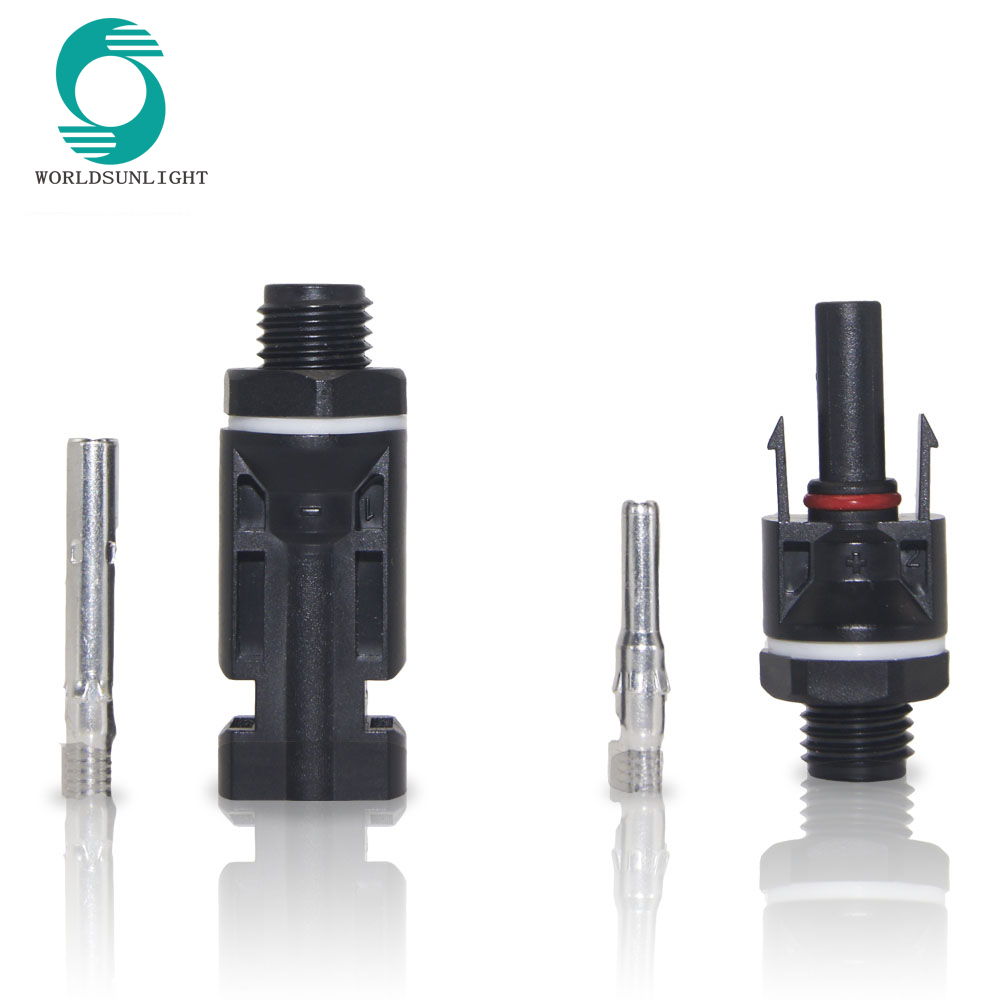

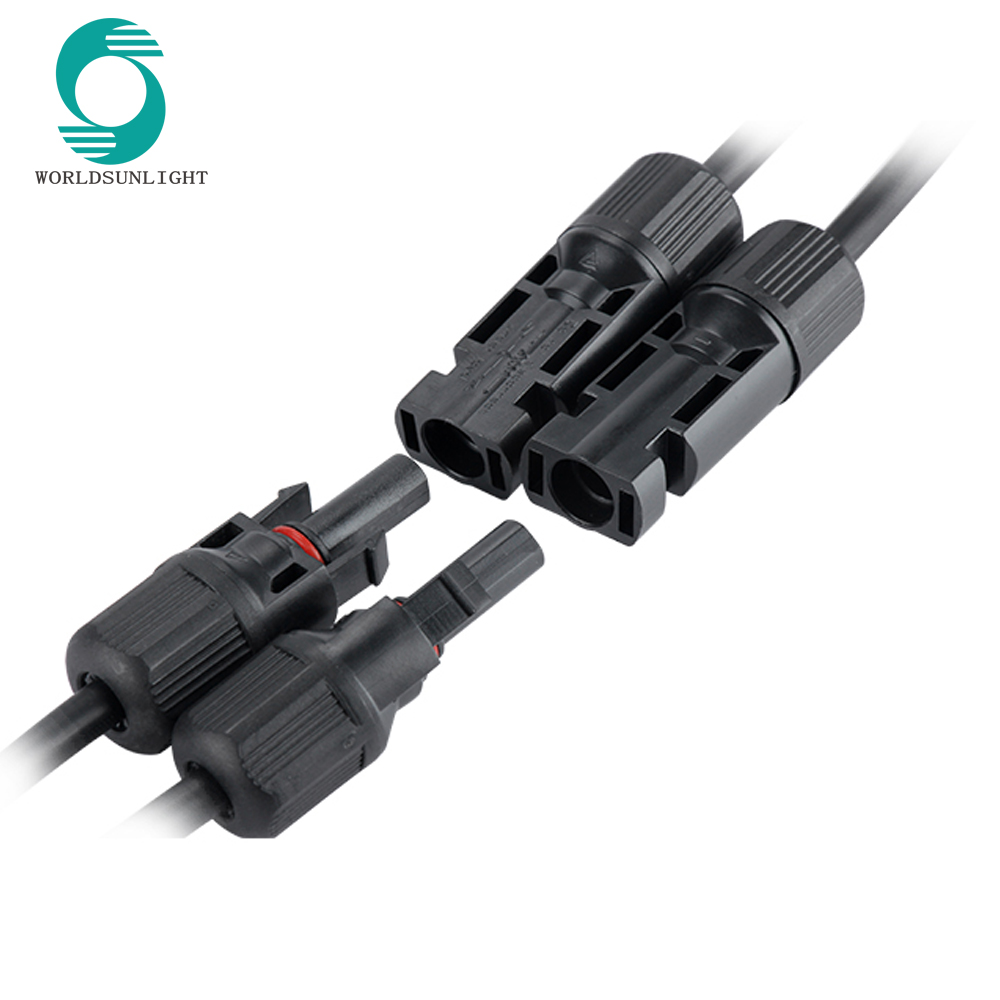

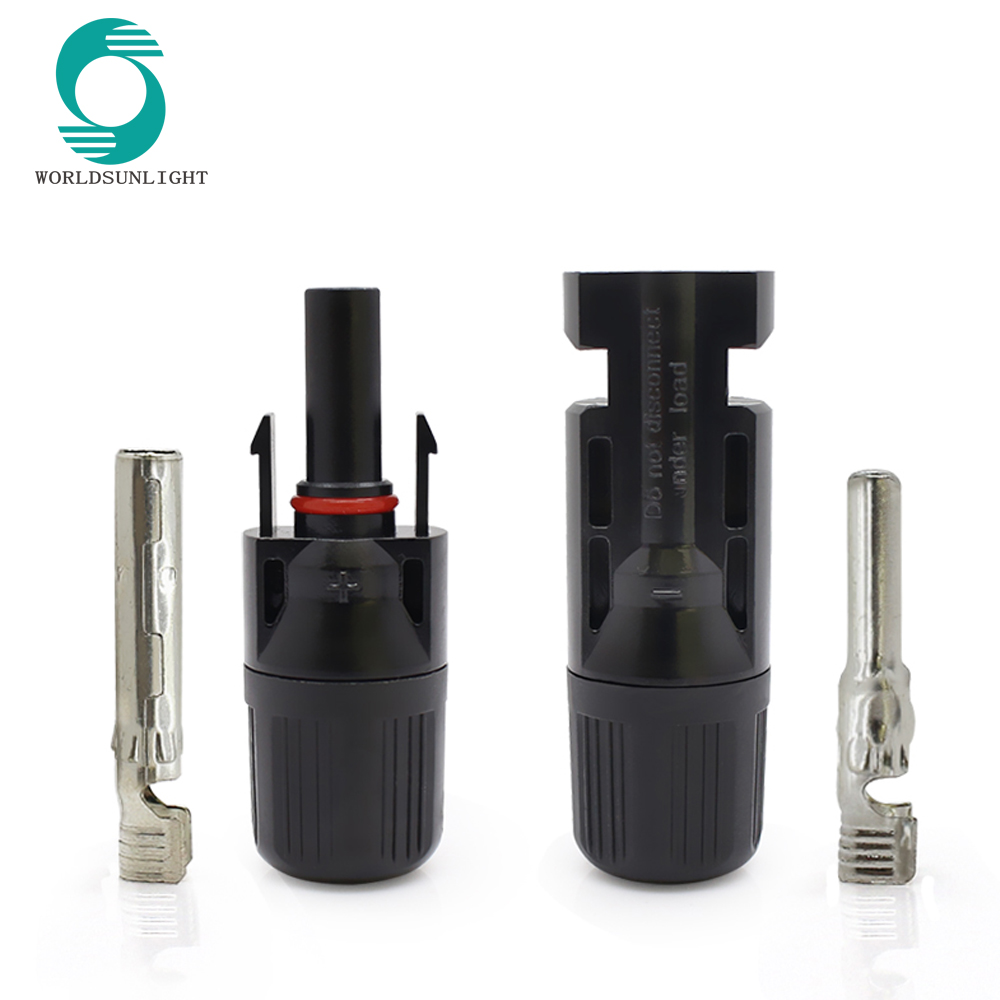

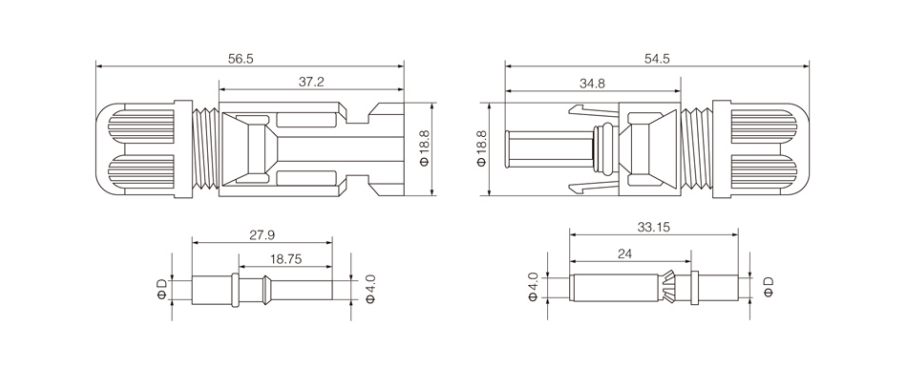

detailed image

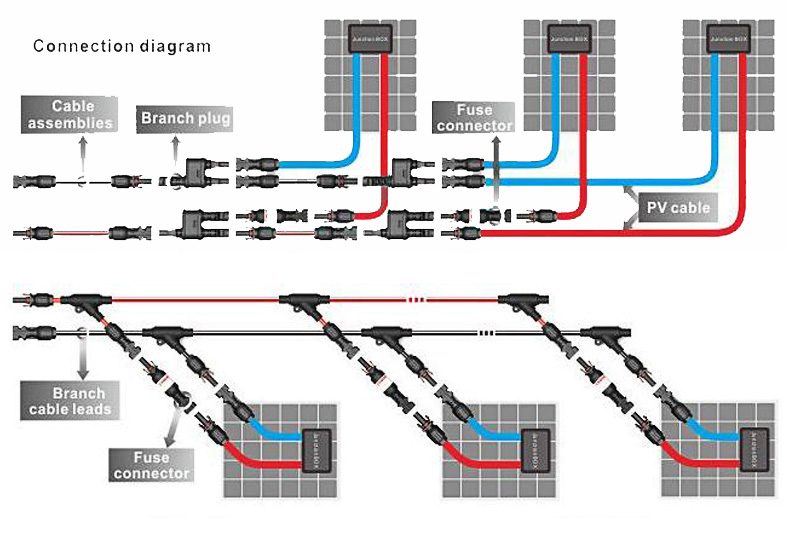

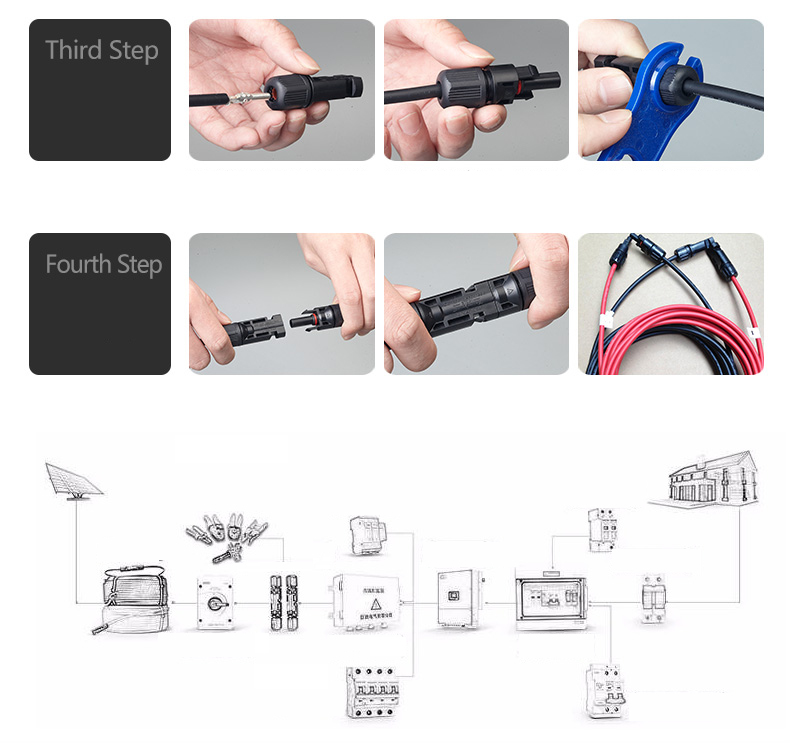

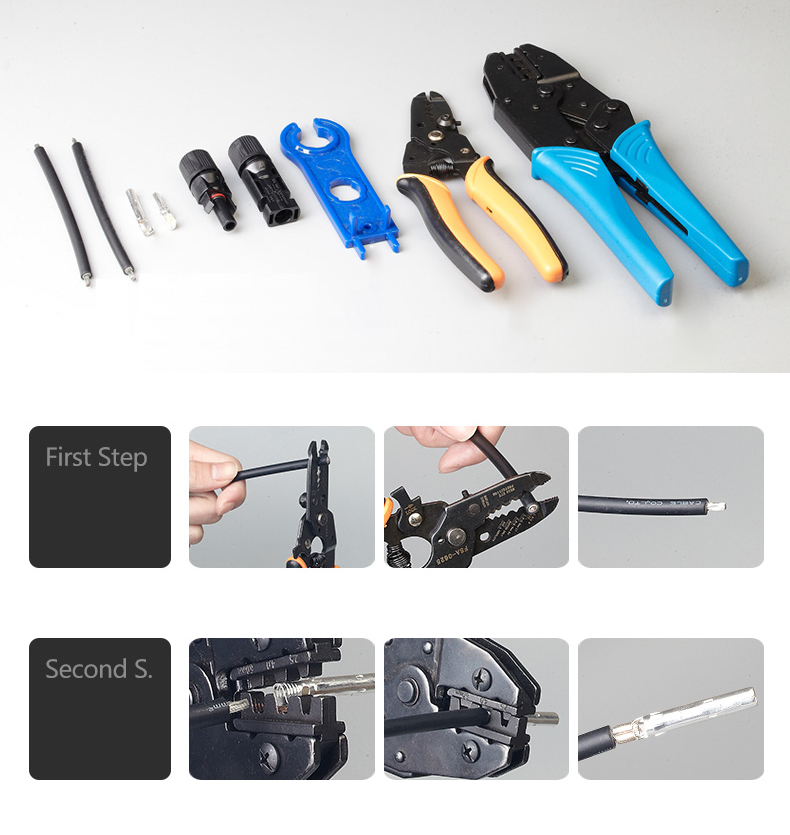

How to connect?

transportation

solar connectorPackaging Details:

500 pairs per box: 500 pairs per box/54*26*22cm/11.6kg

solar connectordelivery time:

1-10 days after confirming the order, the specific delivery date should be determined according to the production season and order quantity.

solar connectorShipping:

1. Shipping Port: Shanghai/Ningbo
2. Bulk cargo by air or sea, received at airport/port;
3. The customer specifies the freight forwarder or negotiable transportation method!
