20 years experience factory directly use pe pipe winding machine / plastic pipe winding machine in plastic winding machine
- 45000.00 1 - 1 sets
- 44000.00 2 - 2 sets
- 43000.00 3 - 3 sets
- 42000.00 >=4 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Arrange width: | 1000mm | Air pressure of single station winding machine: | 0.6Mpa |
| product name: | plastic pipe reel | strength: | Siemens or customized |
| Winding displacement method: | light pestle | Voltage: | 220V 380V 440V or customized |
| weight: | 1000 | Outside diameter range: | 3000mm |
| Mechanical test report: | if | Marketing Type: | normal product |
| Double station winding machine: | 20-63mm | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia |
| Applicable industries: | manufacturing plant | Origin: | Jiangsu, China |
| Core component warranty: | 15 months | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Warranty: | 1 year | Health status: | new |
| Video shipment inspection: | if | Packaging Details: | Stretch film packing, wooden box as international ocean shipping standard packing, or customized packing with plastic tube winding machine |
| port: | Shanghai | Inner diameter range: | 580mm |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear | Dimensions (L*W*H): | depending on the specific model |
| Certification: | CE ISO TUV | Spool capacity: | 400mm |
| brand: | pole star | Discharge method: | pneumatic |
| Supply capacity: | 20 coilers per month | Single station winder speed: | 0.5-4m/min |
| application: | coiled pipe | Main selling points: | Good quality, long service life, good service |
| Single station winding machine: | 63-110mm |
Product Description
Product Details:

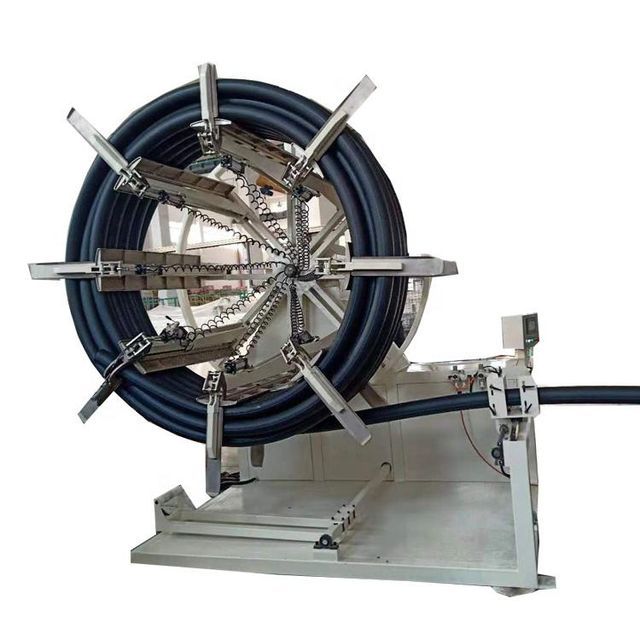

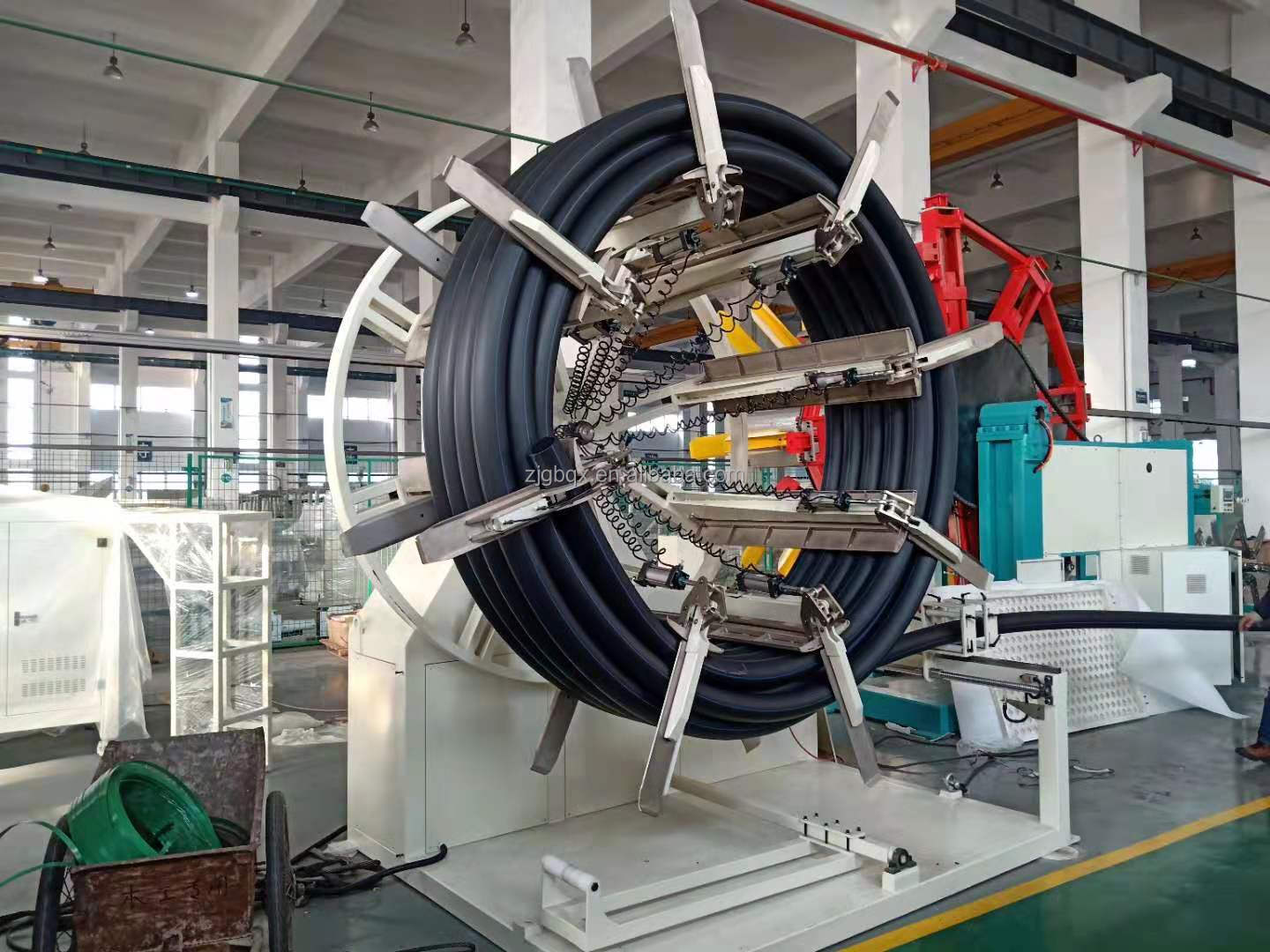

The pipe winding machine can be used for PE, HDPE, PPR pipes with diameters from 20mm to 110mm. This winding machine is equipped with a height automatic wire arrangement device and an encoder. With such a device, it will be convenient for you when you use two or more wires.
Technical Parameters:

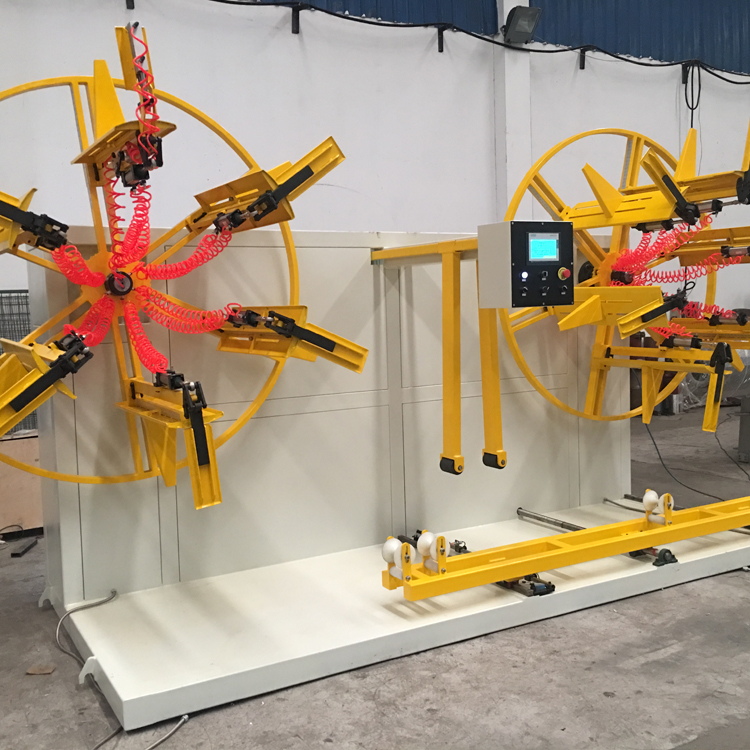

1. Double station coiler (20-63mm) Speed: 0.5-12m/min Coil length: 250-300m
1 | maximum. Winding speed | 12m/min |
2 | minute coil inner diameter | 580mm |
3 | maximum. Coil outer diameter | 2200mm |
4 | Coil Width | 400-600mm |
5 | air pressure | 0.3-0.6Mpa |
2. Single station winder (63-110mm) Speed: 0.5-4m/min Winding width: 400m
1 | maximum. Winding speed | 0.5-4m/min |
2 | minute coil inner diameter | 1600, 1800, 2000mm (adjustable) |
3 | maximum. Coil outer diameter | 3000mm |
4 | Coil Width | 1000mm |
5 | air pressure | 0.6Mpa |

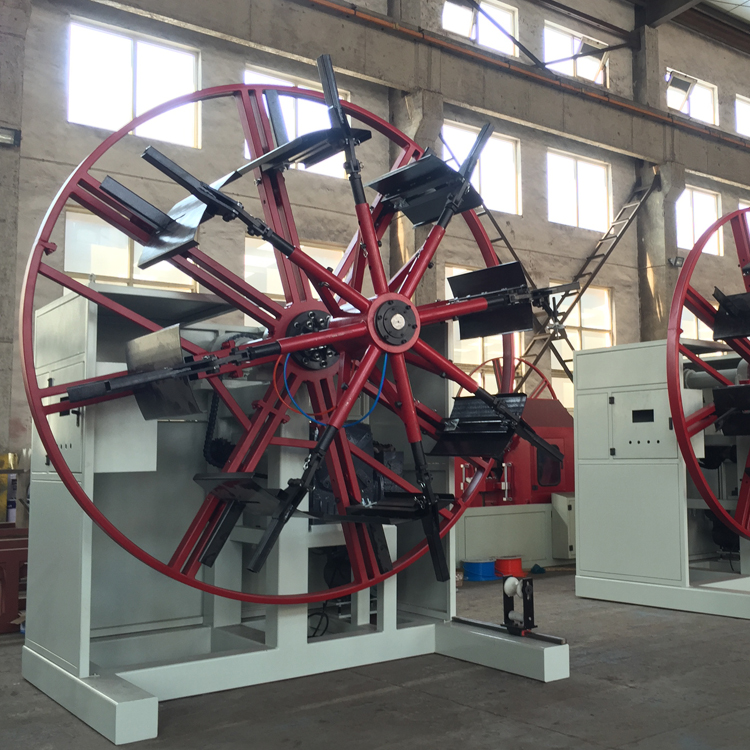

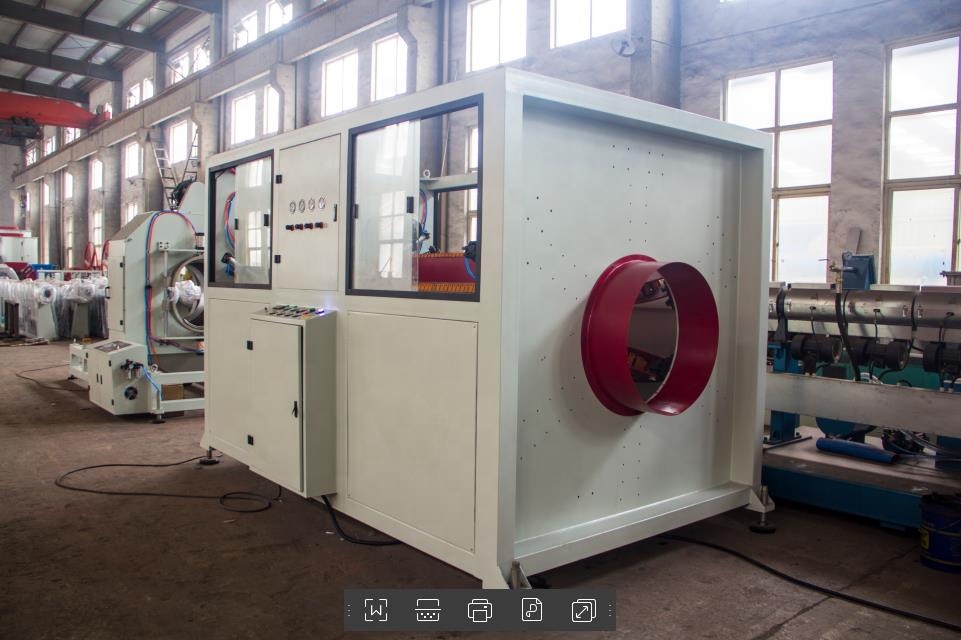

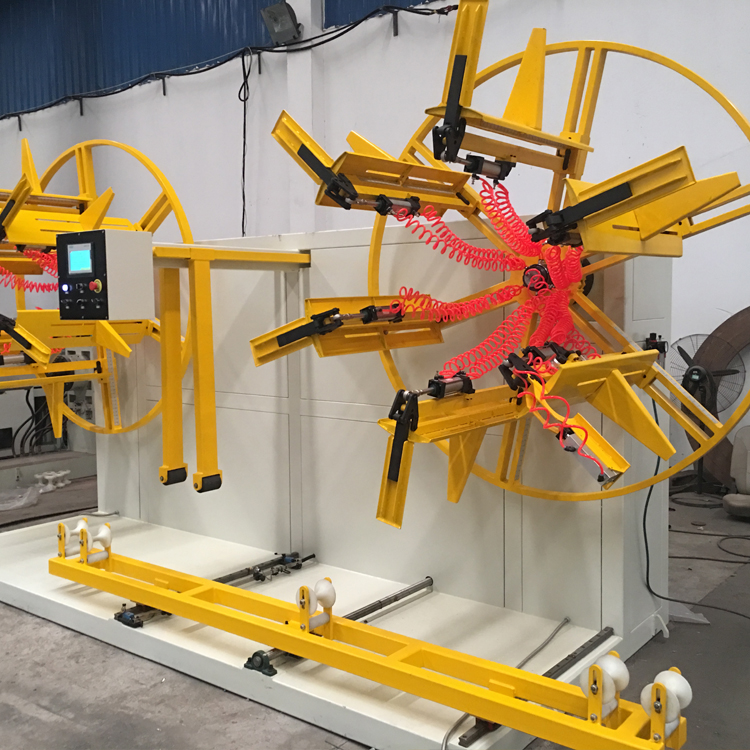

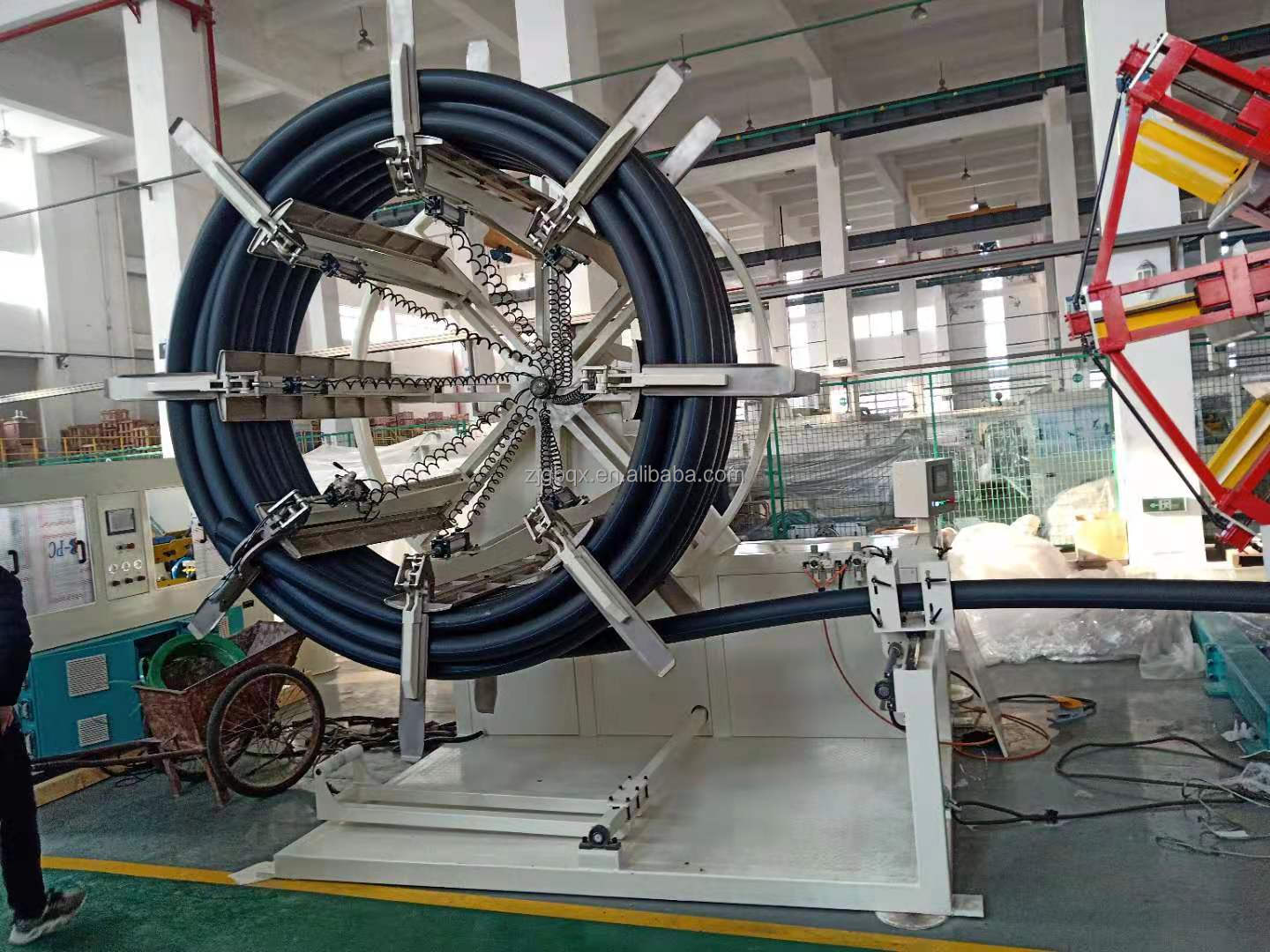

detailed image
