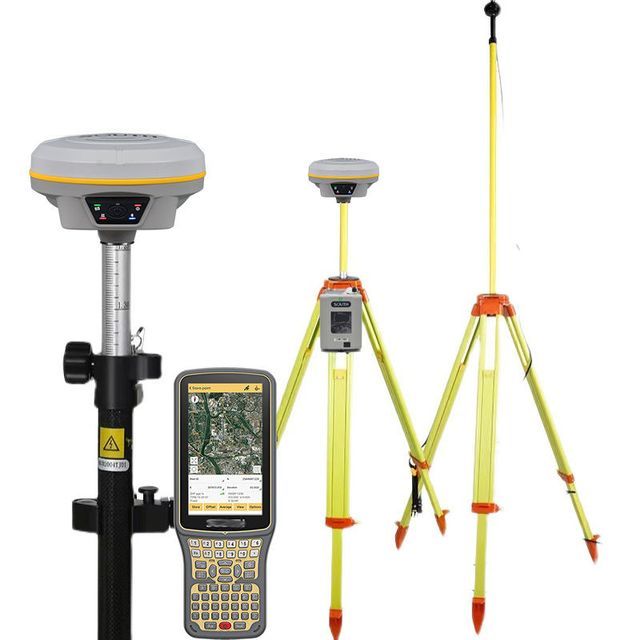

Professional high precision geodetic equipment Gps measuring instrument 2023 new cheap rtk GALAXY G3 gnss

Supplier: Chengdu Mingjun Trading Co., Ltd.
Region: Sichuan, China
Contact: Mr shun cao
Price: $1850.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Details:	Packing details for Less than Container Load (LCL) service to USA, get a freight quote. Hot Sale Aluminum Tripod Total Station Tripod One Box Packaging Shanghai/Shenzhen Port	Customization support:	OEM,ODM,OBM
model:	GALAX G3	brand:	South
port:	Shanghai/Shenzhen	Supply capacity:	50000 pieces per month
Warranty:	1 year	Origin:	Guangdong, China
payment terms:	L/C, D/P, D/P, T/T

Specification

GNSS Capabilities	channel	1598
		Global Positioning System	L1, L1C, L2C, L2P, L5
		Glonass	L1C/A,L1P,L2C/A,L2P,L3*
		Beidou system	Beidou-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b*
		Galileo	E1, E5A, E5B, E6C, AltBOC*
		SBAS (WAAS/MSAS/EGNOS/GAGAN)	L1*
		Infrared Navigation Satellite System	L5*
		QZSS	L1, L2C, L5*
		MSS L-band	Beidou PPP
		Positioning output rate	1Hz~20Hz
		initialization time	< 10 seconds
		initial reliability	> 99.99%
positioning accuracy	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS
		static (long-term observation)	Horizontal: 2.5 mm + 1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS
		stationary	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 3.5 mm + 0.5 ppm RMS
		fast static	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
		PPK	Level: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS
		Real-time dynamic (UHF)	Level: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS
		RTK (NTRIP)	Level: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS
		RTK initialization time	2～8s
		SBAS positioning	Typically < 5m 3DRMS
		Banda-L	Level: 5-10cm (5-30min) Vertical: 10-30cm (5-30min)
		inertial measurement unit	Less than 10mm + 0.7 mm/° Tilt up to 30°
		IMU inclination	0°～60°
hardware performance	aspect	130mm(W)×130mm(L)×80mm(H)
		weight	790g (including battery)
		Material	Magnesium aluminum alloy shell
		Operating temperature	-45℃ ~ +75℃
		Storage temperature	-55℃ ~ +85℃
		humidity	100% non-condensing
		Waterproof and dustproof	IP68 standard, prevent long-term immersion at a depth of 1m IP68 standard, comprehensive protection dust
		Shock/vibration	It can withstand the natural drop of the 2-meter pole on the concrete floor Military Standard 810G
		power supply	6-28V DC, overvoltage protection
		Battery	Built-in 7.2V 6800mAh rechargeable Li-ion battery
		Battery Life	15h (Rover Bluetooth mode)
communication	input/output port	5-PIN LEMO external power interface + RS232 Type-C (charging, OTG to U disk, PC or mobile phone data transmission, Ethernet) 1 UHF antenna TNC interface
		Internal UHF	2W radio, receive and transmit, radio router and radio repeater
		Frequency Range	410 - 470MHz
		Protocol	Farlink, Trimtalk450s, SOUTH, HUACE, Hi-Target, Satel
		communication range	Typically 8 km using the Farlink protocol
		NFC communication	Realize automatic pairing between the receiver and the controller at a short distance (less than 10cm) (the controller needs NFC wireless other communication modules)
		Bluetooth	Bluetooth 3.0/4.1 standard, Bluetooth 2.1+EDR
Wifi	modem	802.11b/g standard
		wireless hotspot	AP mode, Receiver broadcasts its hotspot through the web UI accessed by any mobile terminal
		WIFI data link	In Client mode, Receiver can transmit and receive correction data stream through WiFi data link
data storage/transfer	storage	4GB SSD automatic cycle storage (automatically delete the earliest data files when the memory is insufficient) Support external USB storage
		data transmission	USB data transmission plug and play mode Support FTP/HTTP data download
		Data Format	Static data format: STH, Rinex2.01, Rinex3.02, etc. Differential formats: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA 0183, PJK plane coordinates, SOUTH binary code Network model support: VRS, FKP, MAC, fully support NTRIP protocol
sensor	electronic bubble	The controller software can display electronic bubbles, and check the carbon rod leveling status in real time
		inertial measurement unit	Built-in IMU module, no calibration, anti-magnetic interference
		thermometer	Built-in temperature sensor, using intelligent temperature control technology to monitor and adjust the receiver temperature
User interaction	operating system	Linux
		button	one-click
		index	5 LED indicators (satellite, charging, power, data link, bluetooth)
		Internet interaction	Access to internal web interface management via WiFi or USB connection allows user to monitor receiver status and freely change the configuration
		voice guidance	Provide status and operation voice guidance, support Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
		secondary development	Provide secondary development kit, open OpenSIC observation data format and interactive interface definition
		cloud service	The powerful cloud platform provides online services such as remote management, firmware update, and online registration.
