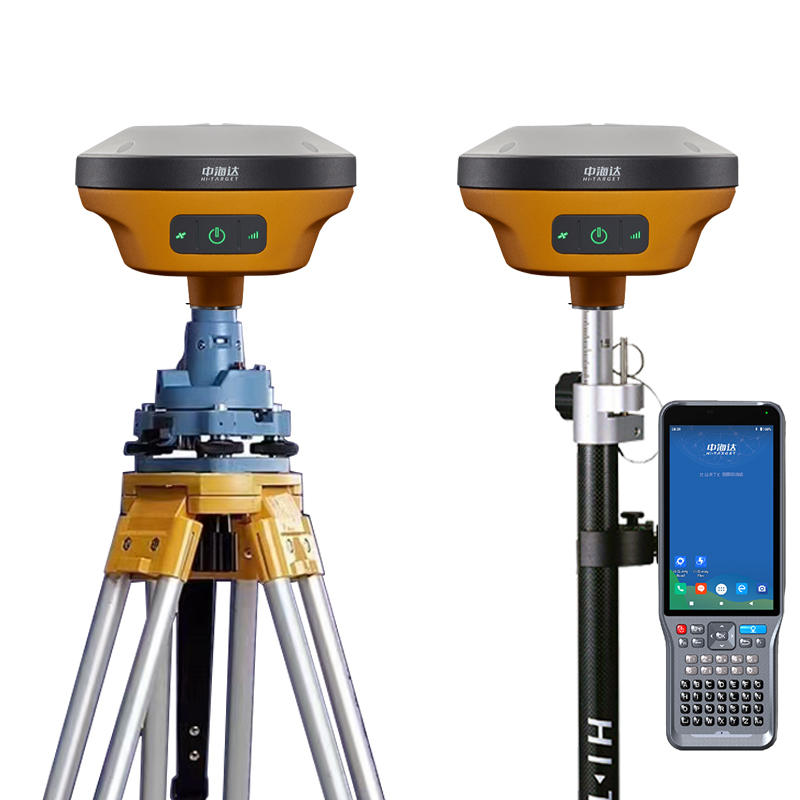

High Performance 800+ Channels Hi target Gnss Rtk base and rover F200 V200 For Gps Rtk Earth Survey Instrument

Supplier: Chengdu Mingjun Trading Co., Ltd.
Region: Sichuan, China
Contact: Mr shun cao
Price: $4200.00 / 1 - 1 sets
$4100.00 / 2 - 2 sets
$4000.00 / 3 - 4 sets
$3900.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	high goals, high goals, high goals, high goals	Custom Support:	OEM
Transmit power:	0.5W, 1W, 2W adjustable	product name:	Hi Target V200 GNSS
transfer speed:	9.6Kbps, 19.2Kbps	Global Positioning System:	L1C/A,L2E,L2C,L5
Gross weight per piece:	5.000 kg	model:	V200
place of origin; place of origin:	Guangdong, China	External radio:	Transmission power 10w/30w adjustable
Sales unit:	single product	exhibit:	LCD Monitor
Internal battery life:	static 12 hours	channel:	800+
Single package size:	35X35X20 cm	Warranty:	3 years

Specification

GNSS configuration	system kernel	Using a multi-star system core
		number of channels	660
		Beidou system	B1, B2, B3
		Global Positioning System	L1, L2, L5
		glonas	L1, L2
		Galileo	E1, E5a, E5b
		SBAS	Yes
		output format	ASCII: NMEA-0183, binary code
		Positioning output frequency	1Hz~20Hz
		Differential support	CMR, RTCM2.X, RTCM3.0, RTCM3.2
		Static format support	GNS, Rinex dual-format static data
		RTK positioning accuracy	Plane: ±(8+1×10-6D)mm (D is the distance between measurement points) Elevation: ±(15+1×10-6D)mm (D is the distance between the measurement points)
		Static positioning accuracy	Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between measurement points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measurement points)
		DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm; Elevation accuracy: ±0.50m+1ppm
		SBAS positioning accuracy	0.5m
		initialization time	<10 seconds
		Initialize reliability	＞99.99%
Built-in communication	network	Built-in 4G full Netcom network communication
		Wifi	802.11b/g access point and client mode for WiFi hotspot service
		Bluetooth	Built-in Bluetooth
		Built-in transceiver
		strength	1W/2W/5W adjustable
		frequency band:	403MHz-473MHz
		Transmission rate	19.2kbps/9.6kbps adjustable number of channels: 116 frequency bands adjustable
External radio	strength	Power: 5W/10W/20W/30W adjustable
		frequency band:	403MHz~473MHz
		Transmission rate	19.2kbps/9.6kbps adjustable number of channels: 116 frequency bands adjustable
User Interface	control panel	single bond
		indicator light	Satellite lights, signal lights, power lights
		display	Industrial grade OLED high-definition color display, capacitive touch screen
Advanced application	iPOWER smart balance technology, LBS, NFC
		Smart service	Voice broadcast, voice guidance, function self-check, DIY voice
		Remote Service	Remote upgrade, remote registration, remote data download
Electrical physical properties	Battery	Large-capacity lithium battery 6800mAh/piece (standard 2 pieces) with battery indicator light, detachable single-battery network mobile phone The station works continuously for more than 10 hours
		Input voltage	DC 6~28VDC, with over-discharge protection
		size	Φ158mm×98mm
		weight	≤1.2kg (including battery)
		energy consumption	4.2W
		Material	The shell is made of magnesium alloy material
environmental characteristics	Dust and water release	P67, resistant to temporary immersion in 2 meters of water, completely preventing dust from entering
		Anti-drop	3 meters natural drop resistance
		Operating temperature	-40℃~75℃
thin operator
System Configuration	Model	iand3.0
		operating system	Android 6.0 operating system
		processor	1.5G, quad-core processor
		storage	2GB RAM+16GB ROM; support T-Flash memory card, up to 128GB
		exhibit	3.7 inch color capacitive touch screen
		Enter	Physical full keyboard
Communication configuration	cellular	Built-in 4G full Netcom, dual card dual standby
		Wifi	802.11b/g access point and client mode for WiFi hotspot service
		Bluetooth	Built-in Bluetooth
		NFC	Support NFC IGRS
		USB	USB Type C interface, support OTG function
Power performance	Built-in battery	Removable lithium battery 3.7V/5200mAh, support fast charging (charging time is less than 3 hours)
Power performance		operating hours	A single battery can work continuously for 15 hours
physical properties	size	208mm×83mm×24mm
		weight	0.44g (battery)
		Operating temperature	20℃C-+55℃
