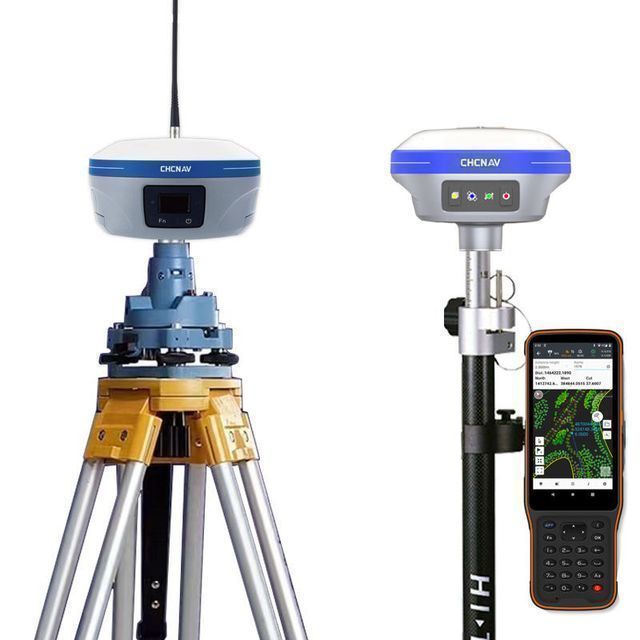

CHCNAV i73+ IMU ibase RTK GNSS GPS DEVICES HIGH ACCURACY GNSSGPS RTK SURVEY

  • Supplier: Chengdu Mingjun Trading Co., Ltd.
  • Region: Sichuan, China
  • Contact: Mr shun cao
  • Price: $3400.00 / 1 - 2 sets
    $3300.00 / 3 - 4 sets
    $3200.00 / >=5 sets
  • Min. Order: 1 set
Click here to contact
Product details
Warranty:1 yearGross weight per piece:12.000 kg
Single package size:56X35X46 cmGLONASS:G1 G2 P1 P2
type:GPS receiverchannel:624
brand:CDCCustom Support:OEM
place of origin; place of origin:China Shanghaicommunicate:Wifi
application:land surveymodel:chc i73 gnss receiver
Sales unit:single productGlobal Positioning System:L1/L2/L5
accuracy:1 cm
Specification
project
content
scope
Receiver Characteristics
satellite tracking
GPS+BDS+Glonass+galileo+QZSS, support Beidou third-generation satellites, support five-star sixteen-frequency
operating system
LINUX operating system
number of channels
624 channels
initialization time
<5s (typ.)
Initialize reliability
>99.99%
receiver appearance
button
1 dynamic/static switch key, 1 power key
indicator light
1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy
static precision
Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
Elevation accuracy: ±(5+0.5×10-6×D)mm
RTK accuracy
Plane Accuracy: ±(8 + 1×10-6×D) mm
Elevation accuracy: ±(15+ 1×10-6×D) mm
independent accuracy
1.5m
Code difference accuracy
Plane Accuracy: ±(0.25 + 1×10-6×D) m
Elevation accuracy: ±(0.5+ 1×10-6×D) m
GNSS+Inertial Navigation
IMU
200 Hz
slope
0~60°
Tilt compensation accuracy
10mm+0.7mm/° tilt (accuracy within 30°<2.5cm)
Electrical parameters
Battery
Built-in 6800mAh lithium battery, support 15 hours battery life of mobile station
External power supply
Support USB port for external power supply
physical properties
Size (L*W*H)
119mm*119mm*85mm
weight
0.73kg
Material
Magnesium alloy AZ91D body
Operating temperature
-45℃~+75℃
Storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 rating
shock
IK08 class
Anti-drop
Resist 2 meters free fall
data output
output format
NMEA 0183, binary code
output method
Bluetooth/Wi-Fi/Radio
static storage
storage format
Can directly record HCN, HRC, RINEX
storage
Standard 8GB built-in storage
Download method
Universal USB data download; HTTP download
data communication
Input and output interface
1 external UHF antenna port
1 USB-TypeC interface, support charging, power supply, data download
network module
Manual supports 4G full Netcom
radio station
Built-in high frequency 450-470MHz single receiver radio
protocol
CTI protocol, transparent transmission, TT450
Bluetooth
BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
data transmission
Wi-Fi data link
Wifi
802.11 b/g/n
NFC
Support NFC flash connection
receive function
super double
At the same time, it supports radio + network two-way data differential, providing comprehensive data services
One-click match
Support handbook software, one-click matching base station data
Remote upgrade
Support one-key remote upgrade
Manual Parameters
Model
HCE600 Android Measurement Manual
the Internet
4G full Netcom, built-in eSIM for three-year mapping traffic
operating system
Android 10
CPU
Octa-core 2.0Ghz processor
LCD screen
5.5-inch HD display
Battery
14 hours battery life
Waterproof and dustproof
IP68
