MAKA 09 hotsale Electric Wall Wire Metal Detector Wall Stud Detector Wall Stud Detector Detector Products from Jinhua Maka Technology Co., Ltd.

Product Details

Packaging Details:	1 piece/bag 1 piece/color box	application:	Gypsum board, live cables, non-ferrous metals, ferrous metals
Warranty:	1 year	port:	Ningbo/Shanghai
Function:	wall detector	product name:	stud finder
Customization support:	OEM production	Origin:	Zhejiang, China
payment terms:	L/C, T/T	Supply capacity:	1500 pieces per day

TUV certified factory

Xu Lizi

Email: mk@makalaser.com
WeChat: 15258981196

Jack Jiang
E-mail: jackjiang@makalaser.com
WeChat: jjl7075

● Open to cooperation

● All our projects are under the protection of patent application

● The annual output exceeds 1 million pieces, and the quality is guaranteed.

● Founded in 2011, it is ahead of the design and manufacture of laser rangefinders, wall scanners, laser levels and other products.

● Rich experience in exporting to the United States, Japan, Korea, Europe, Russia, Australia and other parts of the world, with complete FCC/ETL/CE/EMC/Rohs certificates, BSCI, IS09001 management system and other certifications.

● Long-term cooperation with many stable global large companies

● A package of policy support for VIP customers

feature:

1. Small size, light weight, easy to carry.

2. The metal detection depth can reach 12CM, and the depth value can be displayed digitally.

3. Powerful function, stable performance, reliable quality, world-class level.

Maximum detection depth:
black metal					120mm
Non-ferrous metals (copper)					100mm
alternating current (ac)					50mm
Copper wire (≥4 mm 2 )					40mm
Auto shutdown time					5 minutes
Working Humidity Range					0-85%RH in metal mode
range of working temperature					-10℃ +50℃
storage temperature range					-20°C +70°C
Battery					1x 9 volt dry battery
usage time					about 6 hours

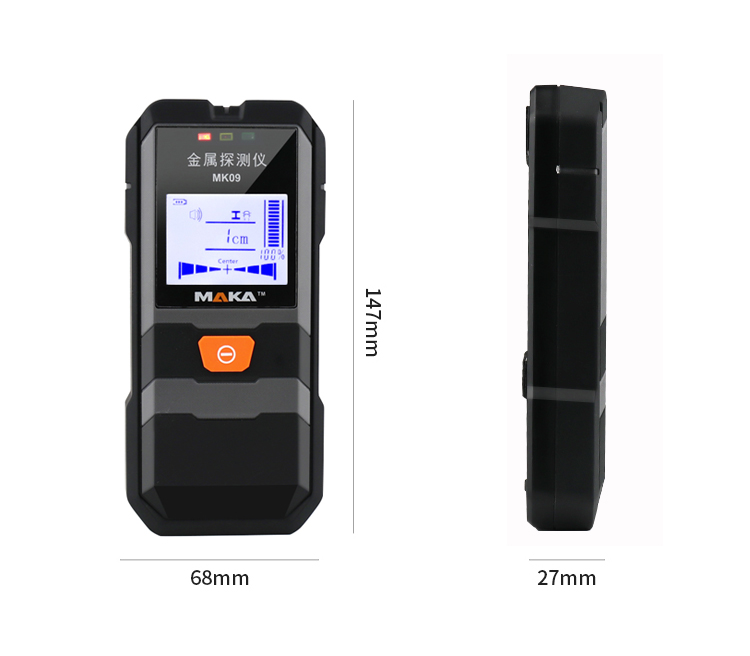

body size					1476827mm

The detector detects metal (rebar, copper pipes, etc.) and cables hidden in walls, ceilings and floors.

333

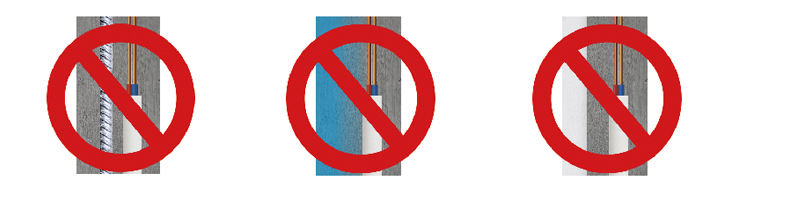

Detection results will be affected by the material and size of the detected object, as well as the material and condition of the detected surface. If the cable is not live, the detection depth will be reduced.

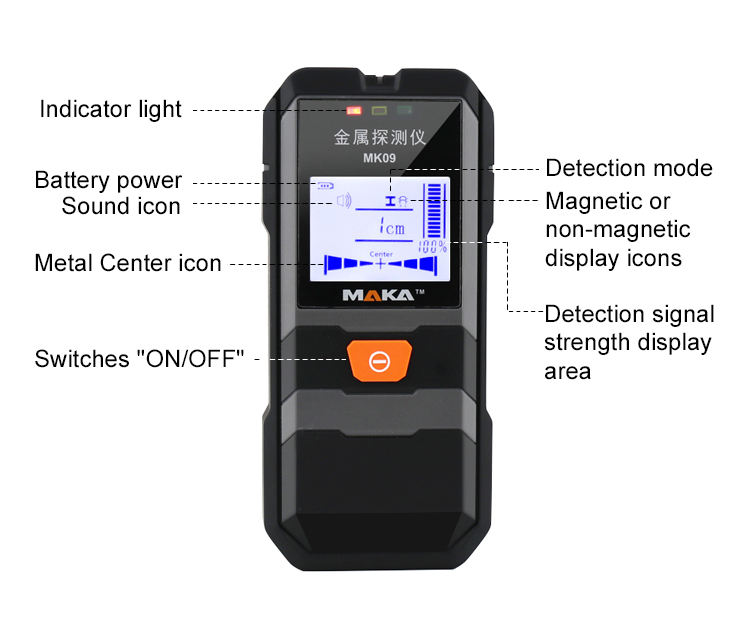

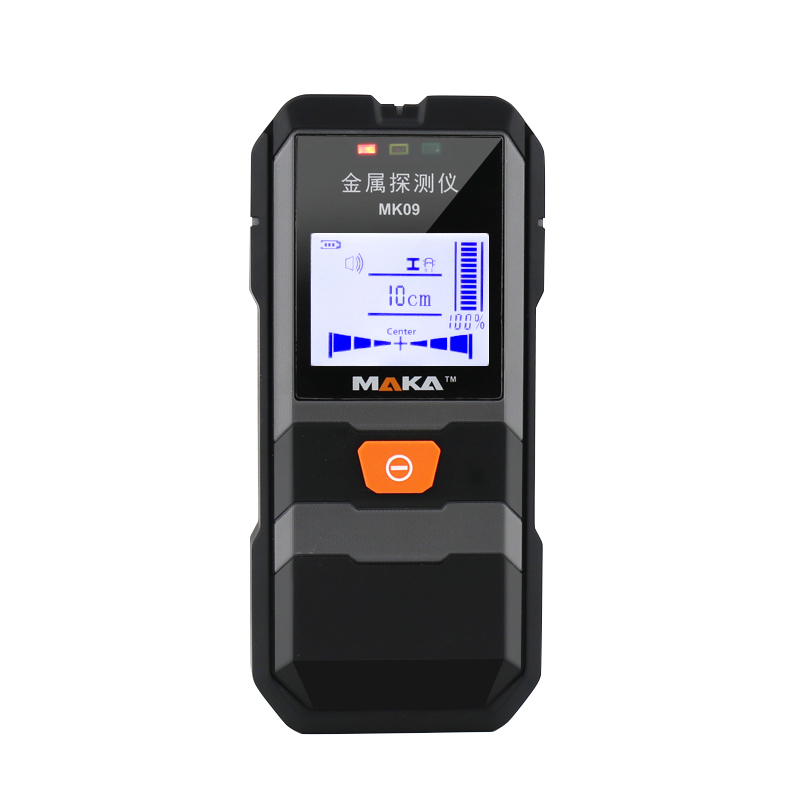

Front view

Left view

Rear view

Xu Lizi

Email: mk@makalaser.com
WeChat: 15258981196

Jack Jiang
E-mail: jackjiang@makalaser.com
WeChat: jjl7075

detection

Test result reference

When the detector displays a non-magnetic metal symbol, it means that the object under test is generally a wire or a copper pipe.

When the detector displays a magnetic metal symbol, it means that the object under test is generally a steel bar.

When the detector does not display a magnetic or non-magnetic metal symbol, it indicates that the measured object is generally an alloy.

When the AC symbol on the instrument flashes, it means there is an AC signal nearby.

calibration

If the monitor has a signal and no metal interference, then calibration is required. The calibration method is to place the instrument in an environment without metal interference and strong magnetic field interference (such as lifting the instrument into the air by hand, etc.). , and restart the instrument.

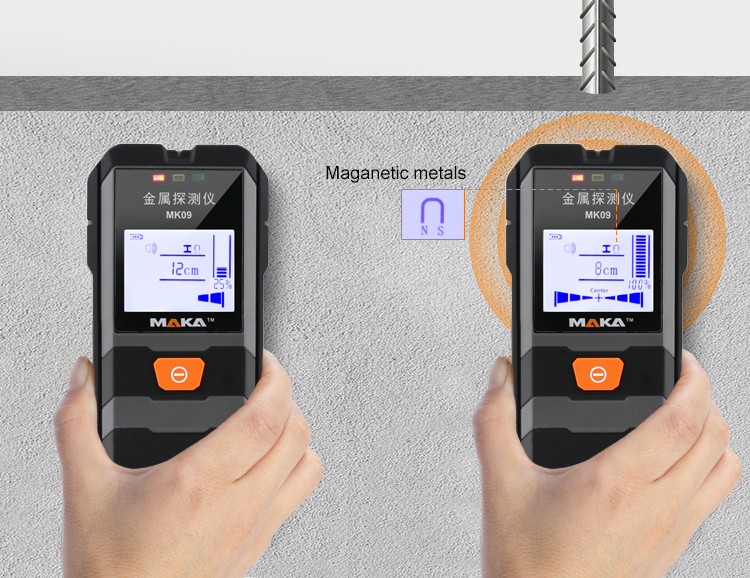

Ferrous Metal Detection

When detecting metal objects, press the metal detection button to enter the metal detection state. The metal detection pattern will appear on the screen and the green light will be on.

Place the detector on the detector surface and move the instrument left and right in the same direction. When testing, the moving speed is 1 second ≤ 6 minutes. The larger the percentage, the stronger the signal.

When the program determines the maximum signal received by the instrument, the metallic object is located directly below the center of the detector. The center icon will appear on the display.

When metal is detected, the detector's yellow or red indicator light will light up, and the instrument will emit a continuous sound.
When metal and AC signal are detected at the same time, the red light of the detector flashes and the instrument beeps.

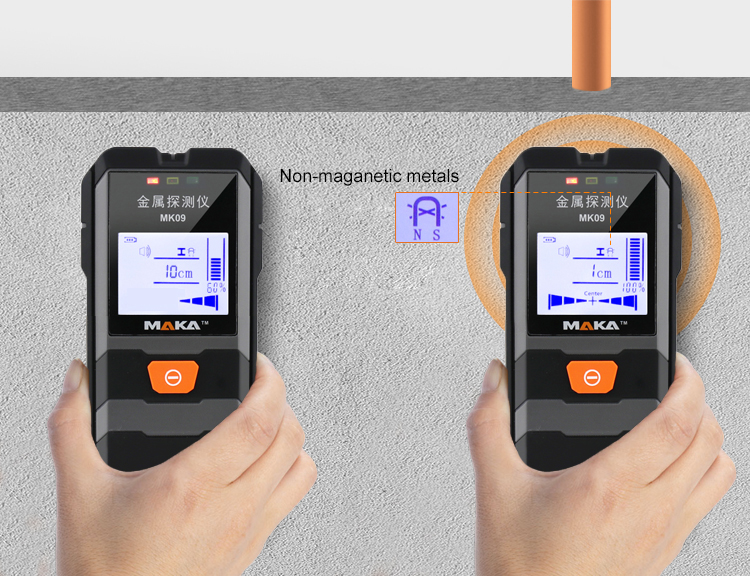

Non-magnetic metal detection

When the measured object is a standard steel rod with a diameter of 18mm or a copper pipe with a diameter of 18mm, the accuracy of the depth value is the best; otherwise, the depth value can only be used as a rough reference value.

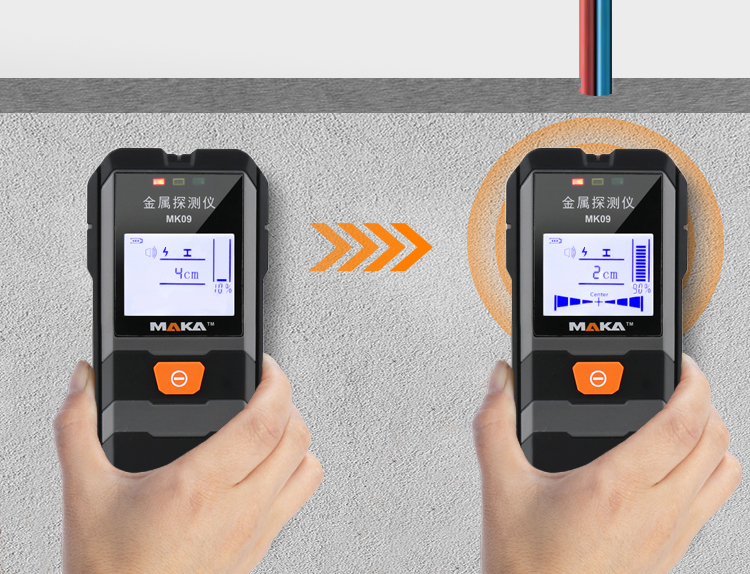

Copper wire (≥4 mm 2 ) detection

warn!
Do not take potentially dangerous steps if there are live wires in the wall. Power, gas and water must be turned off before drilling holes or nailing through walls.
