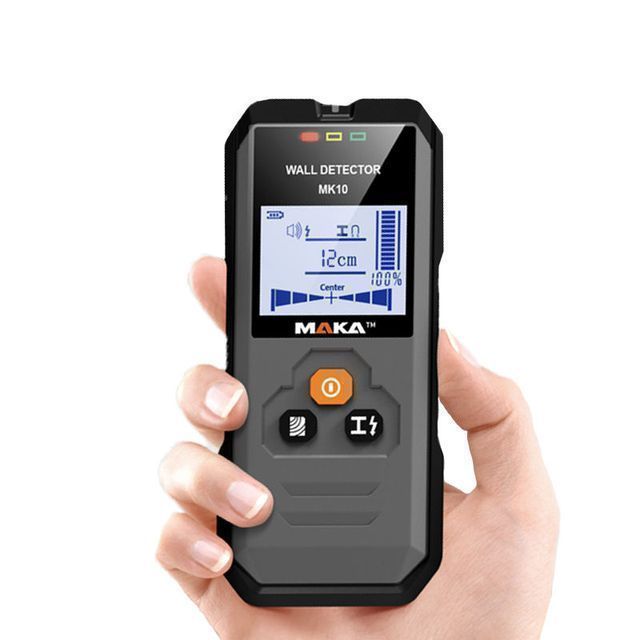

MAKA metal detector with copper metal wire with accurate wood detection

Supplier: Jinhua Maka Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lizzy Xu
Price: $17.80 / 50 - 99 pieces
$17.50 / 100 - 499 pieces
$16.80 / >=500 pieces
Min. Order: 50 pieces

Click here to contact

Product details

payment terms:	letter of credit, wire transfer	port:	Ningbo/Shanghai
power supply:	1x9 volt dry battery	application:	Detect metals hidden in walls, wood, drywall/plaster, drywall, wooden beams, live cables, non-ferrous metals, ferrous metals
color:	can be designed	Certificate:	CE, EMC, FCC
Sensitivity:	High sensitivity	type:	Laser level

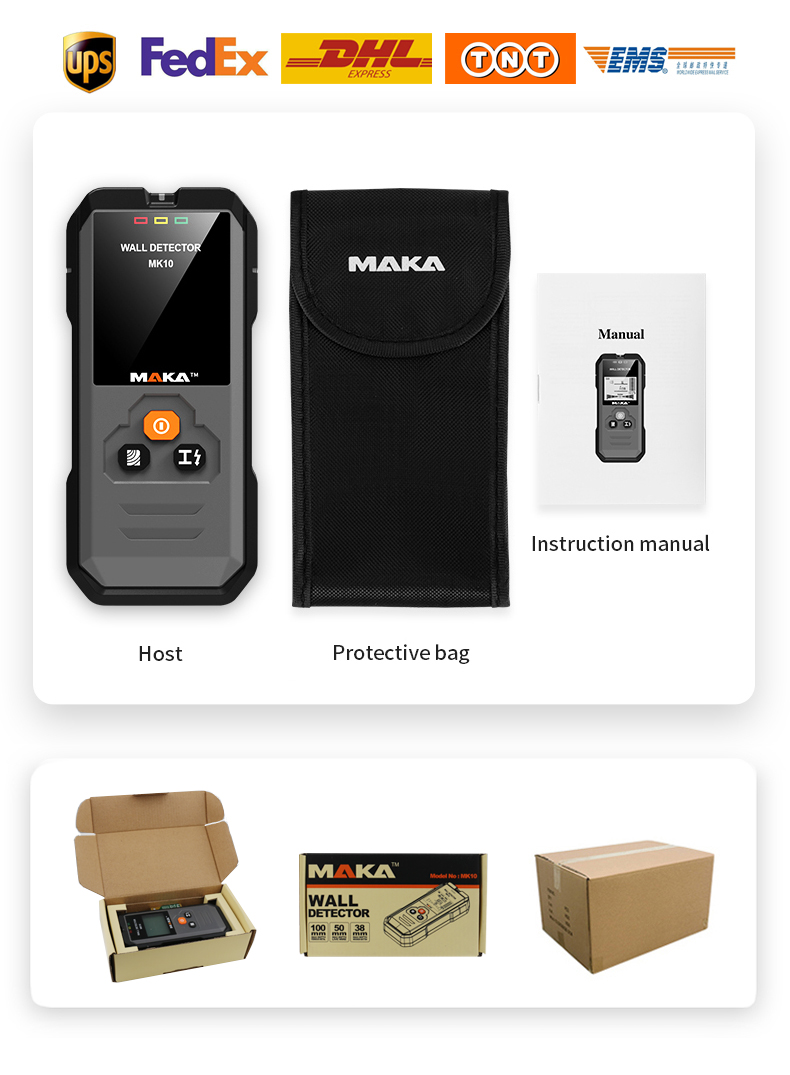

usage:	Move slowly against the wall	Packaging Details:	1 pc/bag 1 pc/color box
Warranty:	Gage, 1 year	Custom Support:	OEM, ODM
place of origin; place of origin:	Zhejiang, China	product name:	wall metal detector
exhibit:	Backlit display	Supply capacity:	10000 pieces per day

TUV certified factory

Xu Lizi

Email: mk@makalaser.com
WeChat: 15258981196

Jack Jiang
Email: jackjiang@makalaser.com
WeChat: jjl7075

feature:

a. The detector can detect metals (steel bars, copper pipes) and cables hidden in walls, ceilings and floors. It can also detect wood
Beams, metal and cables hidden under drywall.

b. Accurate measurement, stable performance, safe and reliable.

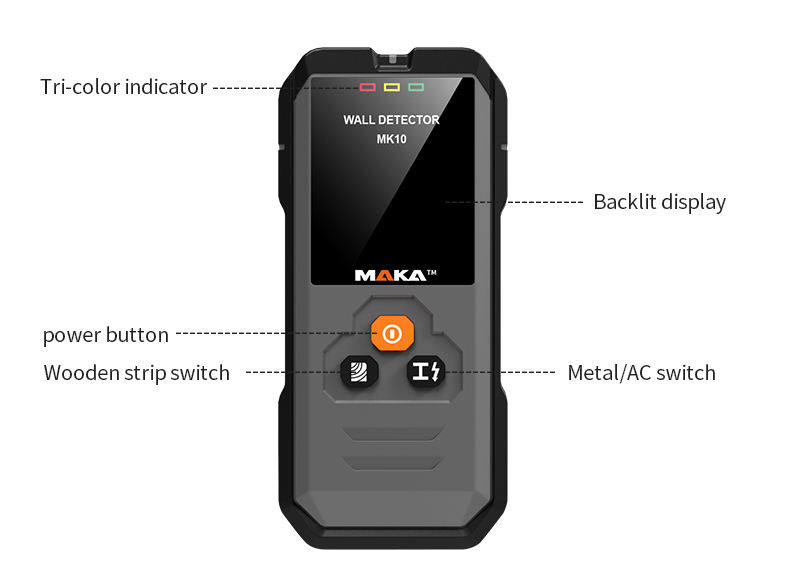

C. Humanized interactive interface, easy to operate.

scope

Maximum detection depth:
black metal					120mm

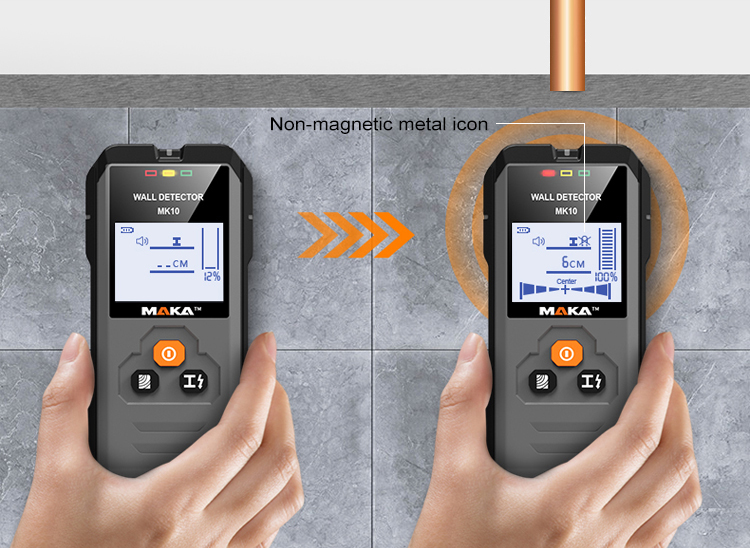

Non-ferrous metals (copper)					100mm

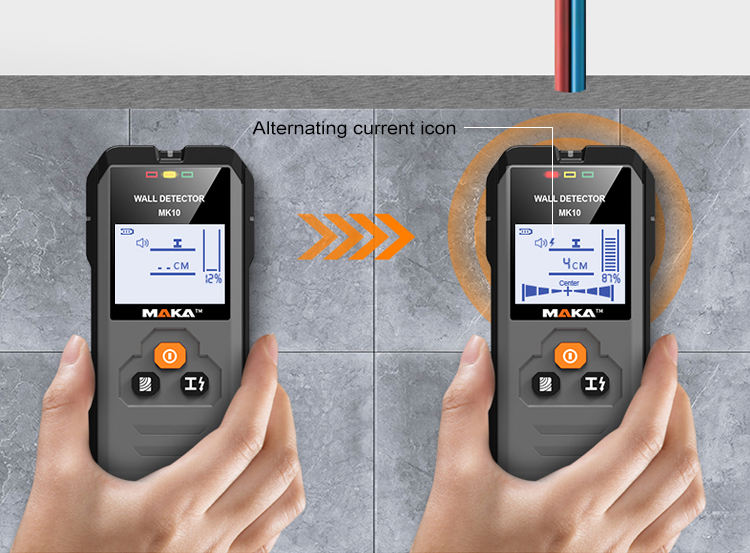

Alternating current (ac)					50mm

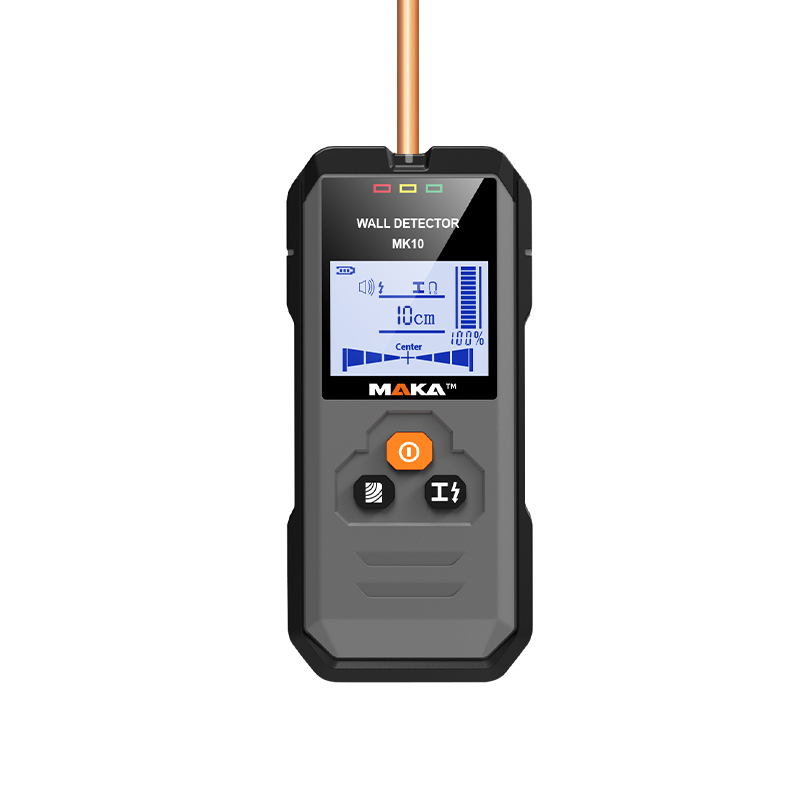

Copper wire (≥4 mm 2 )					40mm
Foreign body (generally refers to wood block)					Precision Mode 20mm / Depth Mode 38mm
Auto shutdown time					5 minutes
Operating humidity range					0-85%RH in metal mode 0-60%RH in foreign body mode
range of working temperature					-10℃ +50℃
Storage temperature range					-20℃ +70℃
Battery					1x9 volt dry battery
usage time					about 6 hours

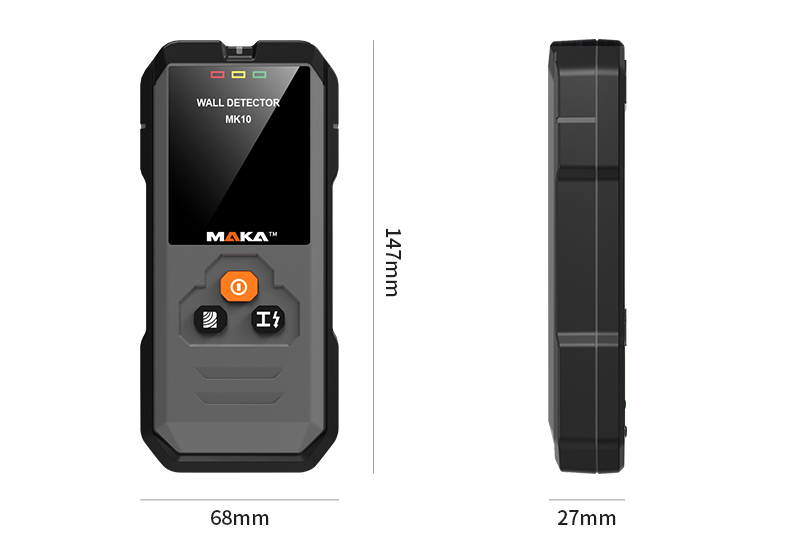

body size					1476827mm

Inspection results are affected by the size and material of the object being inspected, as well as the material and condition of the surface being inspected; if the cable is not charged, the probe depth will be reduced.

detect

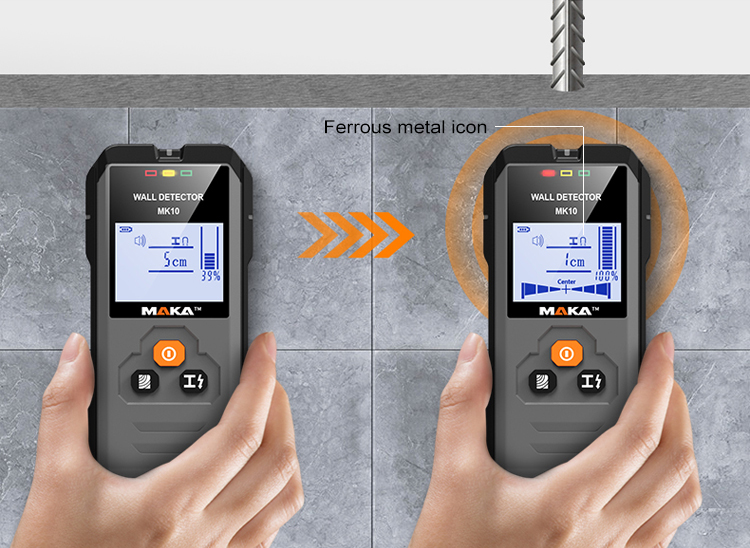

Ferrous Metal Detection

When the measured object is a standard steel bar with a diameter of 18mm or a copper pipe with a diameter of 18mm, the accuracy of the depth value is the best. Otherwise, the depth value can only be used as a rough reference value.
