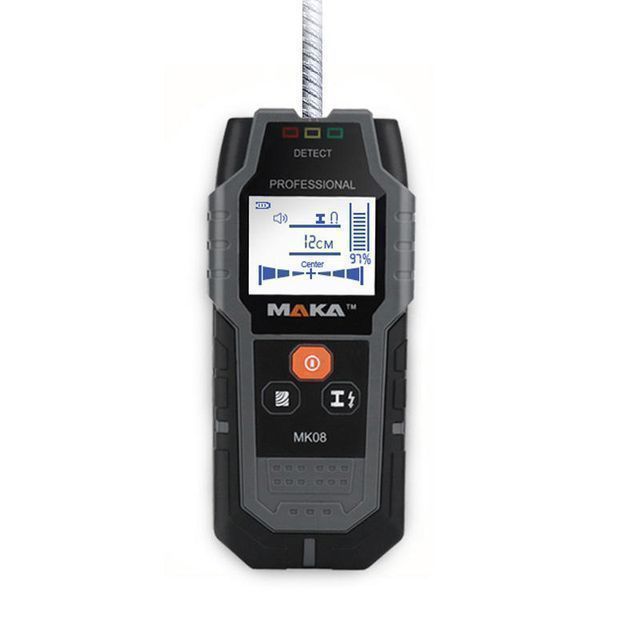

MAKA MK08 Handheld Metal Detector Metal Detector Wire Detector Made in China

Supplier: Jinhua Maka Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lizzy Xu
Price: $23.00 / 50 - 99 pieces
$21.50 / 100 - 499 pieces
$18.50 / >=500 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Sensitivity:	High sensitivity	exhibit:	backlight display
port:	Ningbo/Shanghai	Warranty:	Measuring tools
power supply:	1x 9 volt dry battery	product name:	MAKA Wall Detector
Packaging Details:	1 piece/bag 1 piece/color box	Supply capacity:	1500 pieces per day
Certificate:	CE, ROHS	color:	can be designed
place of origin; place of origin:	Zhejiang, China	application:	Metal detectors, wood, drywall/plaster, drywall, wooden beams, live cables, non-ferrous metals, ferrous metals
Customization support:	OEM production	usage:	move slowly against the wall
payment terms:	L/C, T/T	type:	laser level

TUV certified factory

● Open to cooperation

● All our projects are under the protection of patent application

● The annual output exceeds 1 million pieces, and the quality is guaranteed.

● Founded in 2011, it is ahead of the design and manufacture of laser rangefinders, wall scanners, laser levels and other products.

● Experience in exporting to the United States, Japan, South Korea, Europe, Russia, Australia and other parts of the world, completed
FCC/ETL/CE/EMC/Rohs certificate, BSCI, IS09001 management system and other certifications.

● Long-term cooperation with many stable global large companies

● A package of policy support for VIP customers

Xu Lizi

Email: mk@makalaser.com
WeChat: 15258981196

Jack Jiang
E-mail: jackjiang@makalaser.com
WeChat: jjl7075

feature:

One. Small size, light weight, easy to carry.
b. The metal detection depth can reach 12CM, and the depth value can be displayed digitally.

c. Powerful, stable performance, reliable quality, world-class level.

d. Can detect magnetic/non-magnetic metals. Wooden beams and live cables hidden in walls, ceilings and floors, referring to
Walls, ceilings and floors are conventional concrete, tiles and wood panels.

e. It is sold in large quantities in Europe.

scope

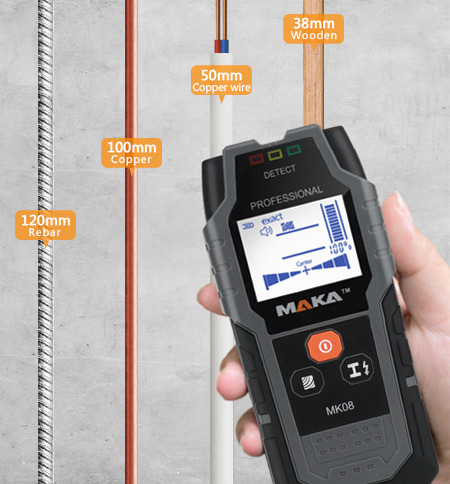

Maximum scan depth:
black metal					120mm
Non-ferrous metals (copper)					100mm
Copper conductor (live)**					50mm
wood					20mm
closes automatically after about					5 minutes
Working Humidity Range:
Metal					0-85% relative humidity
wood					0-60% relative humidity
Copper conductor (live)**					0-30% relative humidity
Operating temperature					-10℃+50℃
Storage temperature					-20℃+70℃
Battery					1x9V
Approx.					6 hours
weight					0.13Kg

*Depends on the material and size of the object, such as the material and condition of the structure.

** Wires/conductors that are not "live" have a smaller scan depth.

detection

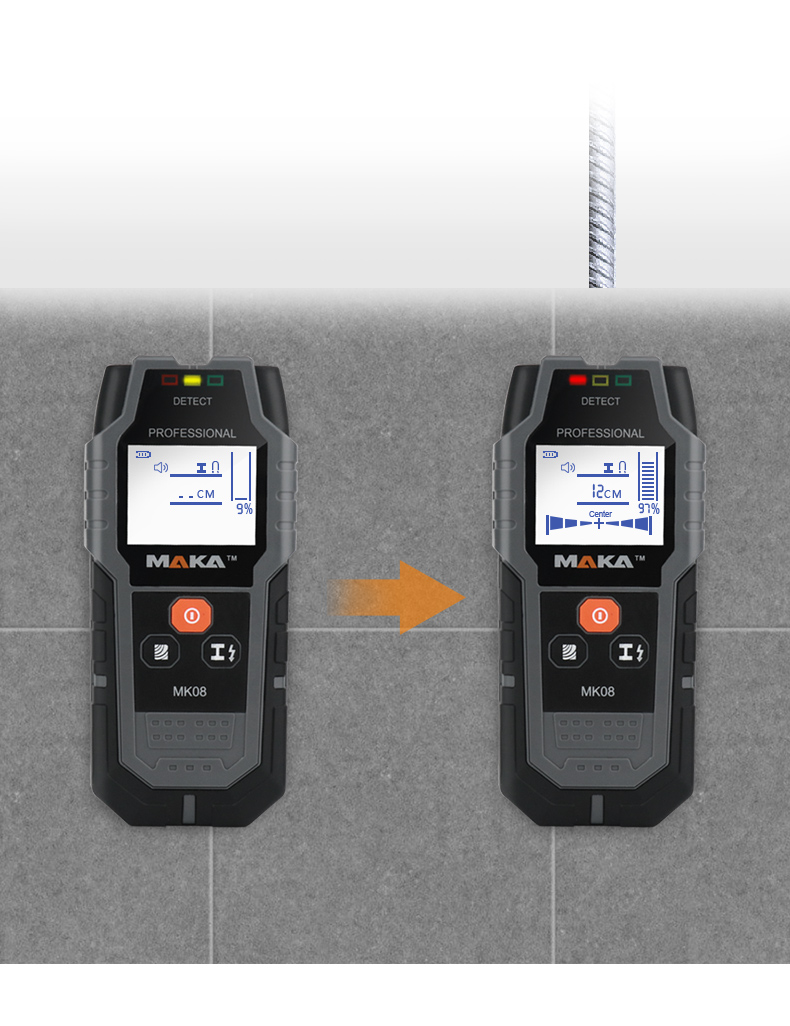

Ferrous Metal Detection

The stronger the model, the higher the percentage. The position of the object is based on the center point, and the percentage is for reference only.

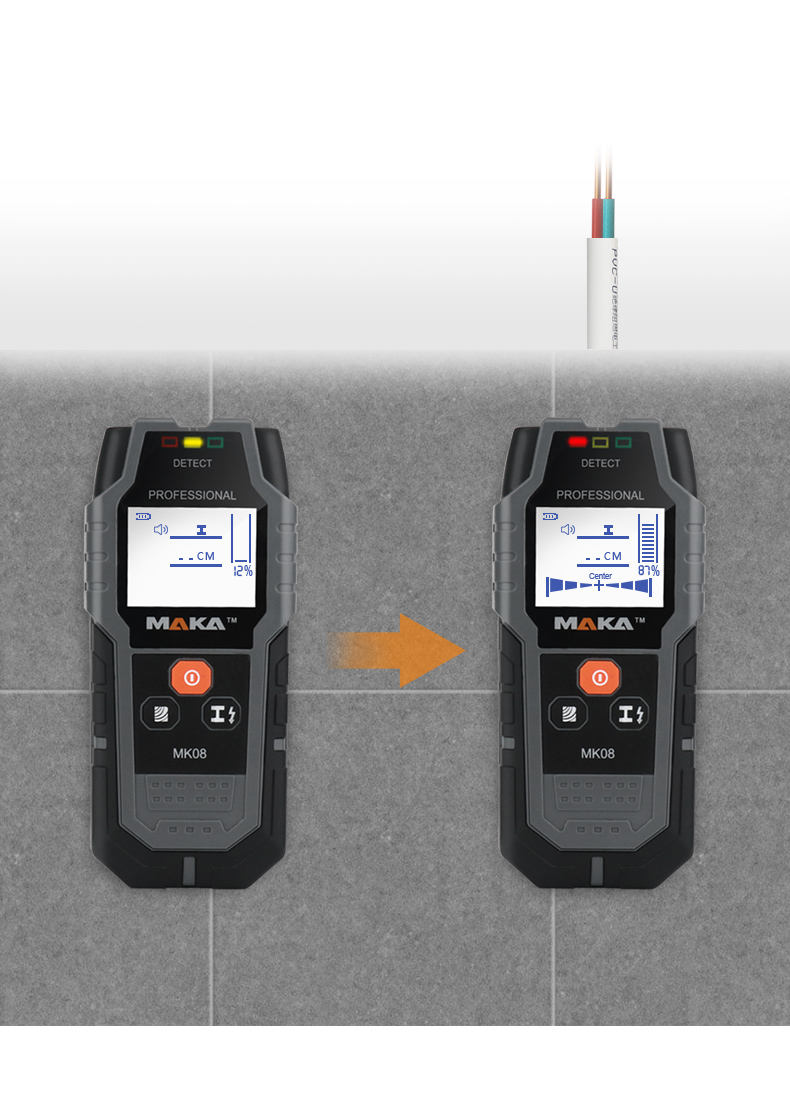

Copper conductor (live) detection

In some cases (for example: the cable is hidden under the metal surface. Or concrete and other objects that have a shielding effect on the alternating current; the instrument may not be able to find the buried live cable. When looking for the live cable, the detection signal is affected by the position of the live wire. Therefore, we must repeat the test near the test location or from another source to determine if there is a live cable.

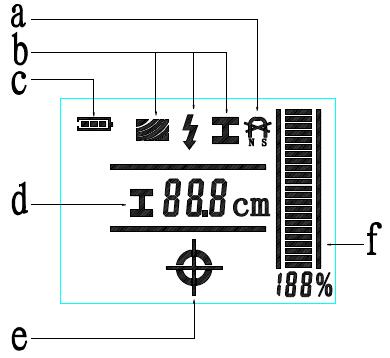

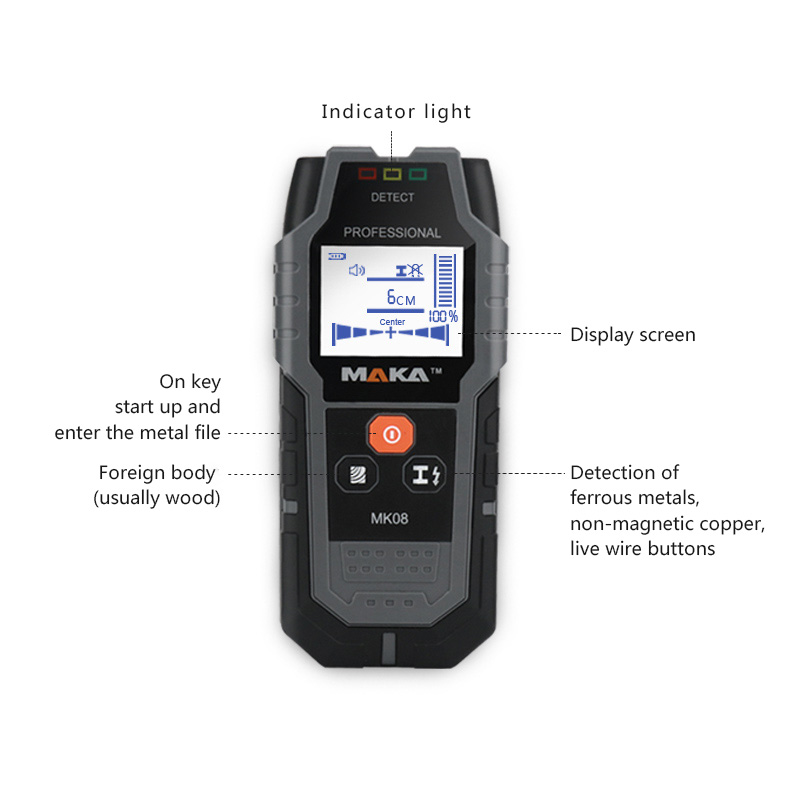

display element

One. Magnetic/Non-magnetic Metal Indicators

b. Current detection mode indicator light (wood, live wire, metal)
c. battery light
d. Metal detection depth display area (this depth means: from the center of the detection area to
measurement object)
e. Indicator for the object to be detected to the center of the detection area
F. Detection signal strength display area

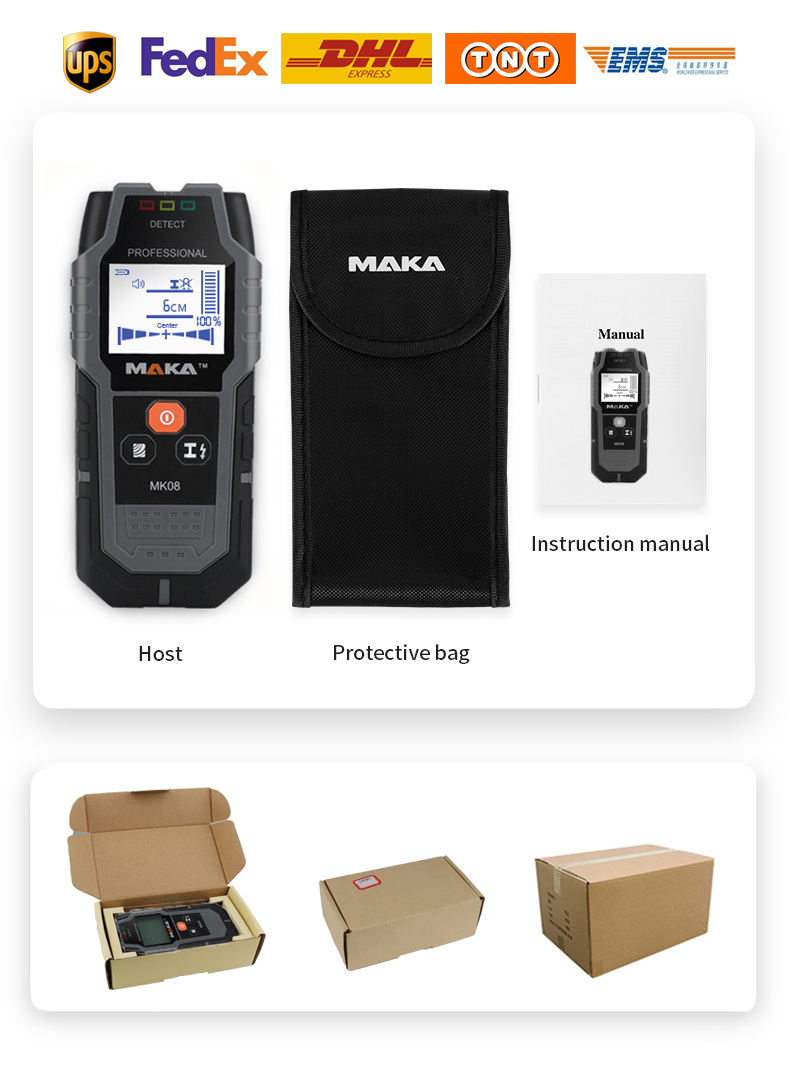

Packing and shipping
