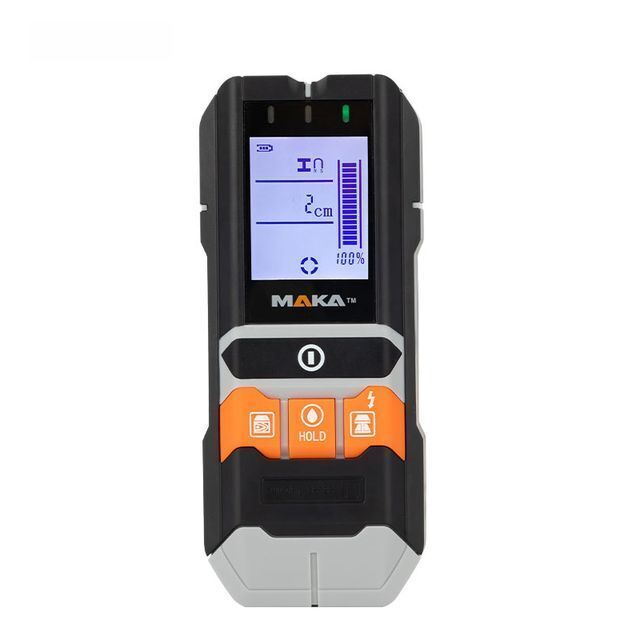

Electric Wall Scanner Detector Instrument AC Wire Metal Stud Center Detector

Supplier: Jinhua Maka Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lizzy Xu
Price: $42.75 / 10 - 49 pieces
$28.50 / 50 - 99 pieces
$27.50 / 100 - 499 pieces
$24.50 / >=500 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Supply Ability:	1500 Pieces per Day;	Payment Terms:	L/C,T/T;

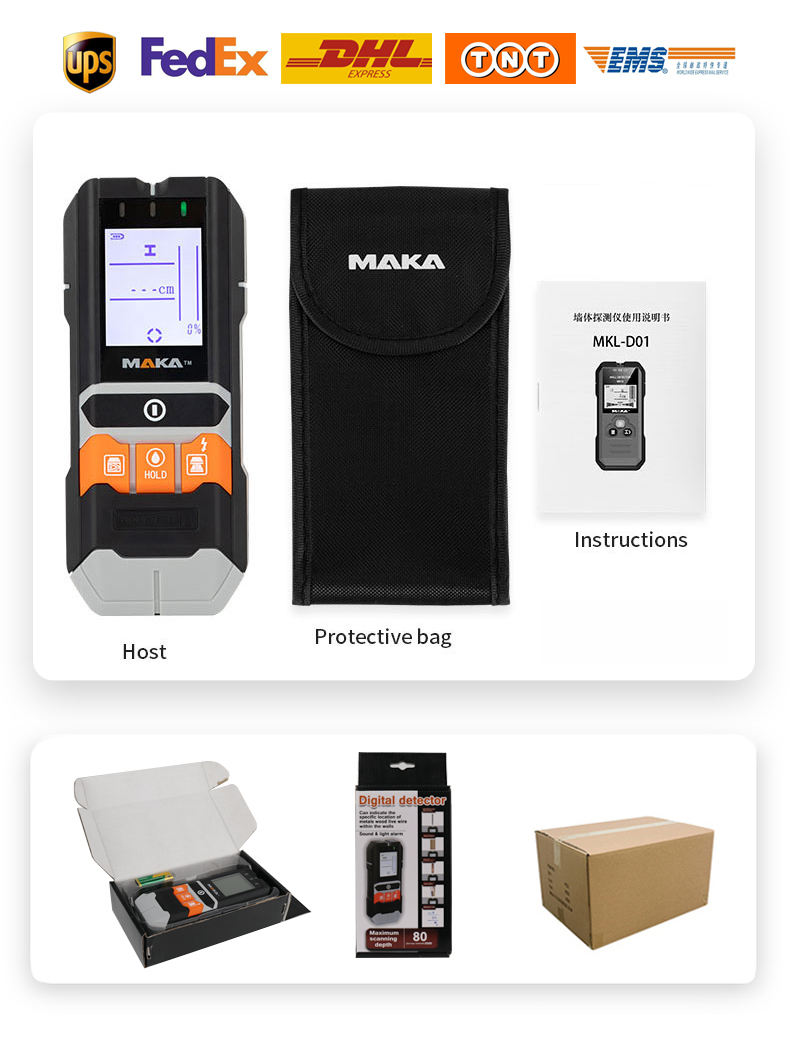

Packaging Detail:	color box + 1mannual+1 bag;	Warranty:	1 Year,1 years;
Size:	1606833mm;	Hint 1:	The copper wire must be electrification;
Metal mode:	constant speed ≤ 6cm/s;	Wood file mode:	constant speed ≤ 4cm/s;
Certificate:	CE,ROHS;	Usage:	Metal Hunting;
Copper wire:	≥4 mm² and single strands of copper wire;	Port:	Shanghai/Ningbo;
Place of Origin:	China;	Package Preview:	;
Application:	detect metals, live wire,detect wood beams,test moisture,Wood,Drywall/Gypsum,Drywall,Wooden Beams,Live Cables,Non Ferrous Metals,Ferrous Metals;	Customized support:	OEM,ODM;

Electric Wall Scanner Detector Instrument AC Wire Metal Stud Center Detector

Reliable partner

♦ OEM&ODM is available

♦ 24 hours online service

♦ Full quality control service

♦ The longest warranty period is 2 years

♦ BSCI,ISO9001,CE,ROHS,FCC certification

♦ Main market to North America,south America, Europe, Russia etc. 35 countries

♦ Professional research and development team, with 4-5 new products every year

♦ More than 10 years experience in manufacturing and exporting measuring and detecting instruments

PRODUCT FEATURES

1.Powerful function, stable performance, reliable quality and world-class level.

2.Metal detection depth can be up to 12CM, and depth value can be displayed digitally.

3.Small size, light weight, easy to carry.

4.Can detect metals(iron and non-ferrous metals),wood beams and live cables hidden in walls, cailing and floors. referring to the wall, ceiling and floor are conventinal conventional concreta,ceramic tile and board.

PRODUCT APPLICATIONS

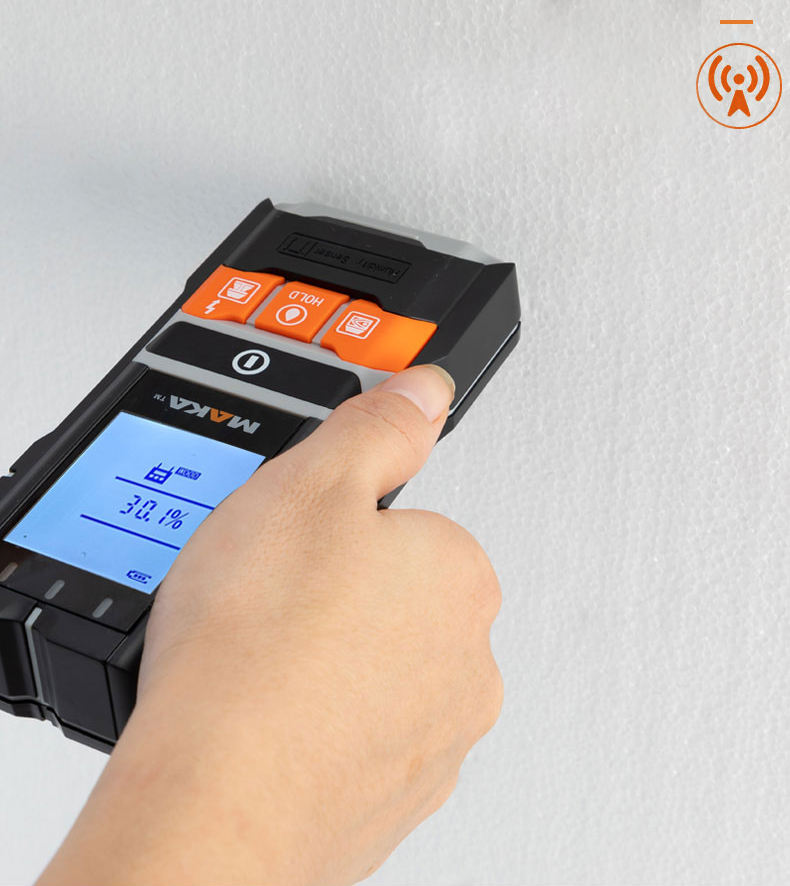

Can test all kinds of tree species, wood bamboo, paper,,Chinese medicinal materials, plasterboard, cement mortar, lime mortar moisture content.

Product Description

PARAMETER

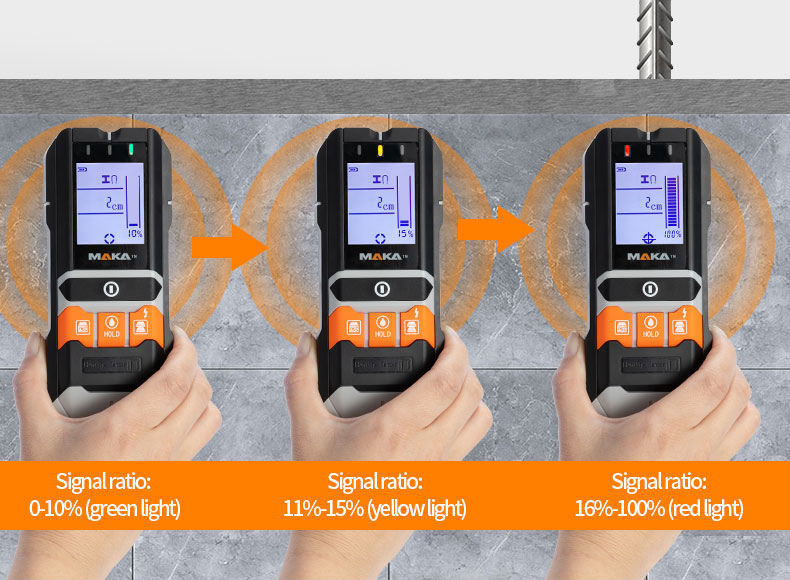

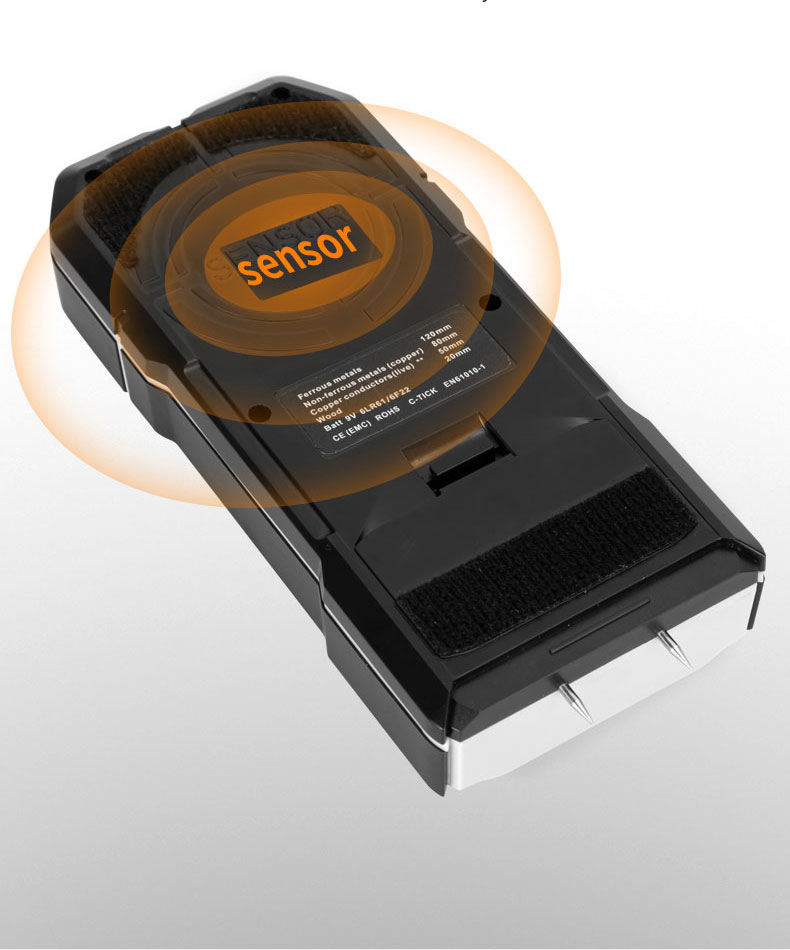

Maximum scanning depth	Ferrous metals		4-3/4” / 120mm
	Non-ferrous metals(Copper)		3-1/8” / 80mm
	“Live” AC Wires (220V@50Hz / 110V@60 Hz)		2” / 50mm

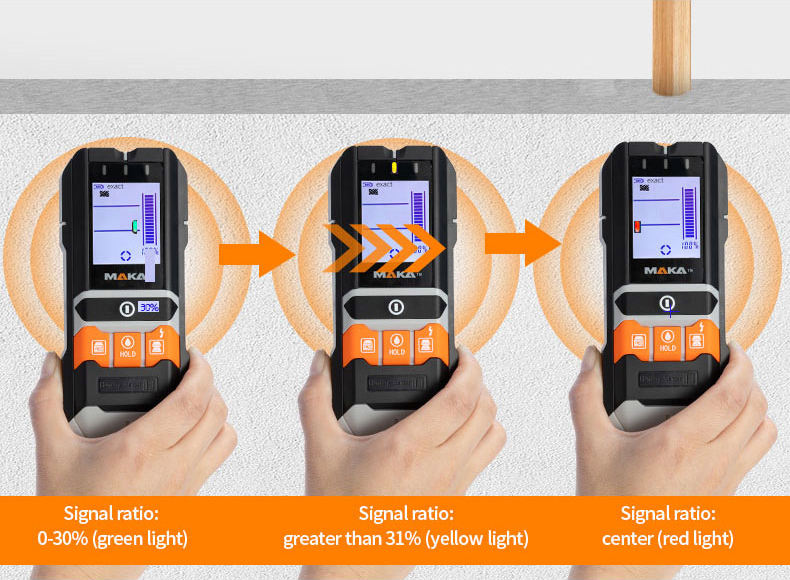

	Wood studs	Exact mode	3/4” / 20mm
		Deep mode	1-1/2” / 38mm

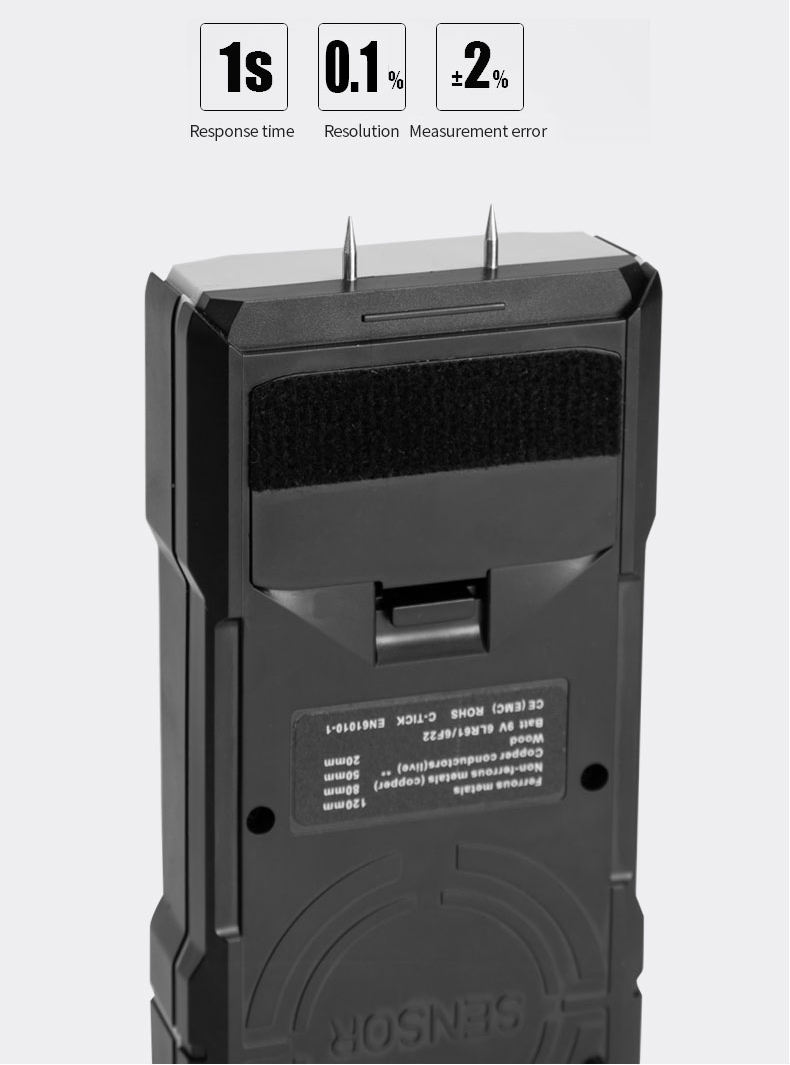

Moisture test pins length	0.3” / 8mm
Moisture measurement range and accuracy	Wood		5%-50%/±2%
	Building materials		1.5%-33%/±2%
Automatic switch-off	Approx.5 minutes of inactivity
Operating Temperature	-10℃ to 50℃ / 14℉ to 122℉
Storage Temperature	-20℃ to 70℃ / -4℉ to 158℉
Operating relative humidity	35% - 55%RH
Power Source	1*9V Battery

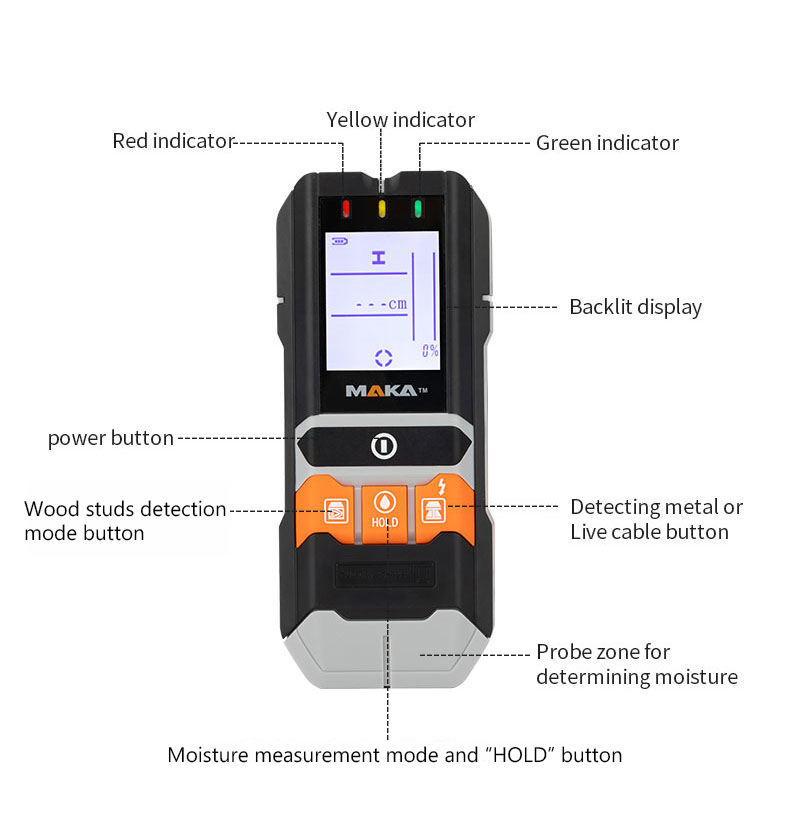

a.	Magnetic / Non-magnetic metal indicator
b.	Metal detection mode indicator
c.	”Live” wires detection mode indicator
d.	Wood stud detection mode indicator
e.	Exact wood detection mode indicator
f.	Deep wood detection mode indicator
g.	Battery indicator
h.	Metal depth (the distance from the sensor area to the measured metal object)
i.	Moisture measurement HOLD indicator
j.	Wood moisture measurement mode indicator
k.	Building material moisture measurement mode indicator
l.	Center indicator
m.	Signal strength scale
