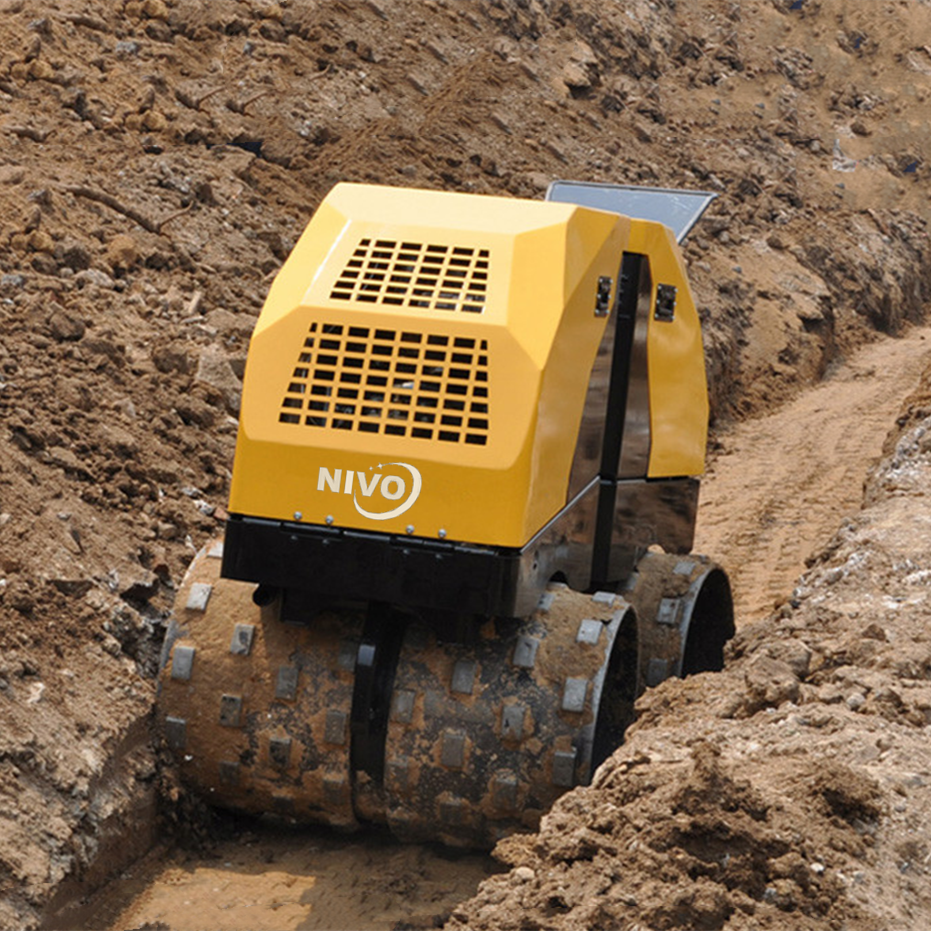

NIVO NV202C 1635kg Remote Control Trench Roller 1.6 Ton Mini Roller with Pads or Flat Feet or Parts

Supplier: Nivo Machinery (jingjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms May Huang
Price: $6596.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Exciting force:	70/35KN	Elective:	200/300/500/600/800...1 ton, 2 ton, 3 ton
Core component warranty:	1 year	Origin:	China
strength:	20 hp	payment terms:	L/C, Western Union, T/T, MoneyGram
Mechanical test report:	if	brand:	Nivo
Dimensions (LWH):	20509501500mm	Engine brand:	Yanmar/Honda
Level Ability:	mentioned	drum:	Double Drum Roller
Driving speed:	2.4 km/h	Unique selling point:	High operating efficiency
type:	vibratory roller	Core components:	Pressure vessels, motors, bearings, gears, PLCs, pumps, engines, gearboxes
Nominal amplitude:	1.7 mm	Showroom location:	not any
Warranty:	1 year	Video shipment inspection:	if
Packaging Details:	in wooden box container	Health status:	new
Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies	weight:	1635 kg
Marketing Type:	2019 Hot Products	Package preview:

Product Description

Specification

200kg-40ton model, hydraulic/mechanical/static, double roller or single roller optional, please contact +8615861000958 for in-depth communication

YNC1H

working weight	1635 kg
Model	Yanmar (EPA engine optional Delivery time depends on EPA engine production)
type	Diesel, liquid-cooled, three-cylinder
strength	20 hp/3000 rpm
Elective	Honda gasoline engine
speed	2.4km/h (high) 1.2km/h (low)
Theoretical climbing ability	50%
Forward/backward static linear load	100/92 N/cm
Nominal amplitude	1.7 mm
vibration frequency	42 Hz
Exciting force	70kN/35kN hydraulic control
Drum width	600/850mm
Steel drum diameter	520mm
tread	1000mm
Turning radius	1700mm
aspect	20509501500mm

working weight	848 kg
engine model	HONDA GX390 (EPA engine is optional)
type	Gasoline, air-cooled, single cylinder
strength	13.0 hp/3600 rpm
Elective	yanmar diesel engine
speed	1.2km/h(low); 3.6km/h(high)
Theoretical climbing ability	30%
static linear load	50.2/52.2 N/cm
Nominal amplitude	0.5mm
vibration frequency	62 Hz
Exciting force	22KN
Drum width	680mm
Steel drum diameter	355mm
Turning radius	15°
aspect	13009001300mm

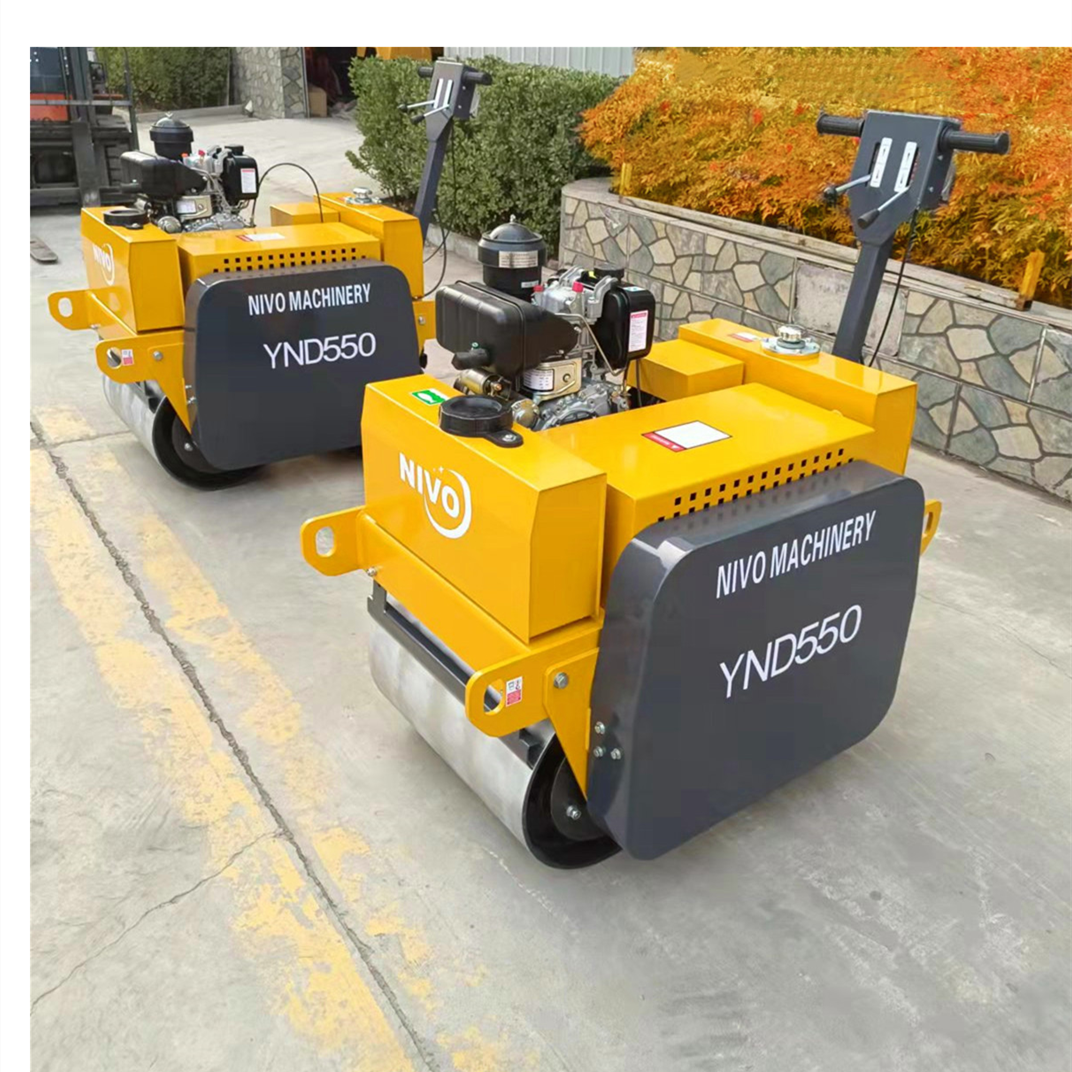

YND550 550kg
working weight	550 kg
engine model	Honda GX270	CF178F	KM178F
strength	9 hp	6 hp	4KW
static linear control	60N/cm
Nominal amplitude	0.5mm
vibration frequency	78 Hz
Exciting force	28KN
walking speed	0-4km/h
Gradeability	30%
Drum size	Φ425 X600mm X2
aspect	1400900400mm

Specification YNC3H 3 ton model
working weight	2900 kg
engine model	Perkins water-cooled diesel engine 403D-15
strength	32.7 HP
Elective	Yanma, Changchai, Longhair
static linear load	130/120 N/cm
Nominal amplitude	0.5mm
vibration frequency	65HZ
Exciting force	2X30KN
walking speed	0-12km/h
Gradeability	30-40%
Drum size	φ700X1200mmX2
drive type	Hydraulic transmission
vibration model	hydraulic vibration
water tank	200L
Hydraulic tank	48L
Package Size	2780X1500X2050mm
start method	electrical

Specification YNC2H 2 Ton Model
working weight	1700 kg
engine model	Perkins 403D
strength	25 hp
static linear load	60/75 N/cm
Nominal amplitude	0.6mm
vibration frequency	70 Hz
Exciting force	30KN
walking speed	0-8km/h
climbing ability	30%
Drum size	Φ560900mm2
drive	Hydraulic transmission
vibration type	hydraulic vibration
water tank	100L
Hydraulic tank	60L
Package Size	246011801740mm
start method	electrical

Batch export of overseas government bidding documents

Different configurations are available at different prices. If the quantity is large, the price will be better

Small roller export website

The final sea freight will be adjusted according to the actual freight. All prices are based on general product basic configuration, engine,
The hydraulic system will be updated according to the actual stock. NIVO reserves all rights including updated technology and appearance
without notice.
