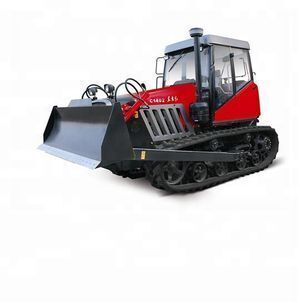

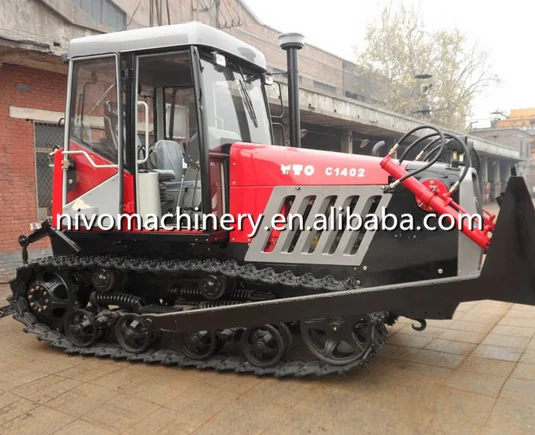

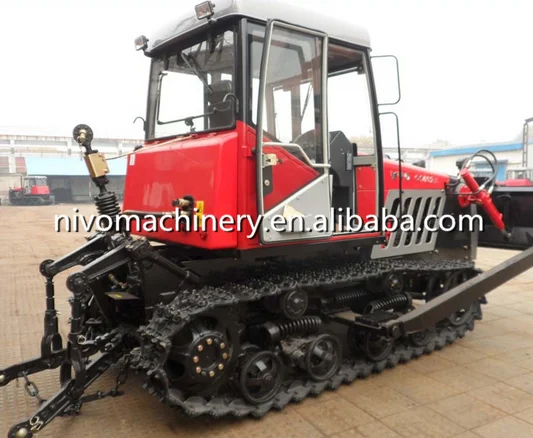

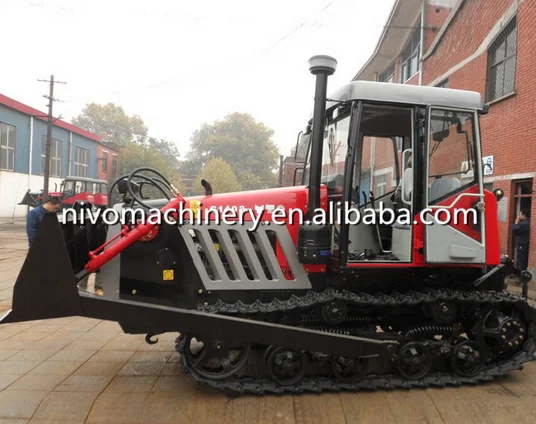

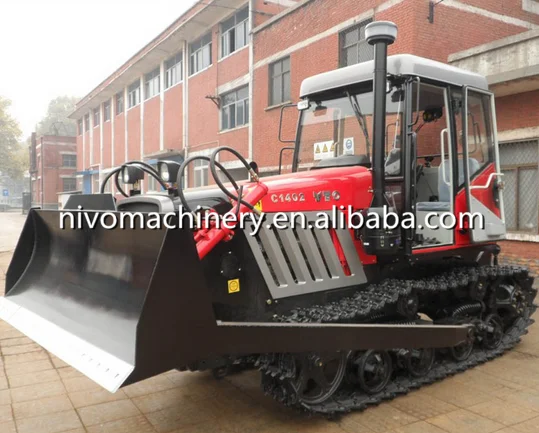

C1402 140hp crawler tractor bulldozers with blade

Supplier: Nivo Machinery (jingjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms May Huang
Price: $30000.00 / >=50 units
Min. Order: 50 units

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	20 Unit/Units per Day;
Condition:	New;	Brand Name:	Nivo;
Port:	SHANGHAI PORT QINGDAO PORT;	After-sales Service Provided:	Overseas service center available;
Place of Origin:	Jiangsu China;	Moving Type:	Crawler Bulldozer;
Dimension(Long * Breadth * High):	534418352910;	Name:	Crawler Bulldozer;
Model:	LR6M3Z-22;	Brand:	Nivo;
Machine Weight:	7400kg;	Packaging Detail:	NUDE;
Color:	Red;

Main function:
This crawler tractor is suitable for hillside , hilly, farmland, garden operations, logging tractor, but also suitable for fish ponds , brick , rural roads , earthwork .

Features:
1) This crawler tractor can use rubber track, which has the advantages of light weight, low noise and vibration. Wide track is also available for use in wetlands.

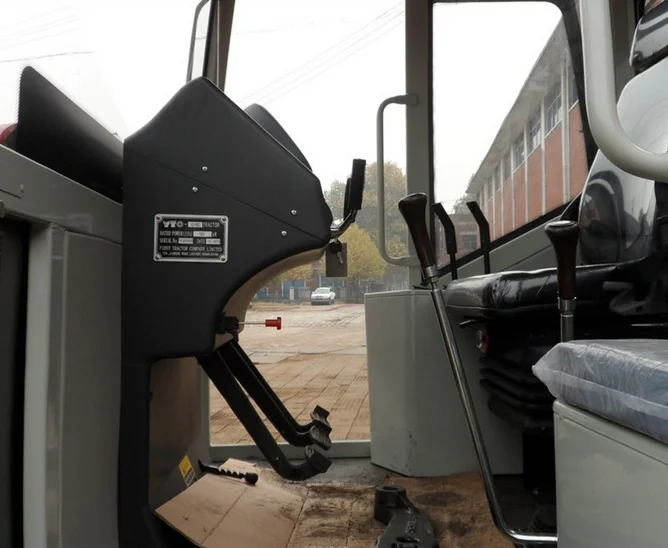

2) The tractor is ergonomically designed for easy operation so as to reduce labor intensity of the driver.
3) The main clutch adopts new structure, resulting in longer service life.

specifications

Overall dimensions LWH (with blade)mm	5551×2462×3100
Operating weight (with blade)kg	7400
Track gauge mm	1435
Wheel base mm	1792
Track width mm	390
Ground pressure (with blade) kPa	47
Diesel Engine type	LR6A3LU22/1030E
Rated power output (kW)	103
Rated speed (r/min)	2200
Minimum fuel consumption rate (g/ kW.h)	≤242
Oil consumption rate (g/ kW.h)	≤1.63
Hydraulic suspension structure type	Hinge lever type, adjustable two point suspension or three point suspension.
Maximum hoisting force of suspension shaft (kN)	14.9
blade type	Fixed straight blade
blade height*width mm	850×2462
Depth Into Soil (mm)	≥330
Max. Lifting Height (mm)	≥700
