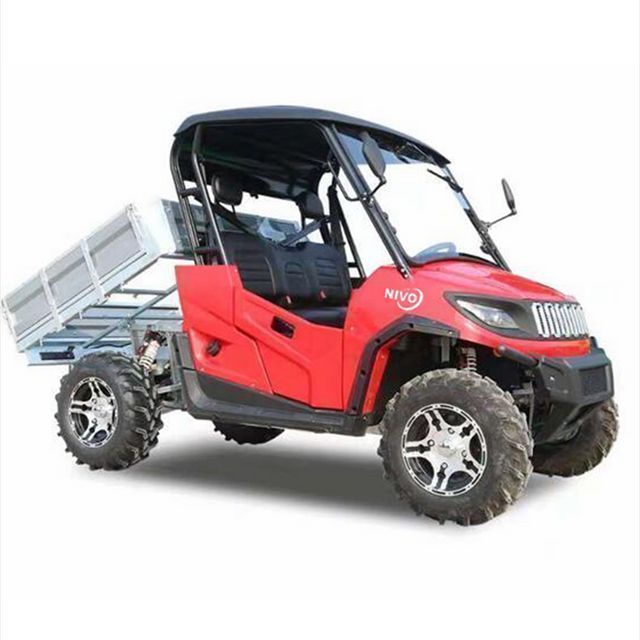

NIVO NVD1000U diesel Utility Terrain Vehicle mini UTV 4x4 400 kg load capacity 12.5 ton utvs or parts

Supplier: Nivo Machinery (jingjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms May Huang
Price: $568.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Charging time (hours):	3-5 hours	Brake system:	front drum + rear drum
curb weight:	≥500kg	driven distance:	≥90km
type:	800cc	payment terms:	L/C, Western Union, T/T, MoneyGram
Maximum torque (Nm):	≥80Nm	brand:	Nivo
Differential lock:	equipped with	Maximum speed:	≤50km/h
port:	Shanghai	Wheelbase:	1800-2200mm
Certificate:	Environmental Protection Agency	brake:	hydraulic disc brake
model:	NVD1000U	Level Ability:	≥25°
Supply capacity:	20 units per day	Package preview:
Transmission type:	automatic	driving type:	four-wheel drive
Payload Capability:	300-400kg	Voltage:	24V
Packaging Details:	nude	place of origin; place of origin:	China
Minimum Great Clearance:	≥300mm	strength:	> 1000W

Product Description

technical specifications

thing	technical specifications			NVD1000U
engine parameters	Model			DV210
		Bore x stroke mm x mm			86×86
		Cylinder displacement ml			999
		Maximum power and speed kW, rev/min			36.8/3200
		Maximum torque and speed Nm, rev/min			130/1800-3000
		Minimum no-load stable speed r/min			850±50
		Fuel supply method			Electronic Fuel Injection EFI
Vehicle parameters	Length x width x height mm			3100×1720×2000
		Wheelbase mm			2115
		Wheel base (front/rear) mm			1350/1350
		Minimum ground clearance mm			310
		Vehicle mass kg			1250
		Rated load quality kg			400
		Maximum speed km/h			≤50
		Braking method (front/rear)			Caliper Disc Brakes
		Brake control mode (front/rear)			hydraulic power
		rim type			One-piece aluminum alloy rim
		tire size			Front 27×11-14 Rear 27×11-14
		Front/rear tire pressure (kPa)			150
		transfer method			Mechanical
		Braking performance (initial speed 30km/h) (m)			<5.9
		Parking performance (%)			≥18
		start the show			≤14
		Acceleration performance(s)	start acceleration	≤18
			beyond acceleration	≤13.8
		emission performance	carbon monoxide	<2%
			what	＜250ppm
		Steering device (left and right limit angle)			≤40
		Steering mode (optional)			Electronic Power Steering/Hydraulic
		Minimum steering circle diameter (m)			≤9.5

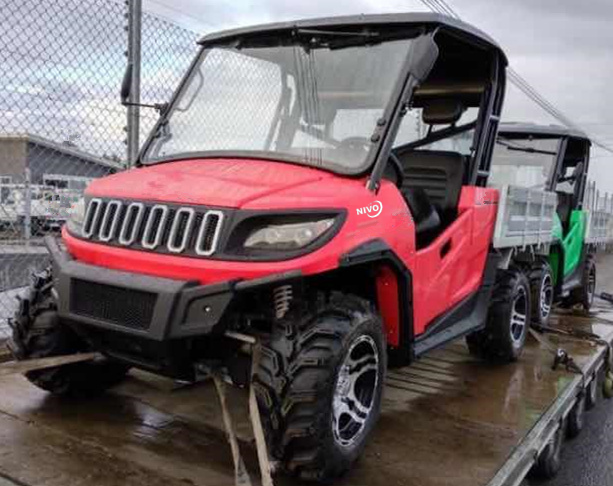

detailed image

Batch export of overseas government bidding documents

Different configurations are available at different prices. If the quantity is large, the price will be better

Small roller export website

The final sea freight will be adjusted according to the actual freight. All prices are based on general product basic configuration, engine,
The hydraulic system will be updated according to the actual stock. NIVO reserves all rights including updated technology and appearance
without notice.
