High quality bldc vibration motor miniature 5v vibration motor for beauty instruments

Supplier: Constar Micromotor Co., Ltd.
Region: Guangdong, China
Contact: Mr Ray Pei
Price: $7.00 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

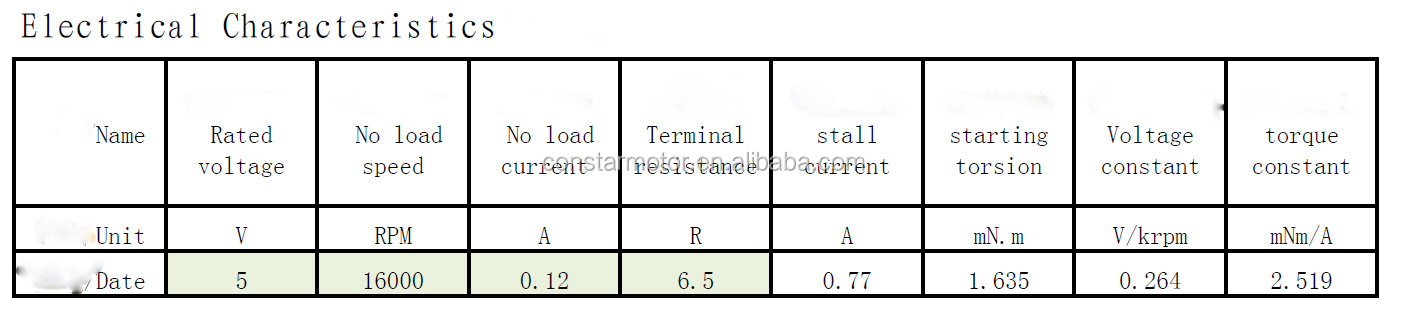

Product details

Origin:	Guangdong, China	Rated voltage:	5V
N0-load speed:	16000 rpm	brand:	Kang Xing
type:	Micro-motor	Motor type:	DC brushless three-phase
Packaging Details:	carton	MOQ:	1000
product name:	1215 Brushless DC Vibration Motor	stage:	three phase
Load current:	1.12A	Supply capacity:	200000 pieces per month
model:	VB1215	usage:	Beauty instrument\massage instrument
size:	12*21.5mm	Package preview:
custom made:	Yes	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Monthly Statement
length:	21.5 mm	Warranty:	3 months - 1 year

High quality bldc vibration motor miniature 5v vibration motor for beauty instruments

Kangxing micro motor

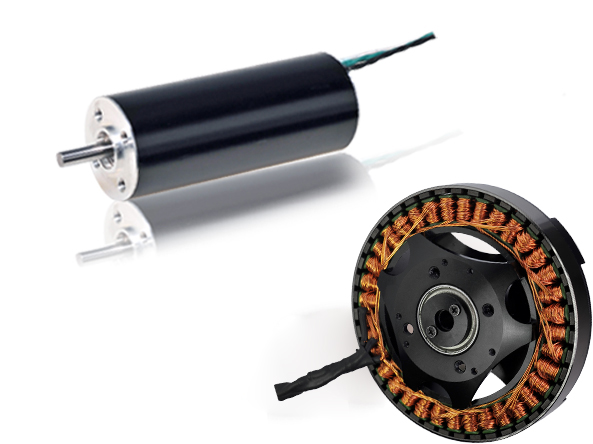

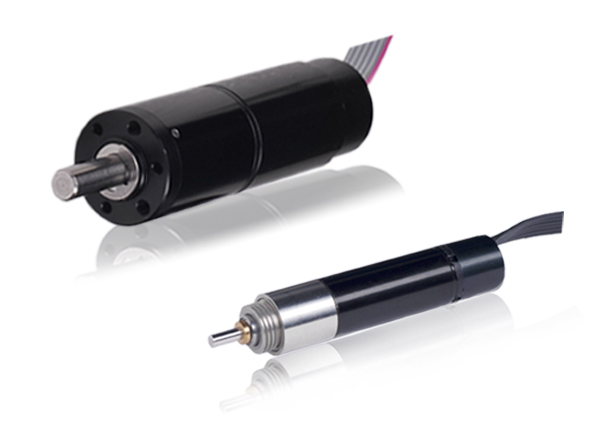

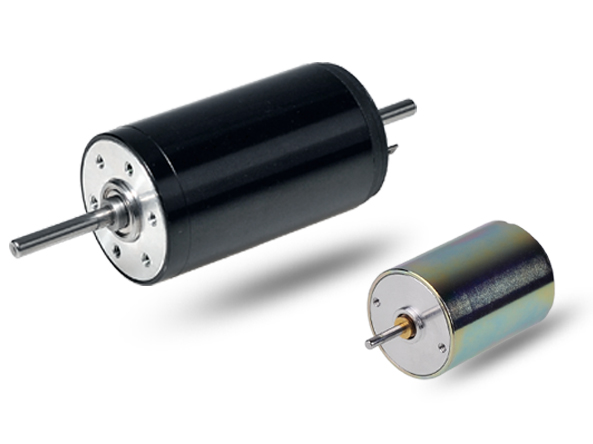

Precision DC Ironless Motor	Brushless DC Motor	servo motor

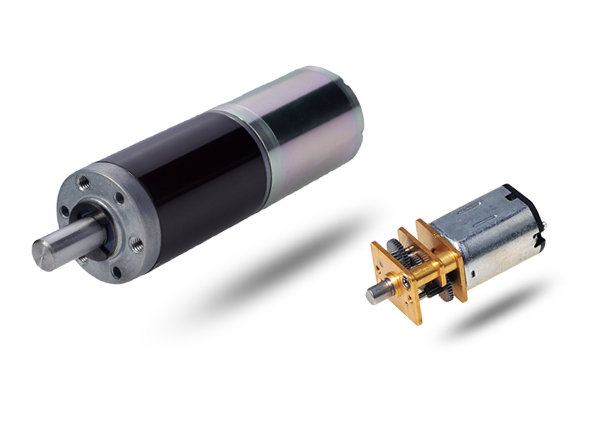

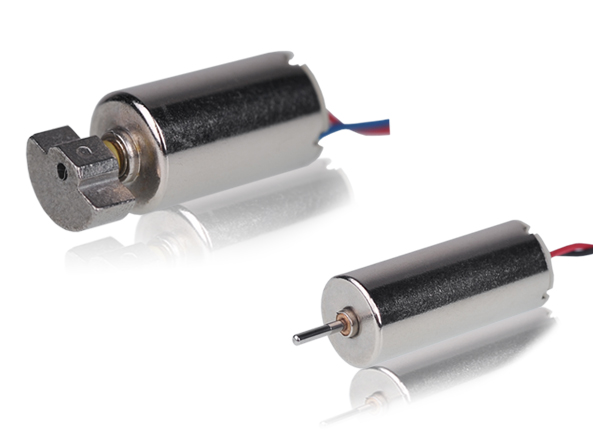

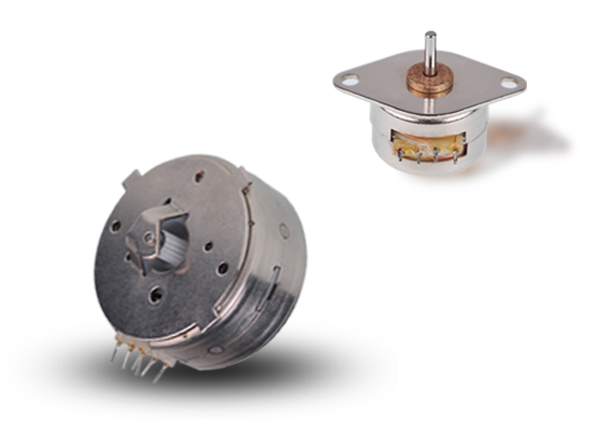

gear motor	stepper motor	Mini coreless motor

1. Application:Medical equipment, industrial equipment, marine models, power tools and small appliances

2. Operating environment:-40~+100℃

3. Features:

...The following are our standard products, we also offer Customized products and services.

4. Options:Wire lengths, shaft lengths, special coils, reducers, bearing types, drives

5.Custom Motor Solutions

CONSTAR MICROMOTOR specializes in designing, customizing and manufacturing motors, including DC coreless motors,Sonic motor,Brushless DC Motor,gear motor,servo motor,DC iron core motorandMini stepper motor.All of this can be customized with complete ease. We are committed to providing high-quality, high-performance, cost-effective options to meet the specific needs of our customers. Choose to customize a motor from our product category today!

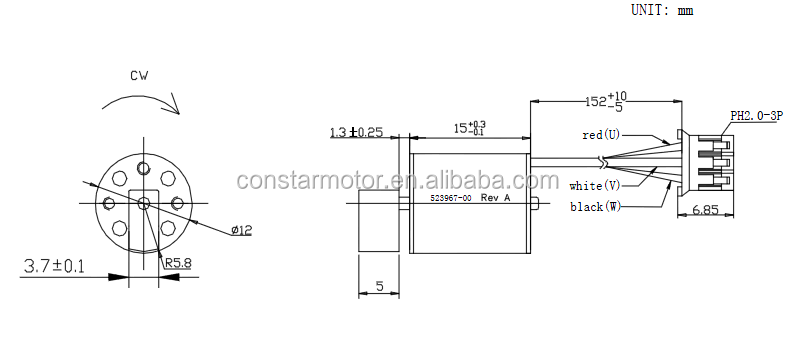

6. Outline drawing:

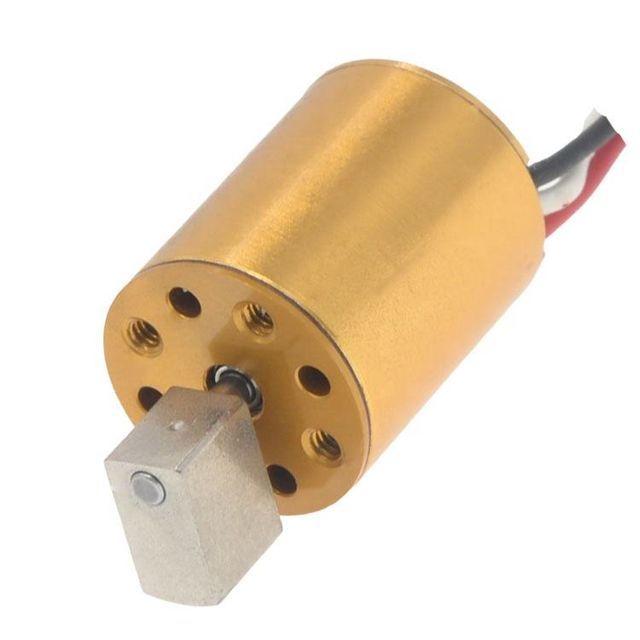

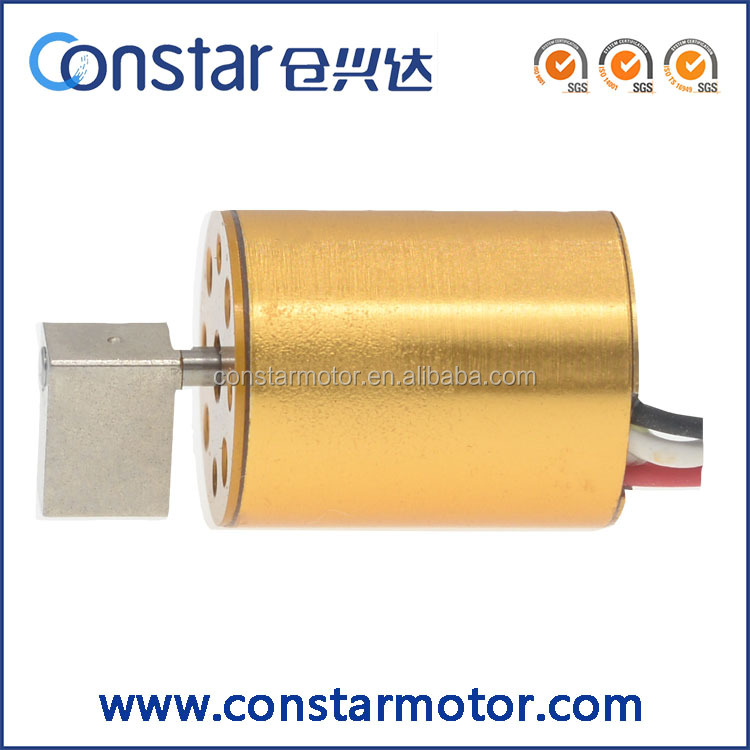

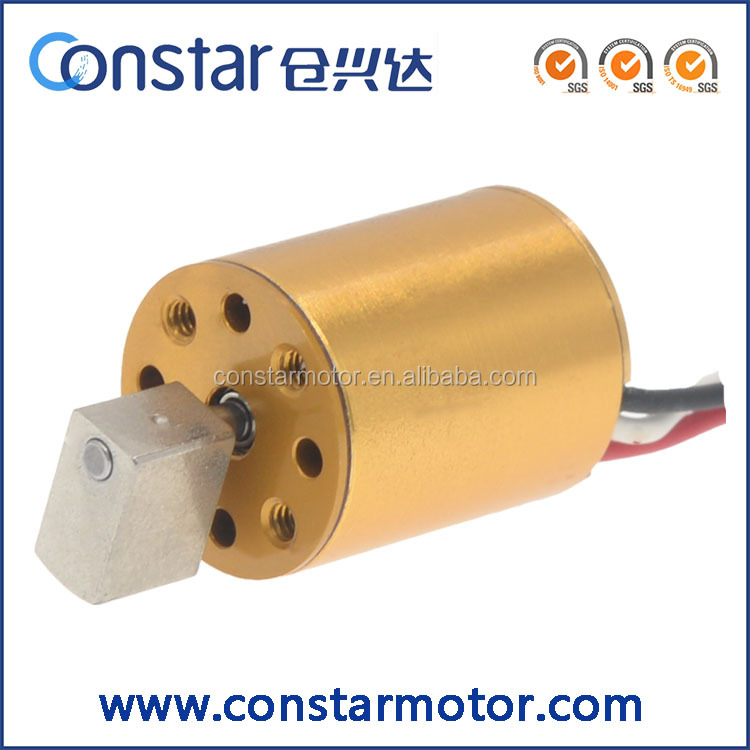

7. Photos:

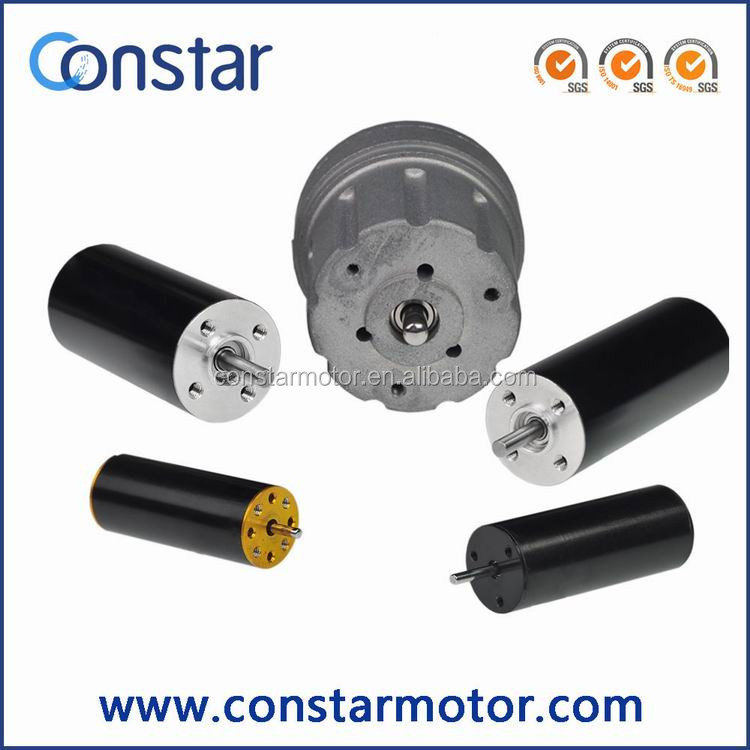

8. Other items:

series	aspect (mm)	Voltage (five)	No-load speed (revolutions per minute)	No-load current (Well)	KV value (turn/volt)	Torque constant (mNm/A)
1215ZWWN	*Φ1215**	3.6	35000	300	9720	0.93
	*Φ1215**	4.5	14500	100	3220	2.62
	*Φ1215**	7.4	42500	200	5470	1.55
1220ZWWN	*Φ1220**	5	17500	210	3500	2.5
	*Φ1220**	6	17200	150	2900	3.0
	*Φ1220**	7.4	23000	100	3100	2.9
1230ZWWN	*Φ1230**	3.7	18000	230	4860	1.9
	*Φ1230**	9	18000	150	2000	4.6
	*Φ1230**	12	11500	50	960	9.6
1329ZWWN	*Φ1329**	12	25000	100	2100	4.3
1635ZWWN	*Φ1635**	12	45000	350	3750	2.5
2030ZWWN	*Φ2030**	12	43300	370	3600	2.6
	*Φ2030**	12	7000	100	580	14.9
	*Φ2030**	12	9200	250	770	11
2040ZWWN	*Φ2040**	9	6700	200	745	12.1
	*Φ2040**	12	15000	250	1250	7.5
	*Φ2040**	12	8000	360	670	13.4
2050ZWWN	*Φ2050**	12	6000	160	500	18
