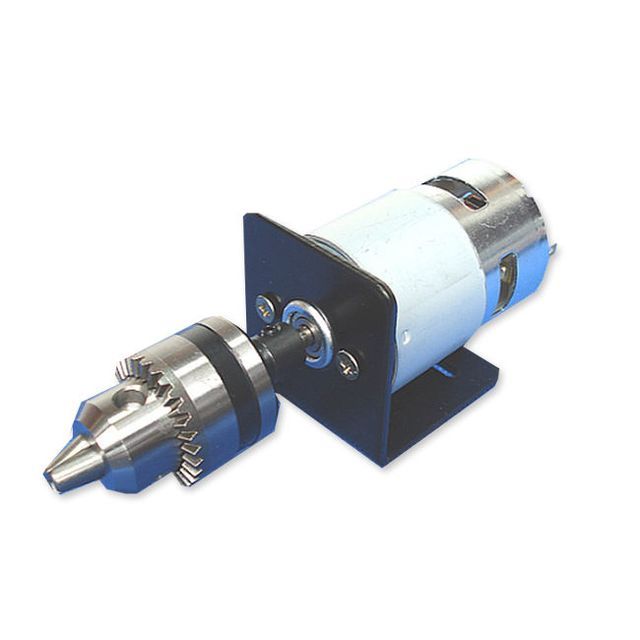

Efficient carton drawing 12v 24v dc 20000rpm 775 vibration motor chuck with drill bit
- 5.00 10 - 999 pieces
- 3.50 1000 - 4999 pieces
- 3.20 >=5000 pieces
| type: | DC | application: | Smart trash can, massager, physical therapy |
| noise: | <45dB | rated power: | 100W |
| Origin: | Shenzhen | Operating Voltage: | 6-14v and 24-36v DC |
| Rated speed (r/min): | 20000 rpm | Commutation: | brush |
| Brush Type: | carbon brush | custom made: | Yes |
| Number of poles: | browser 1 | Sales unit: | single product |
| Gross weight per piece: | 0.600 kg | strength: | 14.4-244.8w |
| efficiency: | 80% | Packaging Details: | 30 pcs/box, 7 boxes/carton, 210 pcs/carton |
| Single package size: | 4.2X3X3.0 cm | product name: | 775 DC motor |
| Standard axis: | D5mm*88*91*98 can be customized | model: | XH-775TS |
| Warranty: | 1 year | brand: | ODM&OEM |
| Rated voltage: | 12v 36v DC | Q: | 12/24V |
| current: | 3.6-4.8A (no load) |
Free energy 20v 775 gear motor 150watt double ball bearing dc 20000rpm for hair dryer
characteristic
1) Custom parameters like radio to gearbox, shaft length and shape, speed and torque.
2) Application of high-end materials.
3) Pure copper core bearing and metal shell
4) Strong magnet
5) Easy to install and remove
| Product number | The scope of work | Operating Voltage | no load | highest efficiency | Maximum power | ||||||||
| speed | current | speed | current | torque | efficiency | strength | speed | current | torque | efficiency | |||
| V | V | Rotating speed | A | Rotating speed | A | g cm | % | W | Rotating speed | A | g cm | % | |
| XH-775TS-12180 | 6-14 | 12 | 18000 | 0.6 | 14400 | 4.8 | 1600 | 54.6 | 57.6 | 7200 | 12 | 2260 | 76 |
| XH-775TS-36200 | 24-26 | 36 | 20000 | 0.4 | 16500 | 3.6 | 1800 | 54 | 129.6 | 8000 | 6.8 | 2860 | 72 |

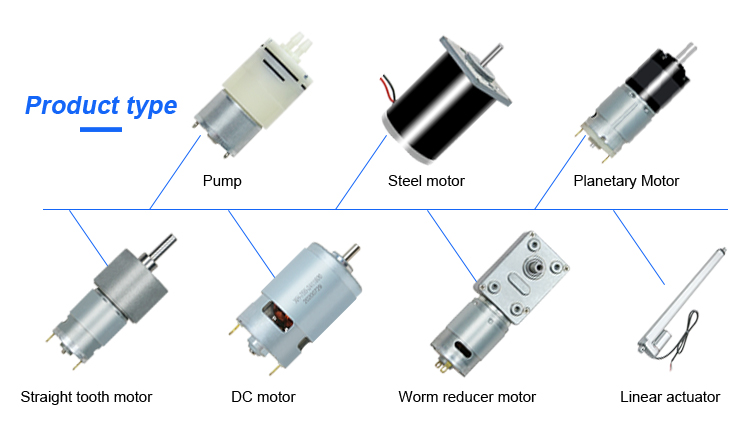

More types to choose from
There are water pumps, DC motors, DC geared motors, DC worm geared motors, planetary DC geared motors and other models to choose from, and special models can be customized.
Product Details
1) Copper core motor
Three layers of high-density molecular paint, dustproof and high temperature resistant.
2) Strong magnet
3) Ball bearings
It reduces friction and provides power.
Customized spare parts
1) Voltage, current, speed and torque.
2) Shaft shape: "D" "round" "flat" "hexagonal shaft" "square shaft".
3) Bearing: ball bearing.
4) Shell material: plastic and metal.
5) Tooth shape: spur gear, helical gear.
actual photo show
application
Can be widely used in smart trash cans, massagers, window pushers, physiotherapy beds...
