2 Pole MV Series Vibration Motor 3 Phase Concrete Vibrator
- 45.00 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Carton, wooden case, pallet, according to the order quantity and model | Supply capacity: | 1000 pieces per month |
| brand: | better one | Origin: | Shandong China |
| Number of poles: | 2 | Q: | 220/380V 50Hz |
| payment terms: | L/C, Western Union, T/T, Trade Assurance | Warranty: | 12 months |
| rated power: | 0.16kw | Rated speed (r/min): | 3000 |
| model: | MV300/3 | custom made: | Yes |
| type: | 2 pole vibration motor 3 phase | port: | Qingdao/Shanghai |
Product Description

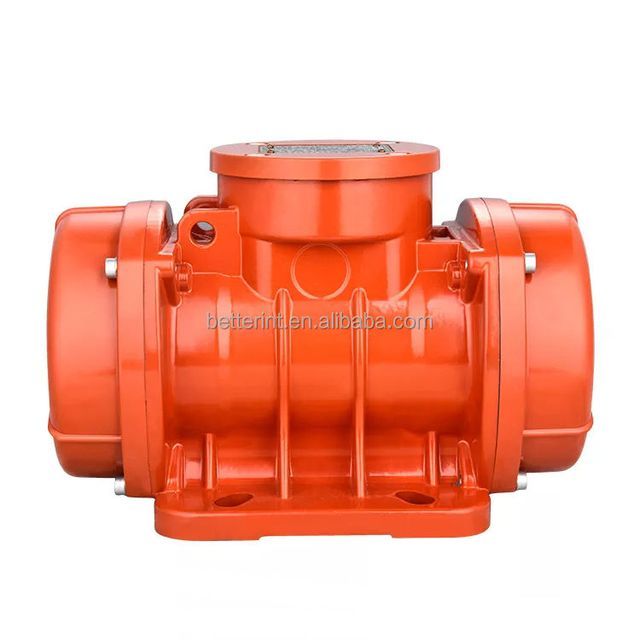

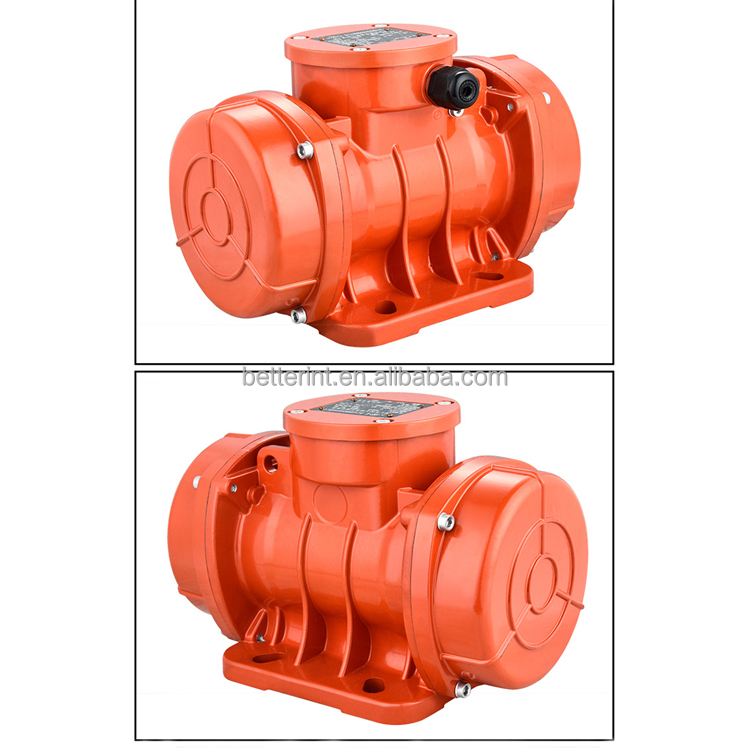

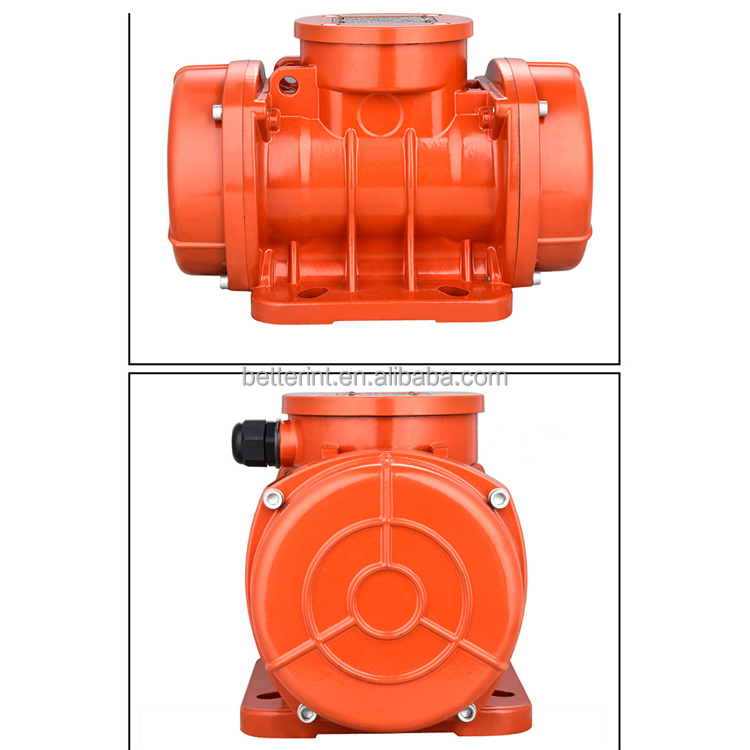

2 Pole MV Series Vibration Motor 3 Phase Concrete Vibrator
purchase guide:
1. Please confirm the number of poles (2/4/6/8) or rpm (3000/1500/1000/750-50Hz, 3600/1800/1200/900-60Hz)
2. Please tell us the force(kN)
3. Determine power (input or output power)
4. Local voltage frequency
Specification
type | strength | input power | current | Install | size | ||
thousand cattle | kW 50Hz | Maximum Y | A | Second | |||
MV60/3 | 0.7 | 0.08 | 0.16 | 62-74 | 106 | SIZE10 | |
MV100/3 | 1 | 0.1 | 0.19 | 62-74 | 106 | SIZE10 | |
MV200/3 | 2 | 0.18 | 0.35 | 62-74 | 106 | SIZE20 | |
MV300/3 | 3 | 0.27 | 0.52 | Post-90s | 125 | size 30 | |
MV400/3 | 4 | 0.3 | 0.58 | Post-90s | 125 | size 30 | |
MV500/3 | 5 | 0.5 | 0.96 | 105 | 140 | SIZE40 | |
MV700/3 | 7 | 0.66 | 1.25 | 105 | 140 | SIZE40 | |
MV800/3 | 8 | 0.75 | 1.45 | 120 | 170 | SIZE50 | |
MV1200/3 | 10 | 0.95 | 1.85 | 120 | 170 | SIZE50 | |
MV1300/3 | 13 | 1.3 | 2.44 | 120 | 170 | SIZE50 | |
MV1600/3 | 16 | 1.57 | 2.94 | 140 | 190 | SIZE60 | |
MV2000/3 | 20 | 2 | 3.75 | 140 | 190 | SIZE60 | |
MV2300/3 | twenty three | 2.4 | 4.44 | 140 | 190 | SIZE60 | |
MV3200/3 | 32 | 2.9 | 5.3 | 155 | 255 | size 75 | |
MV4000/3 | 40 | 2.9 | 5.3 | 155 | 255 | size 75 | |
MV5000/3 | 50 | 4 | 7.22 | 155 | 255 | size 75 | |
maximum | |||||||
MV6500/3 | 65 | 5.5 | 9.4 | 200 | 320 | size 85 | |
MV9000/3 | Post-90s | 10 | 17.8 | 200 | 320 | size 85 | |
MV12000/3 | 120 | 12.5 | 19 | 125 | 380 | SIZE90 | |
MV15000/3 | 150 | 18.8 | 27.5 | 125 | 380 | SIZE90 | |
