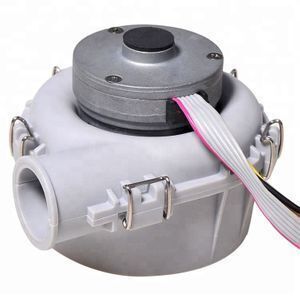

Low noise 7054 brushless dc blower 24v medical respirator blower

Supplier: Constar Micromotor Co., Ltd.
Region: Guangdong, China
Contact: Mr Ray Pei
Price: $30.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Model Number:	7054ZWF;	Power Source:	Electric Blower;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,monthly statement;	Length:	54mm;
Motor type:	Gearless Brushless DC Motor;	Packaging Detail:	carton box;
OEM/ODM:	Accept;	Place of Origin:	Guangdong China;
Applications:	medical respirator;	Package Preview:	https://sc01.alicdn.com/kf/H8d5ed4e78df14cc3bd2ee7899564f8e8d.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H877bbb41d4bc47d2bf9a0002640b03173.jpg_640x640.jpg;
Rated Voltage:	24v;	Supply Ability:	20000 Piece/Pieces per Month;
Diameter:	70mm;	Voltage:	24v;
Certificate:	CE;	Port:	Shenzhen or HK;
Brand Name:	Constar;	Product Name:	24v brushless respirator blower;
Application:	Air Blower;	Speed:	32000RPM;
Pressure:	Low Pressure;	Phase:	3 Phase;

Low noise 7054 brushless dc blower 24v medical respirator blower

CONSTAR MICROMOTOR

PRECISION DC CORELESS MOTOR	BRUSHLESS DC MOTOR	SERVO MOTOR

GEARMOTOR	STEP MOTOR	MINI CORELESS MOTOR

1. Applications:Breathing machine

2. Operating Environment:-40~+100°C

3. Characteristics :

The following are our standard products, we also provide customized products and service.

...

			-2ZP-250A-24.0
1	Voltage	V	24
2	Terminal resistance	Ω	2
3	NO. of phase	—	3
4	Input power	W	20
5	Rated Load	—	Blades (/Blow hole: 4mm)
6	Load speed	rpm	33000
7	Load current	A	1.4
8	Air pressure	Pa	4000
9	Air flow	m³/h	4.4
10	Noise	dB	≤40
11	Weight	g	237

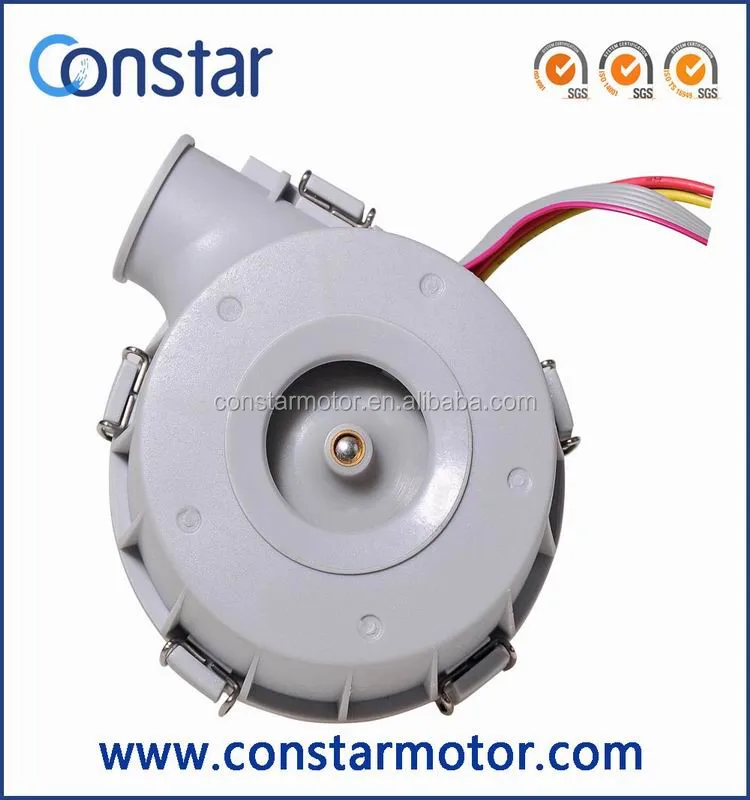

4,PHOTO:

Click here for more information

5,Customized Motor Solutions:

CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

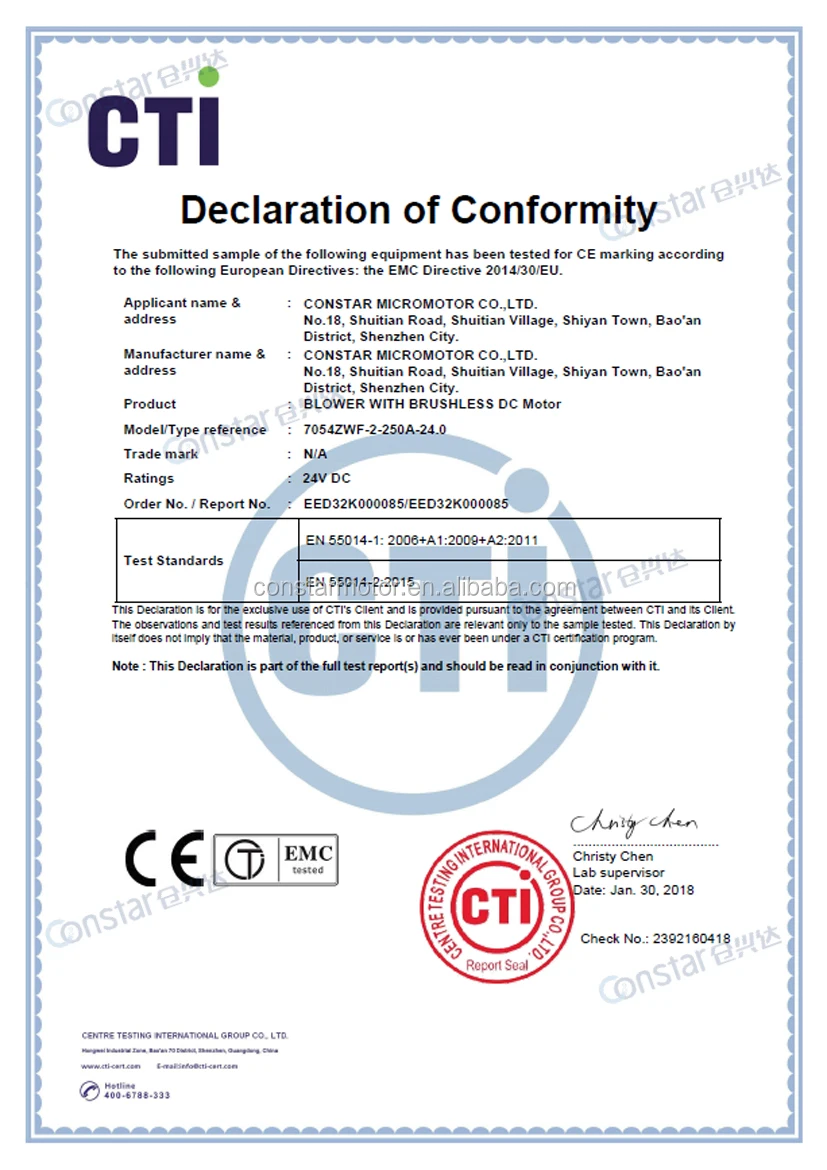

6,Certificate:
