PWM or UART DC5V Ultrasonic Ranging Sensor Ultrasonic Waterproof Ranging Sensor Waterproof Probe Ultrasonic Module
- 11.80 5 - 49 pieces
- 9.90 50 - 299 pieces
- 9.10 300 - 99999999 pieces
- 5.50 >=100000000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Guangdong, China | theory: | ultrasonic sensor |
| Name: | Ultrasonic sensing distance | output: | digital sensor |
| brand: | sharp | model: | distance sensor |
| port: | Shenzhen | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
PWM or UART DC5V Ultrasonic Ranging Sensor Ultrasonic Waterproof Ranging Sensor Waterproof Probe Ultrasonic Module
Product Description
Multi-channel AC current detection module 5A 10A 20A 50A RS485 output transmitter 10-way AC signal detection module

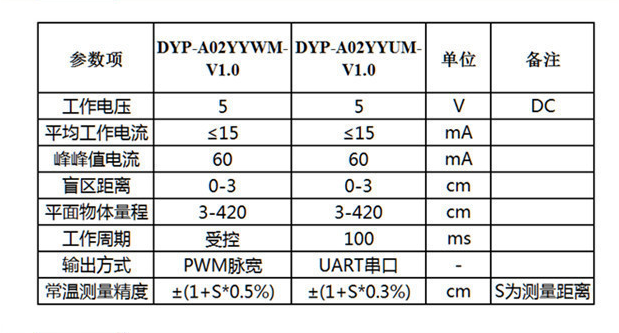

| Operating Voltage | 5v DC |
| Average working current | 15mA |
| peak current | 60 mA |
| Blind spot distance | 0-3cm |
| Planar Object Range | 3-420cm |
| Working period | Controlled/100ms |
| output method | PWM pulse width or UART serial port |
| measurement accuracy | +-(1+S*0.5%) /+-(1+S*0.3%) CM (S is the measurement distance) |
:
