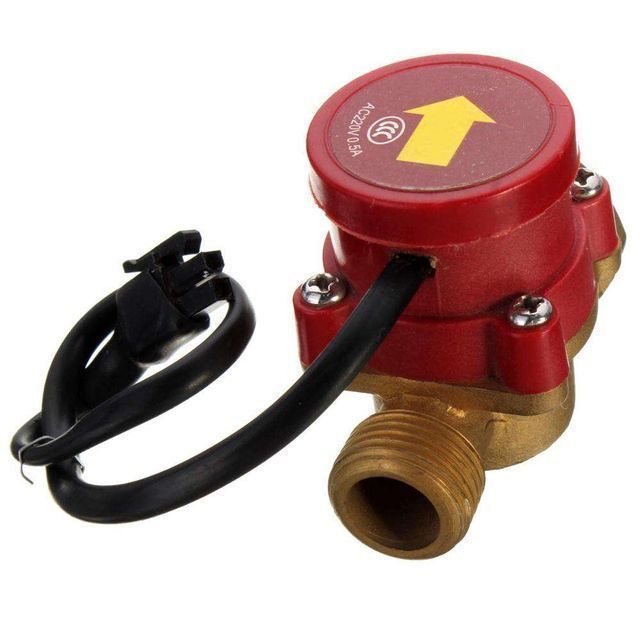

Safe Stable High Temperature Resistance 67x50x35mm 120W Female to Male Circulating Pump Water Flow Sensor Switch Wholesale Price

Specification:
Power: 120W
Voltage AC220V
Current: 0.5A
Water temperature range: ≤100
Pressure: ≤0.6Mpa

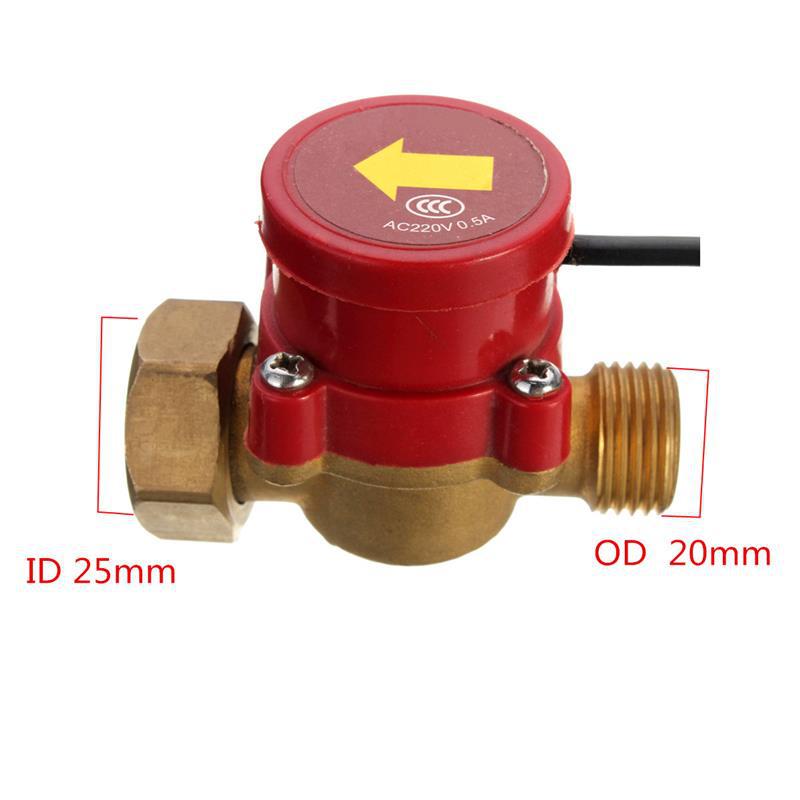

Female port thread diameter: OD29mm/ID25mm Hole: 13mm
External thread (suitable for pipe diameter): OD20MM/ID12mm
Body size (approx): 67x50x35mm

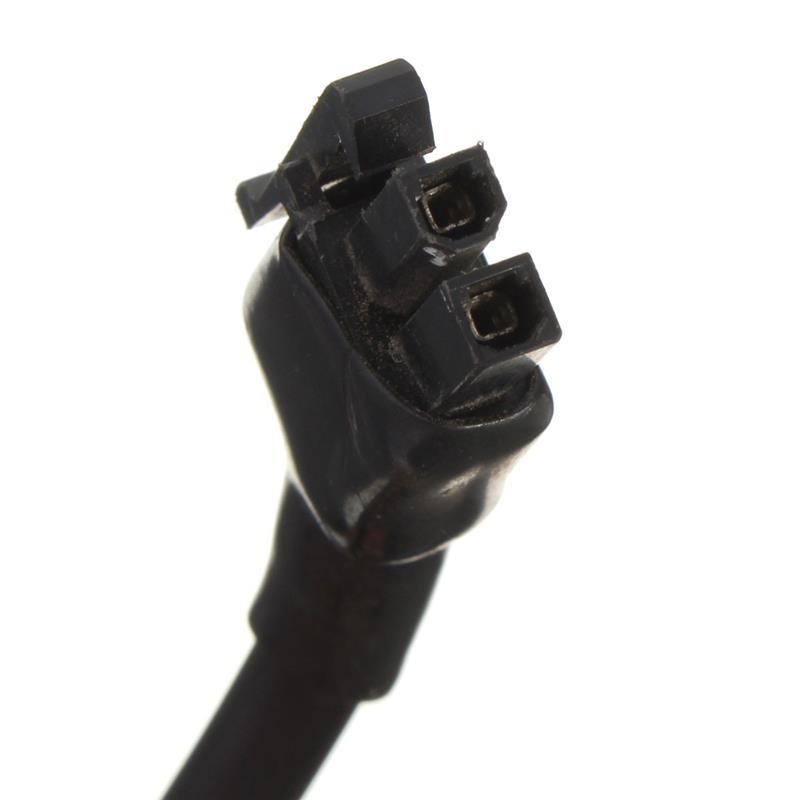

Line length: 26cm

feature:
1. Stable, high temperature, low water pressure start, safe.
2. Detect whether the flow direction and flow rate of the liquid meet the requirements, and at the same time provide the signal output ON or OFF state through the switch electric contact.
3. The equipment system judges the working status of the pipeline system by detecting whether there is a signal on the switch or controlling the passage of current (the flow switch electrical contact is on or off).

in principle:
When the water flow in the pipe is greater than 0.75L/min, the displacement of the core under the action of water
And promote the magnetic source to generate the switching signal of the magnetic sensor output "1",
The signal input to the device control system is amplified by amplifying the power to achieve the purpose of controlling the water flow. When the water flow in the pipeline is less than 0.75L/min flow,
The iron core magnetic source is driven to reset under the action of the reset spring force,
Make the sensor output "0" switch signal, so that the system stops running.

Package Included:
1x water flow sensor switch
