NEJE 3500mW Laser Cutting Machine

Product details
Supply Ability:50000 Set/Sets per Month;Product name:NEJE 3500mW Laser Cutting Machine;
Packaging Detail:Standard Packing;Place of Origin:Guangdong China;
Laser Type:Fiber Laser;Dimension(L*W*H):19x14.5x16 cm;
Port:HK/ Shenzhen;Certification:CE,ISO,FCC FDA;
Laser power:3500mW;Graphic Format Supported:BMP,JPG , BMP (24 bit only) , TIFF , PNG (32 bit or less ) , PCX (8 bit and 24 bit RLE ) , PCD;
Payment Terms:T/T,Western Union,MoneyGram;Engraving Area:150mm x 150mm;
Cooling Mode:Air Cooling;Color:Black;
Warranty:1 Year;Condition:New;
After-sales Service Provided:Free spare parts;Model:DK-Master;
Brand Name:Sharphy-NEJE;Engraving Speed:0-60000mm/min;
Software support:Laser Carver;Applicable Material:Acrylic,Leather,Paper,plastic,Plywood,Rubber,Wood;
Application:Laser Engraving;CNC or Not:Yes;
Product Description

 NEJE 3500mW Laser Cutting Machine



The NEJE MASTER 405nm 3500mw laser engraving machine is a high-precision engraving
machine with high precision thanks to precision mechanical assembly and NEJE intelligent
algorithm control, and uses a unique 405nm high power laser head.
Compared to other 445nm blue lasers head, 405nm with finer focus and higher absorption
energy absorption efficiency.

Features:

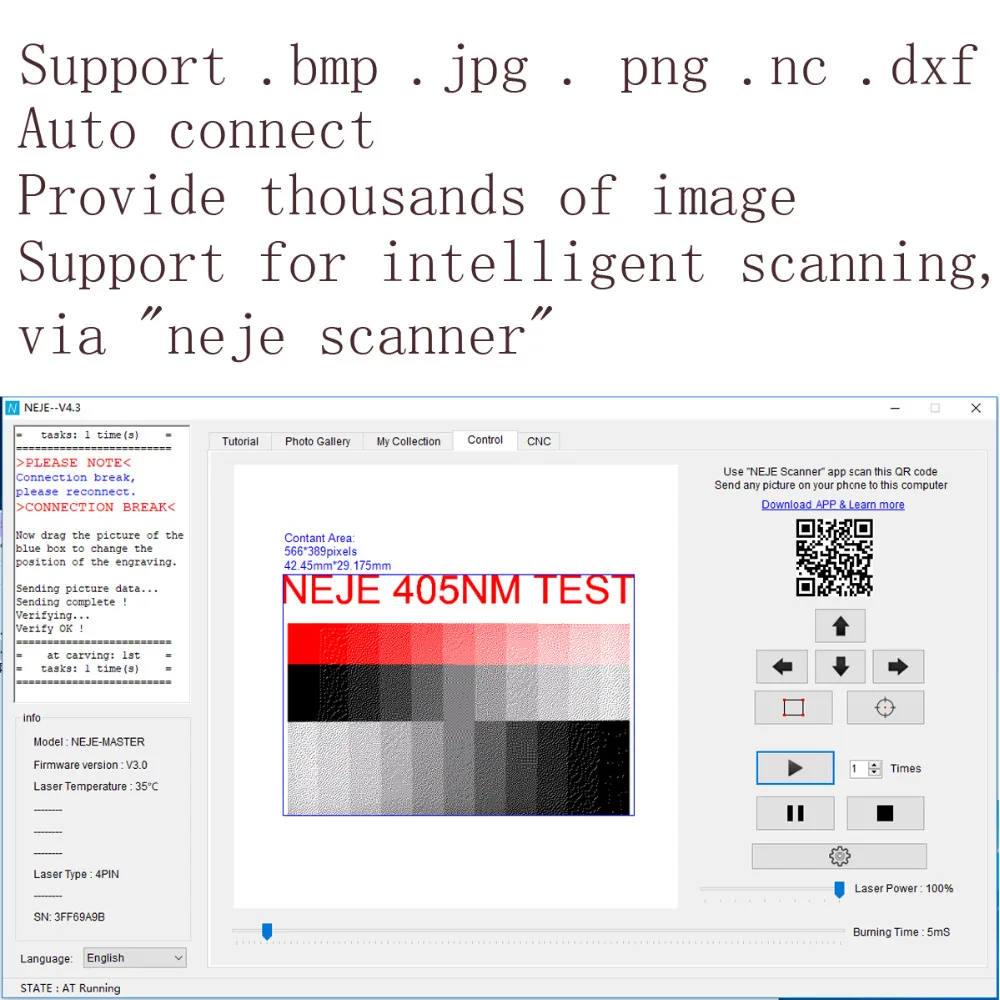

1. Full-featured: Directly execute .BMP, .JPG, .PNG files and "NEJE CLOUD" provides thousands of engraving materials and resources to download and keep updating
2. Provide professionals with the ability to directly parse the works designed by Inkscape and CAD software, directly execute .nc files and .dxf files, and execute them accurately.
3. Support "neje Scanner" app, intelligent collection and creation, photo scanning, intelligent algorithm automatic connection printing.
4. The software is automatically connected, editing and control functions are simple and easy to use, no professional skills are required.
5. Professional file processing algorithm, the software can restore your design 1:1 lossless to each pixel.
6. A variety of image algorithms can more present the image characteristics of your family or idol.
7. Safety, built-in Gyro sensor, if there is an accidental touch, the machine can automatically stop working to prevent accidents.
8. Compatible with a variety of power lasers, while supporting 4pin 405nm 3500mw, 405nm 4pin 4000mw, future support for larger laser power,

TTL control and temperature sensing, can replace the power of the power supply equipment to achieve power expansion.
9. Standard 405nm laser tube, 405nm laser is easily absorbed by the material, the engraving effect is very delicate, ttl control, temperature

sensing, safer use, and greater engraving depth.
10. 150mm x 150mm engraving area, rich in engraving materials, mobile power, mobile phone, wallet, crafts, etc.

NOTE:
1. It can not engrave metal, acrylic and any other retardant material. white material doesn't work well.

2.The product is only suitable for personal diy, because of the speed of carving, it is not recommended for industrial use

3.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand

4.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design,

but there is a certain probability of damage)

Specification:

Material: Acrylic + Aluminum + Stainless Steel
Main Color: Black
Power: 3500mW
Laser Wave Length: 405nm
Image Format:.nc \ .dxf \ .bmp \ .jpg \ .png etc..
Image Size:2000 * 2000 pixels / 0.075mm point distance
Support System: Win7 / Win8 / XP / Win10 , android APP(neje scanner)
Supply Voltage: 12V2A
Items can be carved including: mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc.
please take notice that the laser head is easily-consumed products ,so we promise to supply again within three month if the

laser head is Inhuman damage.so if you laser head is Inhuman damage ,
please do not give negative comment thanks for your support.











Packaging & Shipping

 Package List:
1 * Engraving Machine
1 * Protective Glasses
1 * USB Cable
1 * Power Adapter
4 * Screw nut
1 * User Manual(English)
