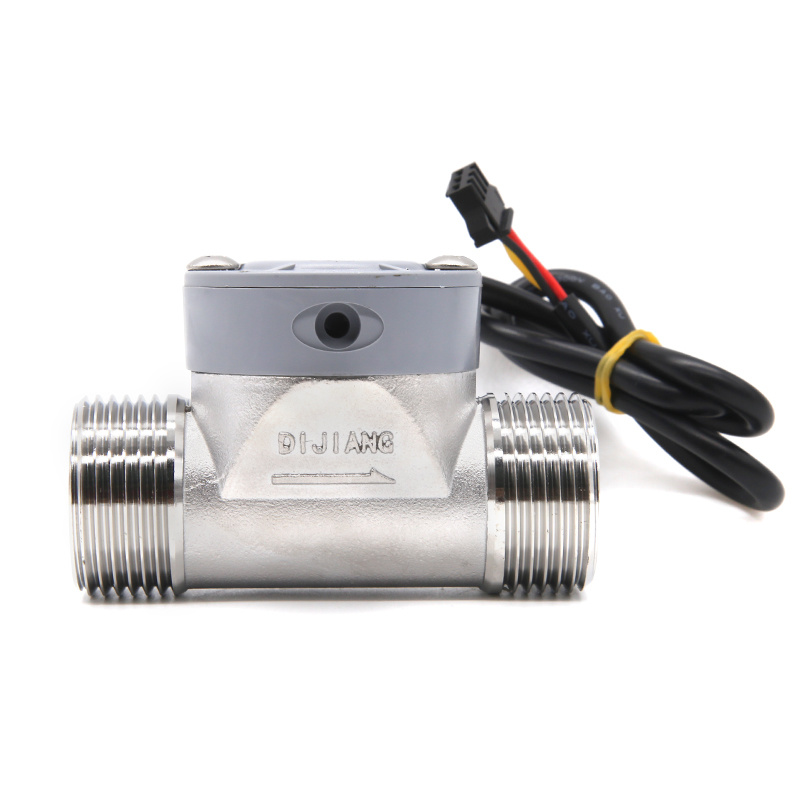

NOKS FLOW SENSOR ZJSUS-DN25

Model: ZJSUS-DN25

Material: Stainless steel flow sensor

Pipe connection: G1' (DN25)

Output signal: NPN pulse

Working voltage: DC3.5~24V

Maximum operating current: < 15mA

Working temperature: -20℃～80℃

Output pulse high level: > DC4.7V (input 5VDC)

Output pulse low level: < DC0.5V (input 5VDC)

Flow range: 20 - 280L/min

K factor/frequency: 1.13*Q, Q=L/min, ±5%

Flow pulse: 1L water ≈ 67.8 pulses

Maximum pressure: <1.75MPa

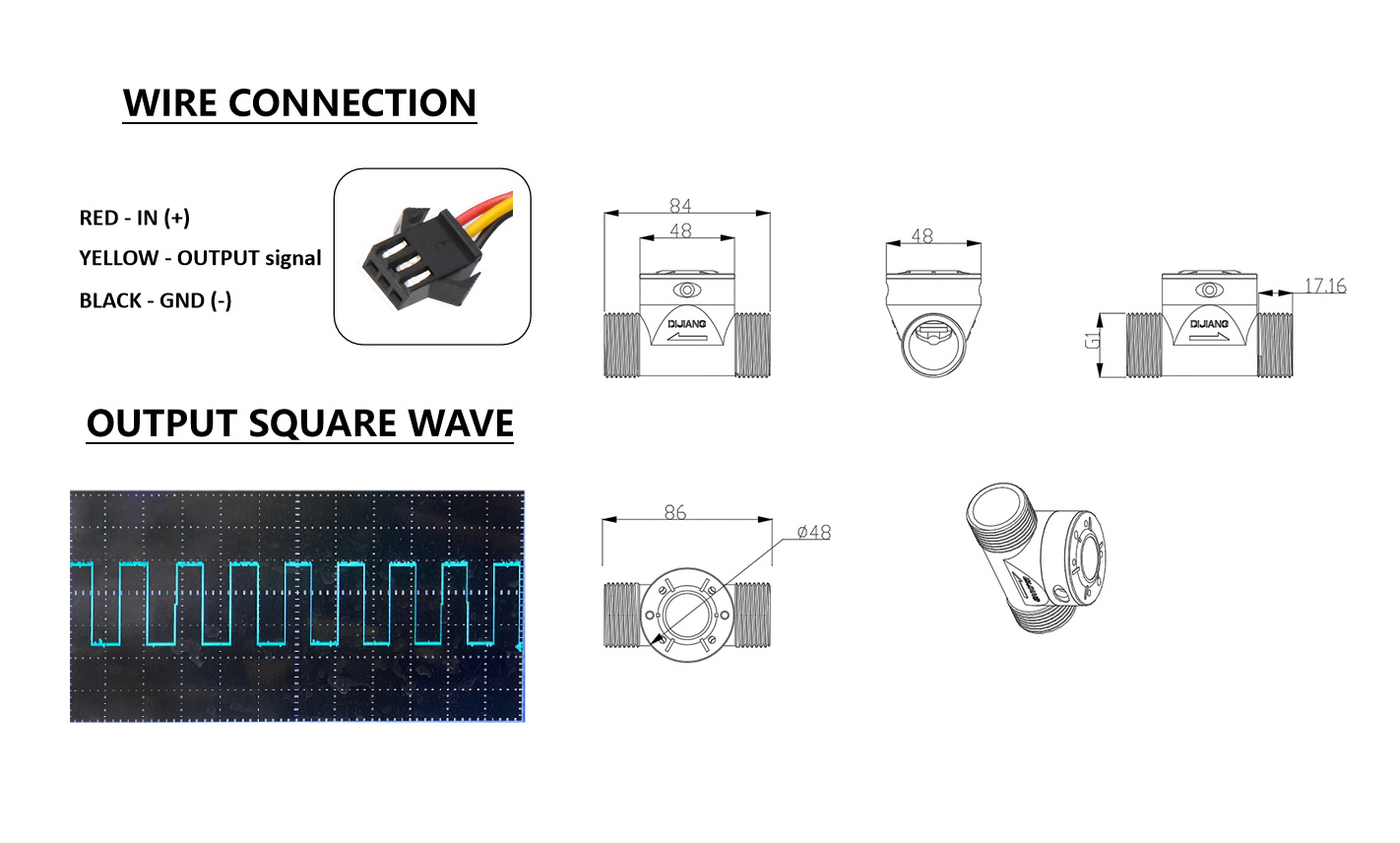

Connector and cable length: SM-3P 50cm (customizable)
