Detailed information for: RBR122G-24VUC

RBR122G-24VUC

Interface Relays and Optocouplers

Product ID:1SNA645512R2700

Catalog Description:RBR122G-24VUC Interface relay R600 2c/o,A1-A2=24VAC/DC,5-250VAC/10mA-8A

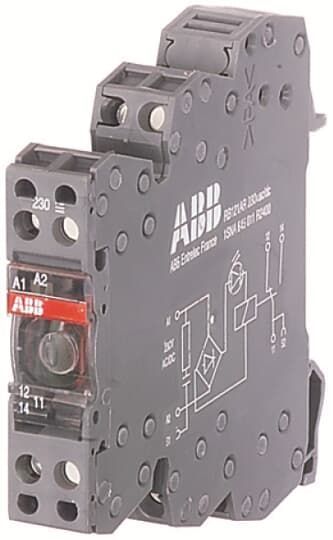

Long Description:The RBR122G-24VUC is a boxed interface relay with spring terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibrationand this is further enhanced by the spring terminals which improve contact reliability by automatically adjusting the tension to the wire gauge.This relay operates with a 24 V AC/DC rated control supply voltage and has a 2 c/o (SPDT) output with gold-plated contacts rated at 250 V / 8 A. This 12mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.

Categories

Products » Low Voltage Products and Systems » Control Products » Electronic Relays and Controls » Interface Relays and Optocouplers 

Ordering

EAN: 4013614508264

Minimum Order Quantity: 5 piece

Customs Tariff Number: 85364900

Popular Downloads

Data Sheet, Technical Information: 2CDC110004C0210_05

Instructions and Manuals: 1SVC645000M9000

CAD Dimensional Drawing: 2CDC001079B0201

Dimensions

Product Net Width: 12 mm

Product Net Height: 67.5 mm

Product Net Depth / Length: 75 mm

Product Net Weight: 0.04 kg

Technical

Function: Boxed interface relay R600

Sub-Function: Relay with built in LED

Rated Control Supply Voltage (Us): 24 V AC/DC

Output: 2 c/o (SPDT) contacts

Output Signal: 5 ... 250VAC / 10mA ... 8A

Terminal Type: Spring Terminals

Degree of Protection: IP20

Standards: CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
UL 508
