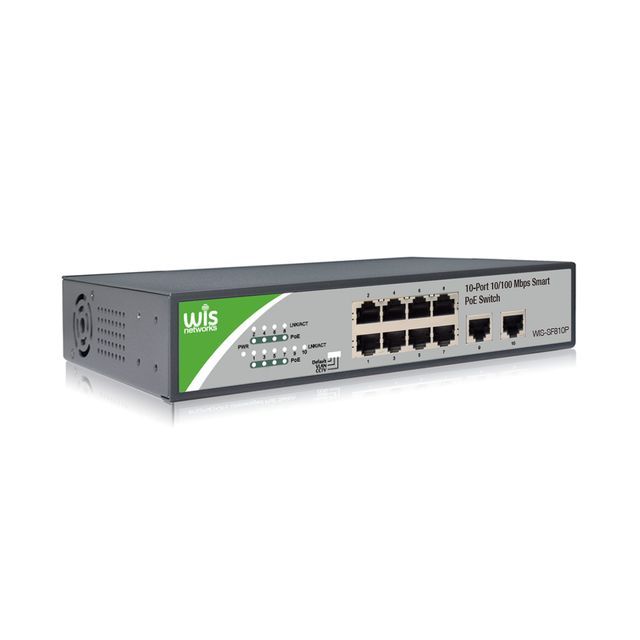

Smart Power Supply Driver LED Switch 10-Port 48VDC 802.3at/802.3af PoE Unmanaged Wifi Switch
-
Supplier: WIS NETWORKS LIMITED -
Region: Hong Kong S.A.R., China -
Price: $55.00 / 1 - 9 pieces
$53.00 / 10 - 99 pieces
$50.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| application: | wireless internet | PoE port: | 1~8 |
| Power output: | DC: 48V adjustable | country of origin: | China |
| capacity: | 2G | port: | Shenzhen, Guangzhou, Foshan |
| brand: | Smart network | forwarding type: | store and forward |
| Jumbo frames: | 1.5KB | port: | 10 10/100Base-T Ethernet |
| Package preview: | Power supply: | 110W | |
| Power supply: | 4/5(+)7/8(-) | payment terms: | Western Union, T/T, Paypa/Alipay/WeChat |
| type: | ethernet switch | MAC table: | 8K |
| model: | WIS-SF810P | buffer: | 4Mbit |
Product Description
WIS-SF810P adapts to standard 802.3at/802.3af power supply protocol, compatible with IEEE802.3af/IEEE802.3at.CCTV/Vlan/Default
Meet different scene requirements by sliding a simple switch on the front panel.
Meet different scene requirements by sliding a simple switch on the front panel.

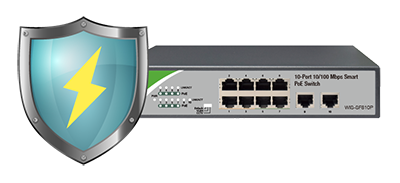

lightning protection
❆Professional port lightning protection
❆Provide stable and reliable power
❆ Flashing alarm for non-PoE
❆ Flashing alarm for non-PoE
overvoltage protection
❆Automatically detect PD voltage
❆Protect equipment from overvoltage
❆ Flashing alarm for non-PoE
❆ Flashing alarm for non-PoE
Super long power supply distance
❆Support 100 meters distance
❆ Flexible supply distance
❆ Easily understand system status
Hardware VLAN Features
❆VLAN On/Off Switch
❆Uplink port design
❆ Avoid broadcast storms
❆Client isolation of secure data
Network Topology
port | 10 10/100Base-T Ethernet | ||||||
PoE port | 1~8 | ||||||
Power supply | 4/5(+)7/8(-) | ||||||
PoE output | DC: 48V adjustable | ||||||
PoE power supply | 110W | ||||||
VLAN On is controlled by On/Off Switch Port 1~8 isolated, port 9/10 uplink VLAN closed, port 1-8 intercommunication | |||||||
forward type | store and forward | ||||||
capacity | 2G | ||||||
MAC table | 8K | ||||||
jumbo frame | 1.5KB | ||||||
buffer | 4Mbit | ||||||
Input voltage | AC 100-240V 50-60Hz | ||||||
Operating temperature | 0℃~40℃ | ||||||
Storage temperature | -40℃~70℃ | ||||||
Working humidity | 10%~90% RH non-condensing | ||||||
storage humidity | 5%~90% RH non-condensing | ||||||
aspect | 220*150*44mm | ||||||
weight | 1.5 kg | ||||||
to lead | PWR, LNK/ACT, PoE | ||||||
cable | 10BASE-T: Cat 3, 4, 5 UTP (≤100m) 100BASE-TX: Cat 5 and above UTP (≤100m) | ||||||
