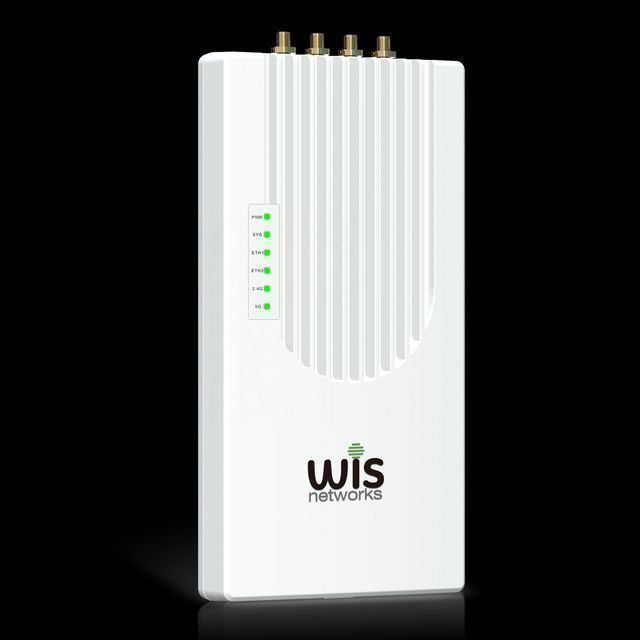

Ultra-fast 4x4 Wi-Fi 6-speed 802.11AX outdoor base station

  • Supplier: WIS NETWORKS LIMITED
  • Region: Hong Kong S.A.R., China
  • Price: $288.00 / 2 - 99 pieces
    $263.00 / 100 - 499 pieces
    $250.00 / >=500 pieces
  • Min. Order: 2 pieces
Click here to contact
Product details
flash:16M NOR+128MB NANDWireless speed:4804 Mbit/s
Gross weight per piece:13.500 kgTransmission power:30dBm
Single package size:51X35X31 cmbrand:Smart network
Ethernet interface:2.5 Gigabit+1 Gigabitapplication:outdoor
chipset:QualcommProduct Code:WIS-S4500AX
place of origin; place of origin:Guangdong, Chinamemory size:512MB
model:WIS-S4500AXantenna:4-RPSMA port (external antenna)
Sales unit:ItemPackaging Details:2
Supplier type:wirelessinterface:1x 10/100Base-T Ethernet
architecture:armCPU:IPQ5018
Product Description
WIS-S4500AX is a 4X4 MU-MIMO access point, MU-MIMO in downlink doubles the sector capacity by serving two MIMO users simultaneously. With the efficient WIS Networks MAC protocol and advanced fair scheduler, up to 128 simultaneous active subscriber modules can be supported without performance degradation.
feature
super high speed connection
● Ultra-fast Wi-Fi 6 speeds
● Up to 5x faster than 802.11ac devices
● Wireless speed up to 4804Mbps
● 2.5 Gigabit Ethernet ports
amazing outdoor show
● 5km+ availability backhaul
● Up to 30dBm transmit power
● 4x4 MU-MIMO
● Fully cooperate with WIS antenna
hardware:
● Qualcomm chip
● 512MB RAM
● 128MB NAND flash memory
● 48V gigabit poe
Product parameters
Product Code
WIS-S4500AX
architecture
arm
CPU
IPQ5018
memory size
512MB
flash
16M NOR+128MB NAND

radio
802.11ax radio
Wireless speeds up to 4804 Mbps
Tx power up to 30dBm
channel width
20 | 40 | 80 | 160 MHz
proprietary physical layer
4x4 multiplexing/OFDM
Frequency Range
5180-5825 MHz
antenna
4-RPSMA port (external antenna)
Ethernet interface
2.5 Gigabit+1 Gigabit
interface
1x 10/100Base-T Ethernet (RJ45 with passive PoE)
reset
power supply
48 V PoE (included) or DC 48V
Warranty
1 year
certified
Conforms to EU Directives
energy consumption
<10W



physical parameters
Size: 236mm*117mm*28mm
Weight: 1kg
Housing: Weatherproof plastic
Static protection: 16kV
Physical parameters - lightning protection: 8kV
Working temperature: -40~65℃
Storage temperature: -40~85℃
Working humidity: 10%~95% non-condensing
Package Contents
WIS-S4800AX
Quick Setup Guide
Power Adapter with Passive PoE
installation kit
