SDAPO PM1201 Module IEEE802.3af Standard ModeA or ModeB 12v poe

Supplier: Shenzhen Dapo Communication Co., Ltd.
Region: Guangdong, China
Contact: Ms Xiao Vivian
Price: $3.77 / 1 - 99 pieces
$3.55 / 100 - 999 pieces
$3.44 / 1000 - 4999 pieces
$3.33 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Input to output isolation:	1500 Vrms	type:	POE module
model:	PM1201	Operating temperature:	-20～+50℃
Ripple and Noise:	200mVp-p max	Packaging Details:	Packed in pallets and cartons
application:	POE module	Input voltage:	37~57V
Wire Gauge:	2%	country of origin:	Shenzhen, Guangdong
efficiency:	More than 85%	Load regulation:	2%
Origin:	China; Melon	The output voltage:	12V
Output current (Vin=56V):	1.3A max	brand:	Staple
payment terms:	L/C, T/T

Product Description

You are welcome to customize POE modules of various sizes, appearances and functions. It is necessary to arrange to receive the initial research and development expenses. After ordering a certain number of modules (usually 5000 pieces), the research and development expenses can be deducted. After the sample is qualified, mass production.

describe

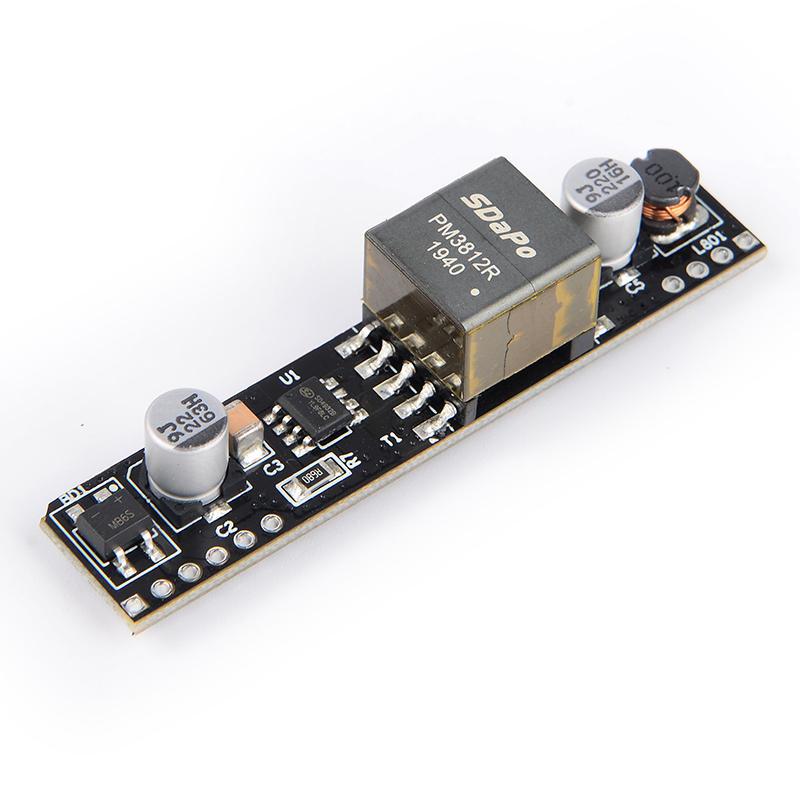

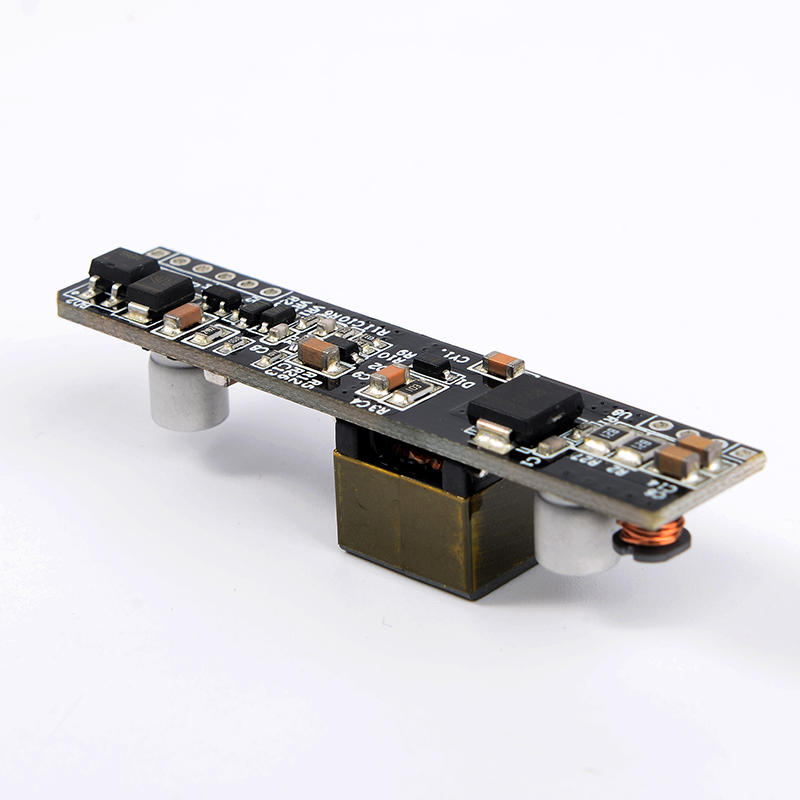

12V 13W PD (Power Device) integrated module (isolated)

feature- Full support for IEEEⓇ standards. 802.3af-2003 - Input voltage range 37V to 57V - Short circuit protected

- Inrush Current Limiting - Thermal Protection - Programmable Classification (Default: Class 0) - High Efficiency - Easy to Install and Low Cost (Isolation Type, Minimal External Devices Required) - Low Output Ripple and Noise - Adjustable Output Voltage - 1500Vrms isolation (input-output)

pin assignment

pin#	Name	describe
1, 2	CNC	Do not connect.

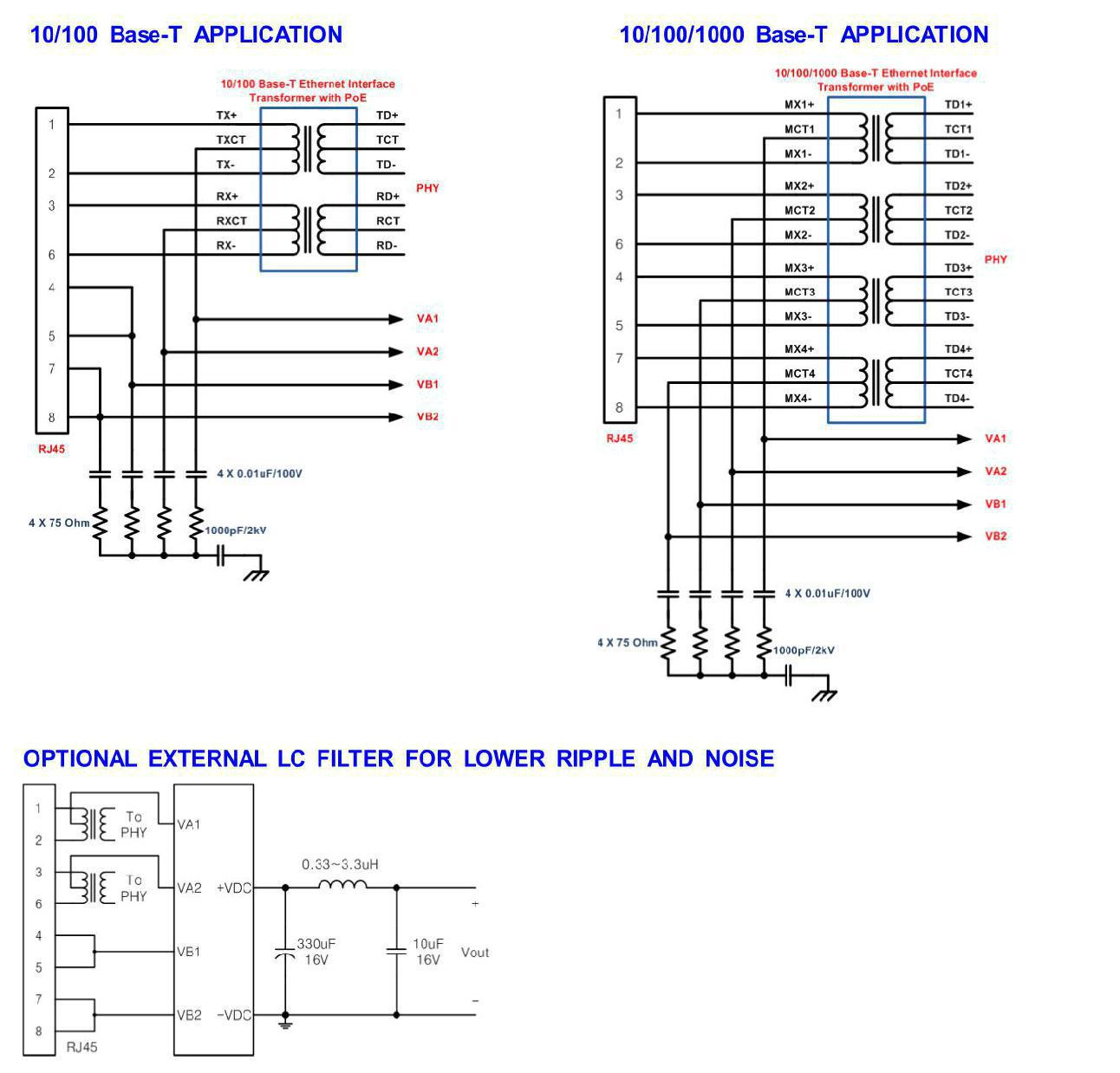

3	VA1	Enter (1). This input pin is connected to the center tap of a transformer connected to pins 1 and 2 of the RJ45 connector. It is not polarity sensitive.
4	VA2	Enter (2). This input pin is connected to the center tap of the transformer connected to pins 3 and 6 of the RJ45 connector. It is not polarity sensitive.
5	VB1	Enter (1) directly. This input pin is connected to pins 4 and 5 (or the center tap of 4 and 5) of the RJ45 connector. It is not polarity sensitive.
6	VB2	Enter (2) directly. This input pin is connected to pins 7 and 8 (or the center tap of 7 and 8) of the RJ45 connector. It is not polarity sensitive.
7,8	-VDC	Negative DC output. This pin provides -VDC output.
9, 10	+VDC	Positive DC output. This pin provides +VDC output.

Electrical Specifications

No	thing	Specification
1	Input voltage	37~57V
2	The output voltage	12V typical.
3	Output current (Vin=56V)	1.3A max
4	route adjustment	2%
5	load regulation	2%
6	Ripple and Noise	Maximum 200mVp-p
7	efficiency	at least 85%
8	Input to output isolation	1500 Vrms
9	DC/DC converter type	flyback
10	Operating temperature	-20～+50℃
