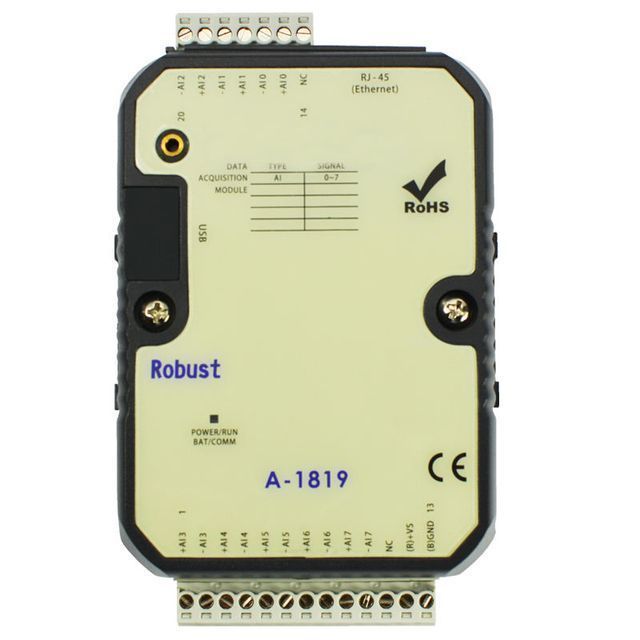

Temperature Modbus TCP IO Remote Module (A-1819)

Part Number

A-1819

Operating Voltage

10 ~ 30VDC/24VAC

enter

-

output

-

continuous current

-

Communication baud rate

10/100Mbps

protocol

MODBUS TCP/IP, MODBUS RTU

isolation

Yes (5000VDC)

Enter operating frequency

10 Hz

Output working frequency

Transistor: 10Hz

analog input

8 (16 bits)

Analog input type

0/4~20mA, J, K, T, E, R, S, B, thermistor (-270 ~ +1800℃)

analog output

-

Analog output type

-

input resistance

Current: 100Ω
Voltage: 10MΩ

Analog I/O Accuracy

±0.1% / —

Communication Interface

Ethernet + USB

channel independent
configuration

yes

Sampling Rate

10 samples/sec (total)

CMR @ 50/60 Hz

120 decibels

span drift

±50ppm/℃

zero drift

±18μV/℃

temperature range

(PT-100:-200~+600℃) (PT-1000:-200~+600℃) (J:-210~760℃) (K:-270~1,370℃) (T:-270~400℃ ) (E:-270~1,000℃) (R:0~1,750℃)
(S:0~1,750℃) (B:0~1,800℃) (Thermistor-10K-T2:0~100℃) (Thermistor-10K-T3:0~100℃) (Thermistor-6.8K:-10~100℃) °C)
(Thermistor-4.7K:-10~100℃) (Thermistor-3.3K:-20~100℃) (Thermistor-3K:-20~100℃) (Thermistor-2.7K:- 20~100℃)
(Thermistor-2.252K:-20~100℃) (Thermistor-2.1K:-30~100℃) (Thermistor-2K:-30~100℃) (Thermistor-1.5K:-40~100℃)
(Thermistor-1K: -40~100℃)

operating temperature

-20 to +75°C

degree of protection

IP20

Install

35 mm DIN rail / flush mount

Dimensions (W x H x D)

76.4*118.2*38.5mm
