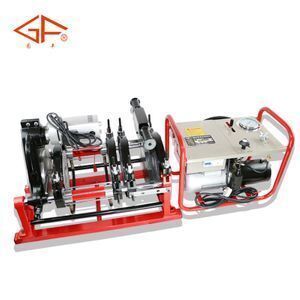

160-315mm hydraulic butt fusion welding machine/plastic hdpe pipe butt welding Machine

Product details
Input Voltage:220V--230V;Warranty:1 Year;
Current:Alternating Current;Type:Hydraulic;
Frequency:50HZ/60HZ;Certification:CE ISO;
Dimensions:0.85CBM;Color:Red or customised;
Brand Name:GF;OEM:OEM Acceptable;
Supply Ability:50 Set/Sets per Week;Weight:200KG;
Package:Plywood case;Place of Origin:Zhejiang China (Mainland);
Payment Terms:T/T,Western Union,MoneyGram,Visa;Packaging Detail:wooden box;
Model Number:C160-315;Welding range:160mm-315mm;
Port:Ningbo/Shanghai;Applicable Materials:PE, HDPE, PP, PVDF, PPR, PB;
Power:4.85KW;Delivery Detail:10-15 days after receiving the pre-payment;
Usage:Butt Welding;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;

GF-C160-315

Fusion specification

Dn160,180,200,225,250,280,315



Package(mm)

Butting Deviation

≤0.3mm

Basic Frame

940*620*600

Temperature Deviation

±3℃

Hydraulic Unit

580*470*470

Area of the fuel tank

12.75cm²

Milling Tool

590*380*580

Heating plate Max Temperature

299℃

Tool Box

48*285*565

Operation Pressure Range

0-10Mpa

Heating Plate

440*50*530

Working voltag

220V

Total Weight(KG)

200

Required Time for Welding Temperature

<20mim

Total Power(KW)

4.85

Applicable Material

PE PP PPR PB PVDF

Specifications subject to change without notice.

1,Suitable for butt fusion of plastic pipes made of PE, PP and PVDF material.

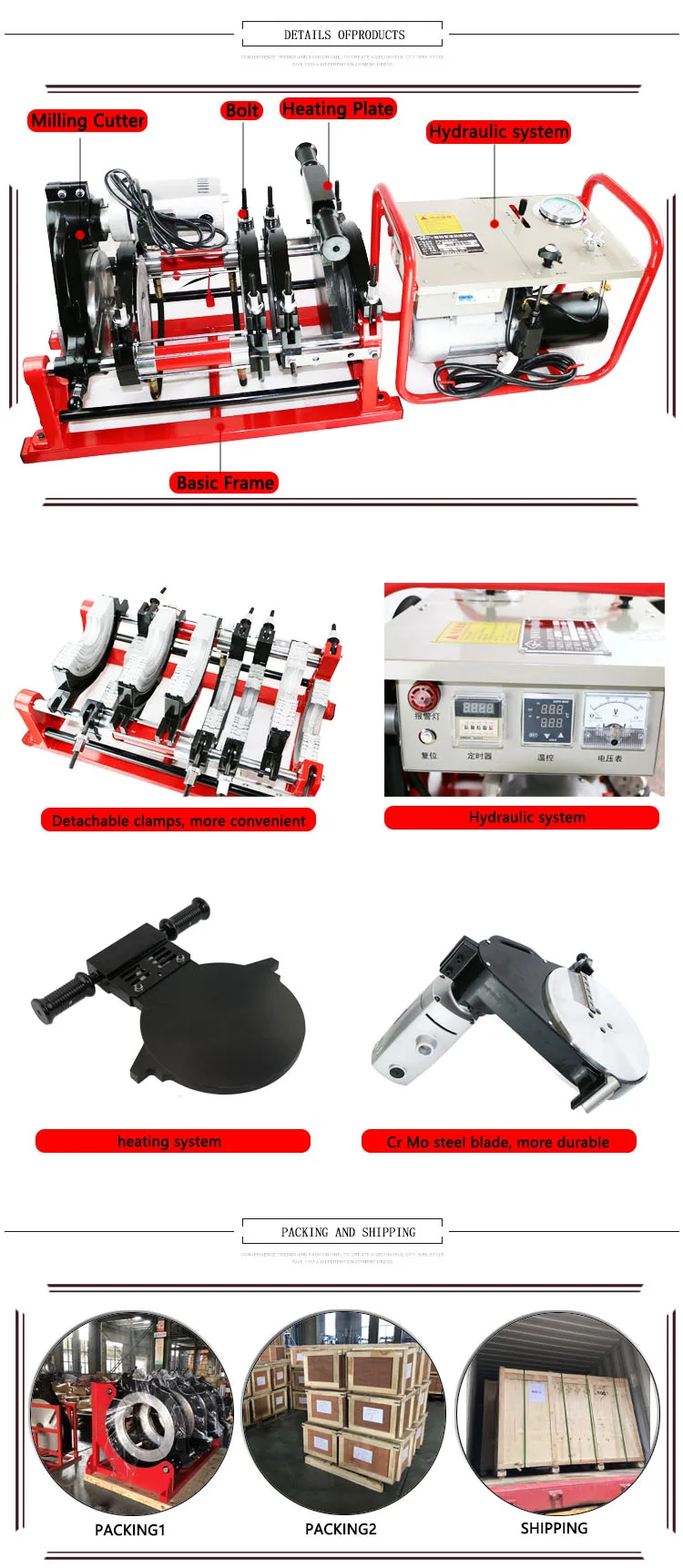

2,Consists of basic frame, hydraulic unit, milling cutter, heating plate, basket and optional parts.

3,Removable heating plate with high accurate temperature control system.

4,Electrical milling cutter,the temperature of heating system can be preset.

5,Hydraulic system, include a warning light, a timer, a temperature control, a voltmeter, a pressure meter.

6.The heating plate is directly connected to the hydraulic system which have a digital display screen, so can adjust the temperature accurately.





1 . What is your payment term ?

Sample order . 100% in advance by T / T , Western Union , Paypal or Trade assurance.

Bulk order : T / T , 30% deposit , 70% against copy of B / L.



2 . What is your delivery time ?

Depends on quantity.



3 . What is your main market ?

Southeast Asia ( Thailand , Malaysia , Indonesia ) , South America ( Peru , Ch ? ) , Russia , India , Singapore.



4.Could I use my own Brand?

Yes, Welcome.



5.Could you provide the after-sale service for the clients after buying your products?

Yes, of course. We have specialized after-sale department. Please feel free to contact us.







.
