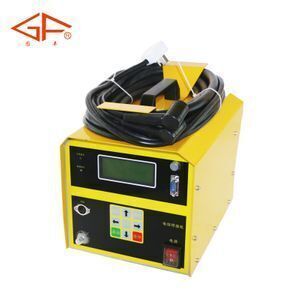

3.5KW HDPE pipe electrofusion machine, automatic electrofusion welding machine

Supplier: Zhejiang Gufeng Hardware Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Erin Wang
Price: $300.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

Warranty:	One Year;	Certification:	CE ISO;
Input frequency:	40~65Hz;	Warranty:	1 Year;
Port:	Ningbo/Shanghai;	Type:	electrofusion machine;
OEM:	OEM Acceptable;	Welding range:	20mm-450mm;
Package:	Plywood case;	Model Number:	DRJ-450;
Condition:	New;	Applicable Materials:	PE, HDPE;
Payment Terms:	L/C,D/P,T/T,MoneyGram,Visa;	After-sales Service Provided:	Engineers available to service machinery overseas;
Usage:	Pipe Welding;	Packaging Detail:	wooden box;
Tube Diameter:	20~450mm;	Weight:	28 KG;
Supply Ability:	50 Set/Sets per Week;	Delivery Detail:	10-15 days after receiving the pre-payment;
Power(W):	3.5KW;	Frequency:	50HZ/60HZ;
Output current:	0~55A;	Dimensions:	39x30.5x36cm;
Voltage:	220V;	Brand Name:	GF;
Place of Origin:	Zhejiang China;

DRJ-450
Welding material	PE solid wall tube compatible Steel mesh skeleton tube
Welding range	DN20-DN450
Ambient Temperature	-15℃~45℃
Storage Temperature	-30℃~70℃
Constant Accuracy	≤±0.5%

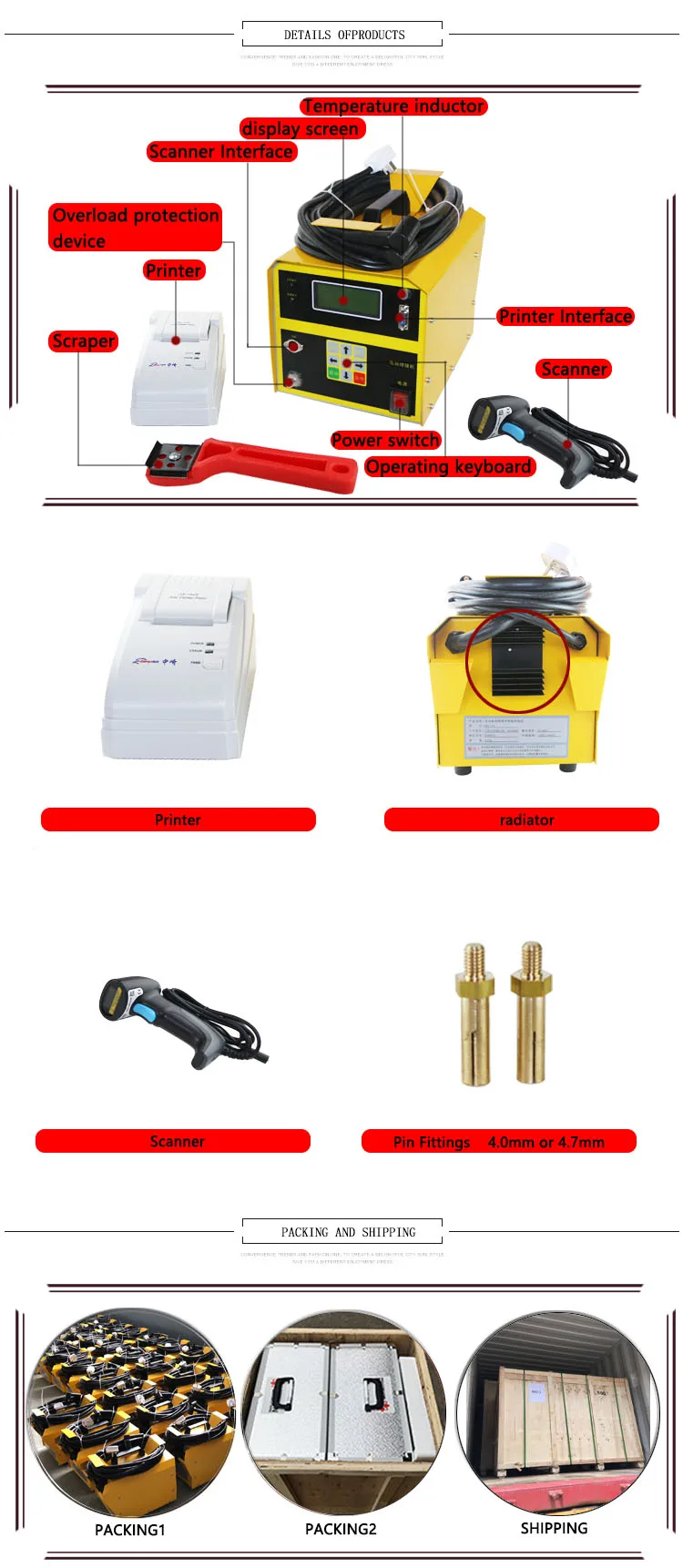

Interface	Scanner, Printer
Control Mode	Constant voltage, constant current
Net weight	28 KG

1. Universal fully automatic electrofusion machine.
2. Easy and simple to handle.
3. Optical scanner with bar code reading system.
4. In built memory with 4000 welding cycles.
5. Data transfer software to laptop or printer.

6. Flexible welding parameter input mode: manual input through keyboard or bar code scanning input.

7. High brightness liquid crystal display, Chinese and English language.
