High Quality!!! Mild/Low Carbon /Aluminium /Galvanized steel wire drawing machine (with low factory price)

Supplier: Beijing CONET Science Technology Co., Ltd.
Region: Beijing, China
Contact: Ms. Lucia Wang
Price: $27000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	blue and yellow;	Machine type:	Straight line type;
Product name:	wire drawing machine;	Place of Origin:	Beijing China (Mainland);
Material:	Low carbon , galvanized steel wire ,copper etc.;	Voltage:	380V 50Hz;
Supply Ability:	5 Set/Sets per Month;	Feature:	High speed, High quality;
Power(W):	7.5~160KW;	Voltage:	380V 50Hz;
Weight:	based on different model;	Brand:	CONET;
Warranty:	12 months after installation;	Payment Terms:	L/C,T/T;
Brand Name:	CONET;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	based on different model;	color:	white and blue;
Outlet Diameter:	based on different model;	Certification:	ISO9001;
Inlet Diameter:	based on different model;	Packaging Detail:	in wooden box or according to customer's needs;
drawing speed:	0-25m/s based on different model;	Condition:	New;
contrlling:	PLC control;	Model Number:	ZJL;
Port:	Xingang;

High Quality!!! Mild/Low Carbon /Aluminium /Galvanized steel wire drawing machine (with low factory price)

1.Product Introduction

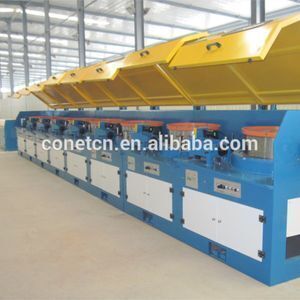

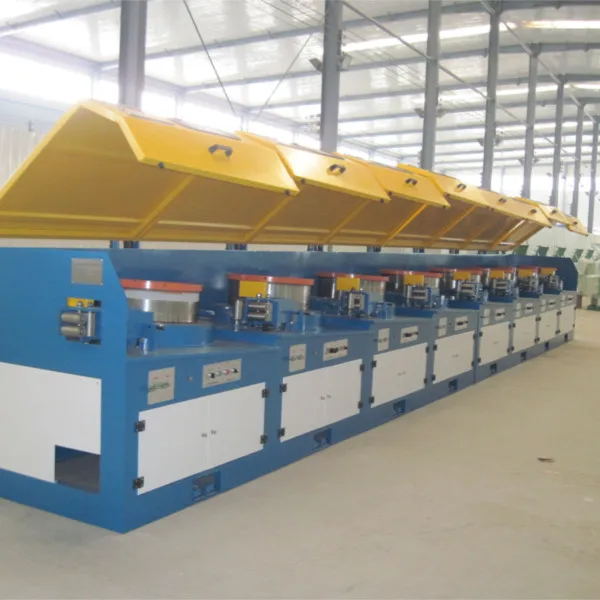

Steel Wire Drawing Machine, Straight Line Wire Drawing Machine, Dry Drawing Machine for steel wire & rope industry

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.

Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.

2. Working flows and Automation

Steel in coil —de-coil— remove oxide—Lubrication—drawing 1—speed fit—Lubrication—drawing 5—take-up automatic —finished products

3. Configuration Introduction (for reference)

Item	Brands	Remark
Frequency converter	Schneider
PLC	Siemens
Display screen	Siemens
Electrical part	Schneider

4. Main Parameter.

Item	LZ200	LZ300	LZ400	LZ500	LZ560	LZ600	LZ700	LZ750	LZ900	LZ1200
Dia. of Capstan	200mm	300mm	400mm	500mm	560mm	600mm	700mm	750mm	900mm	1200mm
Capstan Nos.	2~12	2~12	2~12	2~12	2~12	2~9	2~9	2~9	2~9	2~9
Inlet wire size	2.5mm	2.8mm	4.2mm	5.5mm	6.5mm	8mm	10mm	10mm	14mm	16mm
Finished wire	0.3mm	0.6mm	0.7mm	1.2mm	1.3mm	1.6mm	2.2mm	2.2mm	3mm	3mm
Max. Speed	20m/s	20m/s	20m/s	18m/s	15m/s	12m/s	10m/s	10m/s	8m/s	6m/s
Power (Kw)	5.5~7	7.5~11	7.5~22	22~45	22~55	45~75	45~90	55~90	90~132	90~160

Decoil system
