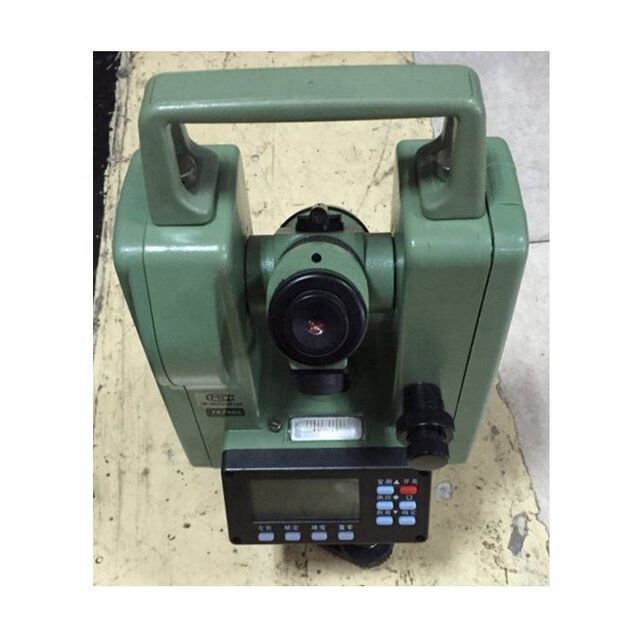

New Hot Sale Theodolite 2" Laser Precision Optical Instrument Measuring Equipment
- 10.00 1 - 4 sets
- 5.00 >=5 sets
| Health status: | new | brand: | the gold |
| port: | chongqing | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| waterproof: | IP54 | model: | GD2A |
| Minimum reading: | 1"/5" | accuracy: | 2" |
| Supply capacity: | 1000 sets per quarter | Origin: | Chongqing, China |
| Battery: | 1800mAh | Packaging Details: | Theodolite is packed in a carton, which can effectively protect it from damage |
| Output Interface: | RS232 |
New Hot Sale Theodolite 2" Laser Precision Optical Instrument Measuring Equipment
Theodolite measuring equipment technical parameters:
Model | GD2A |
telescope |
|
length | 165mm |
Objective lens aperture | φ45mm |
enlarge | 30X |
image | upright |
vision | 1°30' |
Resolution | 3.3" |
shortest line of sight | 1 meter |
additive constant | 0 |
Sight scale constant | 100 |
angle measurement |
|
minimum reading | 1"/5" |
accuracy | 2" |
exhibit |
|
exhibit | Double-sided graphic dot matrix LCD |
illumination | if |
Compensator |
|
tilt sensor | A provided / B not provided |
accuracy | 3" |
Compensation range | ±3' |
Laser plummet |
|
level sensitivity |
|
board level | 30"/2mm |
Round class | 8'/2 mm |
data output |
|
Output Interface | RS232C |
power supply |
|
rechargeable battery | 1800mAh Ni-MH battery |
battery working time | 10-20 hours |
others |
|
waterproof level | IP54 |
Pedestal | detachable |
range of working temperature | -20℃~+50℃ |
aspect | 150X165X335mm |
weight | 5 kg |
