300m to 3000m Electric winch Geophysics Well logging winch

Supplier: Chongqing Huibo Lab Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Michelle Li
Price: $1.00 / 1 - 1 sets
$0.50 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Continuous working time:	≤24 hours	Warranty:	1 year
Supply capacity:	10 sets per month	model:	JCH
energy consumption:	<1.5kW	volume:	305200220mm
Depth Error:	≤0.4%	port:	chongqing
Custom Support:	ODM,OBM	Depth Range:	0~9999.99 meters
weight:	<3kg	Depth Pulse Equivalent:	0.25mm/pulse
place of origin; place of origin:	Chongqing, China	power supply:	AC220V±10% 50Hz±5%
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,cash	Energy source:	electrical
Packaging Details:	wooden box	application:	car
Operating temperature:	-10℃~ +70℃	brand:	gold
capacity:	12,000 pounds	Speed range:	1~29.9 m/min

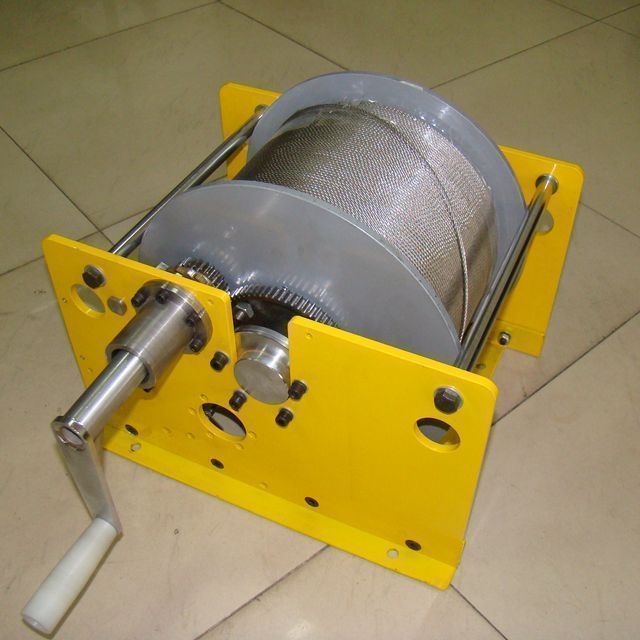

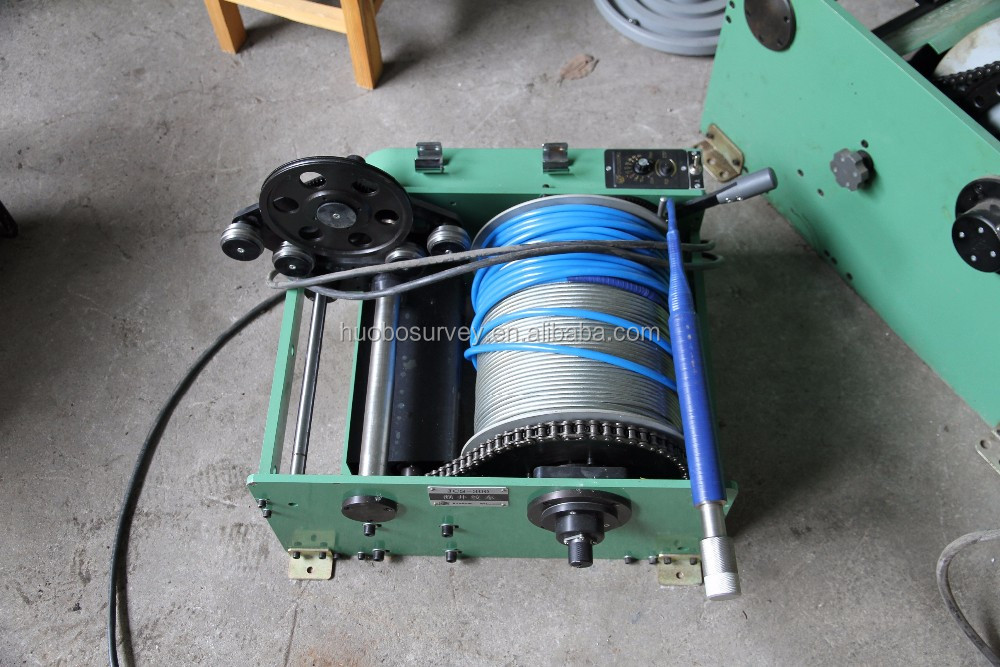

300m to 3000m Electric Winch Geophysical Borehole Logging Winch

Main applications and features:

1. Using advanced frequency conversion technology to control the winch
2. Automatic constant speed and manual speed regulation, automatic overload protection
3. Automatically add and subtract to calculate the depth, and the depth error is automatically compensated.
4. Use mains or alternator
5. The winch lift self-locking function
6. The speed is stable without jitter in the full speed range
Technical Specifications

parameter	3000 meters variable frequency speed regulation	2000m variable frequency speed control winch	1000m variable frequency speed control winch	300 meters variable frequency speed regulation	500m variable frequency speed control winch
type	JCH-3000	JCH-2000	JCH-1000	JCH-300	JCH-500
aspect	940×800×720	920×680×700	710×620×670	560×490×360	540×400×380
weight	150 kg	120 kg	110 kg	25 kg	18 kg
Motor Power	2.2kW	1.5kW	1.1kW	manual	manual
number of pulses	1 lap every 4000 laps	1 lap every 4000 laps	1 lap every 4000 laps	1 lap every 4000 laps
Winding length	3100 meters	2200 meters	1200 meters	360 meters	700 meters
Winding length	3100 meters	2200 meters	1200 meters	360 meters	370 (Φ7mm rubber cable)
number of cores	6 cores	6 cores	6 cores	6 cores	6 cores
Cable Insulation: Greater than 10 M Ohm
