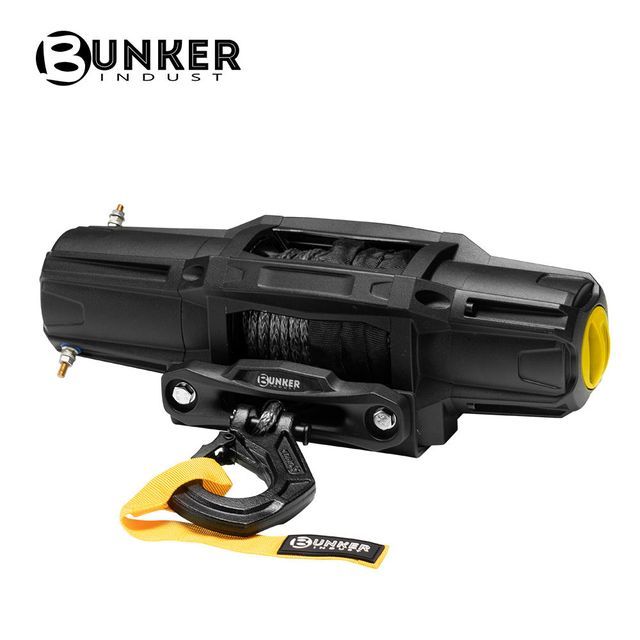

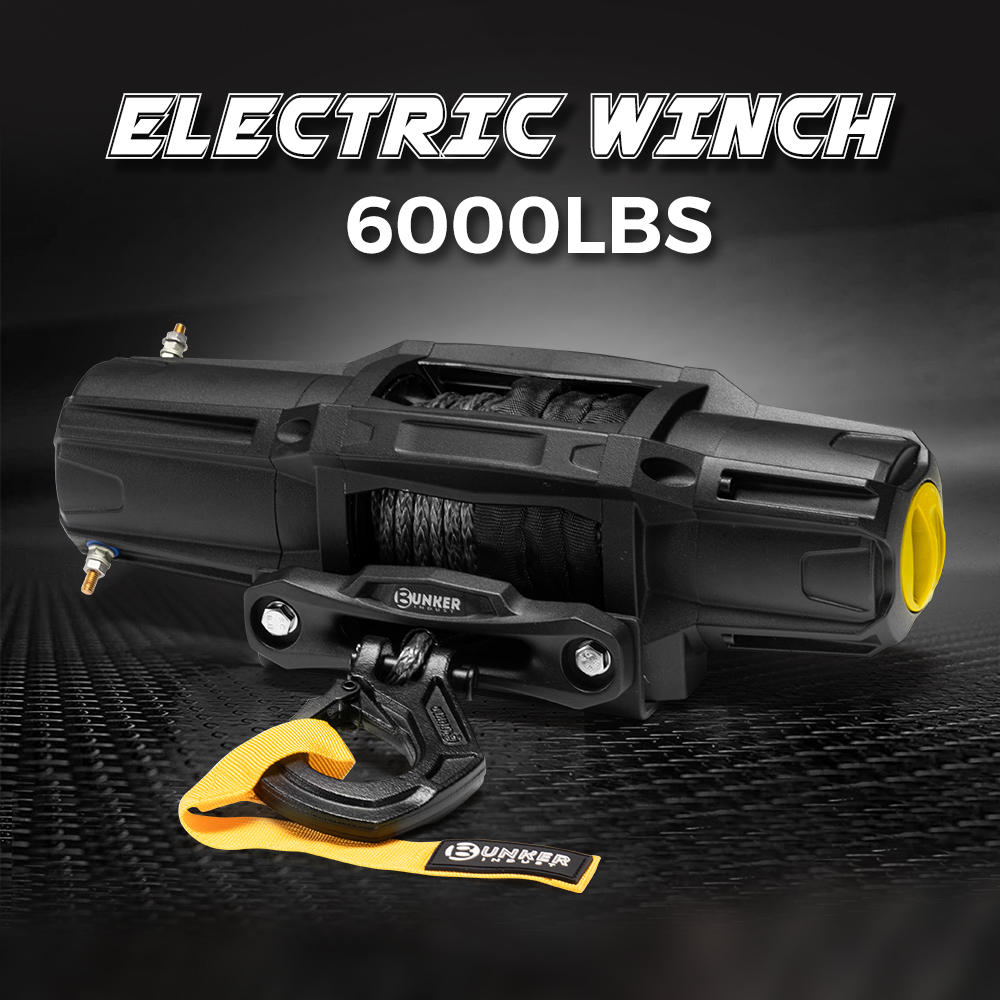

BUNKER INDUST 6000LBS IP67 Waterproof Remote Control Synthetic Rope Electric Winch For ATV UTV Car 4x4

Click here to contact

Product details

housing:	aluminum	Warranty:	1 year
Gear reduction ratio:	192:1	Place of origin:	Zhejiang, China
model:	BI-WIN6000-rope	payment terms:	L/C, D/A, D/A, wire transfer
waterproof:	IP-67	capacity:	6000 pounds
Finish:	matte black powder coat	Energy source:	electrical
Rated wire tension (single wire):	6,000 barrels (2,722 kg)	Customization support:	Processing
Gear train:	Three-level planetary	hook:	forged steel
Anchor chain:	aluminum	brand:	Fuel industry
application:	ATV/UTV/Boat	Free winding clutch:	turn
engine:	3.2 HP (2.4 kW); permanent magnet motor

Product Description

Specification

6000 lbs electric winch
Product Size	42 cm x 12.8 cm x 12.6 cm (length x width x height)
product weight	13.9kg
housing	aluminum
Finish	matte black powder coat

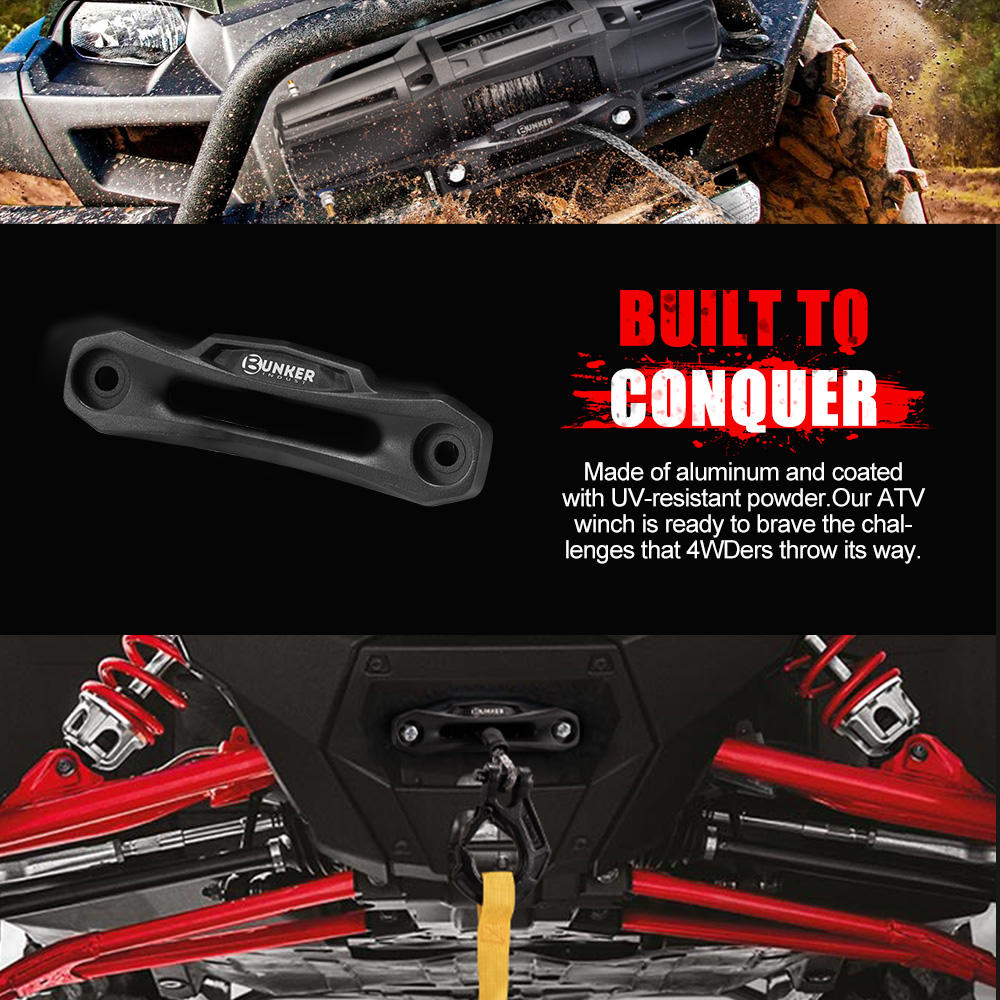

anchor chain	aluminum
hook	forged steel

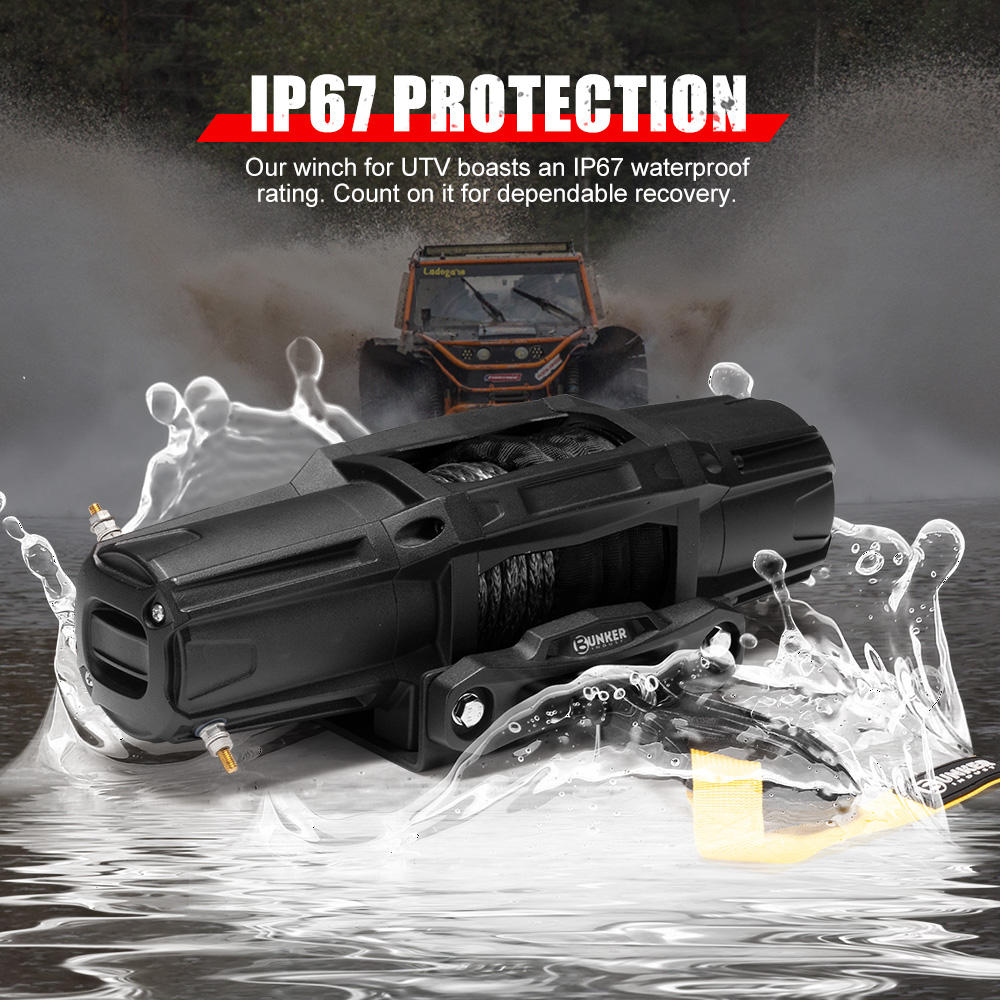

waterproof	IP67 rating
Rated wire tension (single wire)	6,000 barrels (2,722 kg)

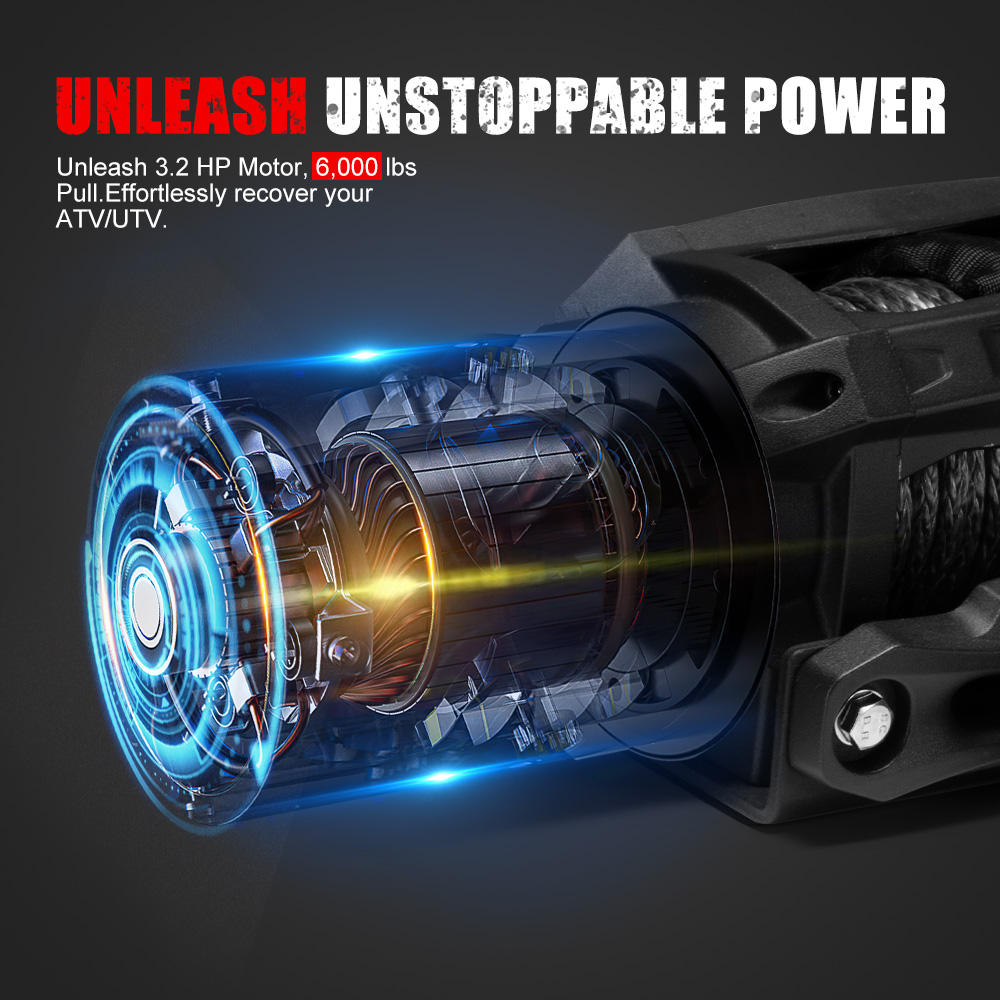

engine	3.2 HP (2.4 kW); permanent magnet motor
gear train	differential planet

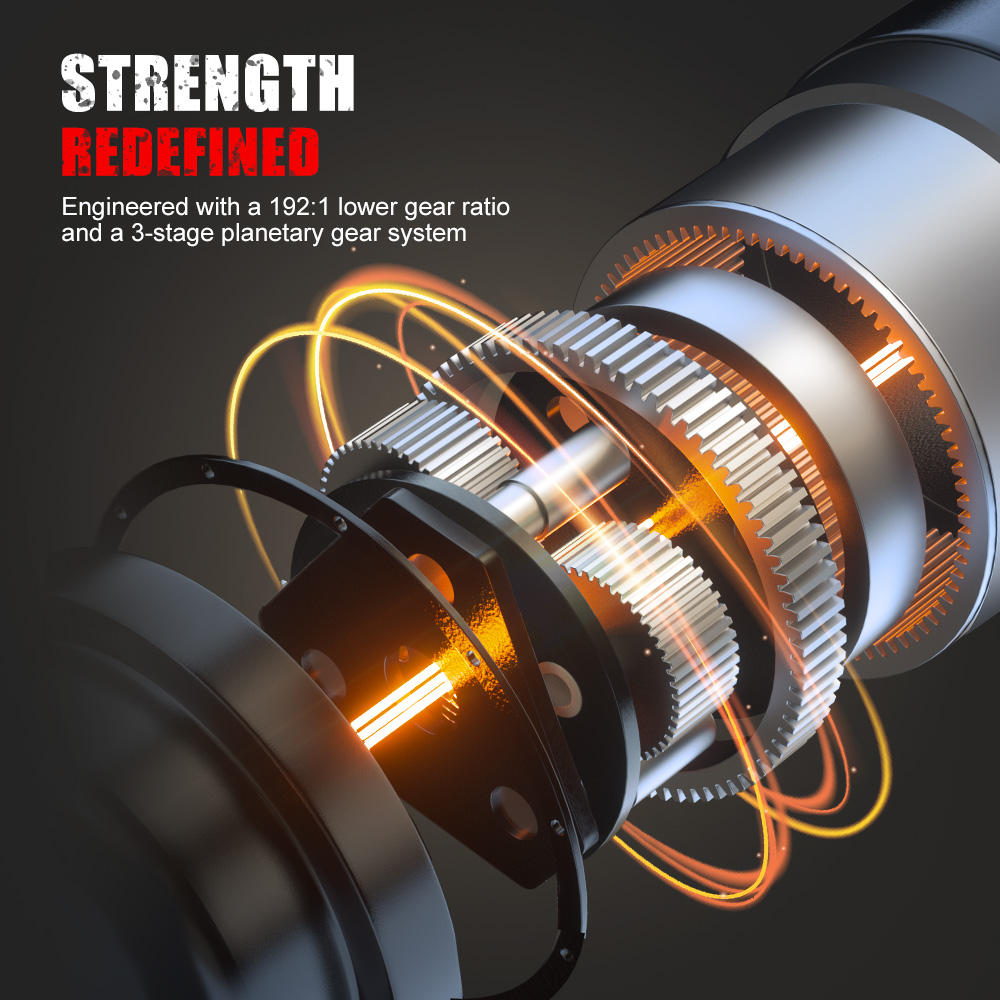

Gear reduction ratio	192:1
gear train	Three-level planetary

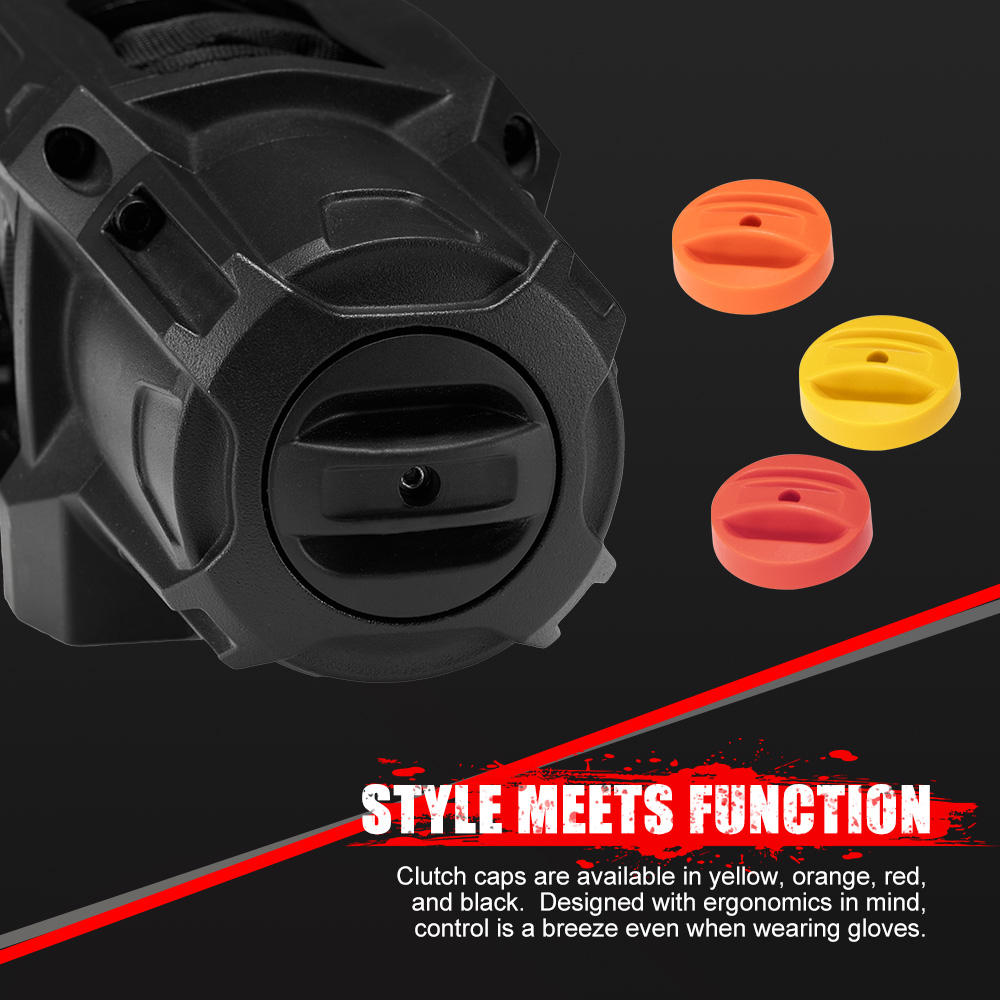

free winding clutch	turn
Drum diameter/length	Ø50.08mm x 127.5mm

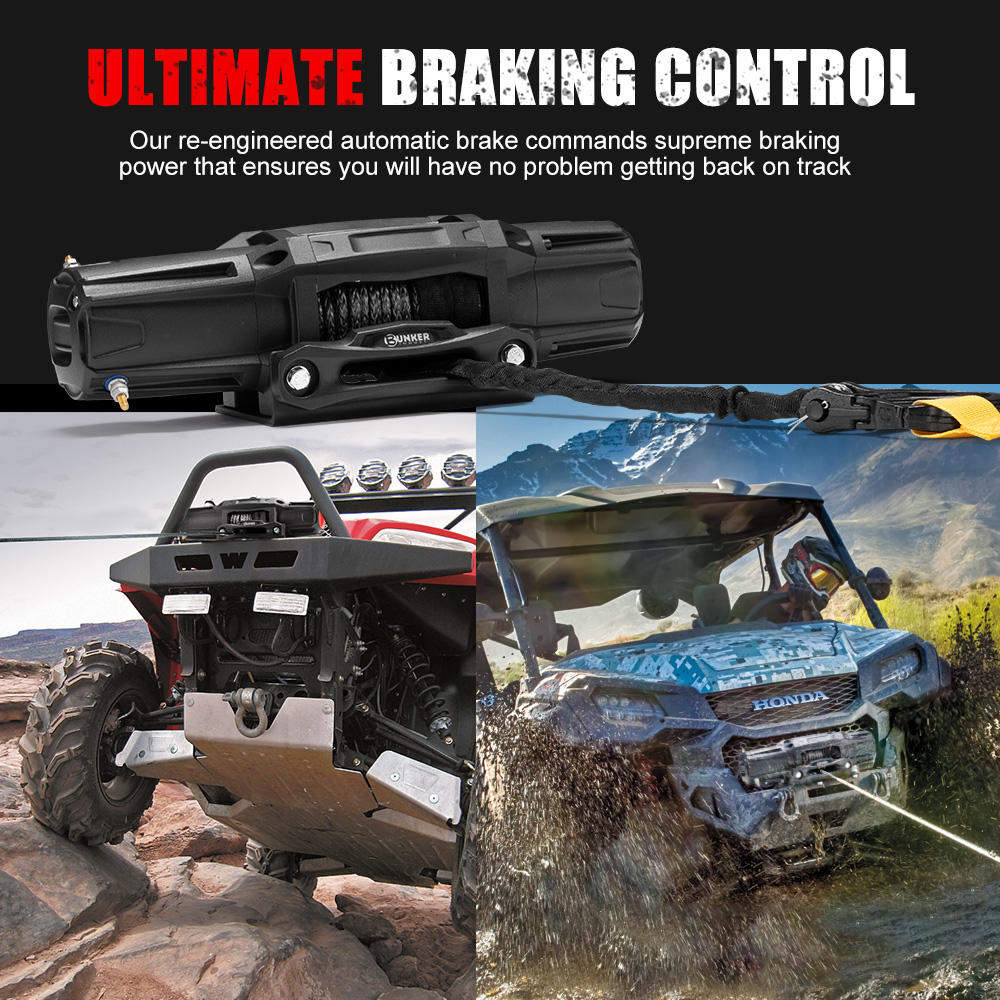

brake	Automatic brake
duty cycle	Intermittent per SAE J706 Section 6.2
Mounting bolt pattern	168mm×74mm
Recommended battery	175CCA
control method	Wired/wireless control
Full load line speed (m/min)	1.524m
No-load line speed (m/min)	4.2m
Full load maximum current (A)	240 (amps)
Certification	CE

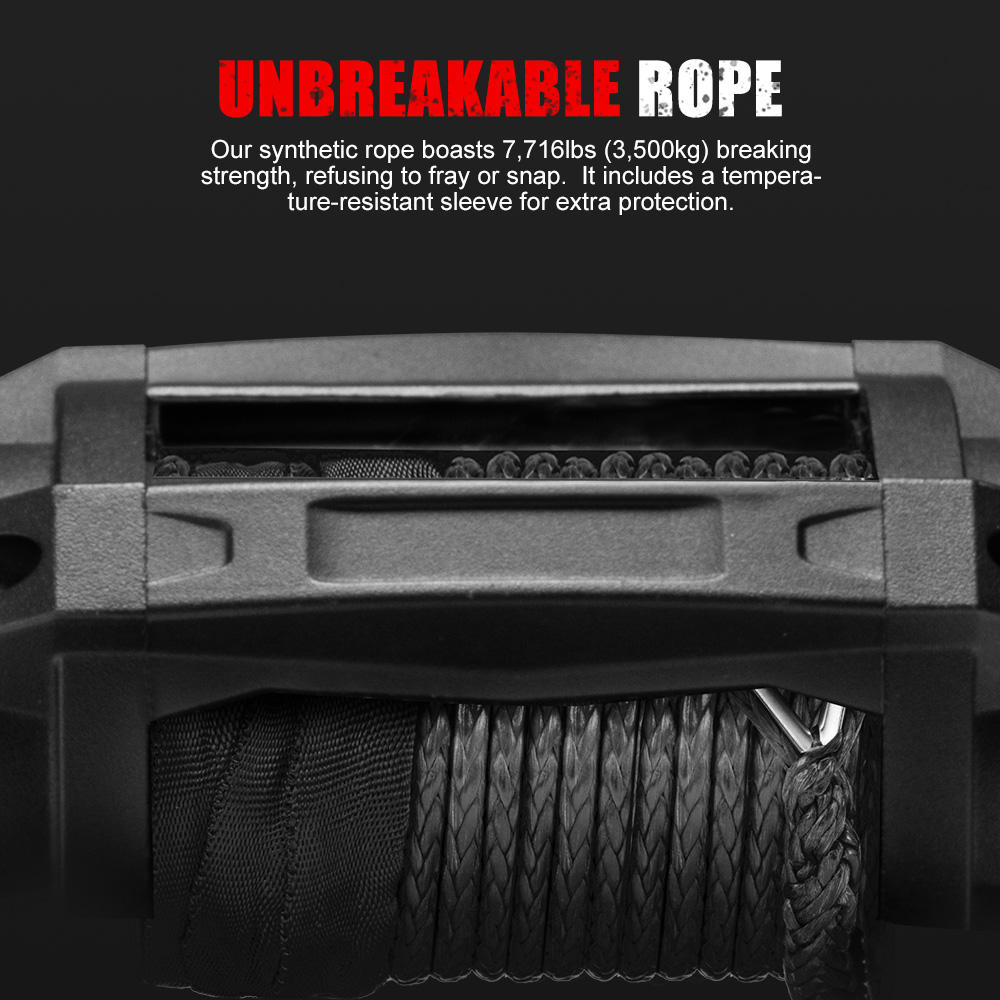

Synthetic rope:
Material	Material
rope length	15m
Breaking capacity	7,716 lbs (3,500 kg)

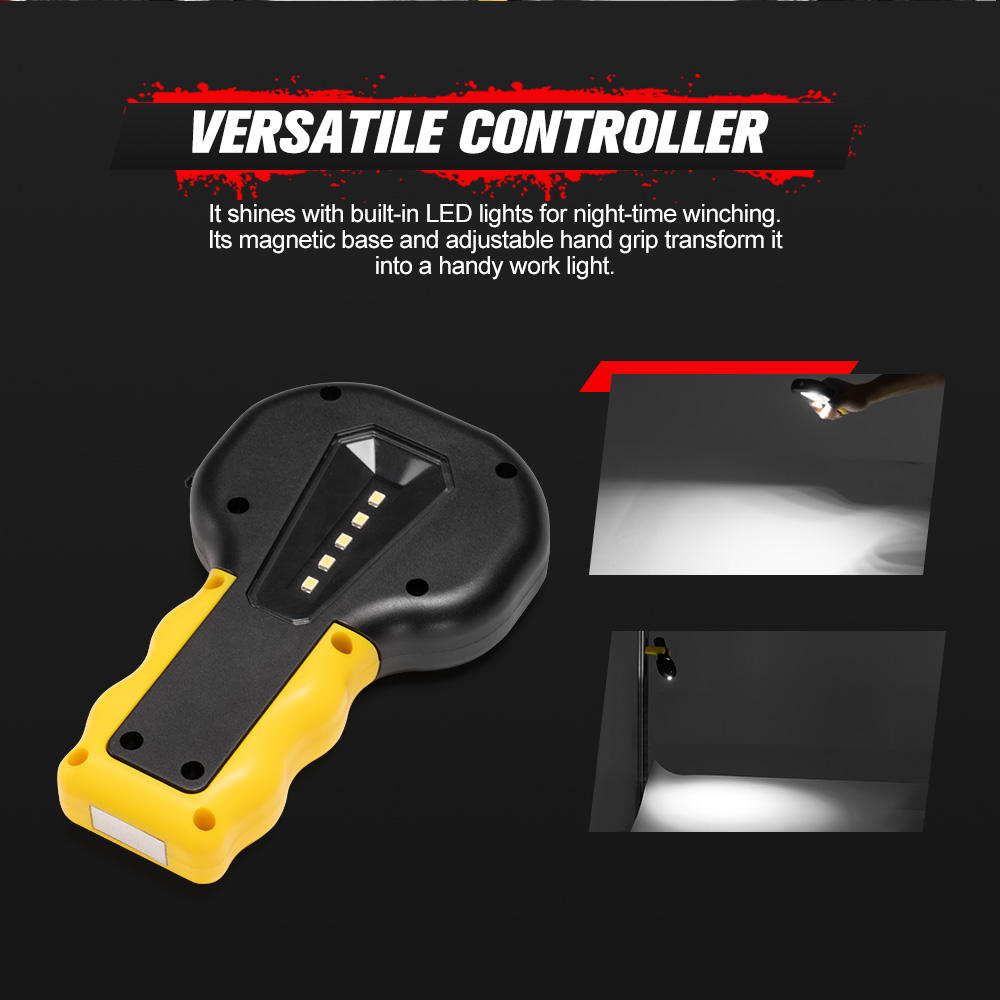

remote control
Working frequency	433 MHz
Remote control distance	15m
Input voltage	5V
waterproof	No
Warranty
Electrical components	2 years
Mechanical components	3 years
synthetic rope	1 year
