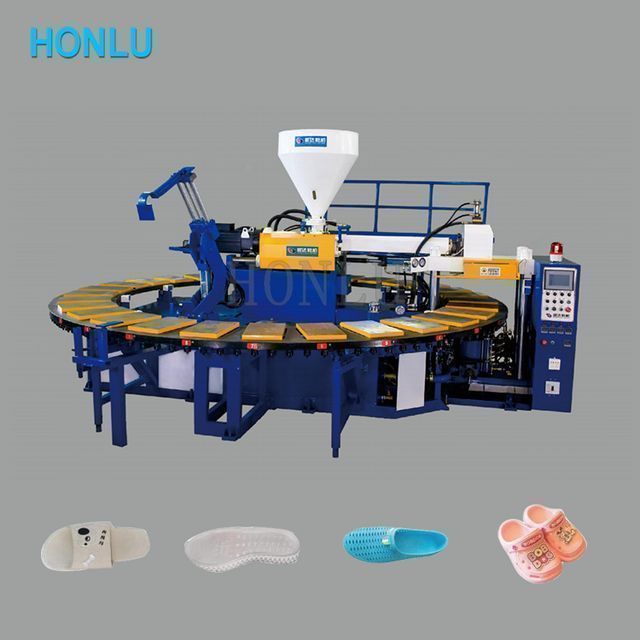

PVC TPR TPU Monochrome Blow Plastic Shoes High Elasticity Breathable Crystal Slippers Sandals Injection Molding Machine

Supplier: Henan Honlu Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Vincent Li
Price: $23650.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Video shipment inspection:	if	Warranty:	1 year
Supply capacity:	150 units per month	Mechanical test report:	if
color:	monochrome	Injection volume:	450 grams
weight:	10	Voltage:	380V
engine:	AC permanent magnet servo motor	port:	Qingdao/Shenzhen
strength:	13 kW	Function:	High Elastic Breathable Crystal Slipper Sandals
Applicable industries:	manufacturing plant	output:	150-250 pairs/hour
MOQ:	1 set	raw material:	PVC TPR thermoplastic polyurethane
Marketing Type:	Hot Products of 2022	Health status:	new
After warranty service:	Online support, video technical support	Core components:	engine
Package preview:		Dimensions (LWH):	4.84.22.2m
Clamping force:	60 tons	product name:	Blow molding shoe injection molding machine
Production capacity:	150-250 pairs/hour	Origin:	Henan, China
brand:	Honglu	Packaging Details:	Standard export wooden box packing.
Showroom location:	not any	payment terms:	L/C, Western Union, T/T
Main selling points:	high productivity	Core component warranty:	1 year

PVC TPR TPU Monochrome Blow Plastic Shoes High Elasticity Breathable Crystal Slippers Sandals Injection Molding Machine

Product Description

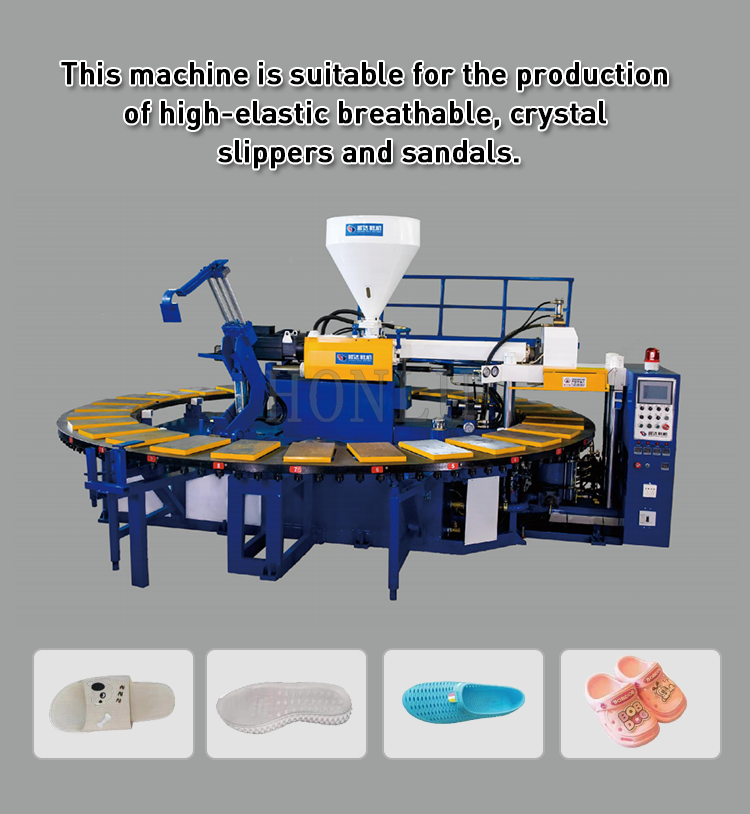

This machine is suitable for producing high elastic breathable, crystal slippers and sandals.

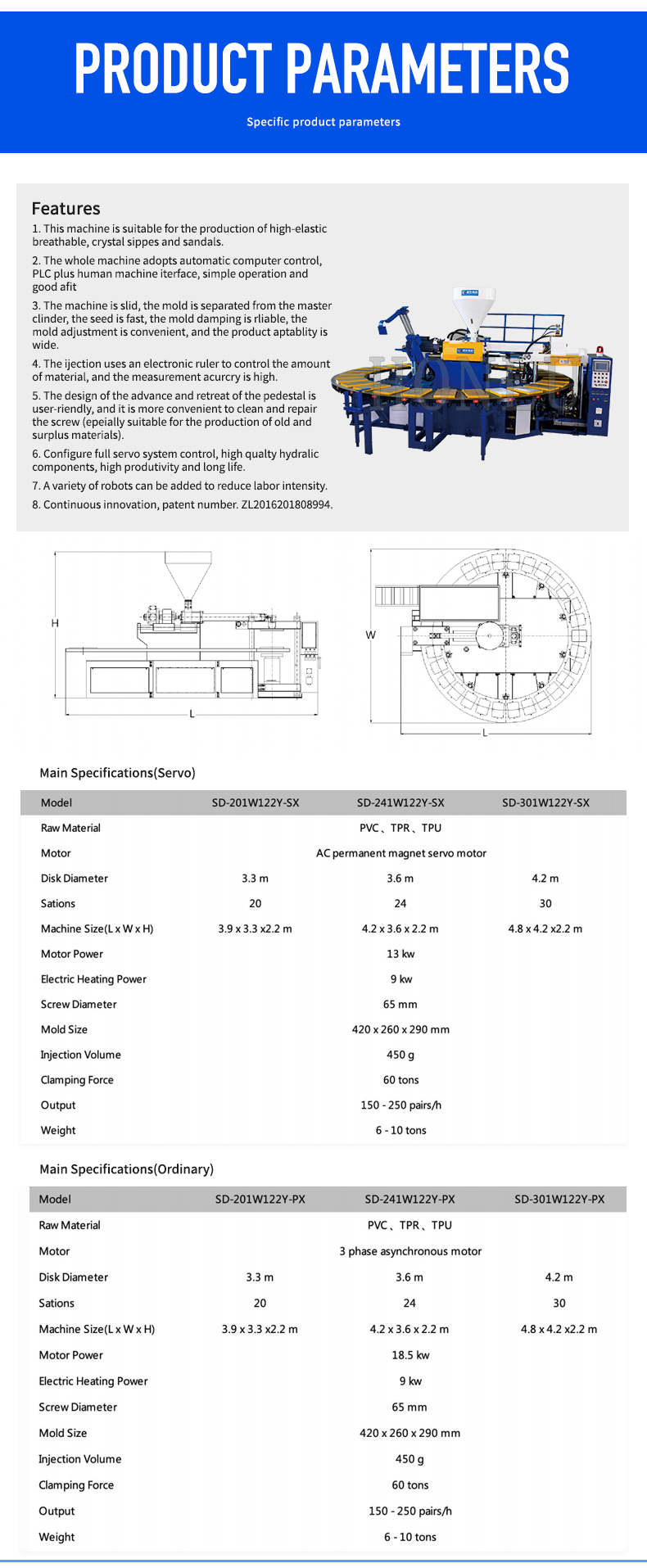

Features and parameters

feature:

1. This machine is suitable for the production of high elastic breathable, crystal slippers and sandals; 2. The whole machine adopts computer automatic control, PLC plus human-machine interface, easy to operate and good affinity; 3. The machine is strong, and the mold is separated from the main cylinder. Fast speed, reliable mold closing, convenient mold adjustment, and wide product adaptability; 4. Electronic scale is used to control the material volume for injection, and the measurement accuracy is high; 6. Equipped with full servo system control, high-quality hydraulic components, high productivity and long life; 7. Various robots can be added to reduce labor intensity; 8. Continuous innovation, patent number: ZL201620180899.4.

Model	HL-201W133Y-SX	HL-241W133Y-SX	HL-301W133Y-SX
raw material	PVC, TPR, TPU
engine	AC permanent magnet servo motor
Disc diameter	3.3 meters	3.6 meters	4.2 meters
Meeting	20	twenty four	30
*Machine size (lengthwidthheight)*	3.93.32.2 meters	4.23.62.2m	4.84.22.2m
Motor Power	13 kW
electro-thermal	9 kW
Screw diameter	65mm
Die size	420260290 mm
Injection volume	450 grams
clamping force	60 tons
output	150-250 pairs/hour
weight	6-10 tons
