pvc inflatable shoe machine india

Supplier: Jieyang Jinhui Machinery Manufacturing Co., Ltd.
Region: Guangdong, China
Contact: Mr Town Wang
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Raw materials:	PCU, PVC, TPR	Screw diameter:	65/70 mm
Heater power:	10kW	Voltage:	220/380V
port:	Shantou, Shenzhen	Clamping force:	600 knots
Number of temperature control segments:	4 o'clock	Applicable industries:	manufacturing plant
Packaging Details:	export package	Warranty:	1 year
payment terms:	wire transfer	Machine size:	About 400036002300
place of origin; place of origin:	Guangdong, China	Motor Power:	18.5kW
Production capacity:	15 sets/month	Dimensions (LWH):	400036002300
brand:	Jinhui	Screw speed:	0-200 rpm
Certification:	ISO9001:2008	strength:	18.5
After-sales service provided:	Free spare parts, video technical support	Health status:	new
workstation:	20, 24, 30	weight:	5500kg
Supply capacity:	30 sets per month

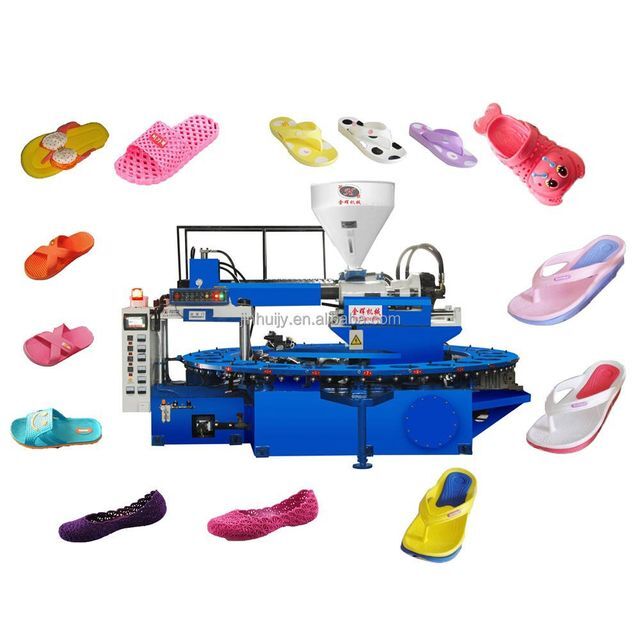

This machine is used to produce PCU slippers/PVC blow shoes.

1. PLC and Taiwan touch screen, easy to operate.

2. The injection volume is large and the clamping force is strong, which ensures the good quality of the product.

3. The air blowing device makes the product lighter, softer, brighter in surface and brighter in color. Compared with traditional production methods, this method can save about 20%-35% of materials. Product is almost as good as foam rubber.

technical parameter:

thing	unit	Measurement
raw materials	type	PVC, TPR
workstation	piece	20,24,30
Bolt Diameter	mm	φ65, φ70
Bolt speed	number of revolutions	0-200
Maximum shot volume	cubic centimeter	650,750
Rated injection pressure	MPa	6
Clamping force	kn	600
Motor Power	kilowatt	18.5
Heater power	kilowatt	10
temperature control Section number	View	4
Machine size	mm	4000×3600×2300
machine weight	Kilogram	about 5500
