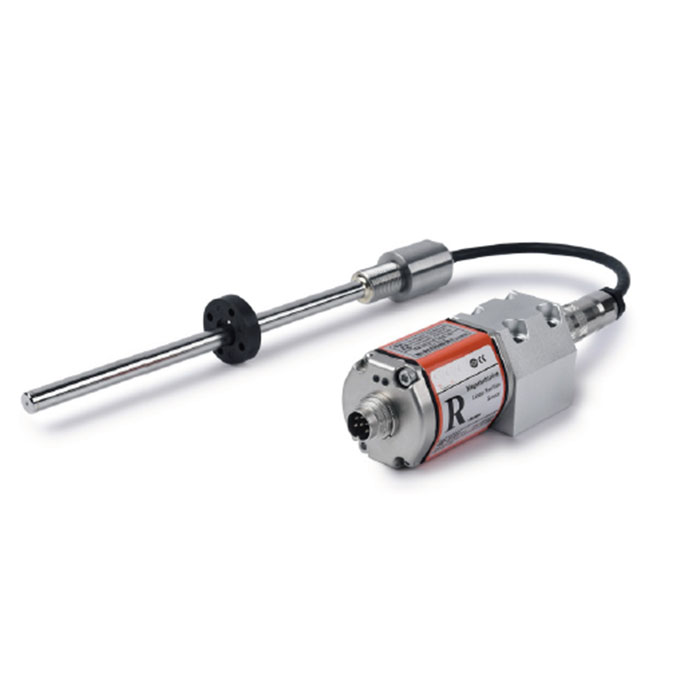

GEFRAN magnetostrictive linear displacement sensor WPG-AM-0400-N with 0-10V output displacement sensor
- 330.00 1 - 2 sets
- 320.00 3 - 4 sets
- 300.00 5 - 6 sets
- 260.00 >=7 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Repeatability: | ≤0.01mm | brand: | Geoffrey |
| model: | WPG-AM-0400-N | output: | Analog 0-10V |
| payment terms: | wire transfer | describe: | Linear Displacement Sensor |
| Origin: | Italy | biggest size: | Measuring stroke +154mm |
| Independent linear: | ±0.04% of full scale | power supply: | 24V DC |
| Hysteresis: | ≤0.02mm | usage: | displacement measurement |
| type: | Linear Displacement Sensor | theory: | Magnetostrictive |
Similar products
Product overview

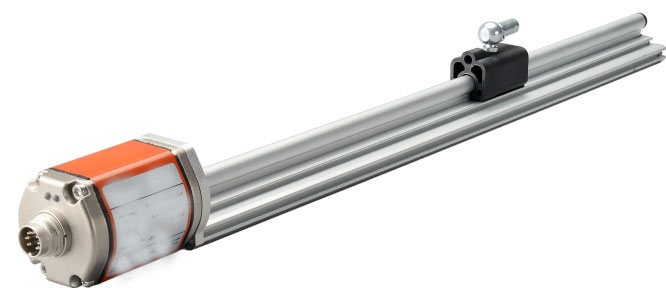

GEFRAN WPG Magnetostrictive Sensors
Non-contact linear displacement sensor with magnetostrictive technology for longer service life.
The absence of electrical contact on the vernier eliminates all wear and guarantees an almost unlimited service life.
Direct and reverse signals, flexible use.
High performance in terms of EMC immunity makes the WPG series suitable for industrial environments where electromagnetic interference is present.
Our advantage
Precise, absolute measurement without reference travel No contact, no wear, no downtime, long service life Sealed housing High durability and long service life
product specification
Effective itinerary | 50mm-1500mm |
output | 4-20mA/0-10V |
power supply | 24vdc |
Linearity | ＜0.04% of full scale |
repeatability | ≤0.01% |
hysteresis | ≤0.02% |
Operating temperature | -20...75°C |
