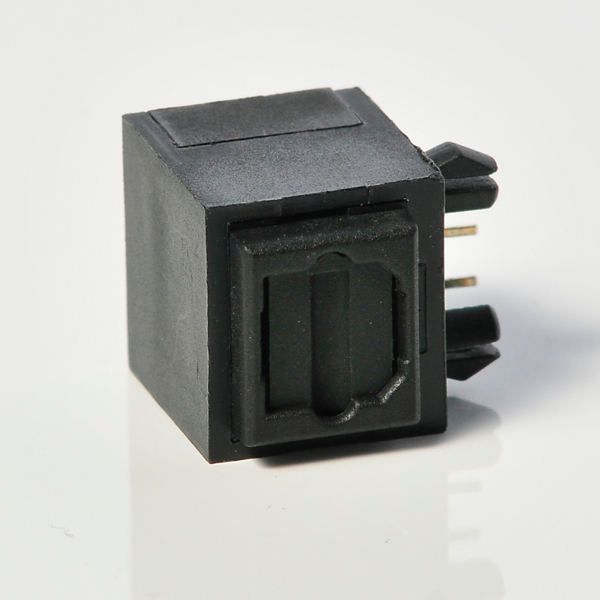

Fiber optic socket toslink 25M TX series DLT21E0
- 0.54 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Tray 100 100 pcs 13.5*27*3 cm inner box 20 pcs tray/box 2000 pcs 29*29*22 cm outer box 2 pcs inner box/outer box 4000 pcs 60*31*25.8 cm | Supply capacity: | 2,000,000 pieces per month |
| application: | Fiber optic socket toslink 25M TX series | application: | circuit board |
| brand: | Aisin | port: | Hongkong |
| Supplier type: | original factory | model: | DLT21E0 |
| type: | SPDIF | payment terms: | wire transfer |
| Origin: | Guangdong, China | Package: | tray |
illustrate
The light emitting unit is a standard package product, and the connector and optoelectronic components are packaged together with the LED and driver IC. The role of the unit is to convert electrical signals into optical signals, which are transmitted through plastic optical fibers.

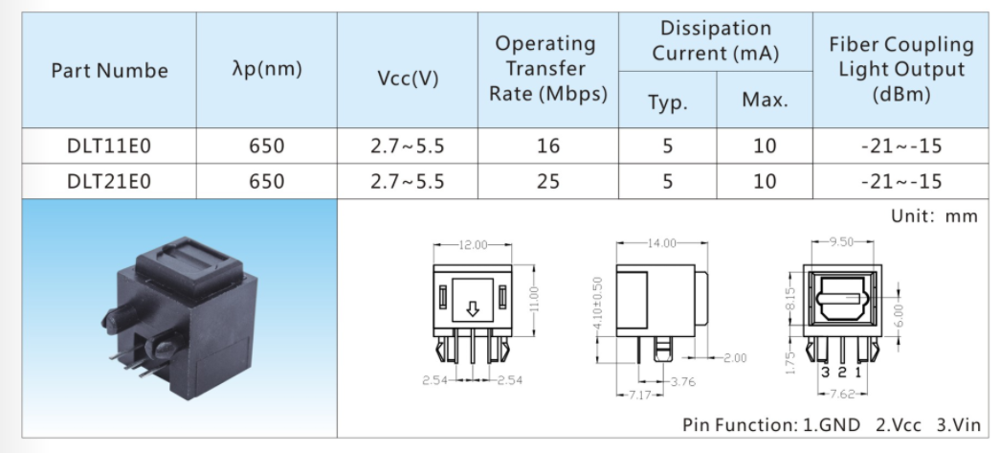

The device operates on a single +3V~+5V, and the input signal is TTL compatible. The maximum operating speed of the DLT21E0 is 25 Mbps. Optical signals are coupled into plastic optical fibers through connectors. The device features high performance, low current dissipation, stable light output, and efficient optical coupling.
application
· Audio equipment
· DVD player
· Personal computer, notebook
· Sound card
Fiber Optic Connector Transmitter
