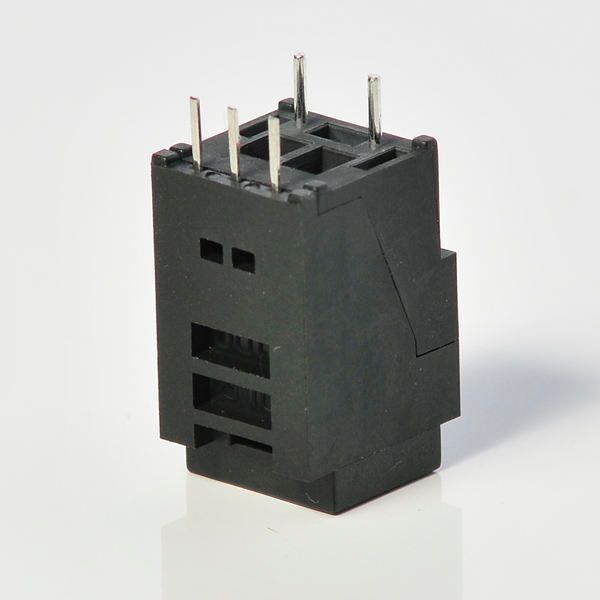

25M Fiber Optic Pcb Toslink Transmitter

Supplier: Aixin Opto-Electrical Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr james lu
Price: $0.60 / 1000 - 4999 pieces
$0.54 / >=5000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Supply capacity:	200000 pieces per month	place of origin; place of origin:	China
model:	DLT21D0	Plastic material:	PBT
Operating voltage:	2.7 to 5.5V	gender:	female
Types of:	digital video interface	port:	Hong Kong Shenzhen Headquarters
Packaging Details:	Tray 1 100 pcs 13.5271.8cm inner box 20 pcs tray/box 2000 pcs 292918.5cm outer box 2 inner box/outer box 4000 pcs 603121.8cm	application:	audio video
payment terms:	wire transfer

feature

· High-speed signal transmission

( 25Mbps, NRZ signal )

· Input TTL compatible

· +3~+5V power supply

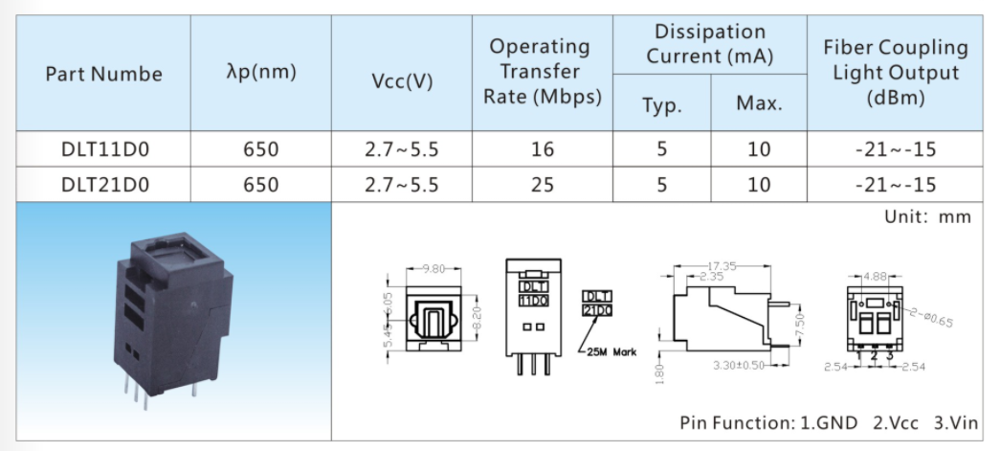

illustrate

The light emitting unit is a standard package product, and the connector and optoelectronic components are packaged together with the LED and driver IC. The role of the unit is to convert electrical signals into optical signals, which are transmitted through plastic optical fibers.

The device operates on a single +3V~+5V, and the input signal is TTL compatible. The maximum operating speed of the DLT21D0 is 25 Mbps. Optical signals are coupled into plastic optical fibers through connectors. The device features high performance, low current dissipation, stable light output, and efficient optical coupling.

application

· Audio equipment

· DVD player

· Personal computer, notebook

· Sound card

· LCD TV

Fiber Optic Connector Transmitter
