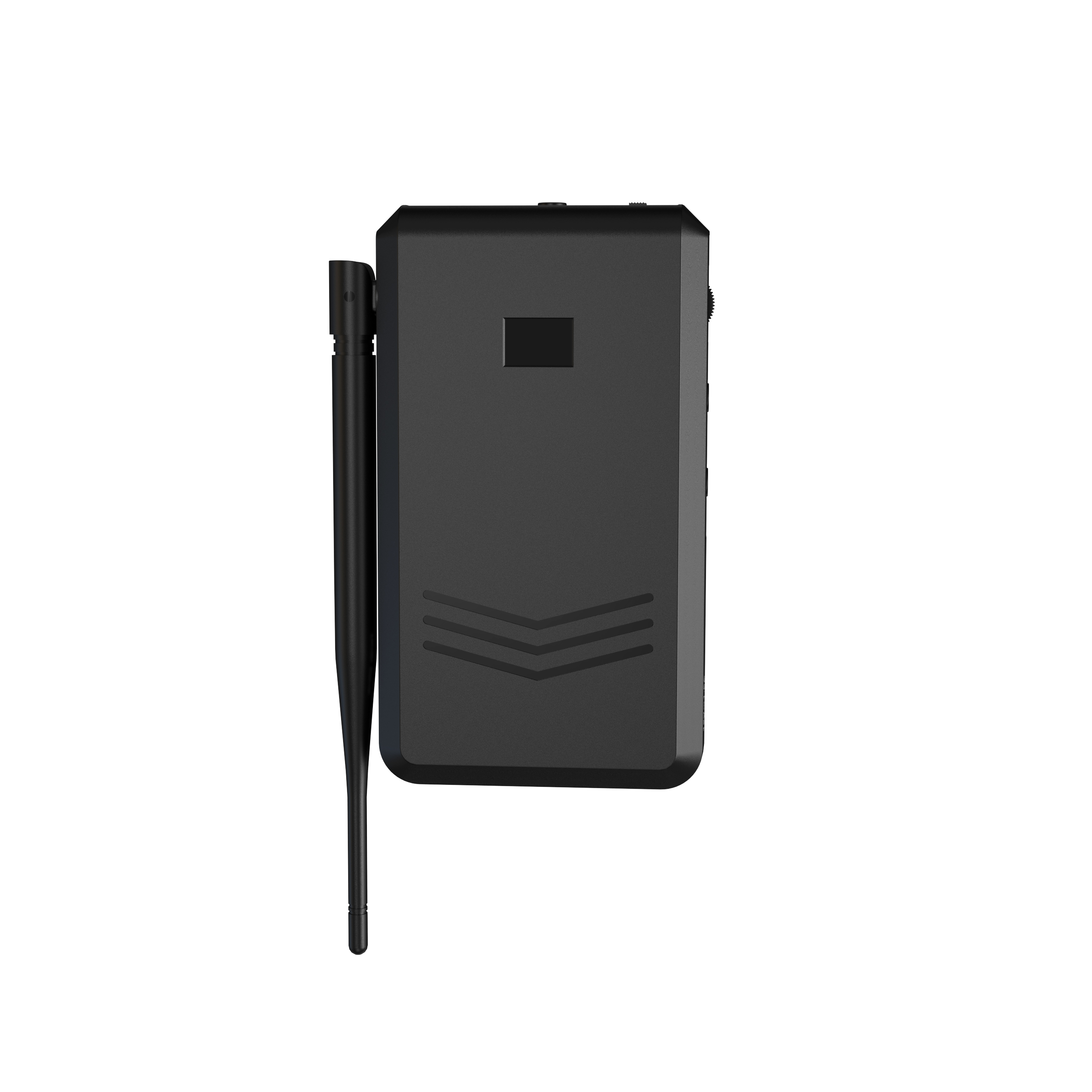

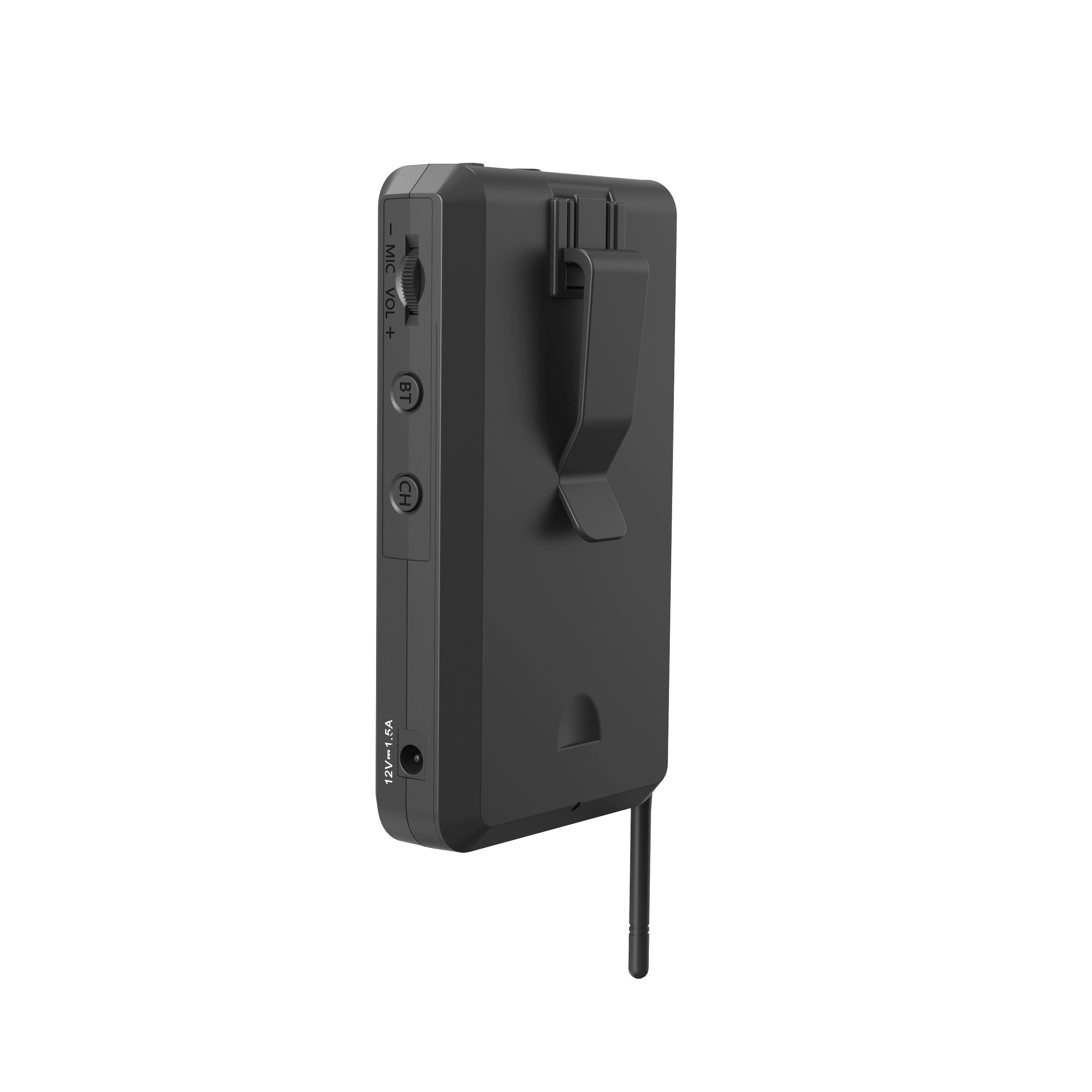

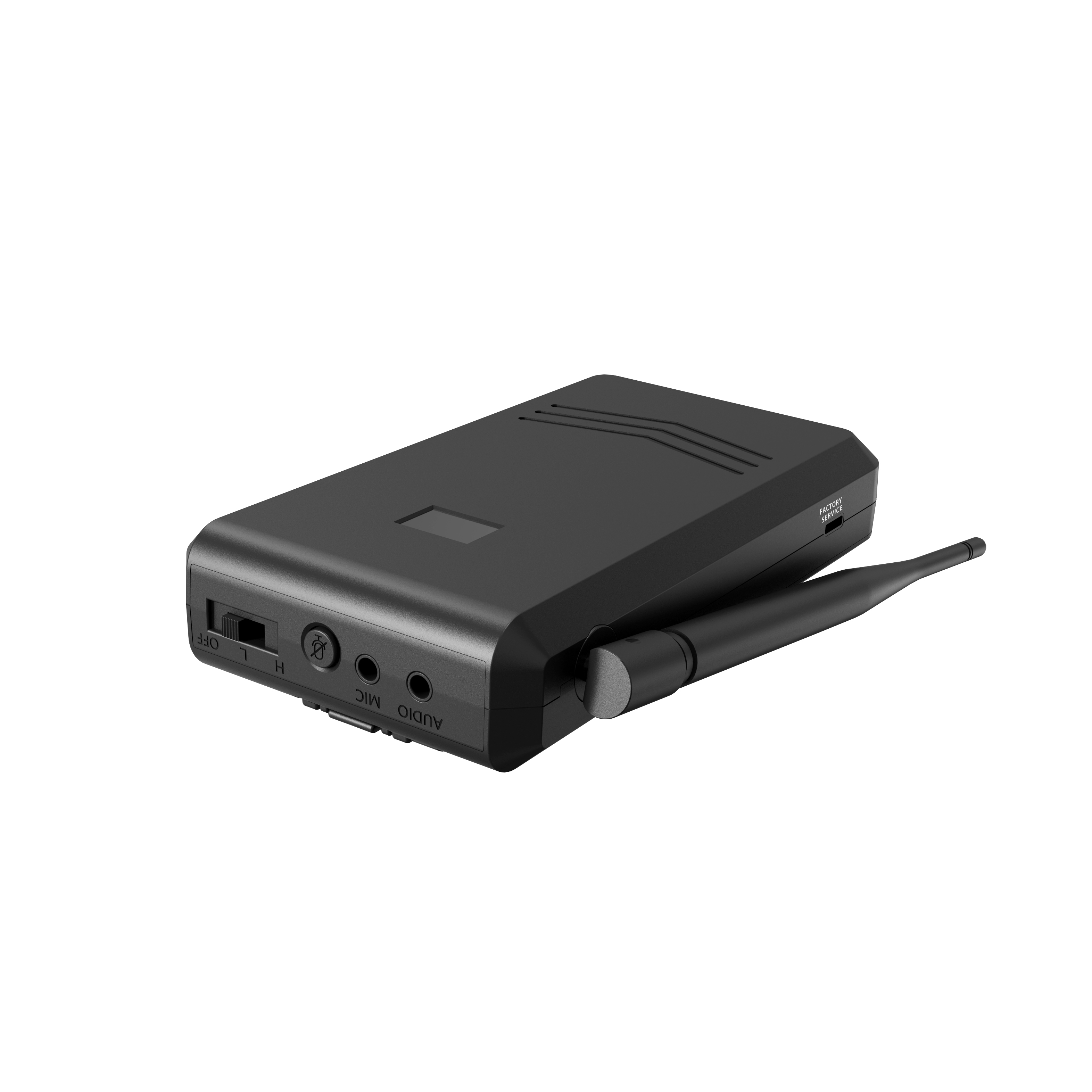

Silent S10 disco transmitter

product name

S10 HiFi Silent Disco Transmitter

Material

aluminum alloy

Function

1. The S10 transmitter is a UHF high-power transmitter with professional design, 5dBi omnidirectional antenna, built-in 7.4V/2500mA lithium battery, and the battery life can reach 10 hours.

2. The general frequency of the transmitter is 433Mhz/863Mhz/915MHz; however, the actual frequency can be determined according to the needs of customers.

3. Advanced high-power electronic tubes are used to make the transmitter work for a long time and the signal is strong and powerful.

4. Using our professional FM/UHF headset, the operating distance can reach 500 meters

5. With BT function

pack

Small EVA BAG packaging

modulation

FM

Modulation Frequency Offset

50KHZ/600mVrms

Voltage

12VDC

Built-in battery

A grade 2500mAh rechargeable battery, charging time 3-4 hours, power supply charging current 350mA(TYP)

electric current

Low: 90mA (Typical)

Hi: 300mA (typ)

frequency

433MHZ / 863MHZ / 915MHZ

strength

Low: 10dB

High: 29dBm

antenna gain

5dBi

Boot Sensitivity

60mVp-p (typ.)

Automatic Level Control Sensitivity

Typical value 700mVp-p

size

80mm*140mm*30mm

Effective distance in wide area

more than 500 meters

Package

1*Transmitter

1*antenna

1*12V power adapter

1*Male 1/8" to Male 1/8" Cable

1*Male RCA to Female 1/8" Cable
