SA-06M Pneumatic Cable Terminal Crimping Tool
- 299.00 1 - 19 sets
- 270.00 >=20 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| weight: | 6 kg | usage: | crimping |
| brand: | SA | Air connection: | 5-8 bar |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | SA-06M |
| Model: | SA-06M | port: | Shanghai |
| Supply capacity: | 1000 pieces per month | Conductor cross section: | 0.5-10mm |
| Origin: | Jiangsu, China |
Product Description
feature:

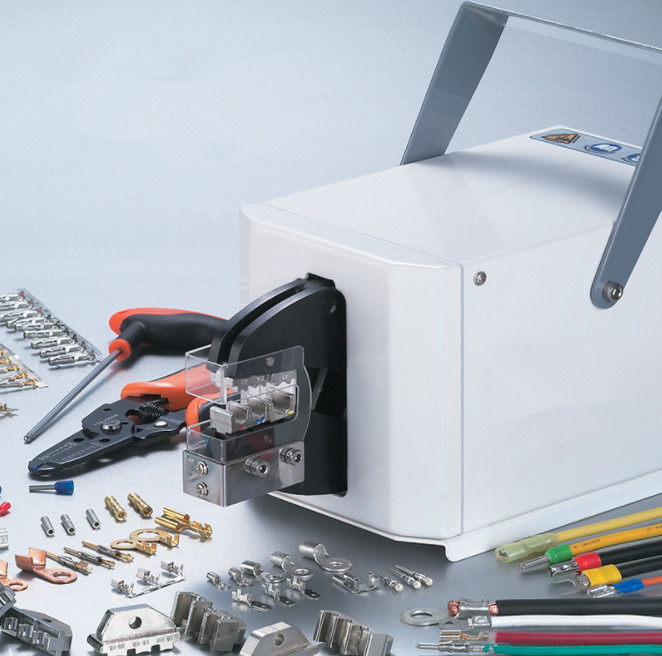

SA-06M, Pneumatic ferrule crimping tool is suitable for crimping various loose terminals to cables, the crimping force is 2.0T

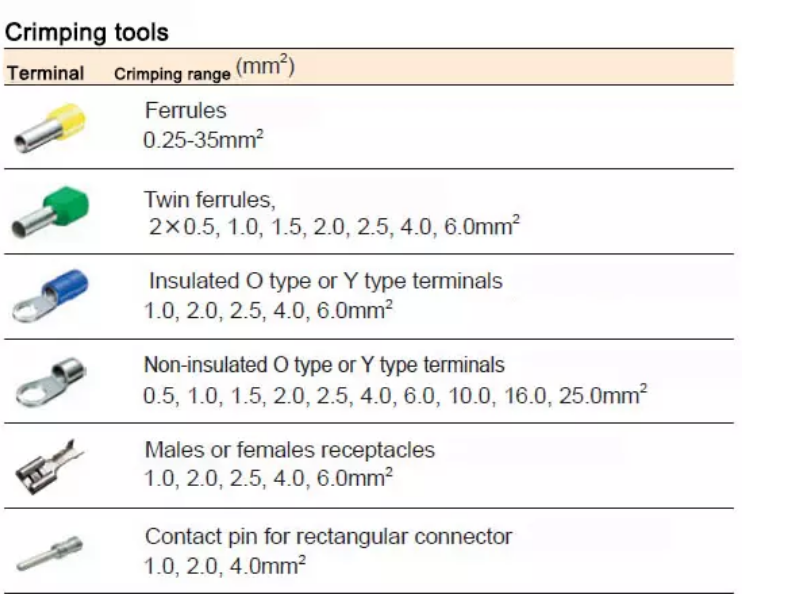

* Suitable for crimping a variety of loose tubular terminals onto cables
* Complete crimping at one time
*The terminal is crimped on all sides, no need to replace the crimping die
* Vibration plate feeding, saving time and effort, convenient and quick terminal replacement
* Fully sealed and crimped, safe and reliable
SA-06M, Pneumatic ferrule crimping tool is suitable for crimping various loose terminals to cables, the crimping force is 2.0T
* Suitable for crimping a variety of loose tubular terminals onto cables
* Complete crimping at one time
*The terminal is crimped on all sides, no need to replace the crimping die
* Vibration plate feeding, saving time and effort, convenient and quick terminal replacement
* Fully sealed and crimped, safe and reliable
Model | SA-06M |
Crimp size | 0.5-10mm² |
air pressure | 0.5-0.7MPa |
Crimp force | 2.0 tons |
weight | 4.8KG |
aspect | 286*125*165mm |
