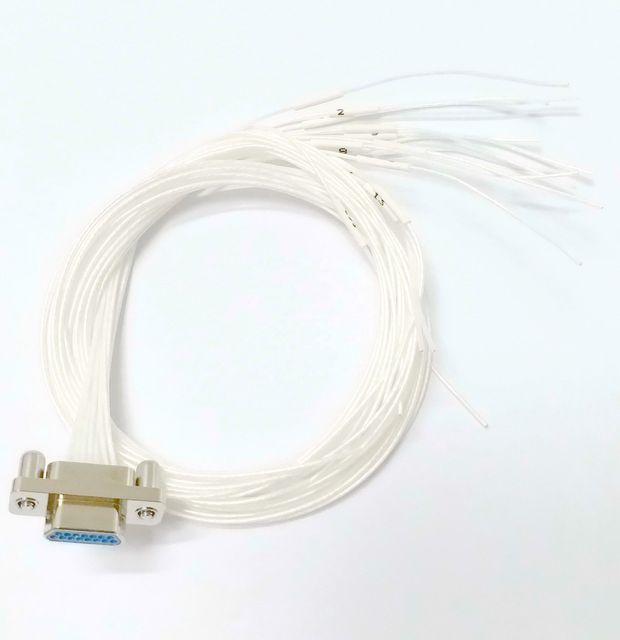

Military quality J30J-15TJL 15p male cable connector MIL-C-83513
-
Supplier: Zunyi Feiyu Electronics Co., Ltd. -
Region: Guizhou, China -
Contact: Ms Mavis Zhang -
Price: $1.00 / >=10 pieces -
Min. Order: 10 pieces
Product details
| Rows: | 2 | shell: | aluminum |
| payment terms: | wire transfer | termination: | Crimp type |
| touch: | gilded | Connector type: | male |
| model: | J30J-15TJL | Types of: | D-Sub Micro-D Connector |
| brand: | Feiyu | quality: | Military grade |
| Contact information: | 15 | OEM, Design Manufacturer: | accepted |
| Supply capacity: | 1,000,000 pieces per month | Contact type: | pin |
| Packaging Details: | carton | place of origin; place of origin: | China |
| Shell finish: | nickel plated |
A real manufacturer with complete military qualifications
J30J series product features
- Conforms to MIL-C-83513 standard
- Corresponding to the US MDM series
- Multiple choice contact number: 9, 15, 21, 25, 31, 37, 51, 66, 69, 74, 100, 144
- micro twist pin
- Contact pitch: 1.27mm
- High contact density
Main technical performance
| ambient temperature | -550C~+1250C | Contact resistance | ≤ 10mΩ |
| Relative humidity | +400C up to 95% | Insulation resistance | ≥5000MΩ |
| vibration | 10 ~ 2000Hz 196m/s2 | Dielectric withstand voltage | 800V |
| influences | 735 m/s2 | durability | 500 cycles |
| Total acceleration RMS | 23.1G | instant break time | ≤1 microsecond |
| current rating | 3A |
Our advantage
- Feiyu is a qualified supplier of key member institutions of China's top ten military industrial groups
- FeiyucertifiedNational High-Tech Enterprise issued by the government
- Feiyube awardedIntellectual property pilot unitby the government
- Feiyuqualifiedinnovative enterpriseGranted by the government
- FeiyuhaveNational level two confidentiality qualification
- FeiyuhaveWeapons and equipment scientific research and production license Issued by National Defense Industry Science and Technology Bureau
- FeiyuhaveEquipment Contracting Qualification Authorized by the Equipment Department of the Central Military Commission
- Quality Standard:ISO 9001 & GJB 9001 C Military Quality System Certification
- lifetime responsibility For product quality
- competitive price: asmanufacturer (factory), Independent research and development, independent production, independent sales, eliminating intermediate links
- If you don't know how to choose related products, please contact us and tell us your requirements,We can help and recommend the best solution
- In addition to our regular model,customized productToowelcome
