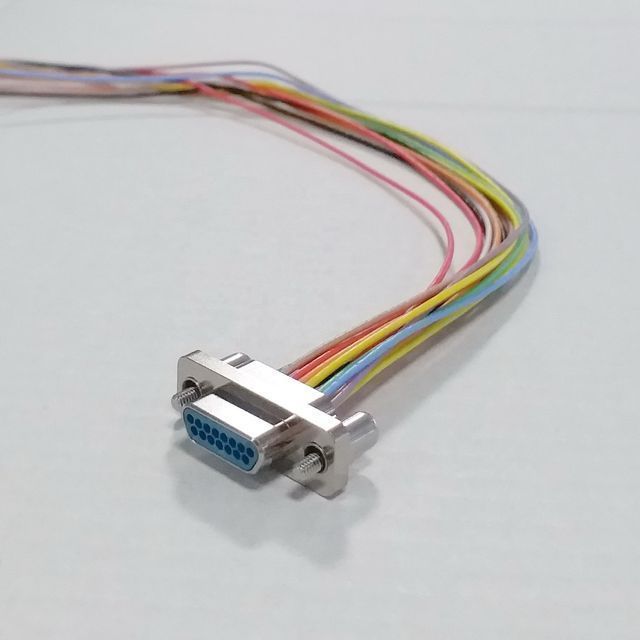

J30J 15 pin micro-d cable connector
-
Supplier: Zunyi Feiyu Electronics Co., Ltd. -
Region: Guizhou, China -
Contact: Ms Mavis Zhang -
Price: $1.00 /piece -
Min. Order: 1 piece
Product details
| Connector type: | plug | termination: | crimp |
| Contact system: | twist pin | Contact Spacing: | 0.05"/1.27mm |
| type: | rectangular connector | Substitute: | ITT cannon, Airborn, Glenair, TE, Amphenol... |
| contact number: | 15 | shell material: | Nickel plated |
| port: | Zunyi | Contact Plating: | gold plated |
| Card: | Feiyu | OEM, ODM: | accepted |
| standard: | mil-dtl-83513 | model: | J30J-15TJL, China |
| Packaging Details: | Plastic bag + carton | Supply capacity: | 1,000,000 pieces/month |
| payment terms: | wire transfer |
Welcome to Zunyi Feiyu Electronics!
J30J series product features
- Meets performance requirements of MIL-C-83513
- Equivalent to American MDM&M series products, etc.
- Multiple optional contacts: 9, 15, 21, 25, 31, 37, 51, 66, 69, 74, 100, 144
- Micro twist pin
- Contact pitch: 0.05'' / 1.27mm
- high contact density
- Core cross-sectional area: 0.035mm2~ 0.2mm2, it is recommended to choose 0.1mm2~ 0.15mm2
- Product performance conforms to GJB2446 (equivalent to MIL-C-83513)
- Implement enterprise standard: Q/FY QJ0001-2010 "Detail Specification of J30J Series Miniature Rectangular Electrical Connector"
Main technical performance
| ambient temperature | -550C ~ +1250C | Contact resistance | ≤ 10mΩ |
| Relative humidity | +400C up to 95% | Insulation resistance | ≥5000MΩ |
| vibration | 10～2000Hz 196m/s2 | Dielectric withstand voltage | 800V |
| influences | 735m/s2 | Durability | 500 cycles |
| Total acceleration RMS | 23.1G | momentary break | ≤1 microsecond |
| current rating | 3A |
Our advantage
- Qualified suppliers of key member institutions of China's top ten military industry groups
- FeiyucertifiedNational High-Tech Enterprise issued by the government
- Feiyube awardedIntellectual Property Pilot Unitby the government
- Feiyuqualifiedinnovative enterprisegovernment grant
- FeiyuHaveNational third-level confidentiality qualification
- FeiyuHaveWeapons and equipment scientific research and production license Published by the National Defense Industry Science and Technology Agency
- FeiyuHaveEquipment Contractor Qualifications Authorized by the Equipment Development Department of the Central Military Commission
- Quality Standard:ISO 9001 & GJB 9001 C Military Quality System Certification
- Lifetime Responsibility For product quality
- competitive price: asmanufacturer (factory), Independent research and development, self-production and sales, eliminating the need for intermediate links
- If you don't know how to choose related products, please contact us and tell us your requirements,We can help and recommend the best solution
- In addition to our regular models,customized productToowelcome
Comment
·The quotation here does not include wires and other spare parts (if any) and is for reference only. Final price will be negotiated according to specific requirements and quantity
· For more product information or any questions, please feel free to contact us
