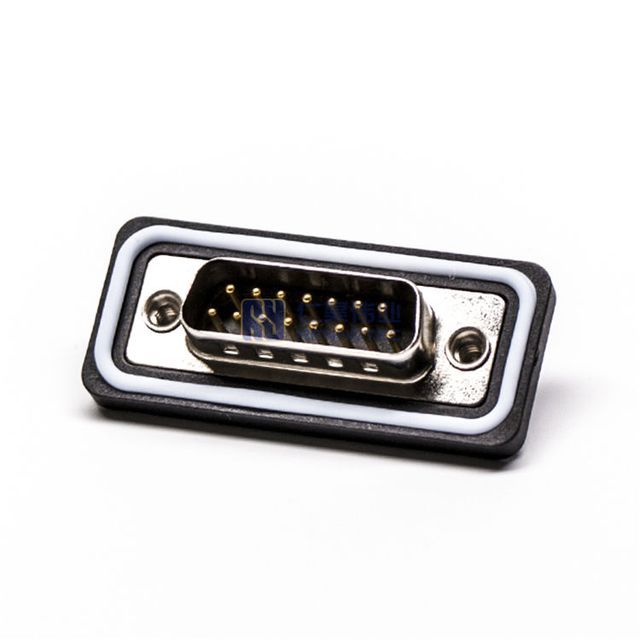

IP67 D-sub waterproof connector Products from Renhao Weiye Technology (wuhan) Co., Ltd.

Product Details

model:	D-SUB database	Number of pins:	A=15 pins/ B=25 pins/ C=37 pins/ D=50 pins/ E=9 pins
port:	Shenzhen or Hong Kong	describe:	D-SUB
Package:	polyvinyl alcohol	Type 2:	Micro-D connectors, mixed contact connectors, standard connectors
gender:	men and women	Supply capacity:	80000 pieces per month
type:	D-Sub adapters, backshells, contacts, dual port connectors, D-Sub standard connectors	direction:	right angle / right angle
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal	Package preview:
Origin:	Guangdong, China	brand:	Renhao Tek
Building materials:	Plastic/Steel/Zinc/Metal	application:	Industrial Process Automation and Control Drivers
Contact resistance:	20 MΩ max.	Contact body material:	Brass/Phosphor Bronze
product name:	D-SUB (D-Subminiature); VGA (Video Graphics Adapter)	letter of credit:	5A & 10-40A

Welcome to Renhao Tech Group Co., Ltd.! Our slogan is to make it easier to connect...

Product Description

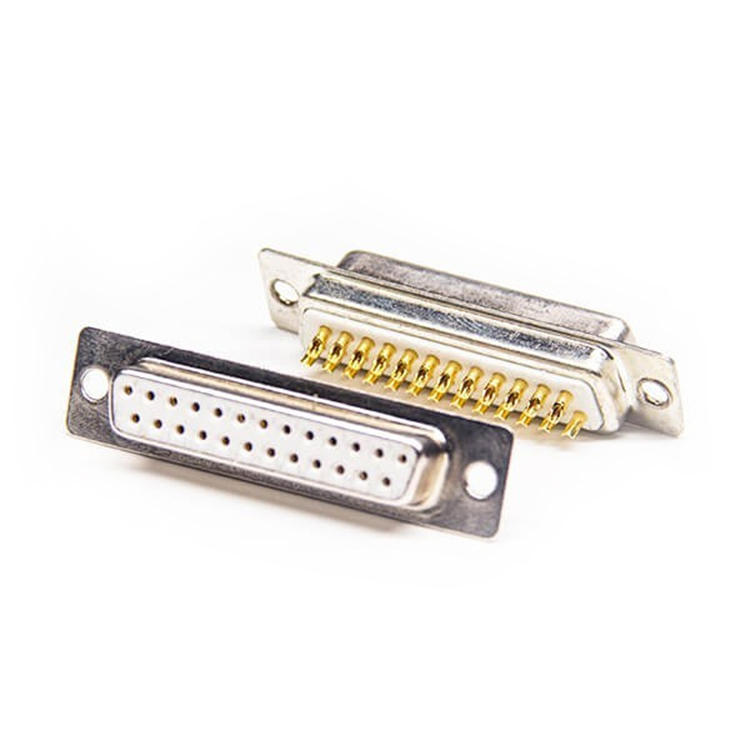

Standard type

Machined Pin Type

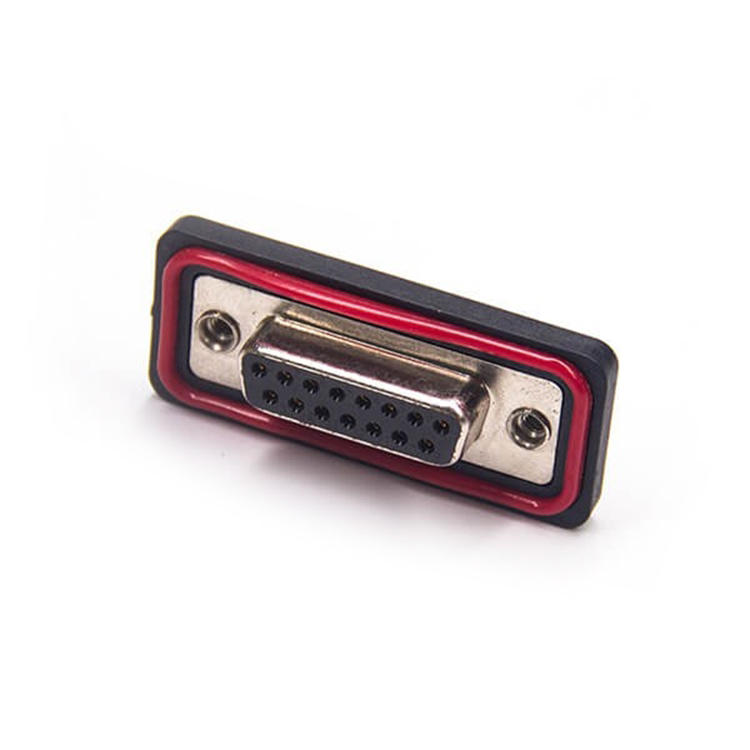

waterproof type

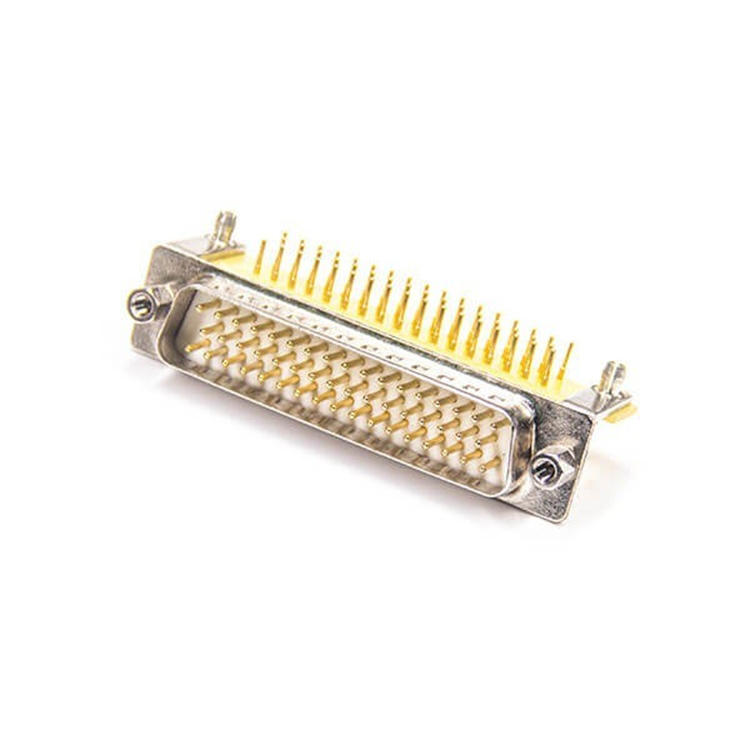

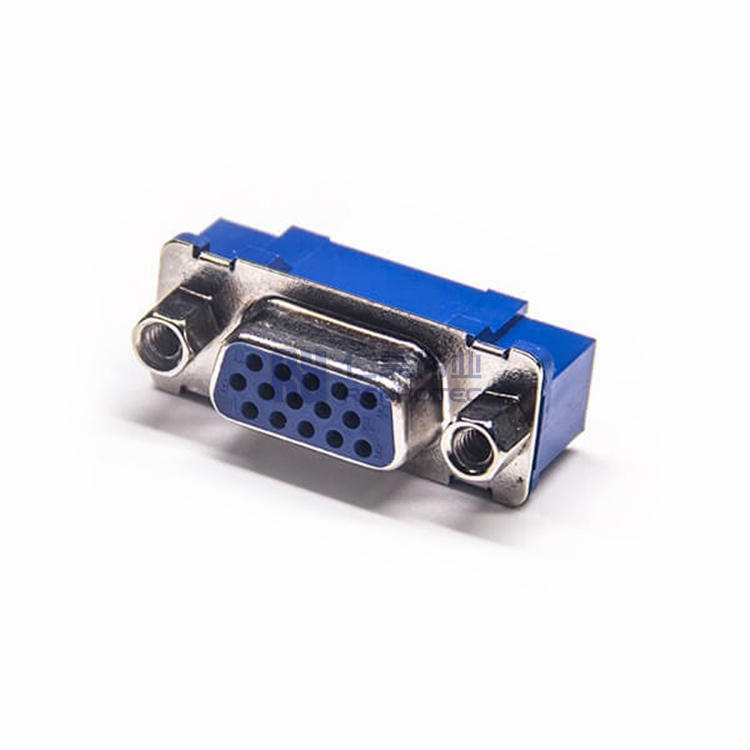

high density

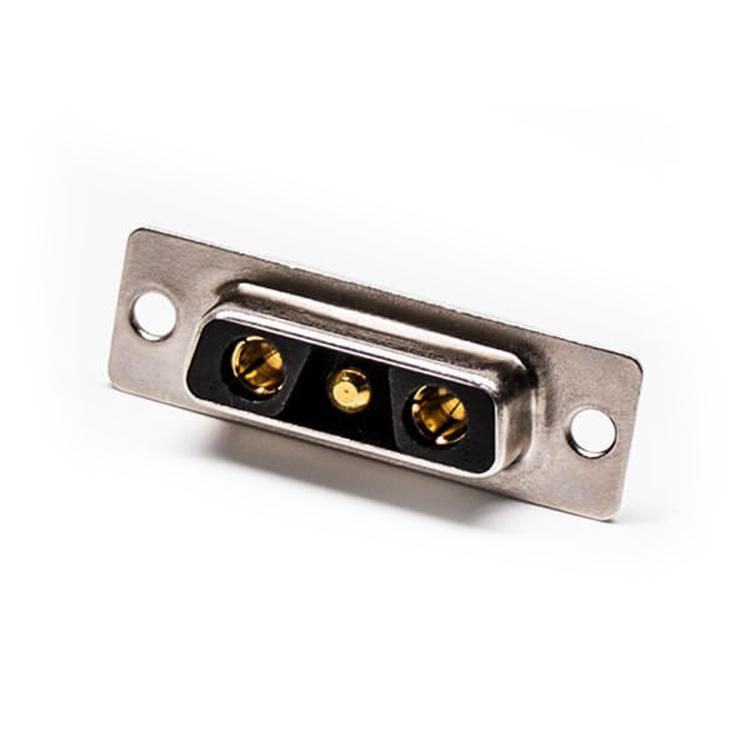

High Power Combined Type

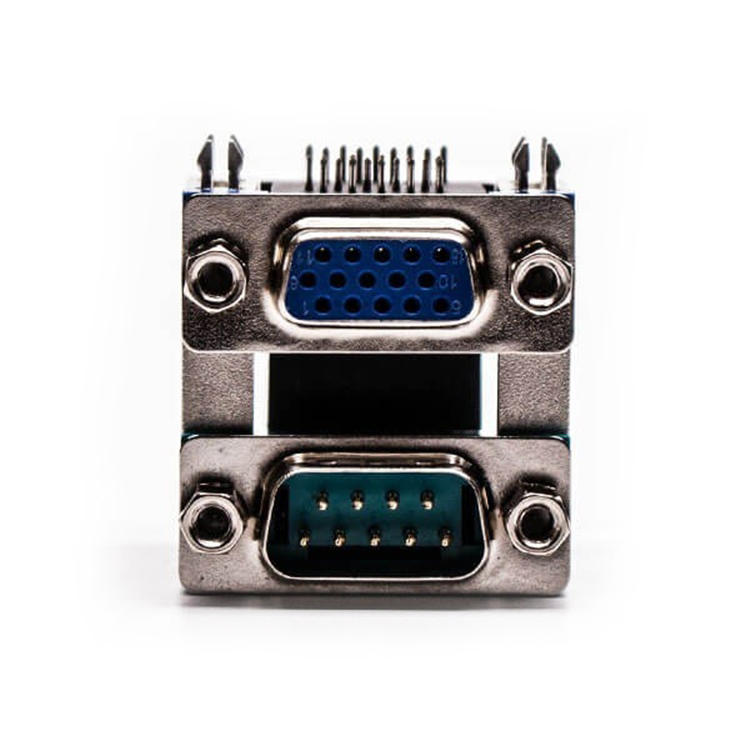

twin type

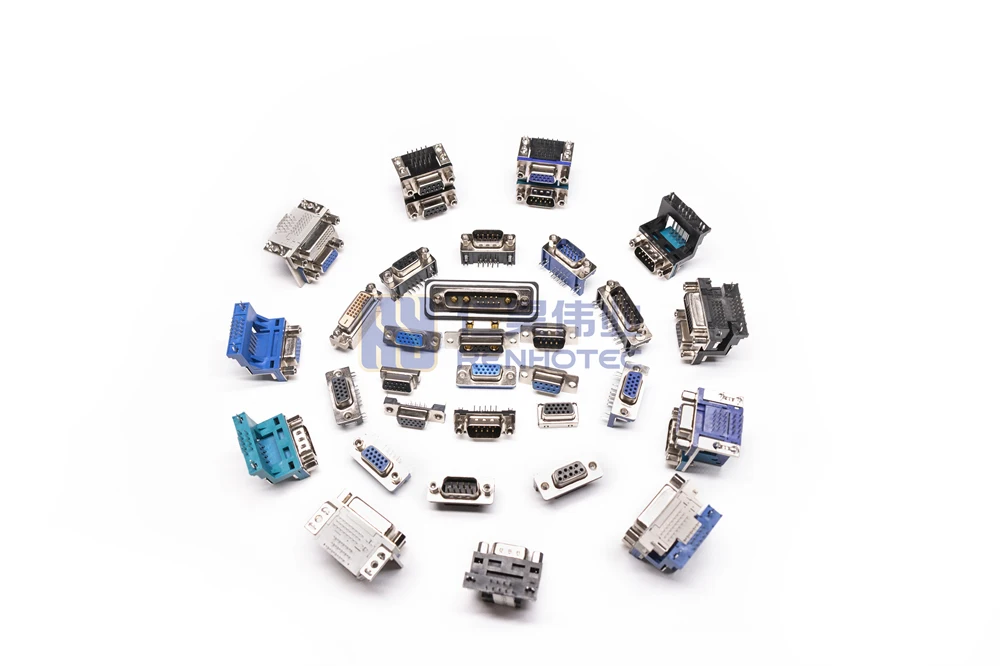

D-subminiatureConnectors are basic input/output connectors with two or more rows of contacts within a "D" shield. Their name comes from these D-shaped shields, which were the smallest communication connectors when they were introduced, and are therefore often referred to as D-subminiature connectors. They are also called DB and D-Sub. Common types of D-sub connectors are DB9 and DB25, used for serial and parallel ports on PCs. Satisfy a variety of applications in telecom, data, consumer, industrial, military, instrumentation, and medical. RENHOTEC offers a wide range of D-Sub connectors to meet various design requirements, including those in harsh environments.

feature:

- Most Popular Rugged I/O Connectors - Features D-Shaped Housing Design - Supports Polarization Needs - Interchangeable and Intermateable with Other Brands - Solder Bucket, Crimp Terminations Available - Supports All Cable Installation Requirements - Various PCB and panel options for mounting accessories - Multiple secure connection options - Meet environmental, health and safety requirements

gender	plug/socket
direction	right angle / right angle
building materials	Plastic/Steel/Zinc/Metal
contact material	Brass/Phosphor Bronze
pin count	A=15 pins/ B=25 pins/ C=37 pins/ D=50 pins/ E=9 pins
Operating temperature	-55℃~125℃
Rated voltage	300V AC/effective value 50Hz
withstand voltage	1000V AC/RMS 50Hz for one minute
Insulation resistance	1000MΩ at 500V DC
Contact resistance	20 MΩ max.
Single Contact Insertion Force	1.19 lbs (0.54 kg) max
Single Contact Pullout Force	0.13 lb (0.06 kg) minimum

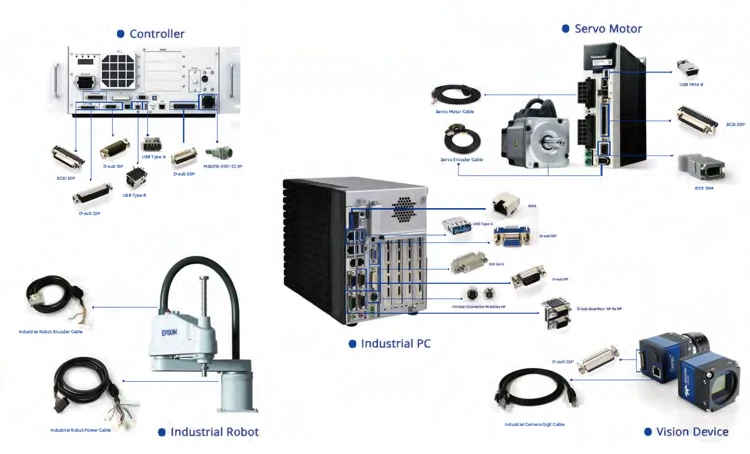

Industry application

- Communications: Asymmetric Digital Subscriber Line (ADSL), Base Stations, Switching, Transport - Data: Desktops & Notebooks, Storage Systems, Routers, and Servers - Consumer: Set Top Boxes - Medical: Medical Devices - Industrial & Instrumentation: Automotive Diagnostics , Control Drives, Energy Meters - Game Consoles, Test Equipment, Office Automation, POS and Handheld Terminals, Power Supplies, Parking Meters, Printers and Copiers, Renewable Energy, Robotics, Surveillance Cameras - Military: Avionics, Military Equipment
