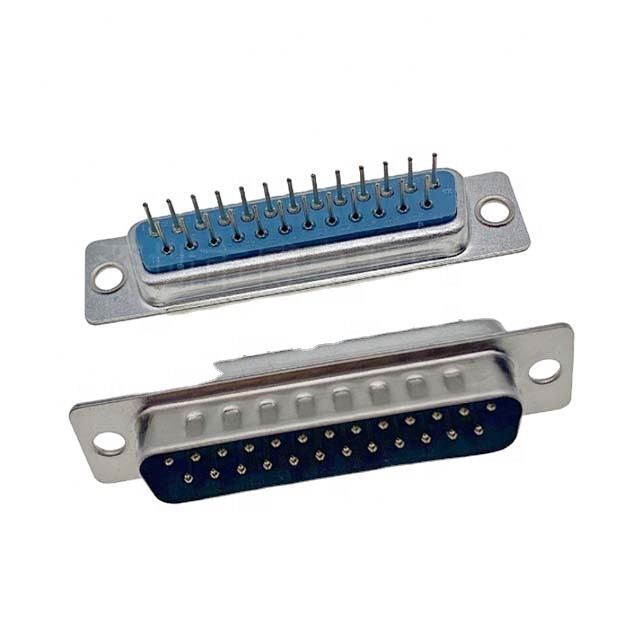

D SUB 25-pin male connector DP25 direct soldering gold-plated
-
Supplier: Shenzhen Yoso Connector Electronics Co., Limited -
Region: Guangdong, China -
Contact: Ms Daisy Dai -
Price: $0.24 / >=1000 pieces -
Min. Order: 1000 pieces
Product details
| model: | DBNM1225G0SUA01 | Insulation Materials: | PBT polyester (UL94V-0) |
| Packaging Details: | PE bag; Tube bag; Tray packing | brand: | Yangshang |
| Insulation resistance: | Minimum 1000mΩ | plating: | gilded |
| Pressure resistance: | 500V AC/DC | Package preview: | |
| Rated current: | 1.0 Amp | port: | Shenzhen; Hong Kong |
| Package: | tray | Supply capacity: | 100000 pieces per day |
| Contact resistance: | 30mΩ max. | Contact pin: | 09,15,25.37pins |
| describe: | D-SUB connector | type: | D-Sub standard connector |
| Origin: | Guangdong, China | Contact materials: | Phosphor bronze or brass |
| shell material: | steel | Certificate: | ISO9001/ROHS/REACH/MSDS |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Product Description
product information
| product name | DB9 male serial port connector IDC crimp D-SUB connector |
| Insulator color | blue |
| Contact Plating | gilded |
| Shell Plating | nickel plated |
| Insulation Materials | PBT polyester (UL94V-0) |
| terminal material | Phosphor bronze or brass |
| current rating | 1 amp |
| Contact resistance | 30mΩ max. |
| withstand voltage | 1000V AC/DC |
| Insulation resistance | Minimum 1000mΩ |
| Operating temperature | -55C to +105C |
| Encapsulation | PE bag; Tube bag; Tray packing |
| OEM/Design and Manufacturing | Can produce drawings or samples |
| sample | Provide free samples for testing |
| MOQ | 500 |
| delivery time | 1~2 weeks |
