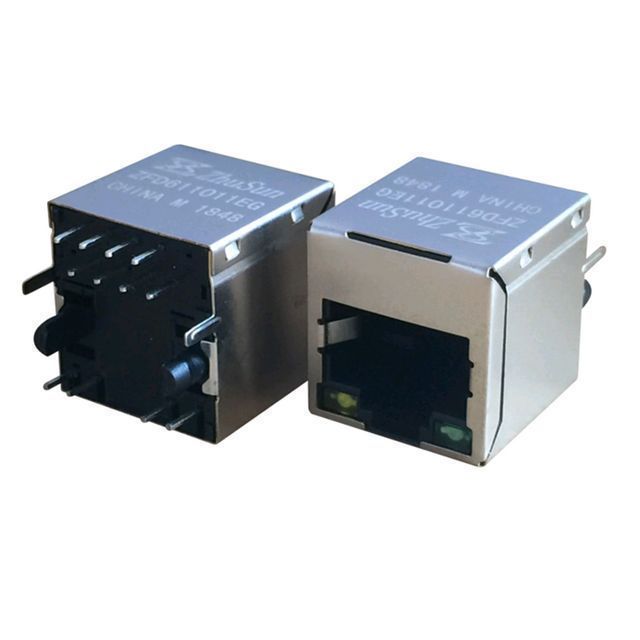

One Port 10/100 Base-T 8 Pin RJ45 JACK Vertical RJ45 Connector HY951180A
-
Supplier: Yueqing Zhusun Electronics Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Leo wang -
Price: $0.10 /piece -
Min. Order: 1 piece
Product details
| Contact Plating: | the gold | Pack: | tray |
| Supplier type: | original design manufacturer | Pin or socket: | socket |
| Supply capacity: | 1,200,000 pieces per month | model: | HY951180A |
| Certificate: | ISO9001/ROHS/CE/FCC | place of origin; place of origin: | Zhejiang, China |
| Application speed: | 10/100 Base-T, AutoMDIX | Packaging Details: | Packing: 120 pcs per pallet, 9 pallets per carton, namely 33*33*21 cm, 8KGS per carton (1080 pcs) |
| LED color: | yellow-green | Cross reference: | HR951180A |
| impedance: | 75 ohms | Interface Type: | RJ45 |
| Media available: | HY951180A | brand: | Zhu Sun |
| Number of ports: | 1 port, 1 | application: | A printed circuit board |
| Specification: | HY951180A | Payment/Payment: | 20XX |
| Head style: | RJ45 | shield: | shield |
| gender: | female | direction: | vertical |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Types of: | RJ45, headers and PCB sockets, circular connectors, terminal connectors |
| port: | Shanghai/Ningbo/Shenzhen/Hong Kong/Tianjin/Beihai/Nanjing/Guangzhou/Qingdao | describe: | RJ45 jack |

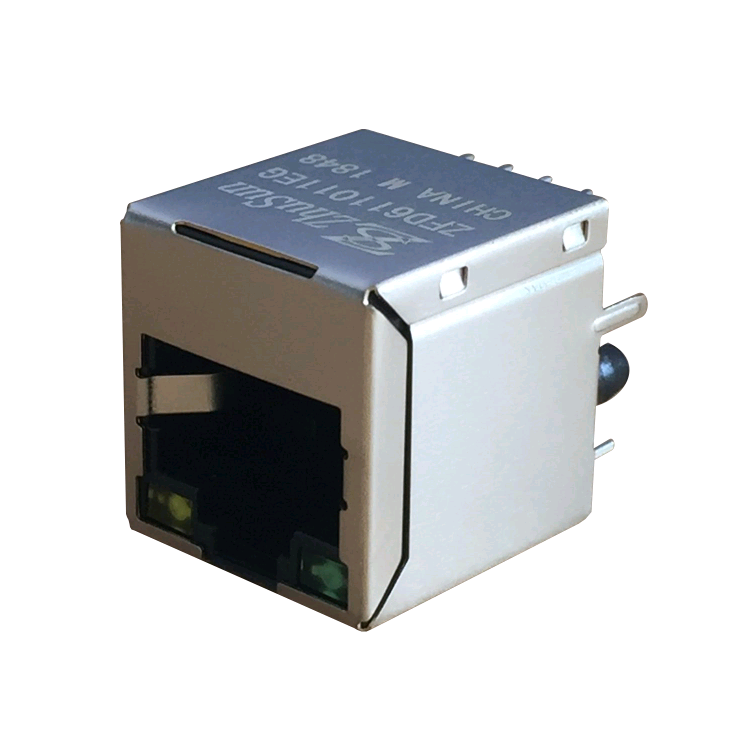

Single Port 10/100 Base-T 8 Pin RJ45 JACK Vertical RJ45 Connector HY951180A
all categories
Related Products
If you don't see what you need, please don't leave and send us a product request, part number or data sheet.
We provide various network interface solutions online 24 hours a day.
Product Description
| category | Connectors, Interconnects |
| Modular Connectors - Magnetic Jacks | |
| Application LAN | Ethernet (non-POE) |
| connector type | RJ45 |
| Number of positions/contacts | 8p8c |
| Number of ports | 1x1 |
| application speed | 10/100 Base-T, AutoMDIX |
| installation type | through hole |
| direction | vertical |
| termination | welding |
| height above board | 0.665" (16.90mm) |
| LED color | yellow-green |
| shield | shield |
| feature | Board Guidelines |
| contact material | Phosphor bronze |
| Pack | tray |
| Operating temperature | -40°C ~ 85°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| shielding material | brass |
| building materials | thermoplastic |
| RoHS Compliant | YES-RoHS-5 Leaded Solder Exemption |
|
